Brake Rotor Reverse AirCon 160mm Black

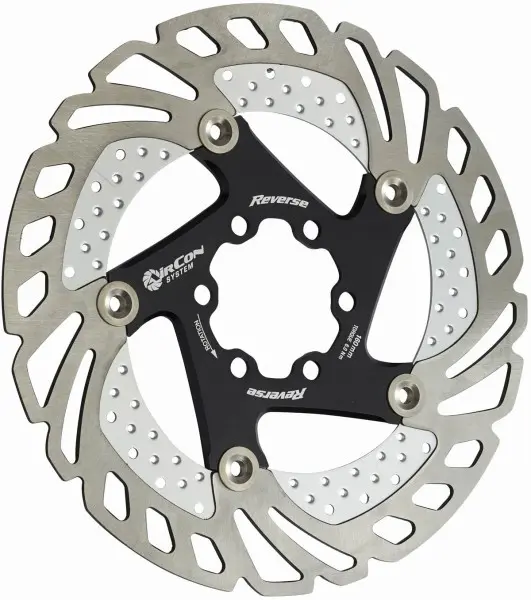

Reverse AirCon Disc Rotor 160mm 6-Bolt, Black

The AirCon is Reverse's three-piece cooling rotor. A steel braking ring on an aluminium carrier, with aluminium cooling fins to pull heat out of the brake. In Reverse's own testing it ran 50°C cooler after a minute of braking and got back to room temperature 20 seconds sooner. Less heat means less fade on long descents.

This one is 160mm, 6-bolt IS mount, 1.8mm thick, anodised black with laser-engraved graphics. Reverse say it suits all brakes, except it won't clear a Fox 32 with a QR15 x 100 axle. Reverse also make AirCon pads to go with it. Not sure it fits your bike? Talk to us and we'll check.

Colour: Black.

Key Features

• Three-piece rotor with aluminium cooling fins
• Steel braking surface on an aluminium carrier
• Reverse measured 50°C lower peak temperature after one minute of braking
• 6-bolt IS mount, 1.8mm thick
• Anodised black, laser engraved

Specifications

• Diameter: 160mm
• Mount: 6-bolt (IS)
• Thickness: 1.8mm
• Material: Steel braking ring, aluminium cooling fins and carrier
• Weight: 126g (+/- 5%)
• Compatibility: All brakes, except Fox 32 with QR15 x 100 axle
• Colour: Black
• Part number: 01896

Specs can change without notice from Reverse Components.
