Carbon E-Bar

OneUp Carbon E-Bar

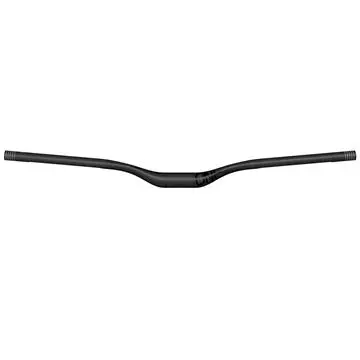

An 800mm carbon riser bar made for e-MTBs. It has holes and a channel under the grip, so the cable from your motor remote can run inside the bar instead of wrapping round it.

The centre section is oval shaped to give a bit of vertical flex for comfort on long rides, while keeping the bar stiff for steering. Tested to the Zedler E-MTB Advanced Plus and international DH standards.

Internal routing works with Shimano STEPS and other remotes, but not Specialized, Bosch or Rocky Mountain remote cables. It doesn't suit bar ends or grips with an outer clamp. Not sure it fits your bike? Talk to us and we'll check.

Colour: Black.

Key Features

• Carbon riser bar made for e-MTBs
• Internal routing for remote cables
• Oval centre section for comfort
• Cut marks to trim down to 740mm
• 238g at 800mm
• Tested to Zedler E-MTB Advanced Plus and DH standards

Specifications

• Width: 800mm
• Minimum cut width: 740mm
• Rise: 35mm
• Clamp: 35mm
• Backsweep: 8 degrees
• Upsweep: 5 degrees
• Material: Carbon
• Weight: 238g (800mm)
• Cable routing: Internal, works with Shimano STEPS and other remotes. Not Specialized, Bosch or Rocky Mountain remotes
• Not compatible with: Bar ends, grips with an outer clamp

Specs can change without notice from OneUp.
