Clip Pedals

OneUp Clip Pedals

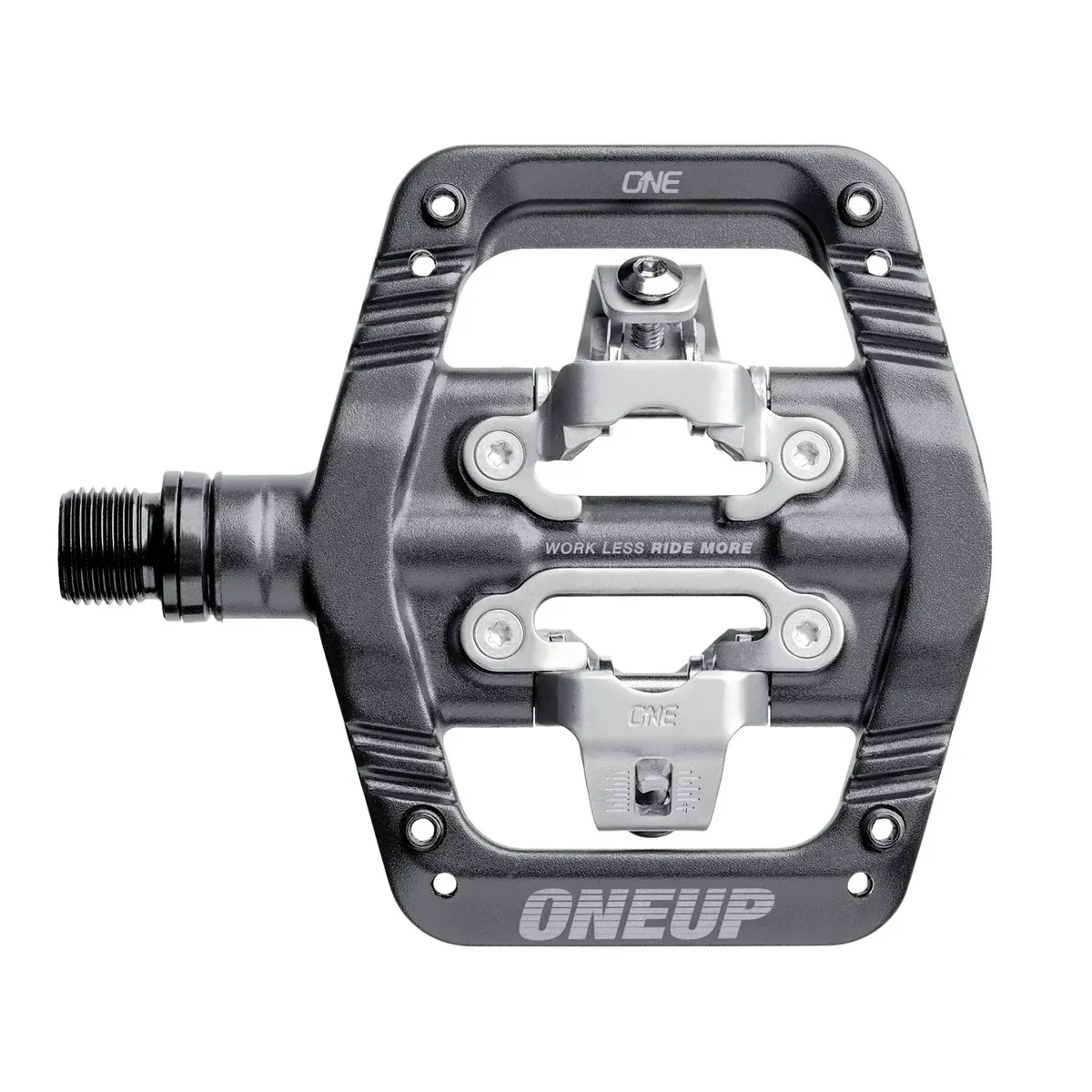

An SPD compatible clip pedal with a large 80 x 90mm platform to support your shoe once you're clipped in. Light enough for cross country, tough enough for trail and gravity riding.

Stainless steel binding with 5 degrees of float and a wide range of release tension. Four removable pins per side let you tune the grip, or run it without them. Cleats, cleat spacers and a bearing nut tool are in the box.

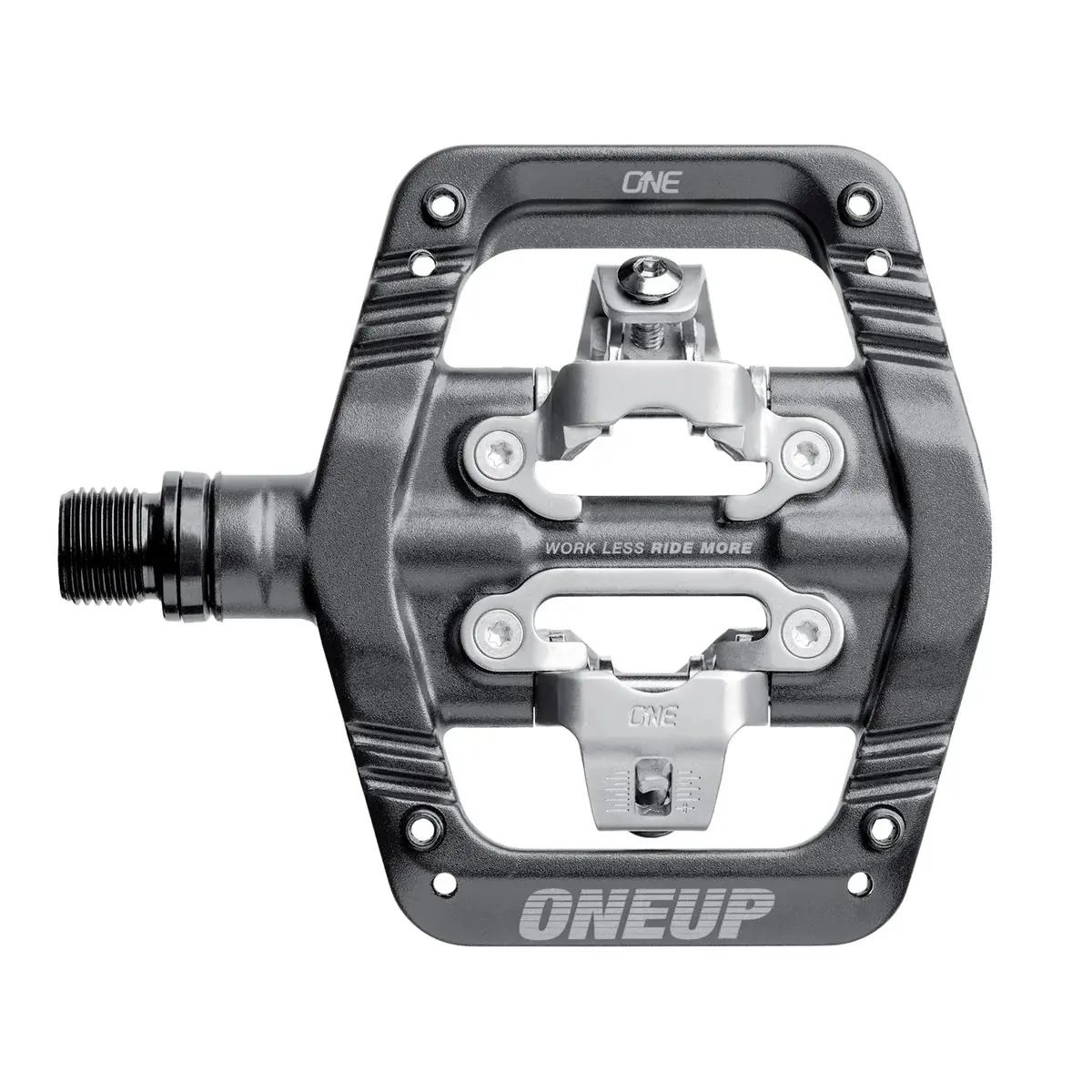

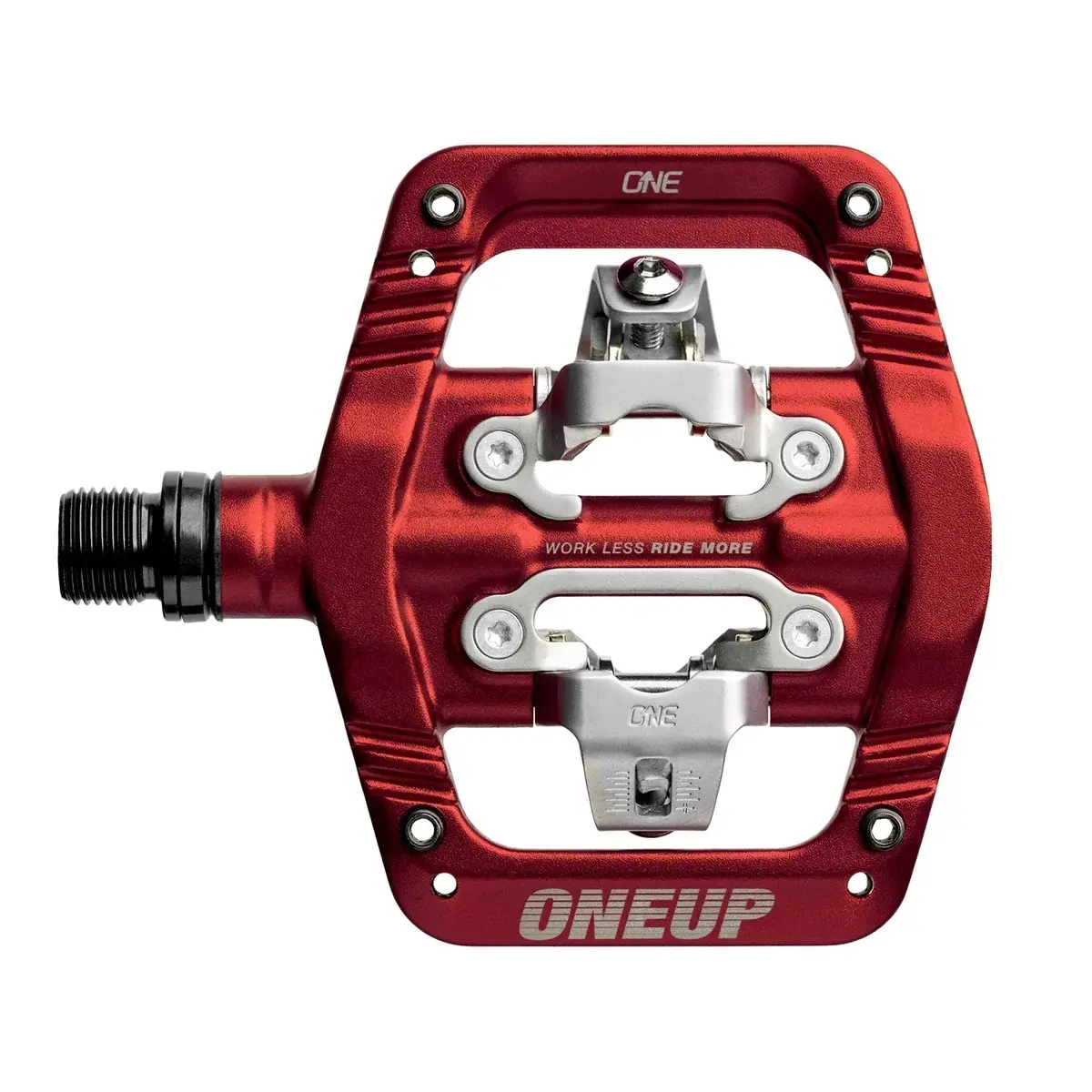

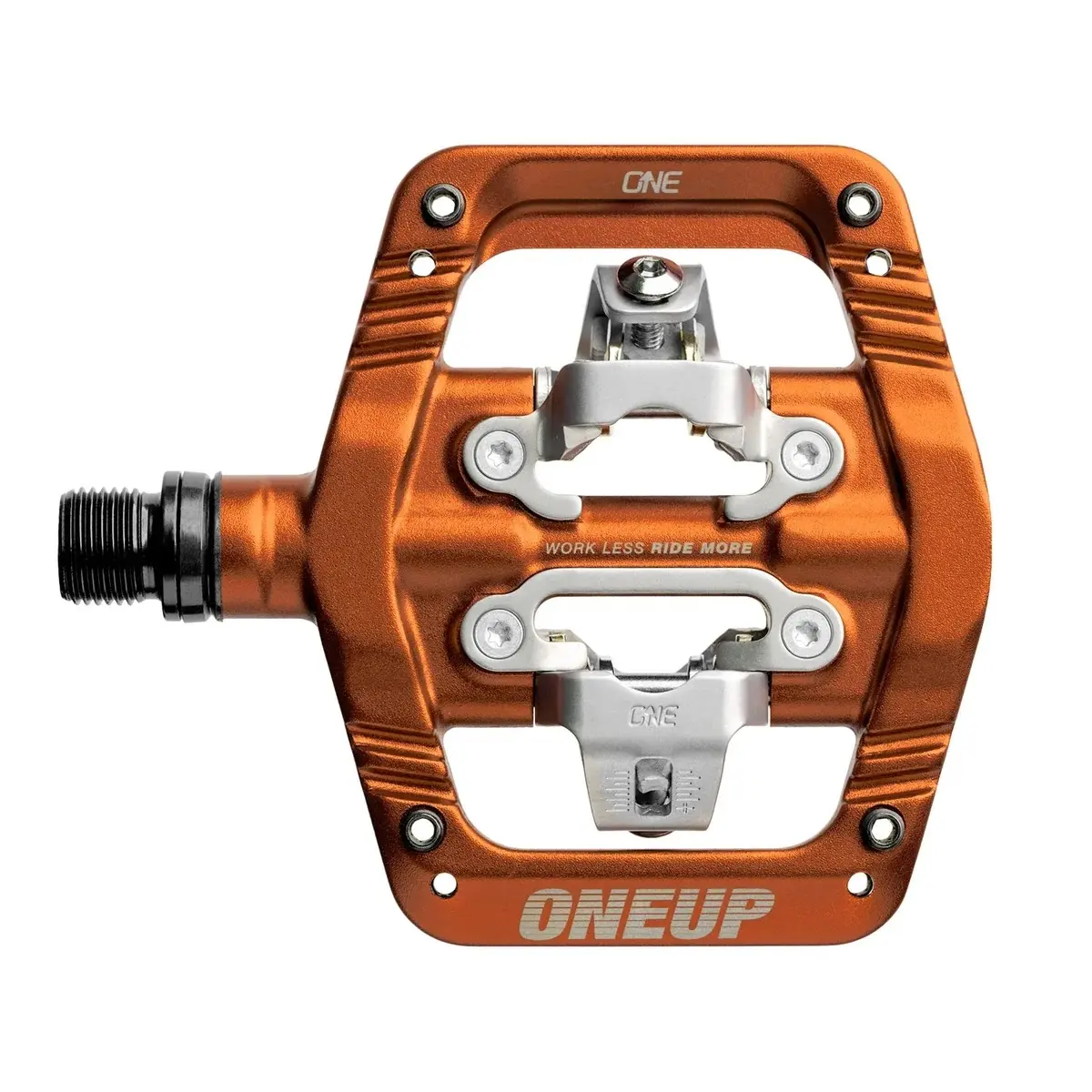

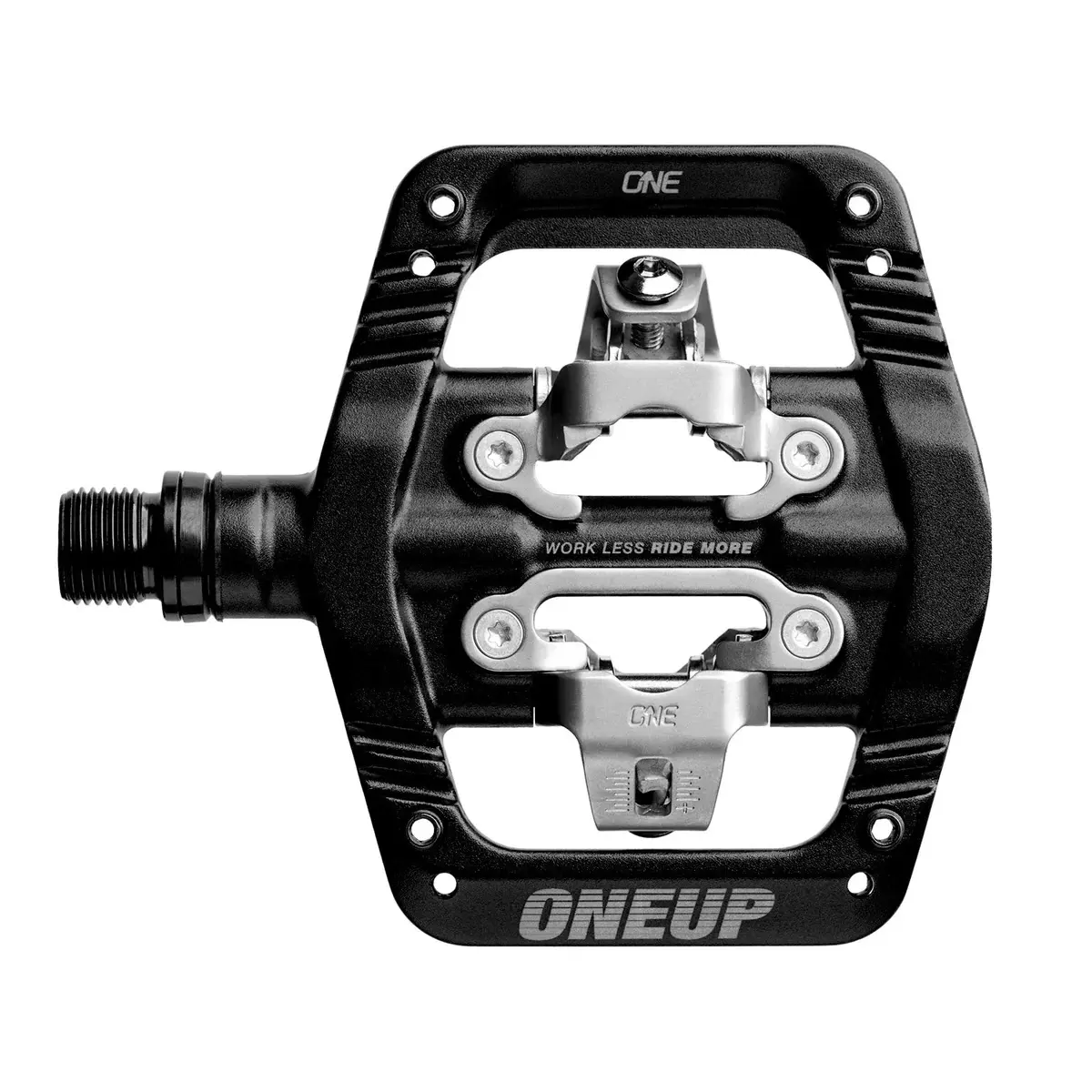

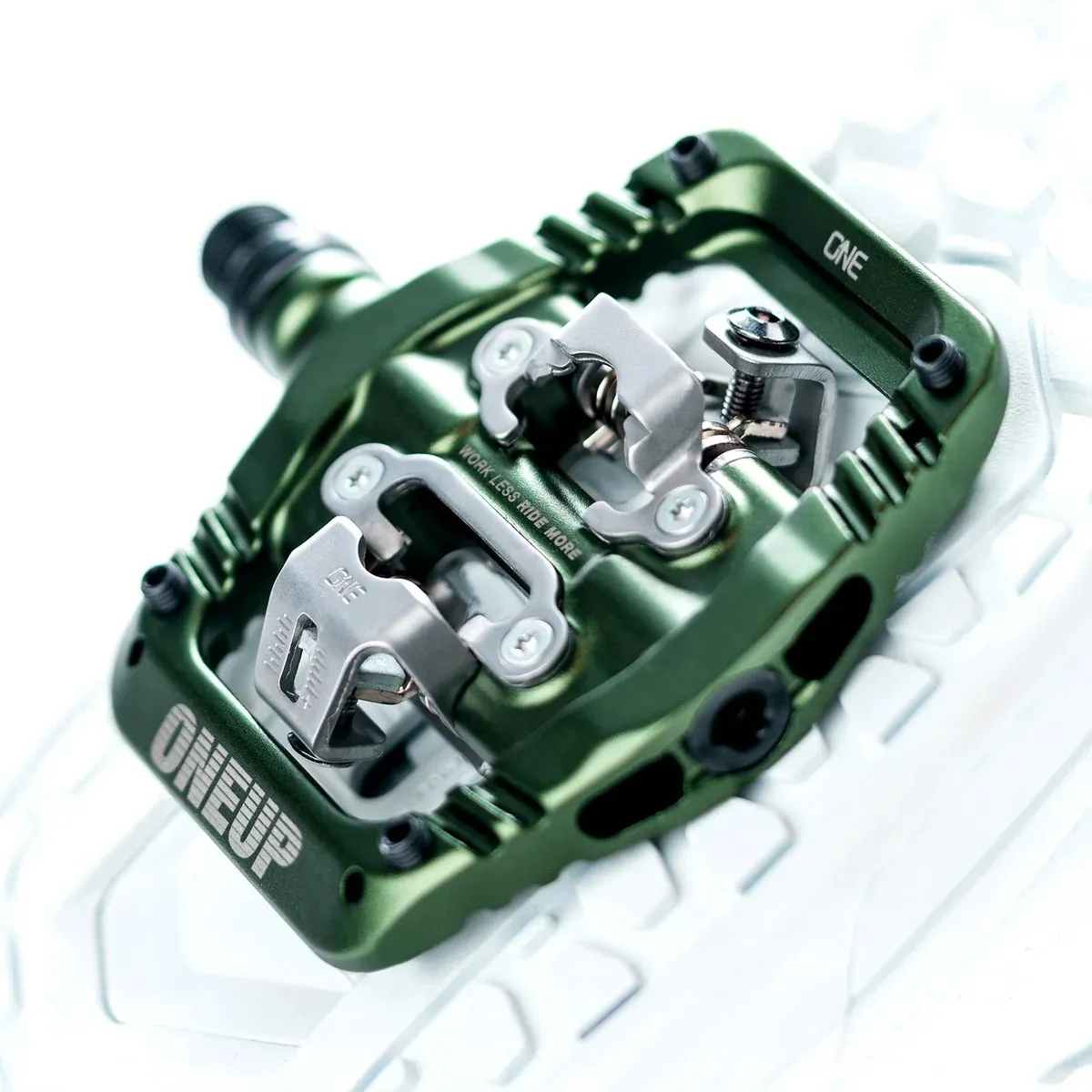

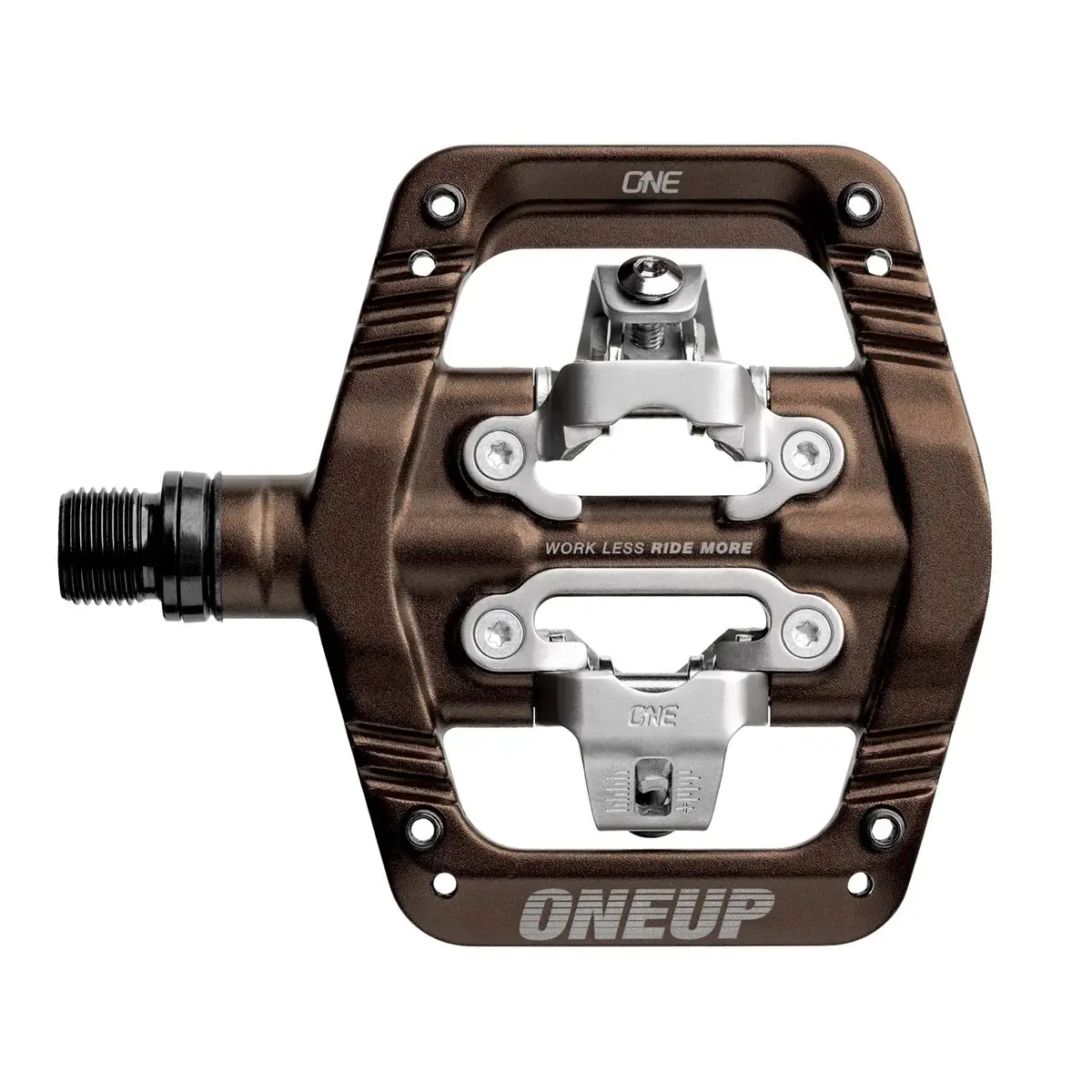

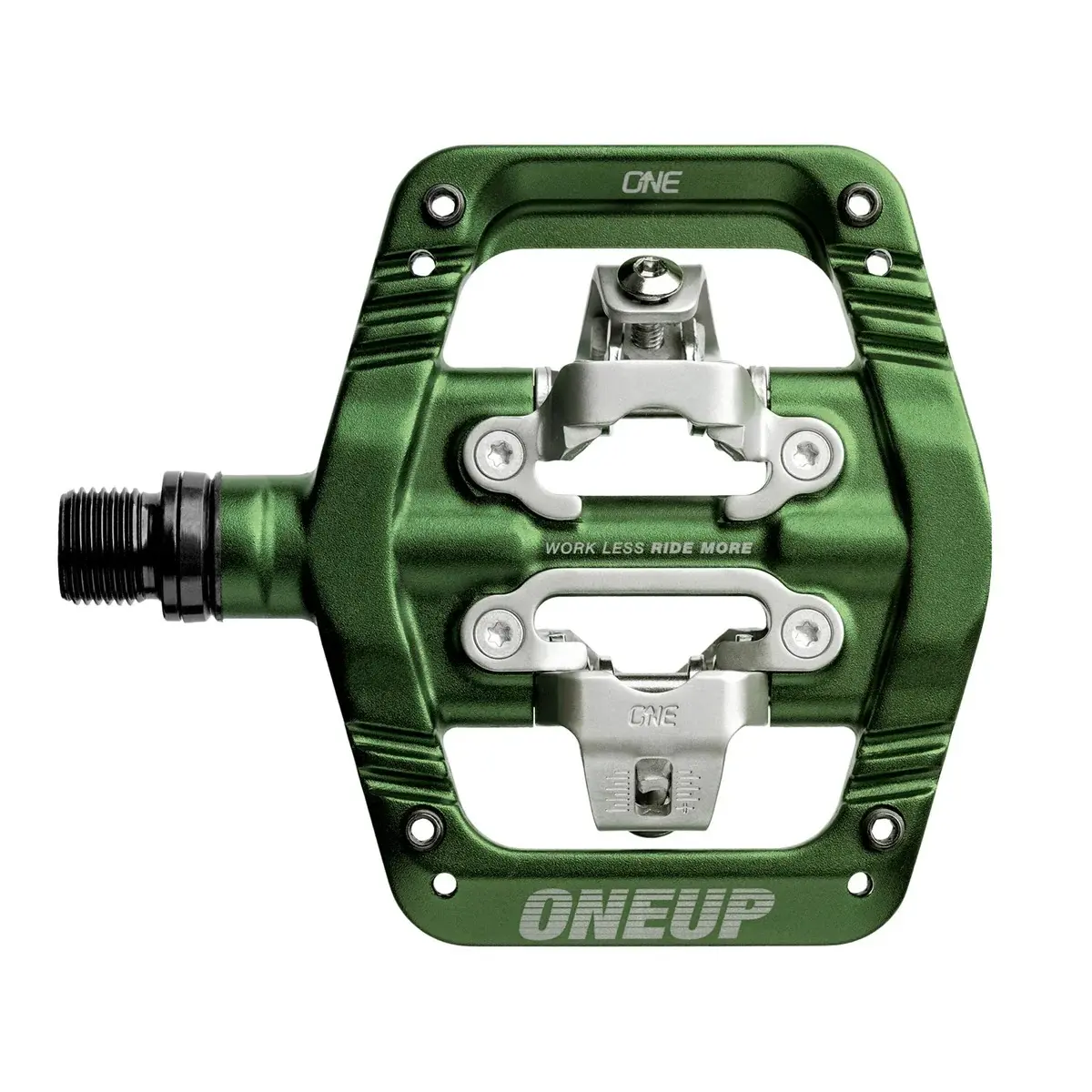

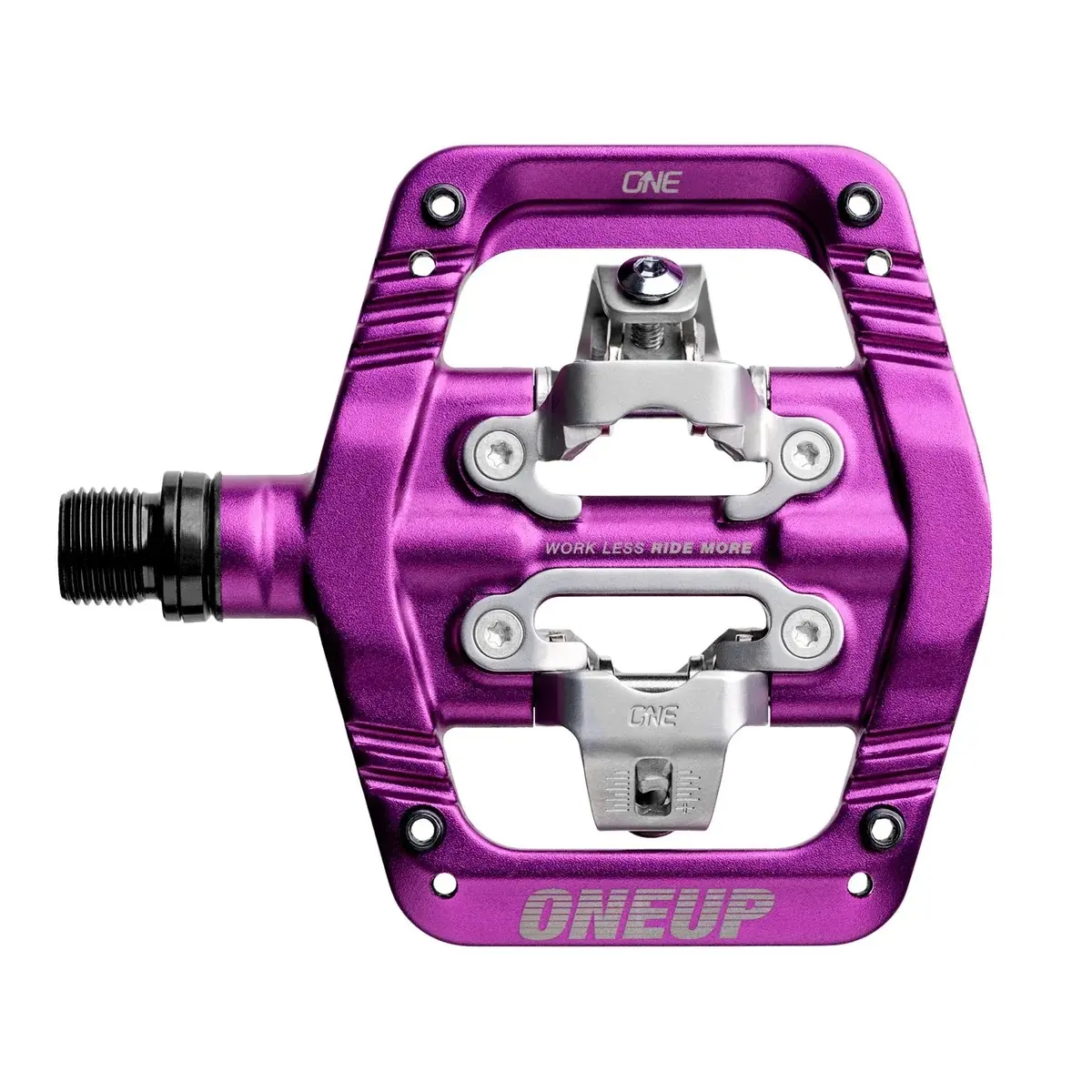

Colours: Black, Bronze, Dark Blue, Dark Green, Grey, Orange, Purple, Red.

Key Features

• SPD compatible stainless steel binding
• 5 degrees float, 12 degree release angle
• 80 x 90mm platform
• 4 removable hollow pins per side
• igus bushing and 3 sealed cartridge bearings
• 410g a pair with pins
• 2 year OneUp warranty

Specifications

• Platform size: 80 x 90mm (W x L)
• Thickness: 14.4mm body, 26.8mm at the binding
• Stance width: 57.5mm, centre of clip to outside of crank face
• Float: 5 degrees, 12 degree release angle
• Cleats: SPD compatible. Works with OneUp cleats and Shimano SH51 cleats
• Bearings: Inboard igus bushing and 3 outboard sealed cartridge bearings
• Axle: Chromoly steel, black ED coating
• Pins: Hollow M5 x 8mm, self cleaning, 4 per side
• Weight: 410g (pair, with pins)
• Warranty: 2 years

In the Box

• Pair of pedals (left and right)
• 4 pins fitted per side
• OneUp cleats with hardware
• Cleat spacers
• Pedal bearing nut tool

Specs can change without notice from OneUp.
