DT Swiss - H 1900 27.5" Wheels (2022)

DT Swiss H 1900 Spline 27.5 inch E-MTB Wheel

The DT Swiss H 1900 Spline is an aluminium wheel made for e-MTBs. Sold as single wheels, front or rear, in 27.5 inch with a 30mm rim and 6-bolt disc mounts.

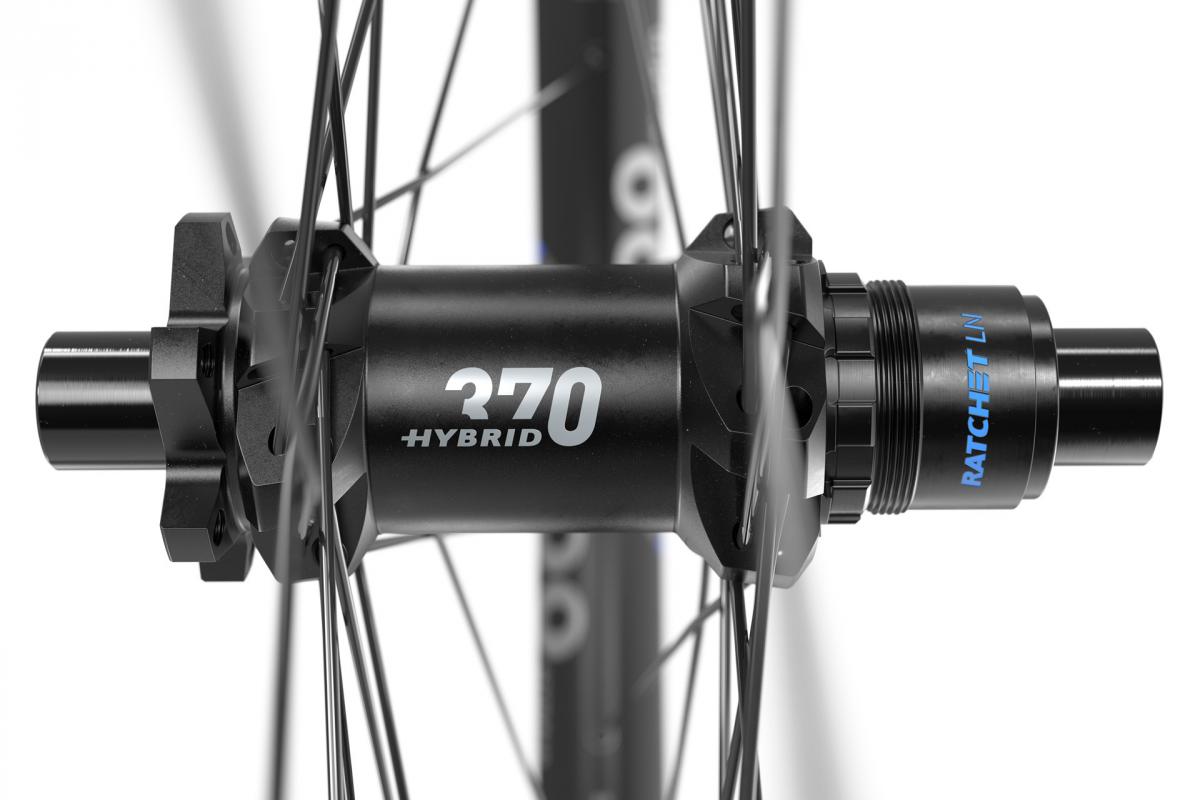

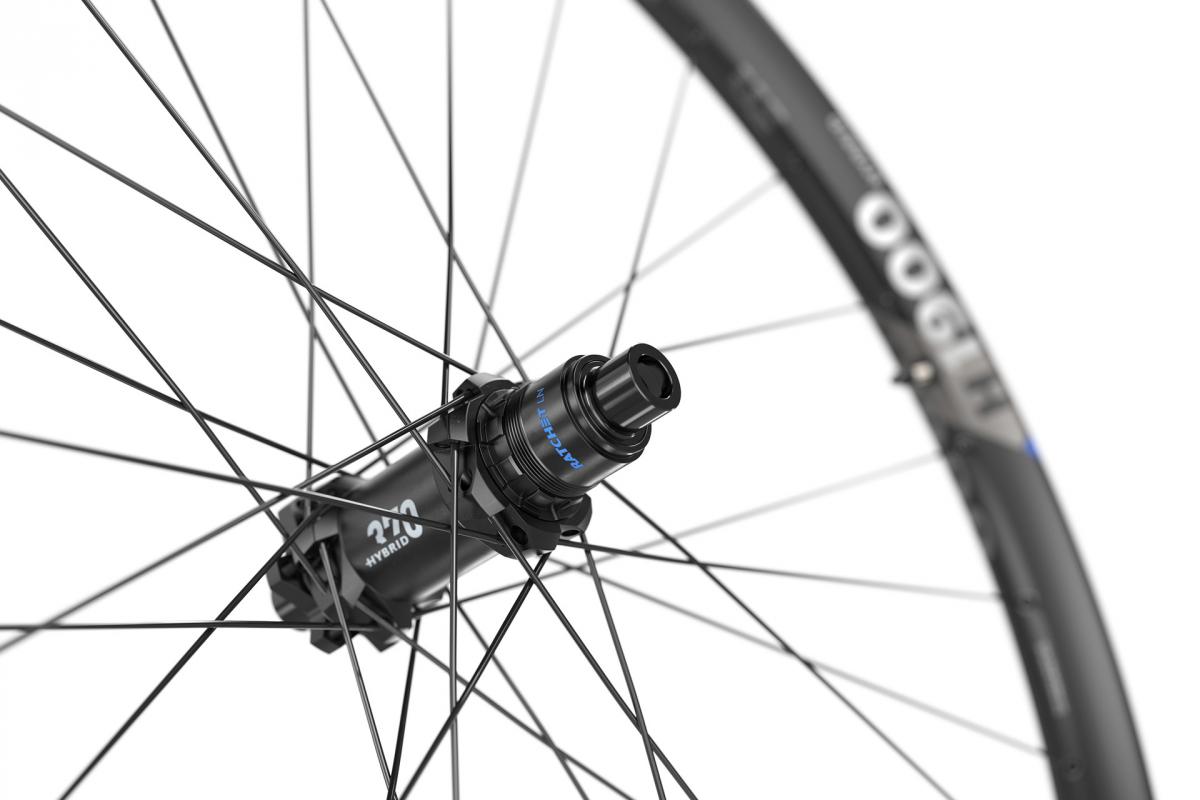

It runs the 370 hub with the Ratchet LN freehub system. DT Swiss say it spreads the combined load from rider and motor over a larger area than their previous pawl freehubs, which keeps load peaks down. The freehub bodies use hardened steel cassette splines for the higher loads on e-bikes. Reinforced DT hybrid 1 straight pull spokes add lateral and torsional stiffness. Spline builds use straight pull spokes.

The front is 15 x 110mm Boost. Rears are 12 x 148mm Boost with Shimano Micro Spline, Shimano HG or SRAM XD freehub bodies. Max system weight is 150kg. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• Aluminium e-MTB wheel, 30mm inner width
• Hooked tubeless ready rim
• 370 hub with Ratchet LN 18 freehub system
• Hardened steel freehub bodies
• DT hybrid 1 straight pull spokes
• Boost, 6-bolt disc
• Sold as single wheels, front or rear

Specifications

• Use: E-MTB
• Wheel size: 27.5 inch (650B)

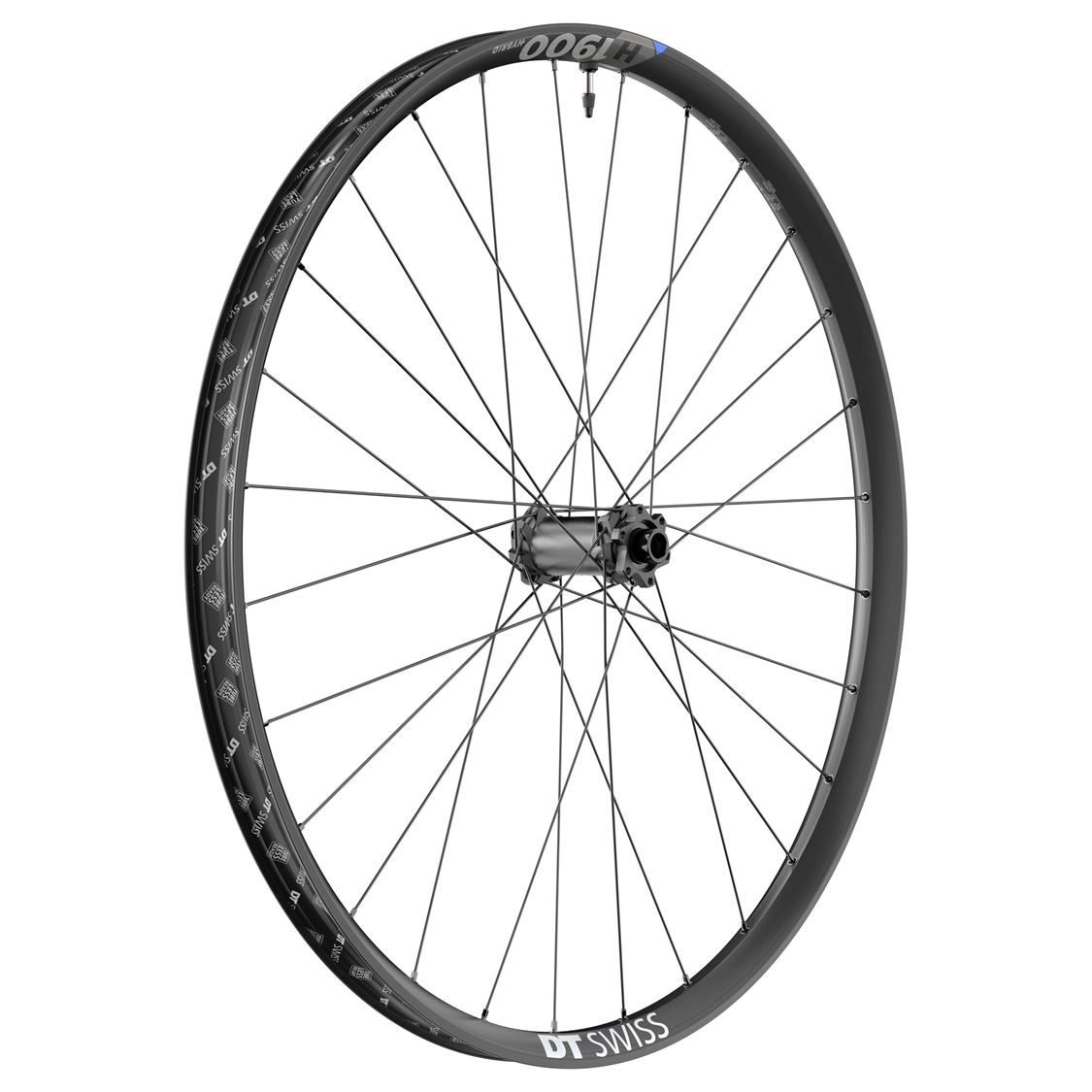

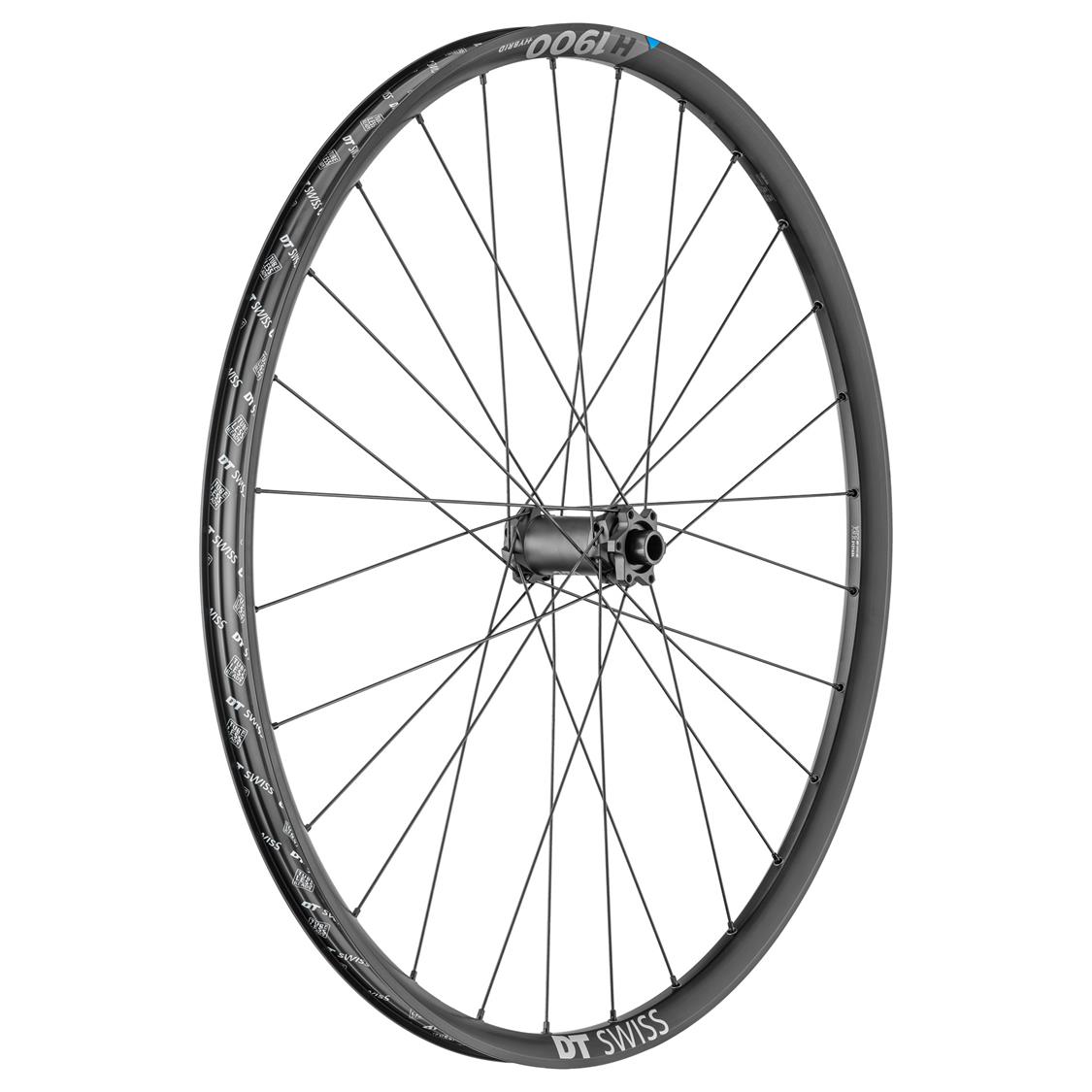

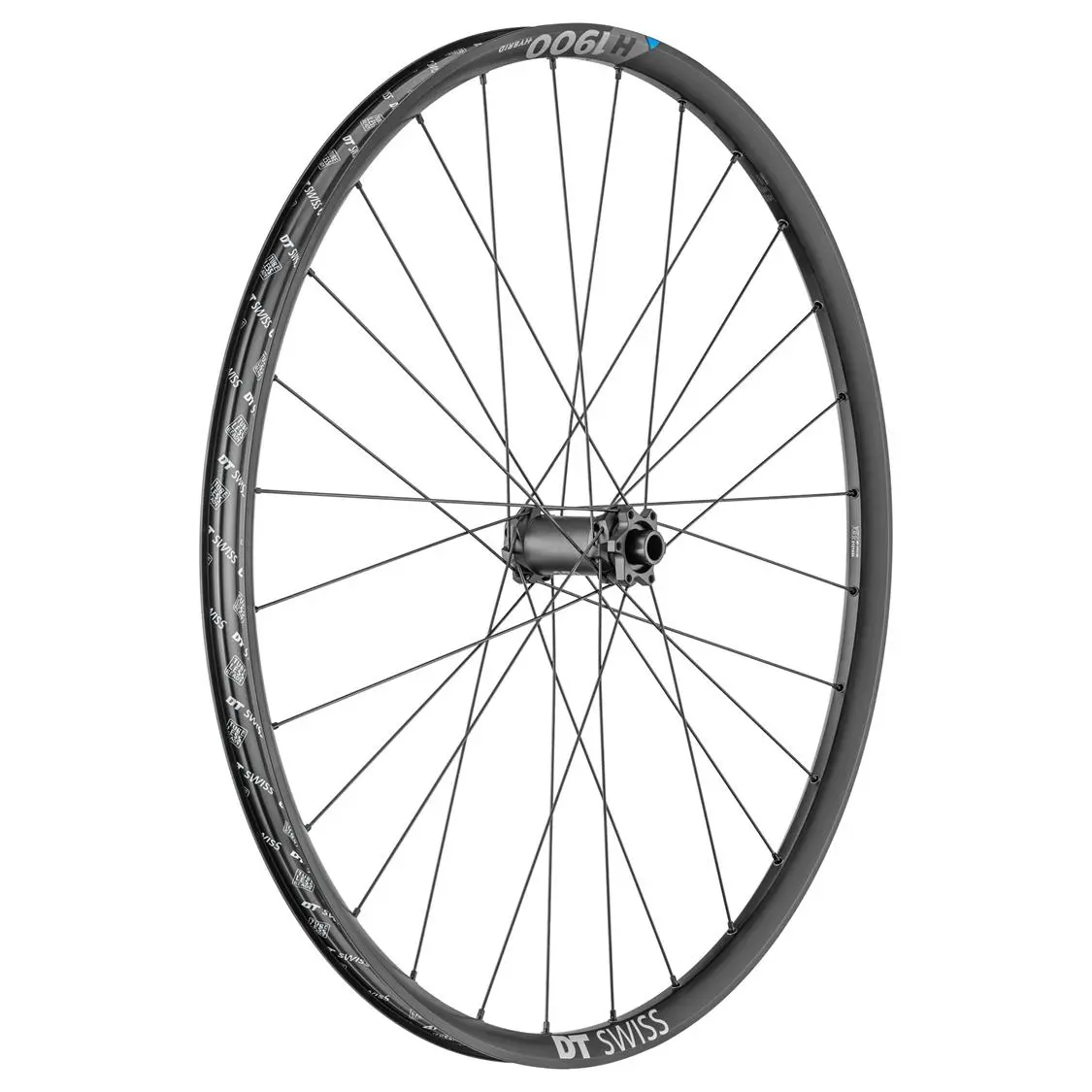

• Front: 15 x 110mm Boost, IS 6-bolt

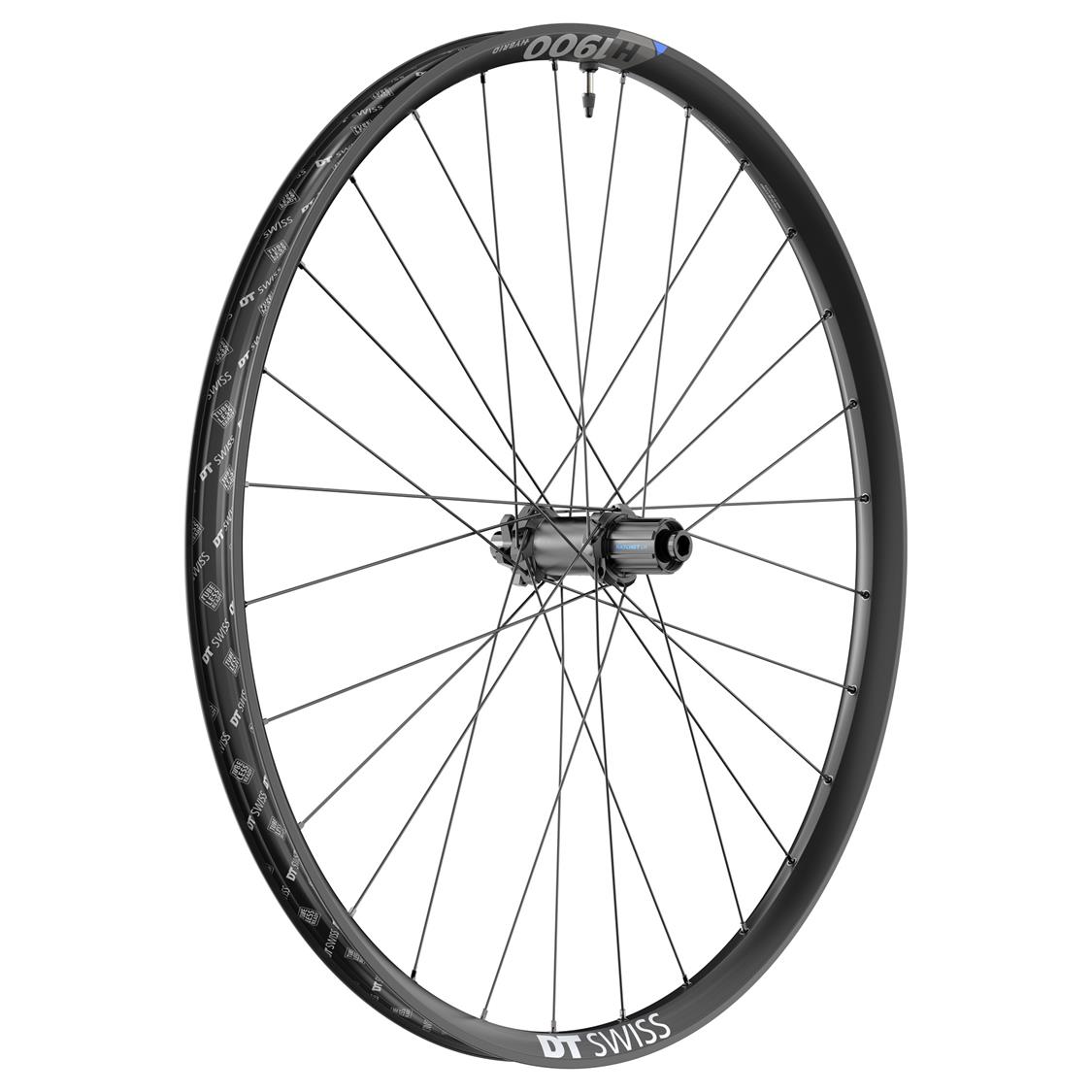

• Rear options: 12 x 148mm Boost, IS 6-bolt, Shimano Micro Spline, Shimano HG or SRAM XD (steel)

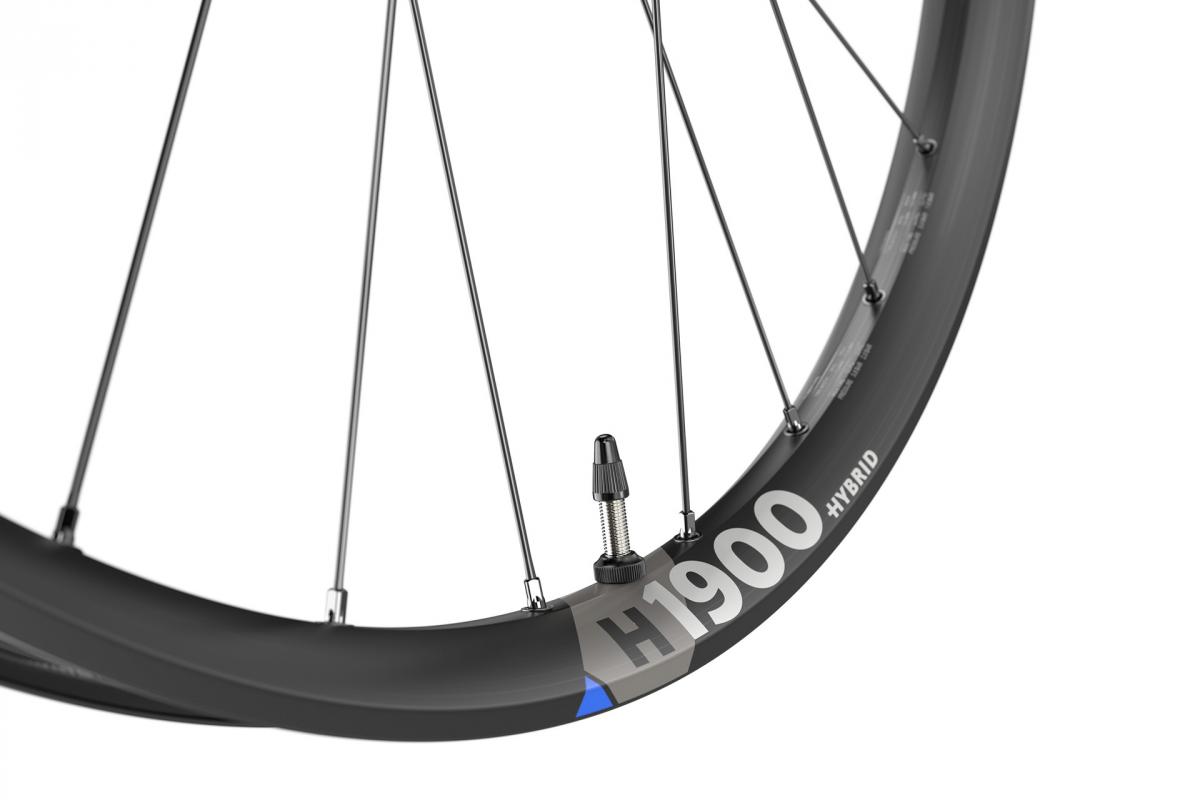

• Rim: Aluminium, sleeve joint, hooked tubeless ready (TC)
• Inner width: 30mm
• Outer width: 35mm
• Rim height: 20mm
• Hub: DT Swiss 370
• Freehub system: Ratchet LN 18
• Spokes: DT hybrid 1 straight pull, three-cross
• Nipples: DT ProLock Squorx ProHead aluminium
• Weight, front: 973g
• Weight, rear: 1122g Micro Spline, 1140g HG, 1109g XD
• Max system weight: 150kg
• ASTM classification: 4
• E-bike use: Approved by DT Swiss

In the Box

• Tubeless tape 32mm
• Tubeless valve MTB 32mm

Specs can change without notice from DT Swiss.
