DT Swiss - HX 1700 29" Wheels (2026)

$714.90

Available Online
In Store call for Availability

DT Swiss HX 1700 Spline 29 inch Wheel

The HX 1700 Spline is DT Swiss's aluminium e-MTB wheel. Asymmetric welded rims, reinforced DT hybrid 2 spokes and a 350 hub, built to take the extra torque and weight of a modern e-bike. Sold as single wheels, front or rear, in 29 inch.

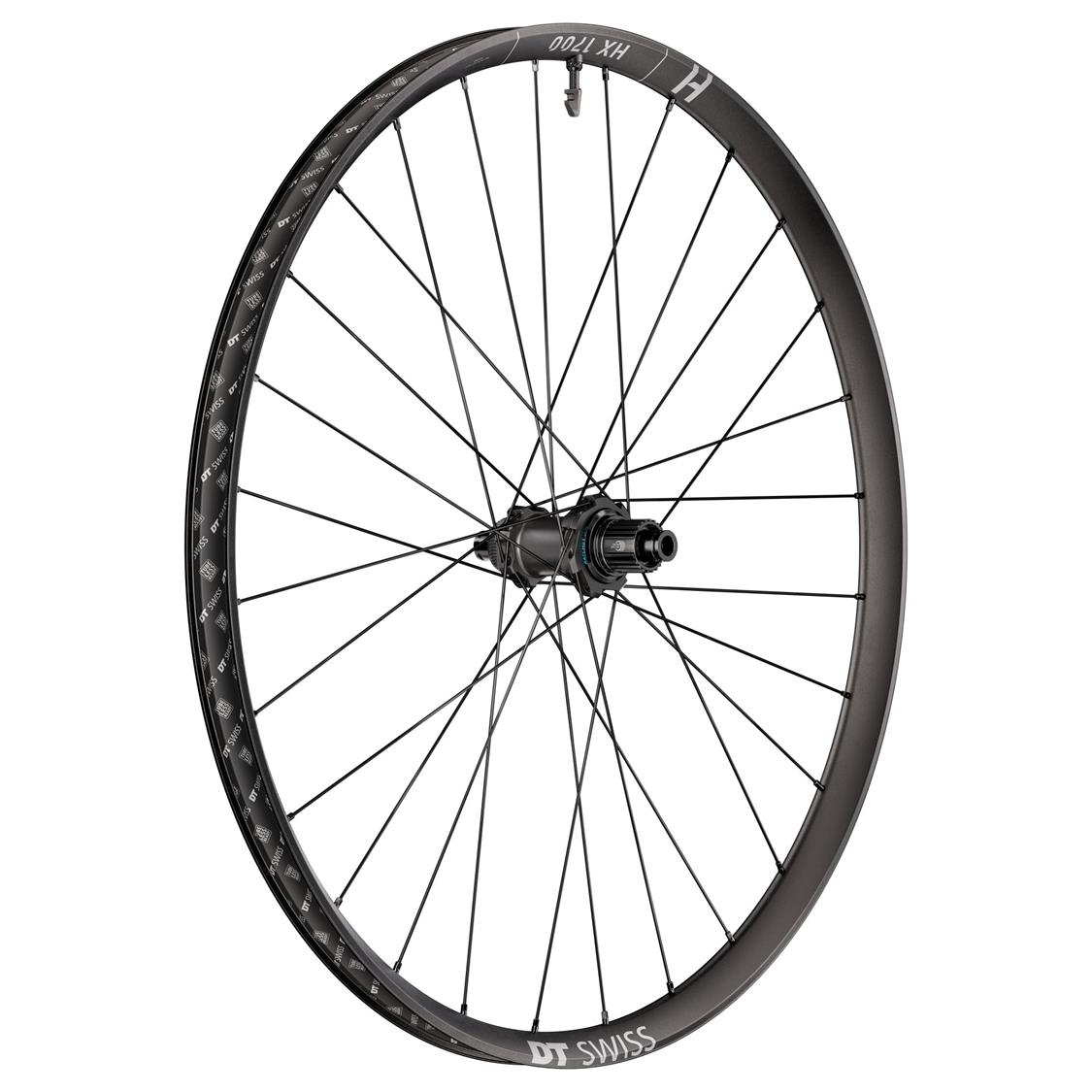

The rear has a 60 tooth Ratchet DEG freehub with DT Swiss's DF Hybrid anti pedal-kickback system. You can set it to 0 or 10 degrees of free play, no tools needed. Freehub bodies are steel. Rims are 30mm inside, hooked and tubeless ready, with wider rim horns to help against pinch flats.

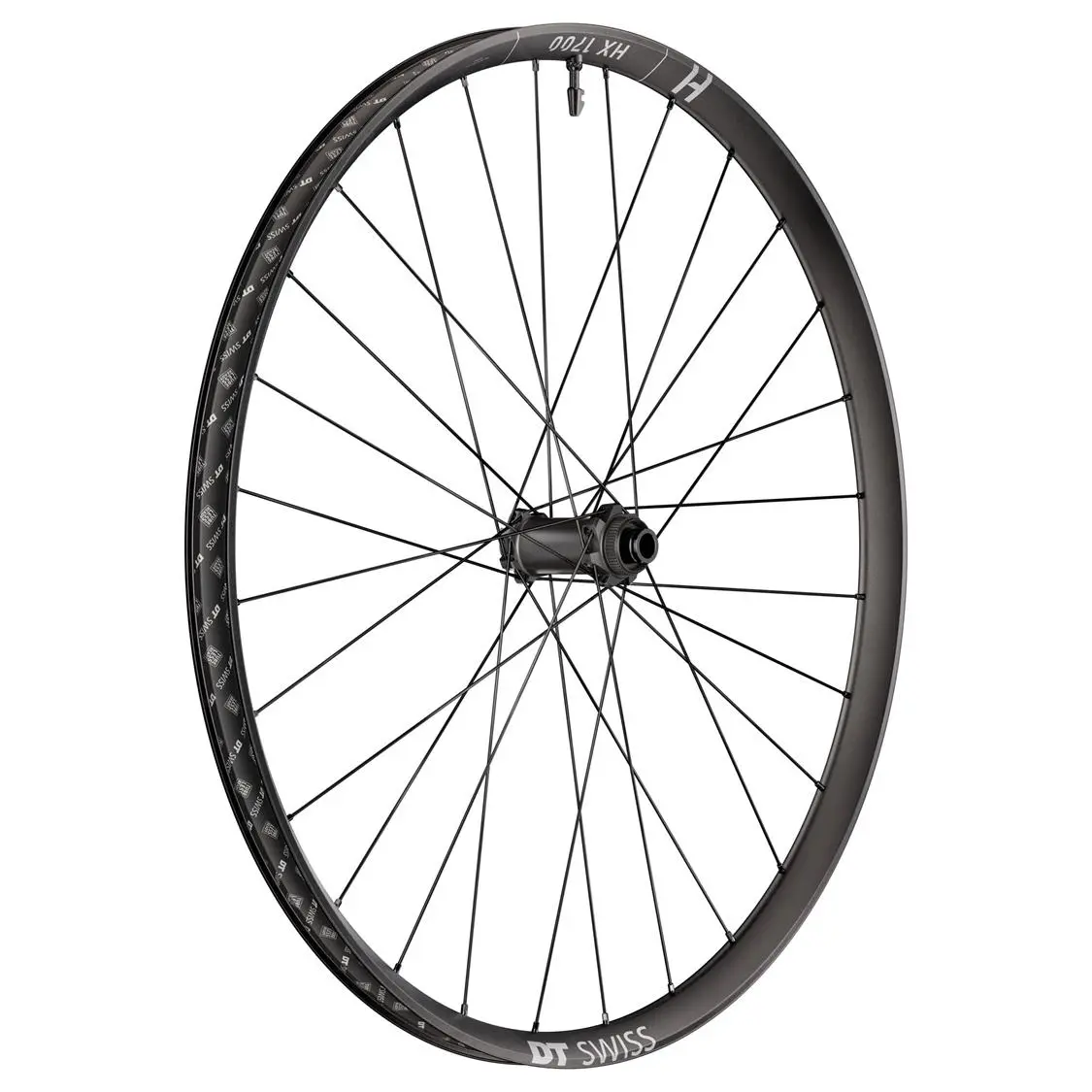

Front is 15 x 110mm Boost. Rear is 12 x 148mm Boost with a Shimano Micro Spline or SRAM XD steel freehub. Center Lock rotor mount, with a 6-bolt adaptor in the box. DT Swiss rate it to 150kg system weight. Not sure it fits your bike? Talk to us and we'll check.

Key Features

  • Aluminium e-MTB wheel, sold front or rear
  • 350 hub with 60 tooth Ratchet DEG freehub
  • DF Hybrid anti pedal-kickback, 0 or 10 degrees, tool-free
  • Steel Micro Spline or XD freehub body
  • Asymmetric welded rims, 30mm inner width
  • DT hybrid 2 straight pull spokes
  • Tubeless ready, tape and valves included
  • Rated to 150kg system weight

Specifications

  • Use: e-MTB
  • Wheel size: 29"
  • Rim: Aluminium, welded, asymmetric
  • Tyre interface: Hooked, tubeless ready (TC)
  • Inner width: 30mm
  • Outer width: 34.7mm front, 35mm rear
  • Rim height: 21mm front, 22mm rear
  • Hub: DT Swiss 350, Ratchet DEG 60T, DF Hybrid 0/10 degrees (rear)
  • Spokes: DT hybrid 2 straight pull, three-cross
  • Nipples: DT ProLock Squorx ProHead, aluminium
  • Axle: Front 15 x 110mm Boost, rear 12 x 148mm Boost
  • Freehub options: Shimano Micro Spline (steel), SRAM XD (steel)
  • Brake mount: Center Lock (IS 6-bolt adaptor included)
  • Weight, front: 951g
  • Weight, rear: 1193g (Micro Spline), 1176g (XD)
  • Max. system weight: 150kg
  • ASTM category: 4
  • E-bike approval: Yes (DT Swiss rating)

In the Box

  • Tubeless rim tape 32mm
  • Tubeless valves 18-25mm
  • IS 6-bolt adaptor

Specs can change without notice from DT Swiss.
