DT Swiss - XM 1700 29" Wheels (2026)

$699.90

Available Online
In Store call for Availability

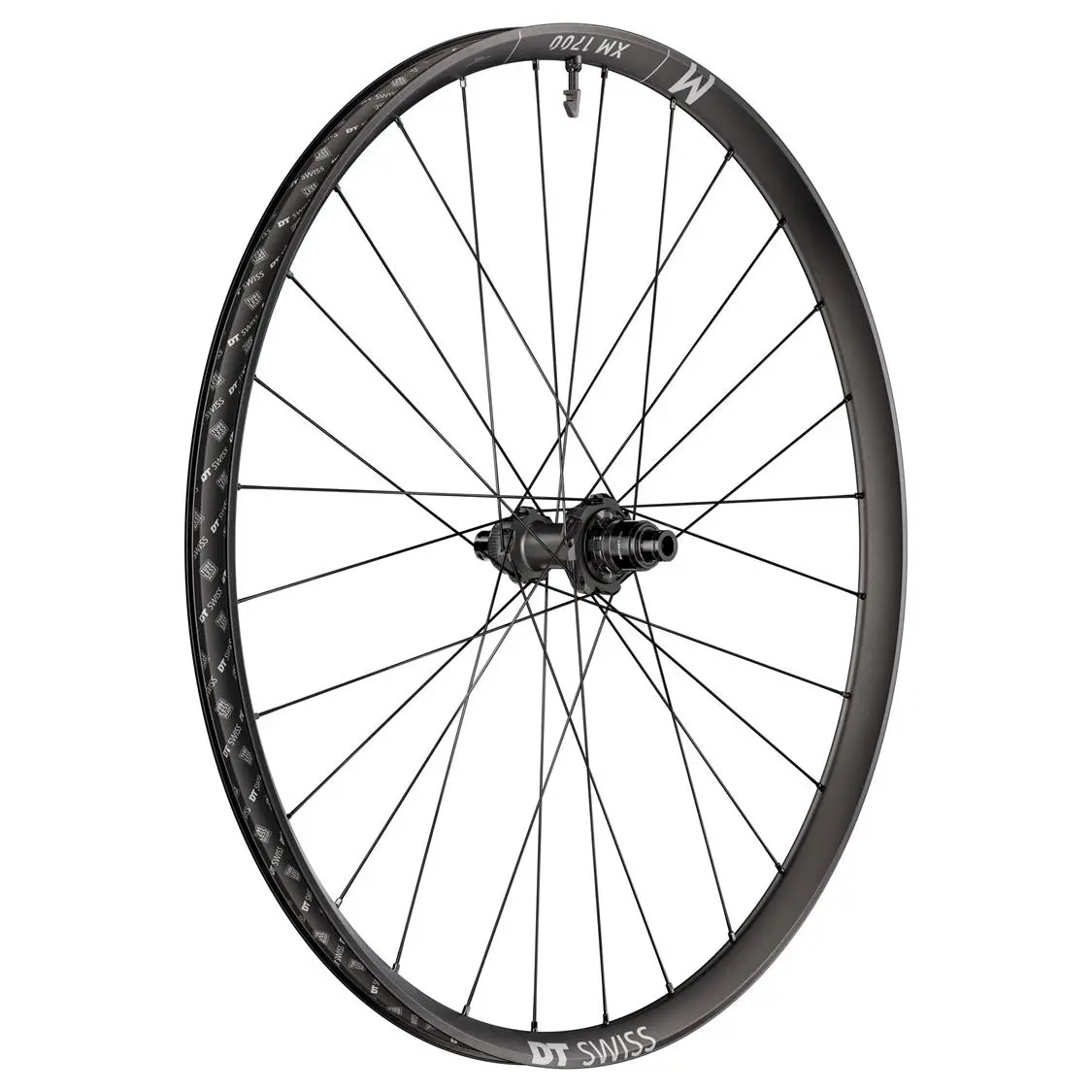

DT Swiss XM 1700 Spline 29 inch Wheel

The 2026 XM 1700 Spline is DT Swiss's aluminium all mountain wheel. Asymmetric welded rims, a lighter one up front and a tougher one at the back, laced with DT competition race spokes to a 350 hub. Sold as single wheels, front or rear, in 29 inch.

The rear 350 hub has a 72 tooth Ratchet DEG freehub, which DT Swiss quote at 5 degrees of engagement. Handy on techy climbs. It also has DF, DT Swiss's anti pedal-kickback system, adjustable tool-free to 0, 10 or 20 degrees of free play. Rims are 30mm inside, hooked and tubeless ready, with wider rim horns to help against pinch flats.

Front is 15 x 110mm Boost. Rear is 12 x 148mm Boost with Shimano Micro Spline or SRAM XD. Center Lock, with a 6-bolt adaptor in the box. Rated to 130kg system weight. Not sure it fits your bike? Talk to us and we'll check.

Key Features

  • Aluminium all mountain wheel, sold front or rear
  • 350 hub with 72 tooth Ratchet DEG, 5 degrees engagement
  • DF anti pedal-kickback, 0, 10 or 20 degrees, tool-free
  • Asymmetric welded rims, 30mm inner width
  • DT competition race straight pull spokes
  • Tubeless ready, tape and valves included
  • Micro Spline or XD freehub

Specifications

  • Use: All mountain, trail
  • Wheel size: 29"
  • Rim: Aluminium, welded, asymmetric
  • Tyre interface: Hooked, tubeless ready (TC)
  • Inner width: 30mm
  • Outer width: 34mm front, 35mm rear
  • Rim height: 20mm front, 21mm rear
  • Hub: DT Swiss 350, Ratchet DEG 72T, DF 0/10/20 degrees (rear)
  • Spokes: DT competition race straight pull, three-cross
  • Nipples: DT ProLock Squorx ProHead, aluminium
  • Axle: Front 15 x 110mm Boost, rear 12 x 148mm Boost
  • Freehub options: Shimano Micro Spline, SRAM XD
  • Brake mount: Center Lock (IS 6-bolt adaptor included)
  • Weight, front: 859g
  • Weight, rear: 1027g (Micro Spline), 1022g (XD)
  • Max. system weight: 130kg
  • ASTM category: 4
  • E-bike approval: Yes (DT Swiss rating)

In the Box

  • Tubeless rim tape 32mm
  • Tubeless valves 18-25mm
  • IS 6-bolt adaptor

Specs can change without notice from DT Swiss.
