DT Swiss - XRC 1200 29" Wheels

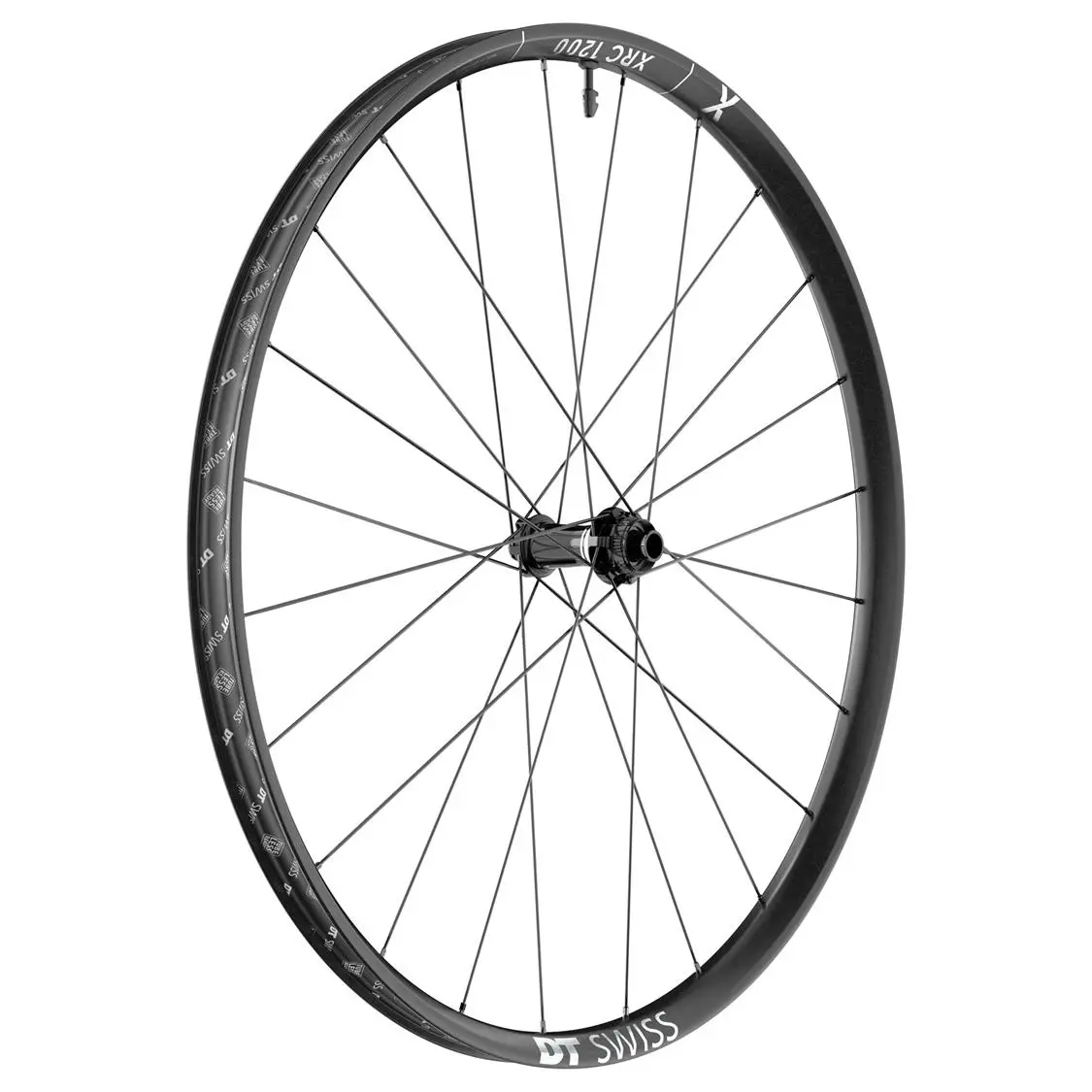

DT Swiss XRC 1200 Spline 29 inch Wheel

The XRC 1200 Spline is DT Swiss's 1200 series carbon cross country wheel. Rims are built with their layer compression process, and each one is scanned layer by layer in quality control. The rims are asymmetric, lighter up front and stronger at the back. Sold as single wheels, front or rear, in 29 inch.

Both wheels use 24 DT revolite t-head spokes, laced two-cross to the 180 straight pull hub with ceramic bearings. The rear runs a 54 tooth Ratchet EXP freehub with SRAM XD fitted and a Shimano Micro Spline kit in the box. Rims are 30mm inside, hookless and tubeless ready.

Front is 15 x 110mm Boost, rear is 12 x 148mm Boost. Center Lock, with a 6-bolt adaptor and a wheel bag included. Rated to 120kg system weight. It's a carbon wheel, so it's covered by DT Swiss's Fair Share Policy, which gives you access to their crash replacement service for 10 years after purchase. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• Carbon cross country wheel, sold front or rear
• 180 hub with ceramic bearings and Ratchet EXP 54T
• 24 DT revolite t-head spokes, two-cross
• Asymmetric hookless rims, 30mm inner width
• 597g front, 706g rear (DT Swiss)
• XD fitted, Micro Spline kit included
• Wheel bag included

Specifications

• Use: Cross country
• Wheel size: 29"
• Rim: Carbon, asymmetric
• Tyre interface: Hookless, tubeless ready (TSS)

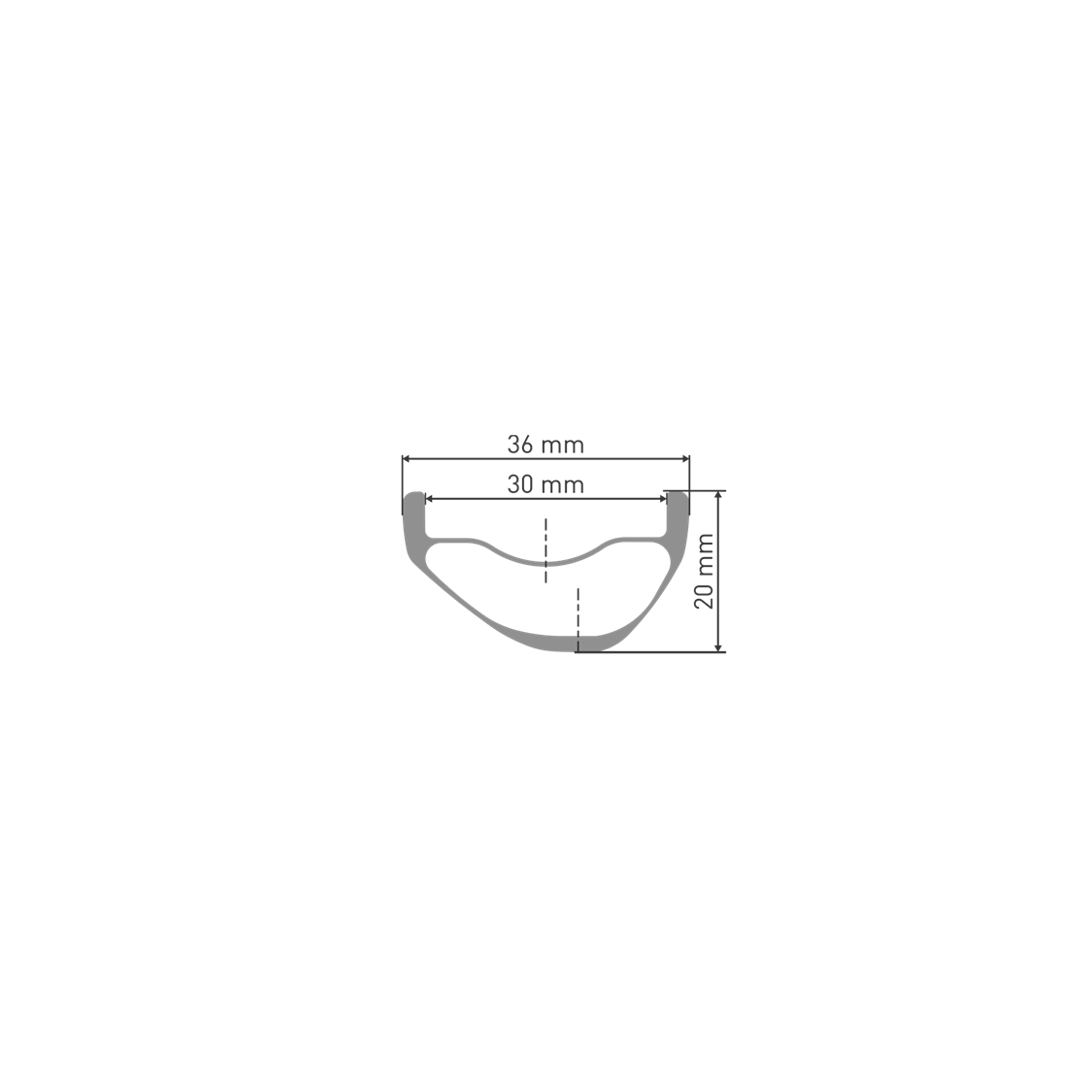

• Inner width: 30mm
• Outer width: 36mm
• Rim height: 20mm
• Hub: DT Swiss 180, ceramic bearings, Ratchet EXP 54T (rear)
• Spokes: 24 DT revolite t-head, two-cross
• Nipples: DT ProLock Squorx ProHead, aluminium
• Axle: Front 15 x 110mm Boost, rear 12 x 148mm Boost
• Freehub: SRAM XD fitted, Shimano Micro Spline kit included
• Brake mount: Center Lock (IS 6-bolt adaptor included)
• Weight, front: 597g
• Weight, rear: 706g
• Max. system weight: 120kg
• ASTM category: 3
• E-bike approval: Yes (DT Swiss rating)

In the Box

• Wheel bag
• Tubeless rim tape 32mm
• Tubeless valves 18-25mm
• IS 6-bolt adaptor
• Shimano Micro Spline freehub kit (rear wheel)

Specs can change without notice from DT Swiss.
