DT Swiss - XRC 1500 29" Wheels (2026)

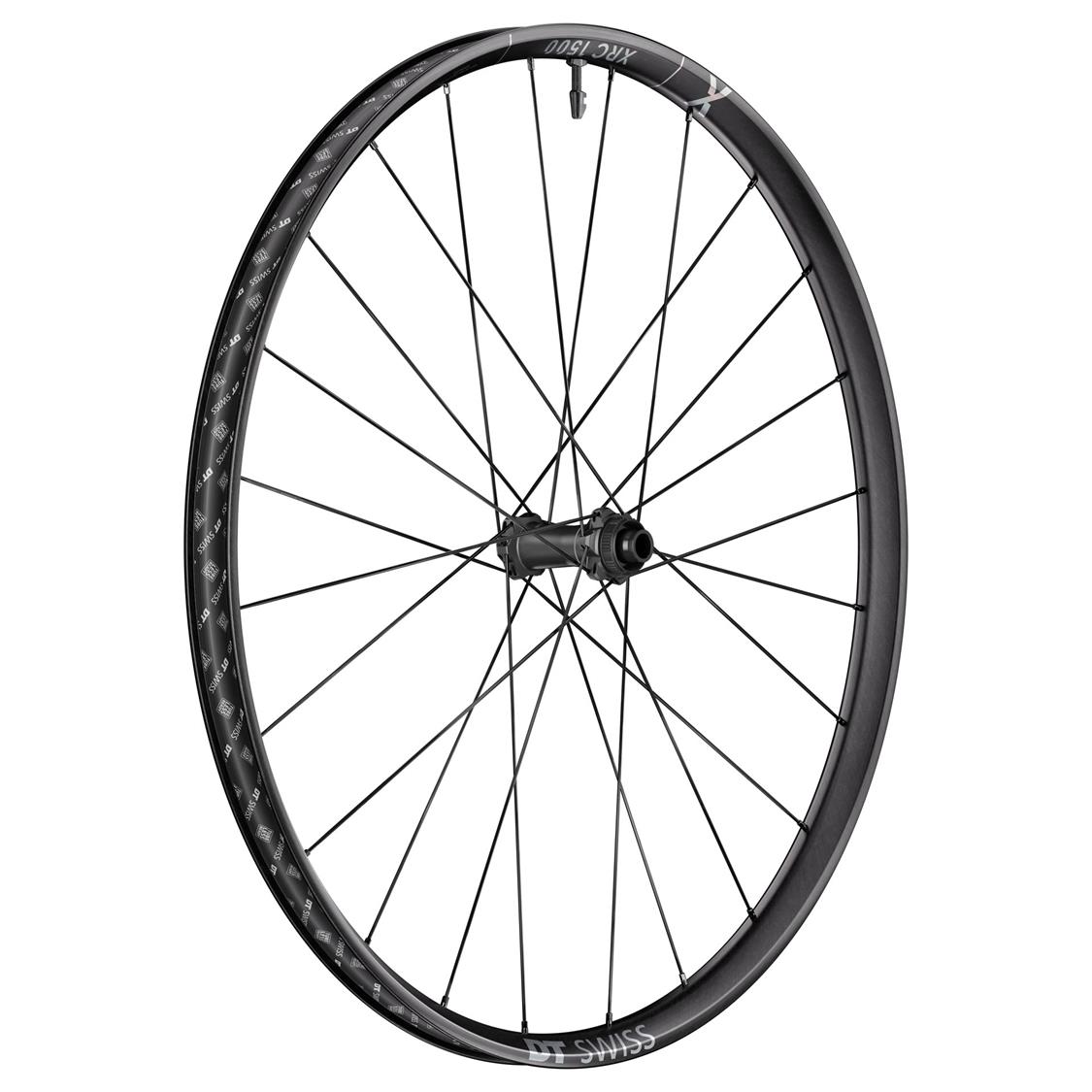

DT Swiss XRC 1500 Spline 29 inch Wheel

The 2026 XRC 1500 Spline is a carbon cross country wheel for riders who race or just ride hard all the time. PURE carbon rims, 24 DT complite spokes and a 240 hub. Sold as single wheels, front or rear, in 29 inch.

The rear 240 Spline hub runs a 54 tooth Ratchet EXP freehub, with SRAM XD fitted and a Shimano Micro Spline kit in the box. Rims are asymmetric, 30mm inside, hookless and tubeless ready, with a reinforced rim horn.

Front is 15 x 110mm Boost, rear is 12 x 148mm Boost. Center Lock, with a 6-bolt adaptor included. Rated to 120kg system weight. It's a carbon wheel, so it's covered by DT Swiss's Fair Share Policy, which gives you access to their crash replacement service for 10 years after purchase. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• Carbon cross country wheel, sold front or rear
• 240 Spline hub with Ratchet EXP 54T
• 24 DT complite t-head spokes, two-cross
• Asymmetric hookless rims, 30mm inner width
• XD fitted, Micro Spline kit included
• Tubeless ready, tape and valves included

Specifications

• Use: Cross country
• Wheel size: 29"
• Rim: Carbon, asymmetric
• Tyre interface: Hookless, tubeless ready (TSS)
• Inner width: 30mm
• Outer width: 36mm
• Rim height: 20mm
• Hub: DT Swiss 240, Ratchet EXP 54T (rear)
• Spokes: 24 DT complite t-head, two-cross
• Nipples: DT ProLock Squorx ProHead, aluminium
• Axle: Front 15 x 110mm Boost, rear 12 x 148mm Boost
• Freehub: SRAM XD fitted, Shimano Micro Spline kit included
• Brake mount: Center Lock (IS 6-bolt adaptor included)
• Weight, front: 649g
• Weight, rear: 735g
• Max. system weight: 120kg
• ASTM category: 3
• E-bike approval: Yes (DT Swiss rating)

In the Box

• Tubeless rim tape 32mm
• Tubeless valves 18-25mm
• IS 6-bolt adaptor
• Shimano Micro Spline freehub kit (rear wheel)

Specs can change without notice from DT Swiss.
