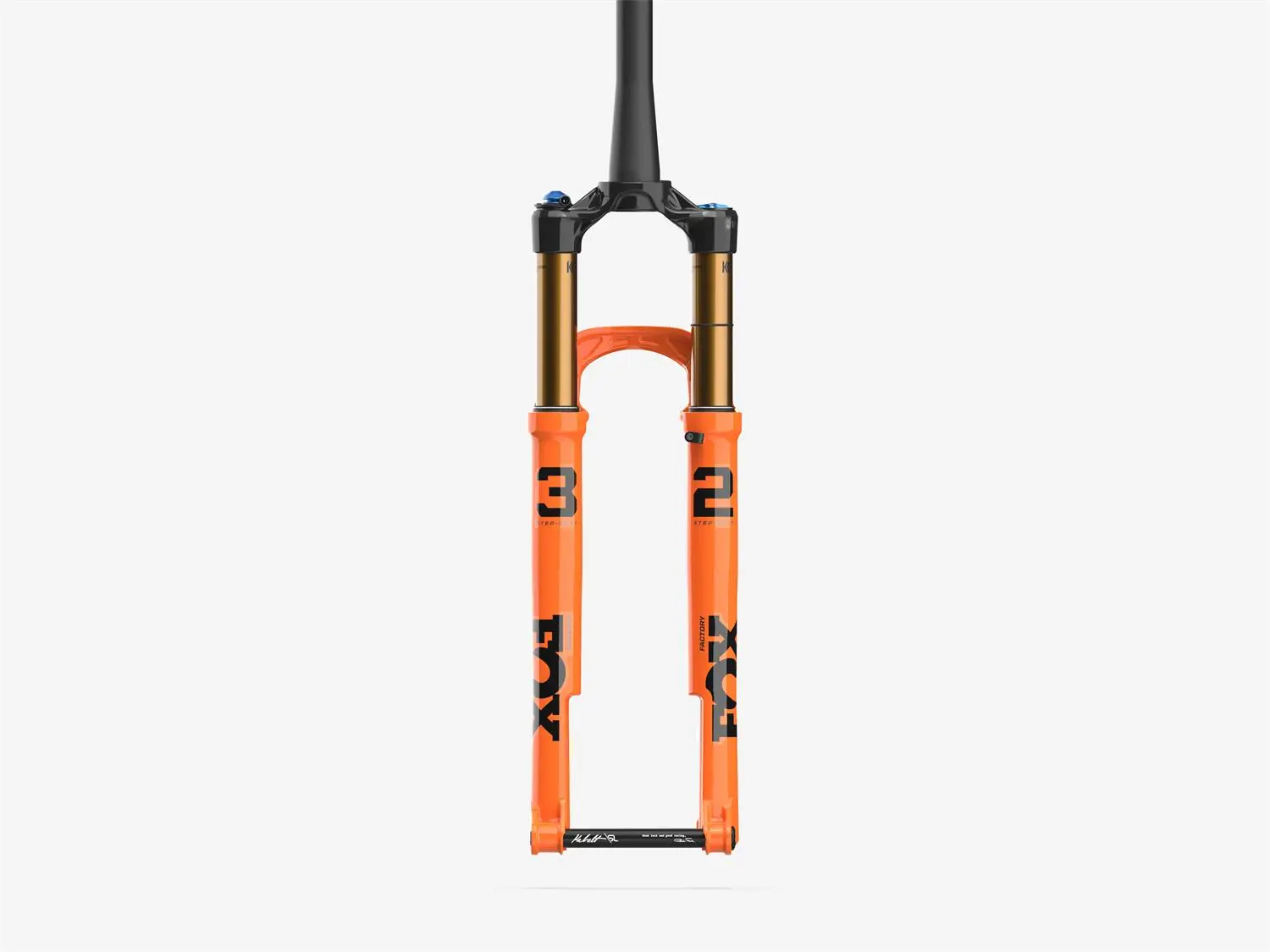

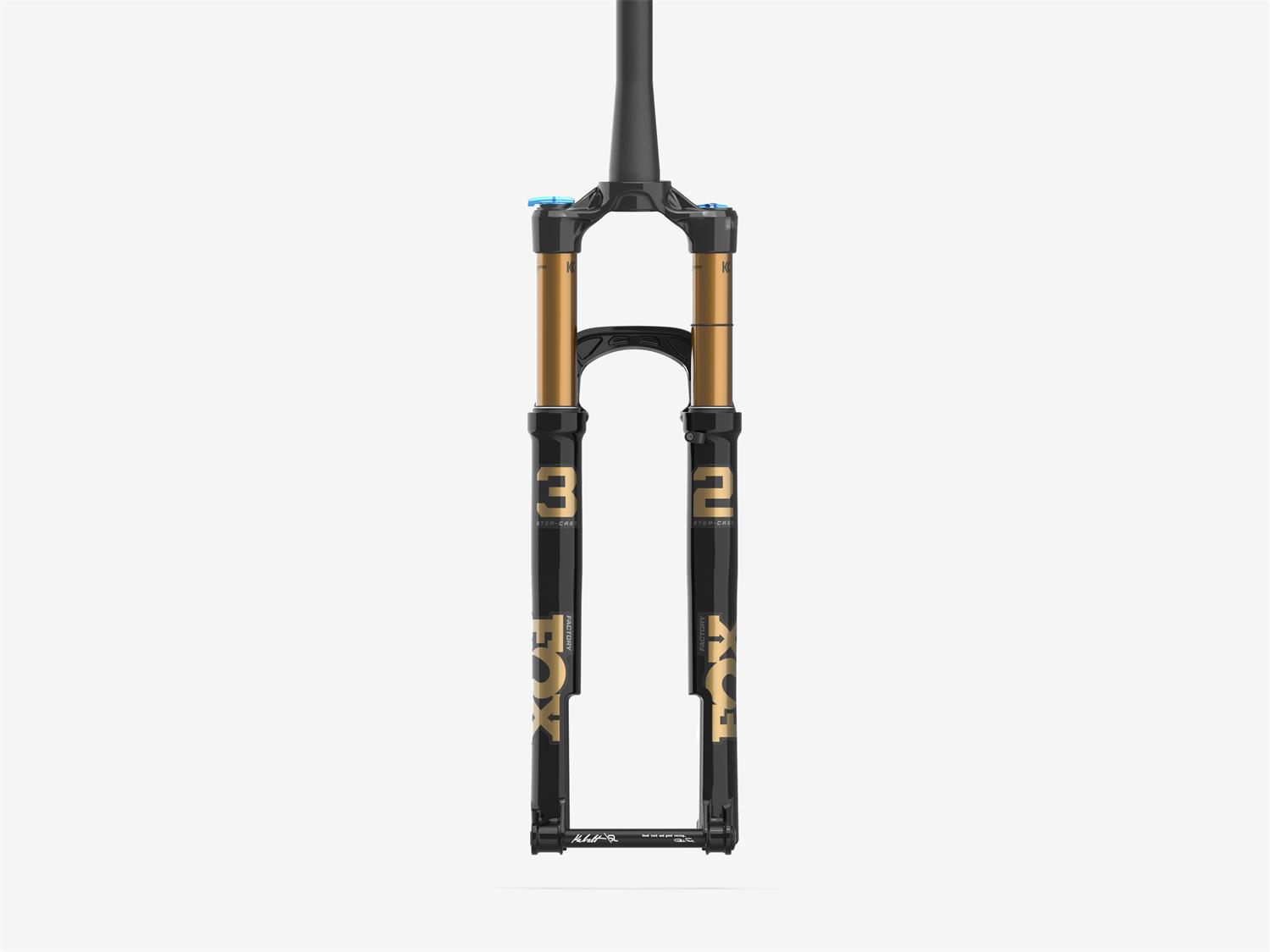

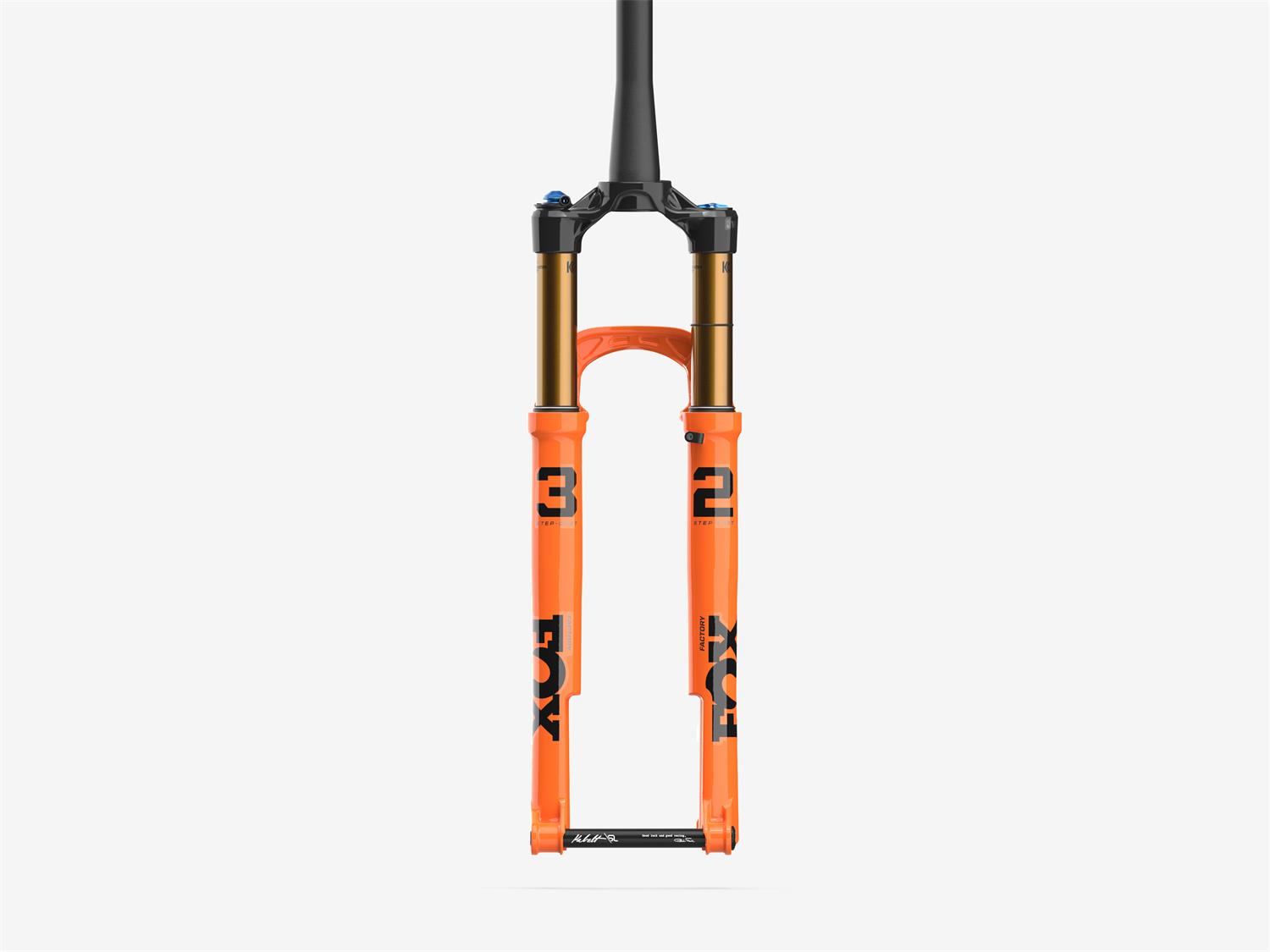

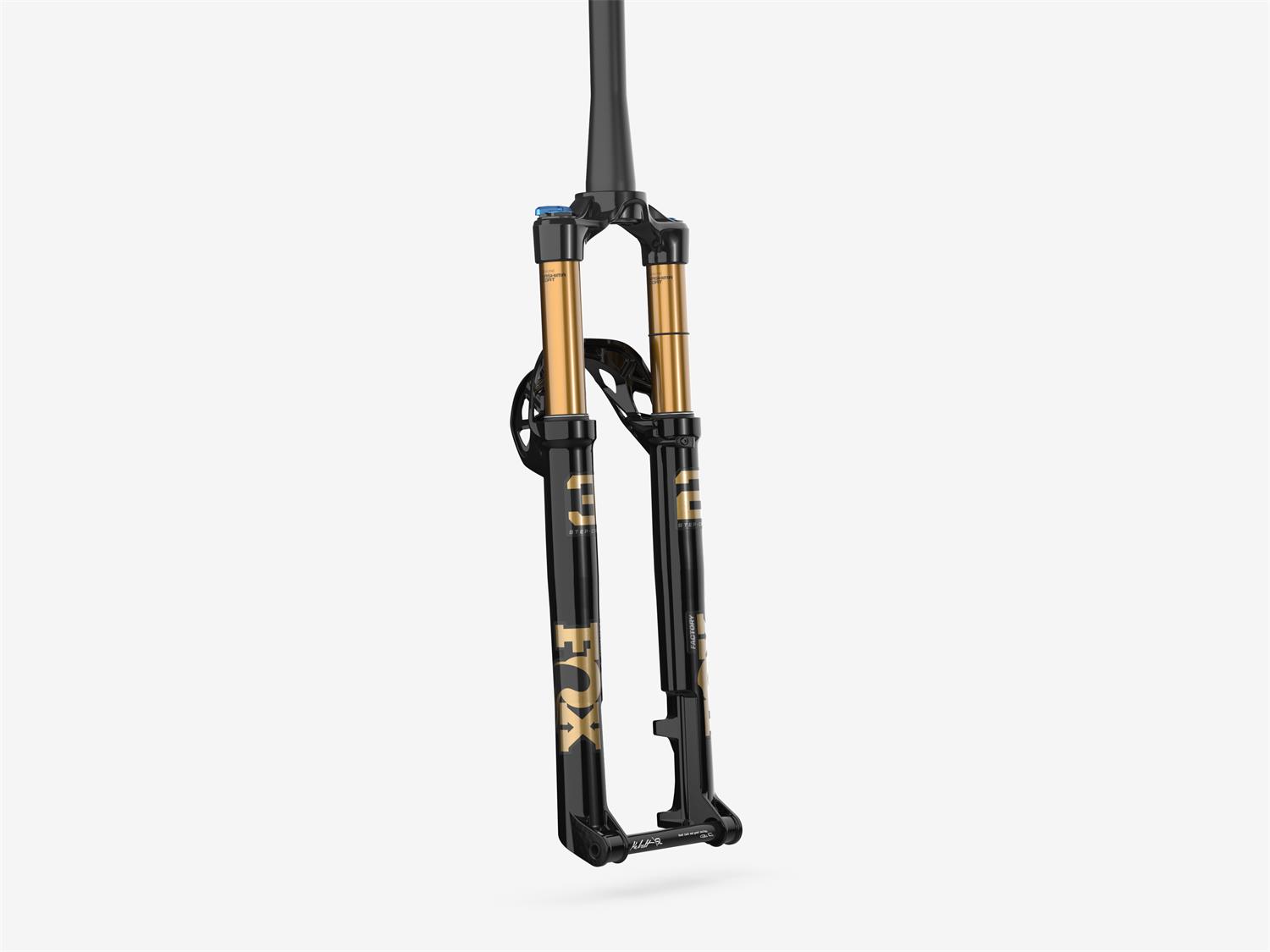

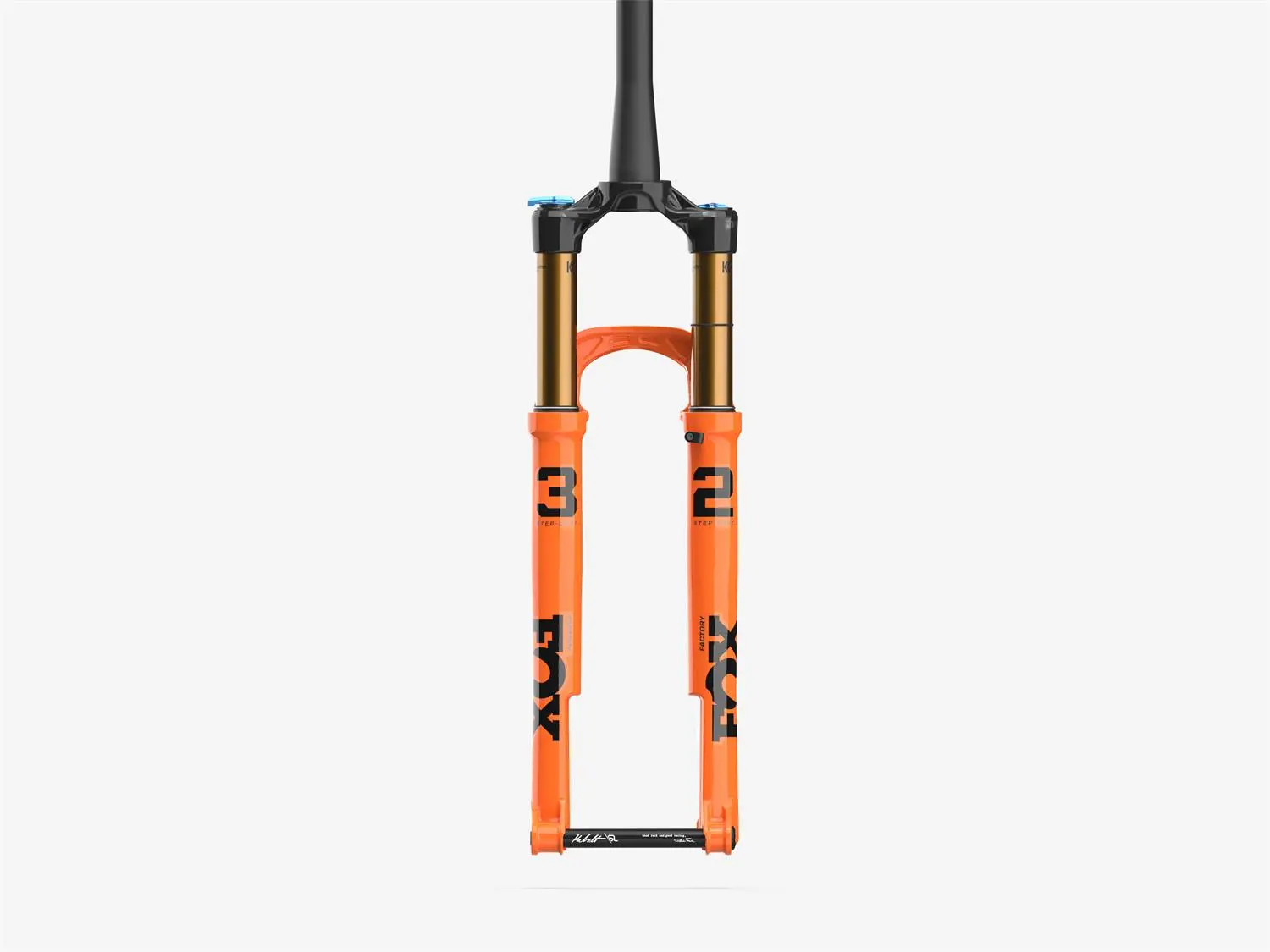

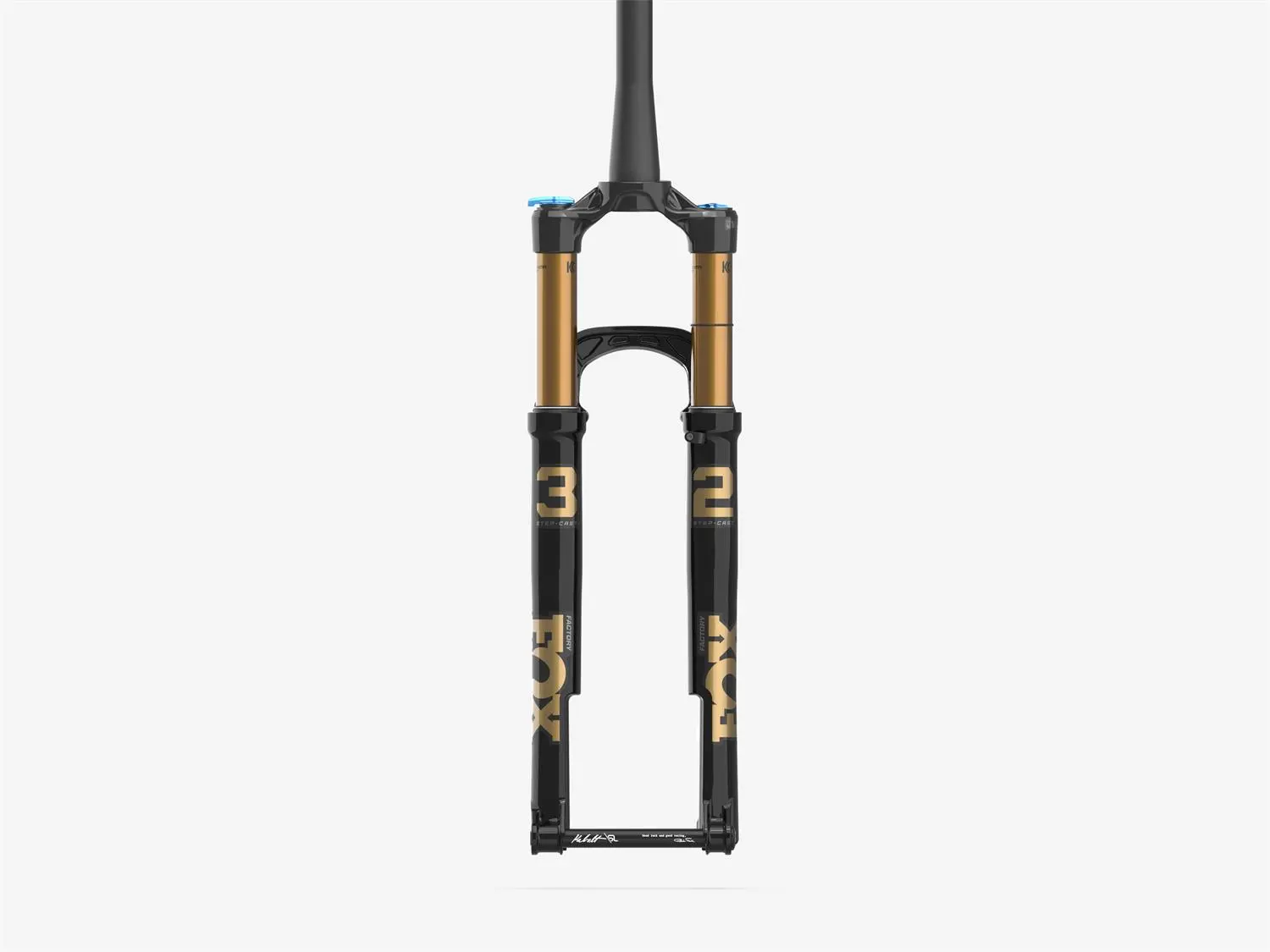

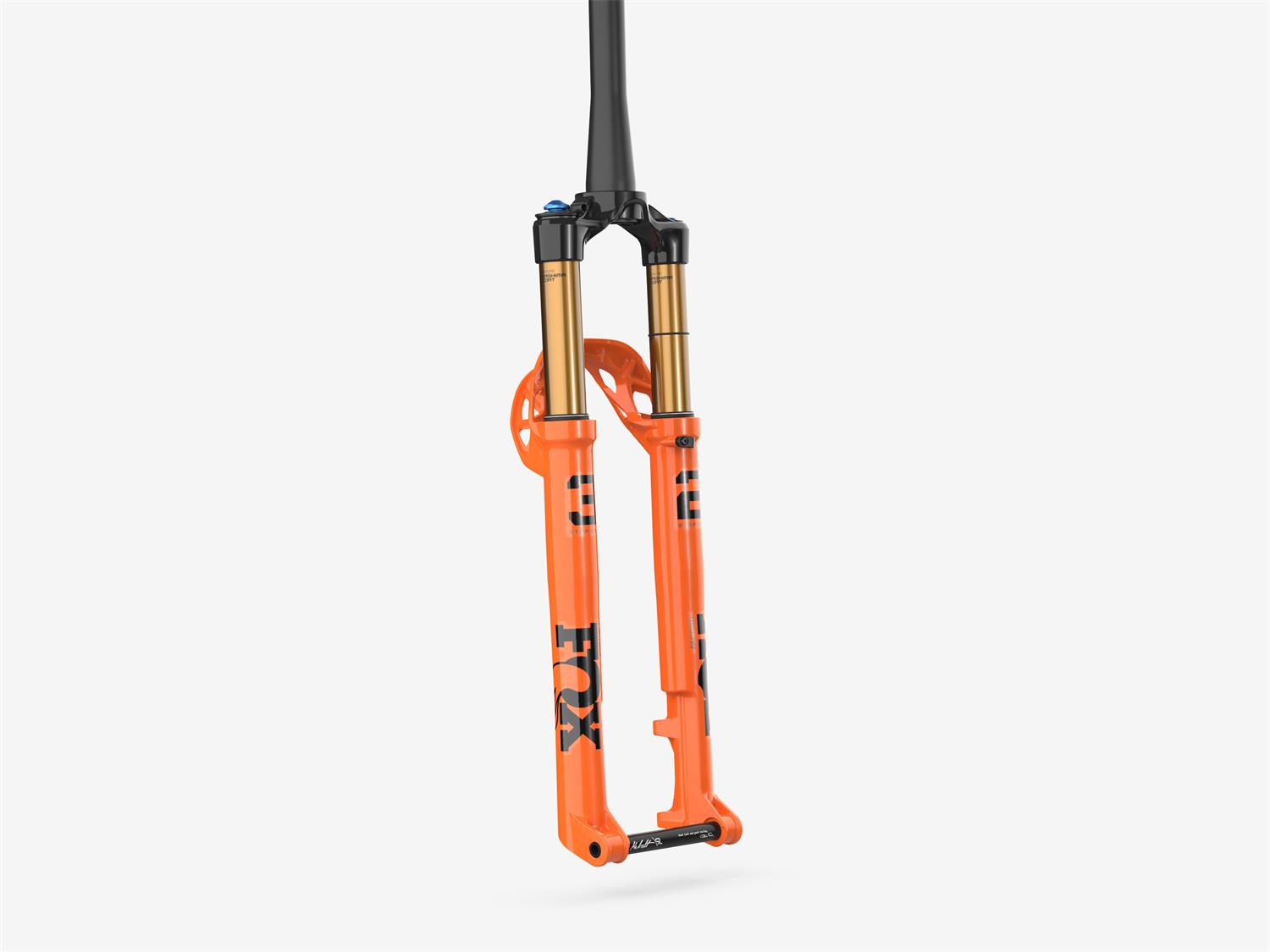

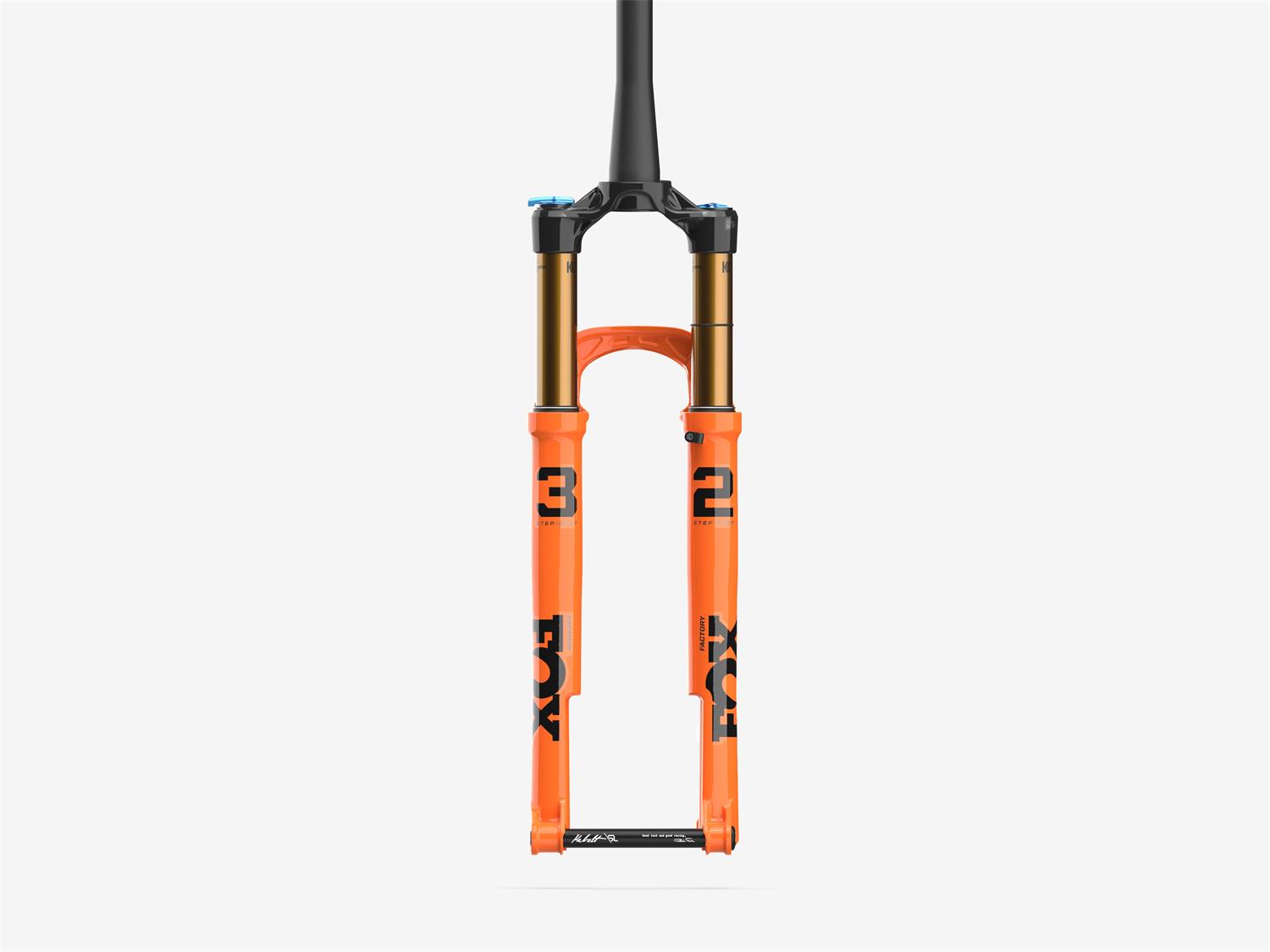

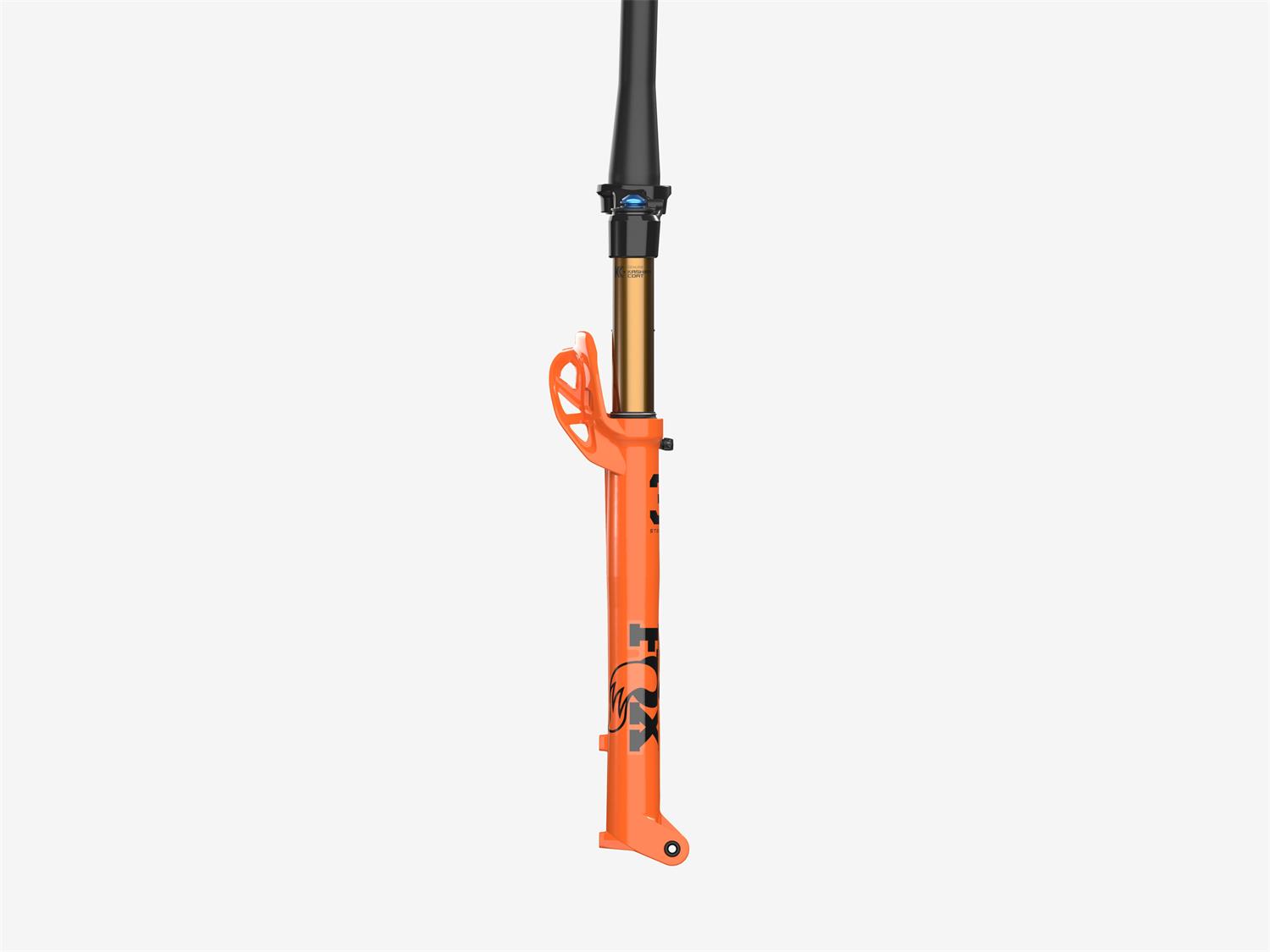

Fox - 32 Step-Cast Factory Fork - Grip SL 29"

FOX - 32 STEP-CAST FACTORY FORK - GRIP SL

ABSOLUTE LIGHTEST IN XC. MADE FOR MARATHON.
At under 1300 grams, the 32 Step-Cast is the lightest MTB fork and made for marathon racing. With a sleek reverse arch, this fork also gains 40% stiffness over its predecessor. Available in 100mm travel only.

GRIP SL
An incredibly light, short travel-specific damper with unparalleled ride feel in its class. Riders feel a supple stroke with optimized pedal-to-bump efficiency. A smooth blowoff force means less jolting when riding locked out.

REAR ARCH MATRIX
The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing weight. With 100mm of travel in the 32 Step-Cast, the rear arch has all the necessary clearance for XC frames.


KABOLT SL AXLE
The svelte new Kabolt SL thru-axle drops an additional 12g over our standard Kabolt axle by eliminating the additional weight of the axle nut and decreasing the flange diameter.

REDESIGNED CROWN
A new 7000 series aluminum, zero-offset crown supports angled upper tubes to achieve overall rake. Together with our ultra-light steerer tube, the crown saves approximately 20 grams over the previous model, as well as adding stiffness.

SPECS

• SERIES: FACTORY
• CHASSIS: STEP-CAST
• WHEEL SIZE: 29"
• TRAVEL: 100MM
• DAMPER: GRIP SL
• DAMPER CONTROLS: PSH-LK(Remote) OR 3POS-ADJ
• AXLE: KABOLT SL 110
• RAKE: 44MM
• STEERER: 1.5 TAPERED
• UPPER TUBE FINISH: KASHIMA
• AIR CHANNELS: N/A
• BLEEDERS: N/A
• FLOATING AXLE: N/A
• ROTOR SIZE: 160 POST MOUNT, UP TO 180MM COMPATIBLE
• MUD GUARD MOUNT: N/A
• AIR SPRING: FLOAT EVOL
• STARTING WEIGHT: 1276g (32SC, 29, F-S, 100, GRIP SL, KABOLT SL)

*NOTE: Remote lever not included on PSH-LK models.
