e*thirteen Helix Race Carbon e*spec Cranks 24mm ISIS - 160mm, 21.5mm Offset, Graphite

$819.89

Available Online
In Store call for Availability

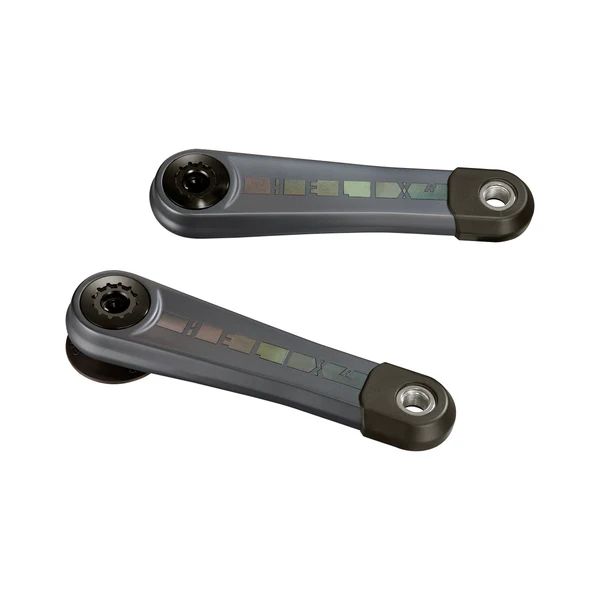

e*thirteen Helix Race Carbon e*spec Cranks 24mm ISIS - 160mm, 21.5mm Offset, Graphite ASTM 5 approved carbon e*spec e-MTB cranks with a 24mm ISIS interface and 21.5mm offset for Bosch SX, Brose S Mag, TQ HPR50, DJI Avinox, Yamaha and Specialized 2.2/3.1 motors. 160mm arms in a graphite finish, approx. 329g.

e*thirteen Helix Race Carbon e*spec Cranks 24mm ISIS - 160mm, 21.5mm Offset, Graphite

Ultralight carbon e*spec e-MTB cranks for motors with a 24mm ISIS spindle interface, approved to ASTM 5 and suited to trail, all-mountain and bike park shuttle riding.

Available in 21.5mm and 26mm offsets to adjust fit, Q-factor and ride feel. Short arm lengths improve pedal clearance, and crank boots are included.

Key Features

  • Arm length: 160mm
  • Offset: 21.5mm
  • Q-factor: 177mm
  • Weight: approx. 329g
  • Carbon fibre arms, graphite finish
  • ASTM 5 approved
  • 24mm ISIS spindle interface
  • Crank boots included
  • Integrated alloy self-extractor

Compatibility

  • Motor systems: Bosch SX, Brose S Mag, TQ HPR50, DJI Avinox, Yamaha, Specialized 2.2 and 3.1
  • 24mm ISIS spindle motor interface

In the Box

  • Crankset
  • 2 crank boots
  • Sticker and user manual

You Will Also Need

  • Chainring designed for your motor system (sold separately), such as the Helix Race e*spec chainring
  • Pedals

Good to Know

  • Offset choice: the 26mm offset is optimised for Bosch CX Gen 4/5 motor frames and suits ISIS spindle motors generally; the 21.5mm offset is designed for Bosch SX, Brose S Mag, DJI Avinox, TQ HPR50 and Specialized 2.2/3.1.
  • Check that your motor system and frame clearance suit the offset before ordering.

Install using the supplied user manual and tighten to the torque specified by e*thirteen.
