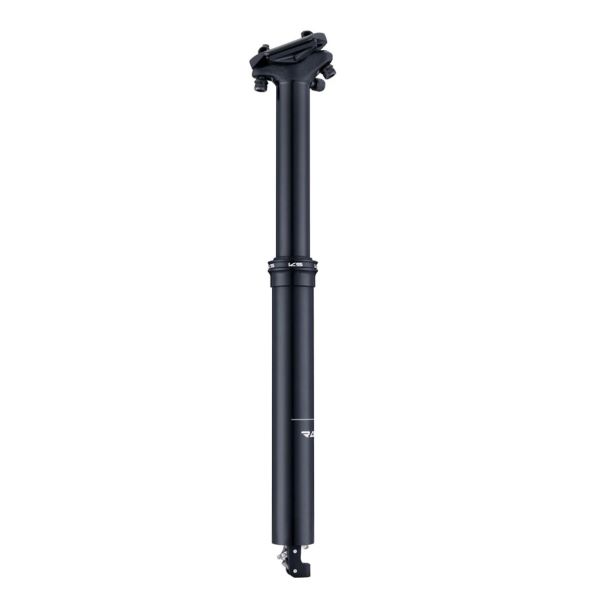

KS 27.2 Ragei-S Suspension and Dropper Seatpost
$307.99 WAS RRP $349.99
In Store call for Availability
New from KS is the Ragei-S Seatpost, with both dropper and air spring suspension function, the perfect solution for e-bikes where the customer requires suspension for comfort and a dropper for ease of use
Rage-i S brings innovation by combining a high performance dropper with adjustable suspension at an affordable price.
What's New
- Dropper combined with air-sprung suspension
- Updated cylindrical upper clamp nuts do not spin
- More vertical head clamp bolt angle
- Dedicated cartridge architecture is reliable and smooth
- Lightweight, rotating bottom actuator
- Reduced actuation force
- Longer travel options
- Remote sold separately
Features:
- Alloy stanchion
- Weight optimized alloy mast
- Air sprung hydraulic cartridge
- Press fit bushing and dust wiper
- Designed for internal frame routing
- Short insertion length to travel ratio
- Compatible with all KS Southpaw, KG and Westy remotes
- Compatible with carbon seat rails 7 x 9mm, KS Torque Spec is 10nm, check saddle torque spec and choose the lower of the two figures to tighten it too
Air Pressure:
- RageiS 272 : 600 psi
- RageiS 30.9/31.6 100:450psi
- RageiS 30.9/31.6 125:480psi
- RageiS 30.9/31.6 150:480psi
Please see attached sizing charts for fitment options
Dropper Post Options, both Internal and External, Posts now sold with NO remote [Except Circuit Models], cable is included with post, please see accessories for available remotes
| Model | Routing | Features & Available Diameters |
|---|---|---|
| Ragei 2.0 | Internal | Internally routed remote at an affordable price. Features an air-adjustable Oil Pressure Stick, self-purging design and threaded seal collar. Diameters: 30.9 / 31.6 / 34.9mm |
| Ragei-S | Internal | Internally routed remote with adjustable suspension action and dropper functionality. Sealed Oil Pressure Stick. Diameters: 30.9 / 31.6mm |
| Vantage | Internal | Internally routed remote with adjustable height option. Diameters: 30.9 / 31.6mm |
| LEV Integra | Internal | Internally routed remote with all-alloy construction and air adjustment. Diameters: 27.2 / 30.9 / 31.6mm |
| Rage Circuit | Wireless | Entry-level wireless seatpost. Includes seatpost, remote, battery, charger and accessories. Diameters: 30.9 / 31.6mm |
| LEV Circuit | Wireless | Premium wireless seatpost. Lightweight and compact. Includes seatpost, remote, battery, charger and accessories. Diameters: 30.9 / 31.6mm |
| eTen | External | Under-saddle lever for a clean handlebar setup. Diameters: 27.2 / 30.9mm |
| E20 | External | Externally routed remote with cable attachment at the seatpost clamp. Sealed Air Pressure Stick. Diameters: 30.9 / 31.6mm |
| LEV | External | Externally routed with cable attachment at the seatpost clamp. All-alloy construction. Diameters: 27.2 / 30.9 / 31.6mm |
