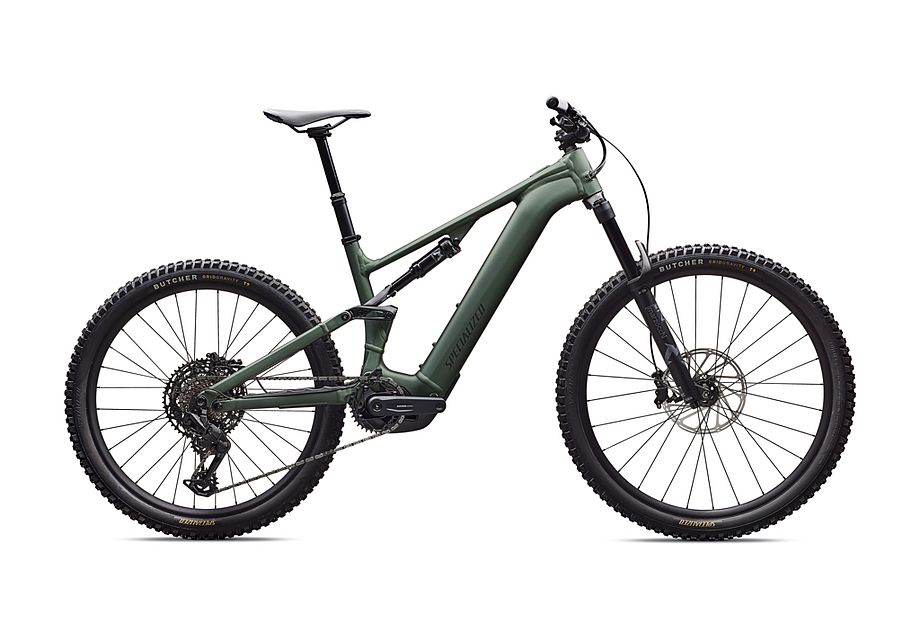

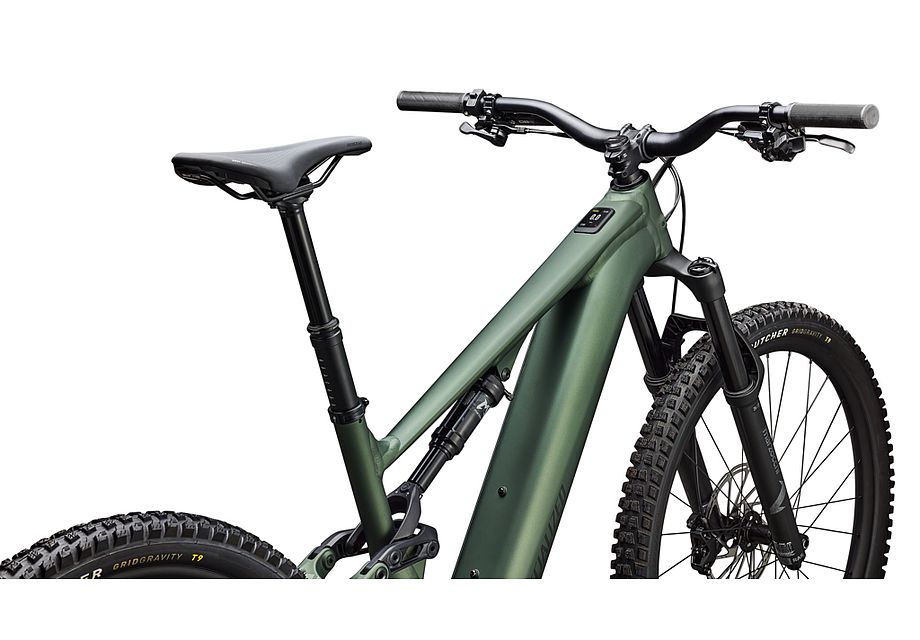

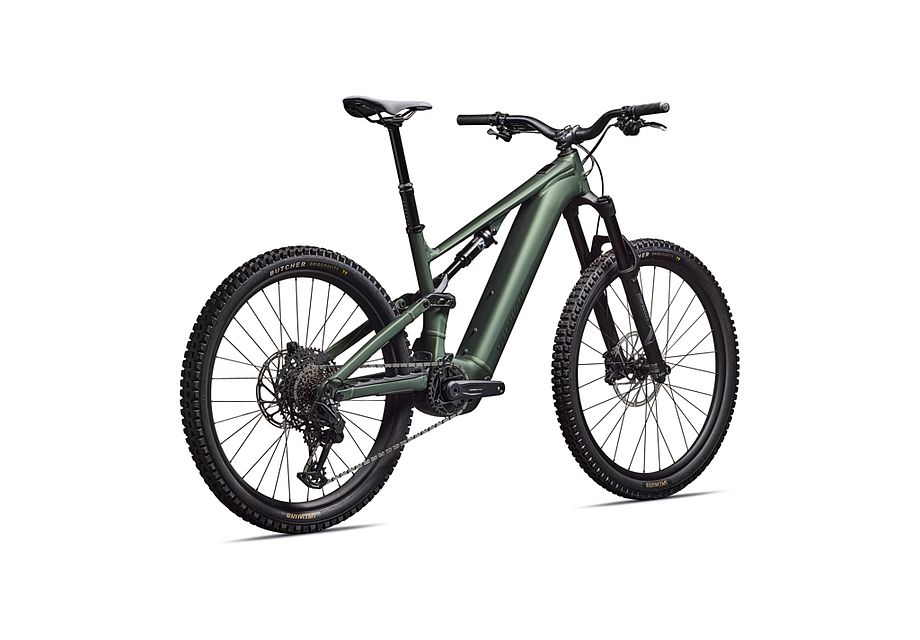

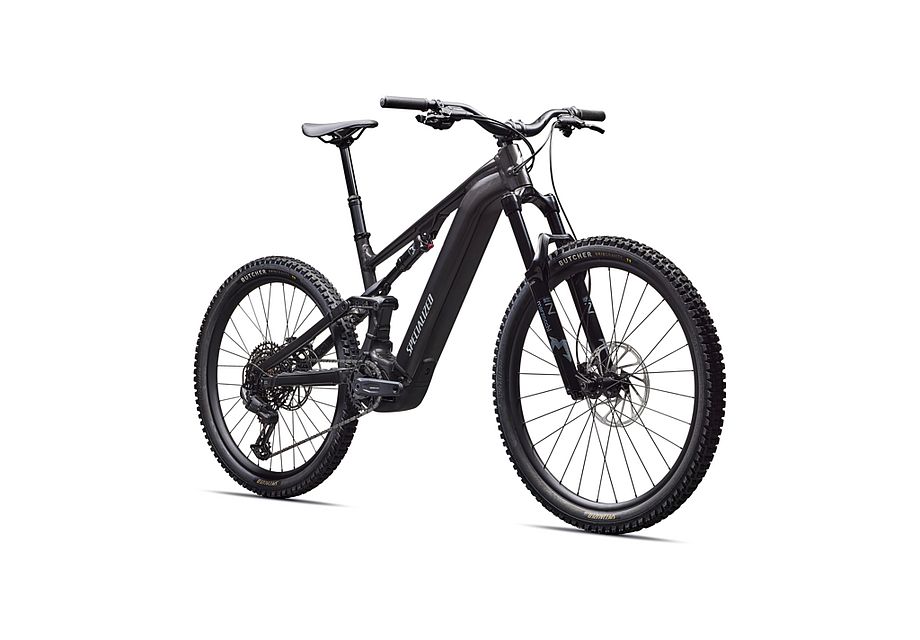

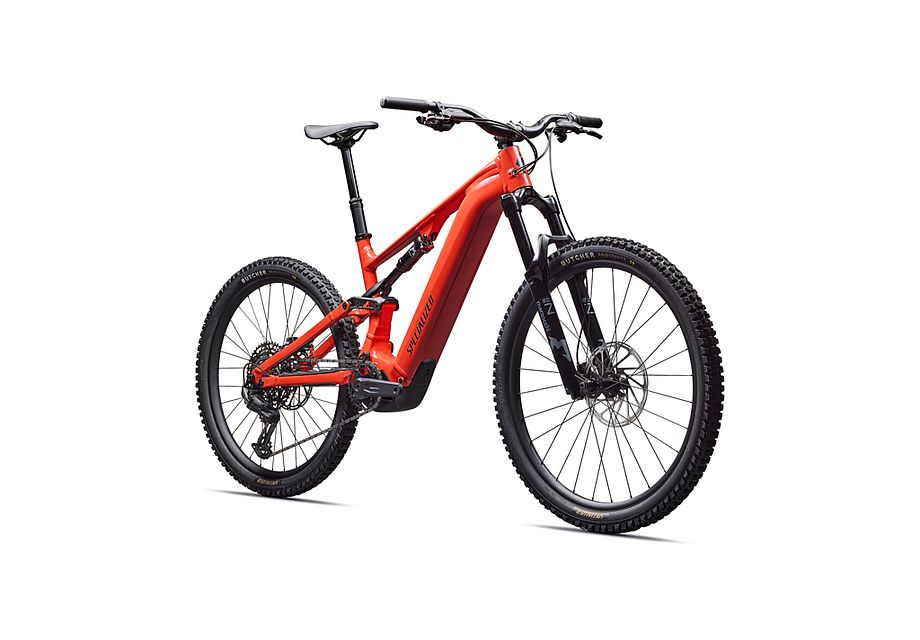

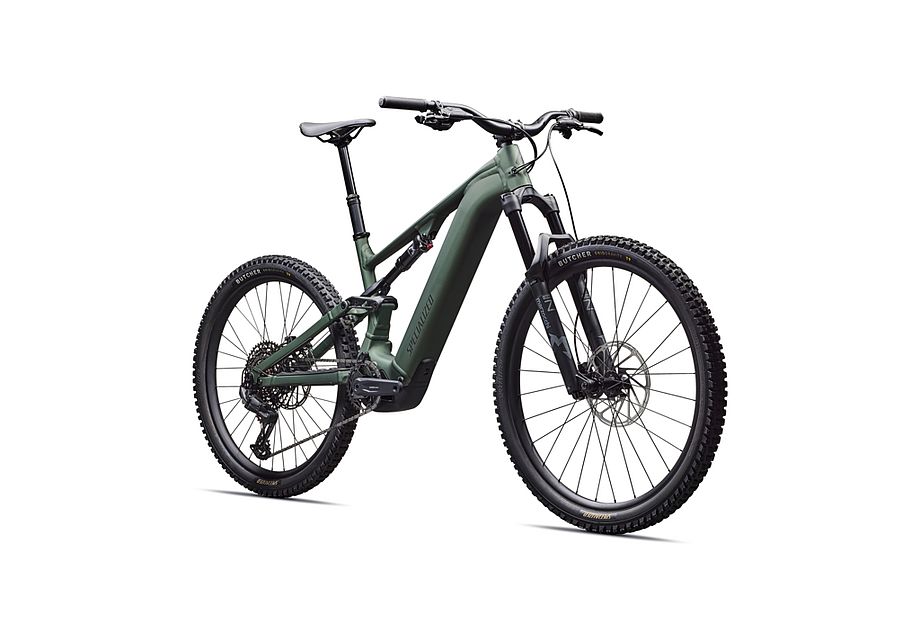

Specialized Turbo Levo 4 Alloy

Specialized Turbo Levo 4 Alloy

The way into the Levo 4. The full power 3.1 motor and 840Wh battery on an alloy frame, with 150mm out back and a 160mm Marzocchi Bomber Z1 up front.

SRAM Eagle 70 shifting, DB8 4 piston brakes on 220mm and 200mm rotors, adjustable geometry and SWAT storage in the down tube. Not sure on size? Bring them in and we'll sort it.

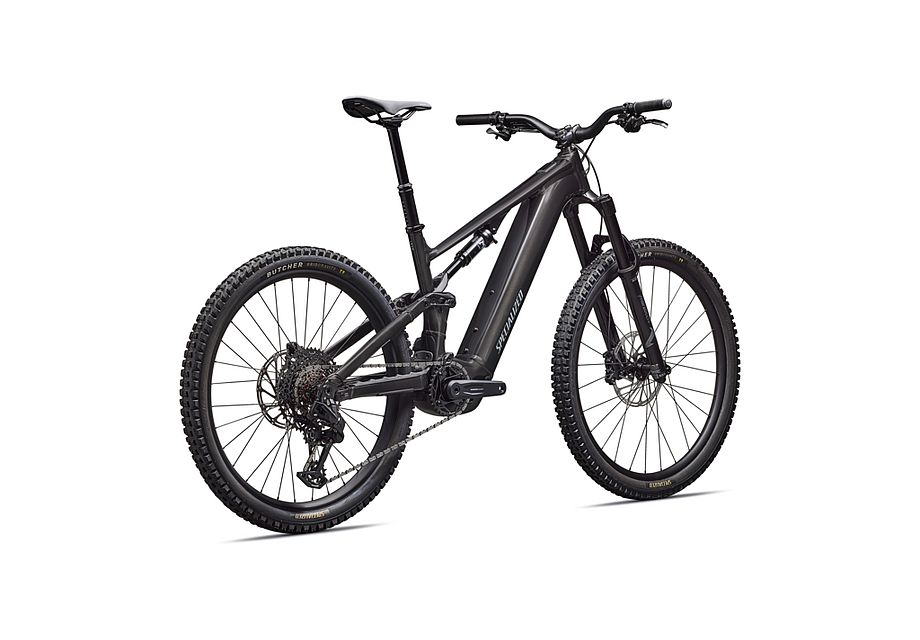

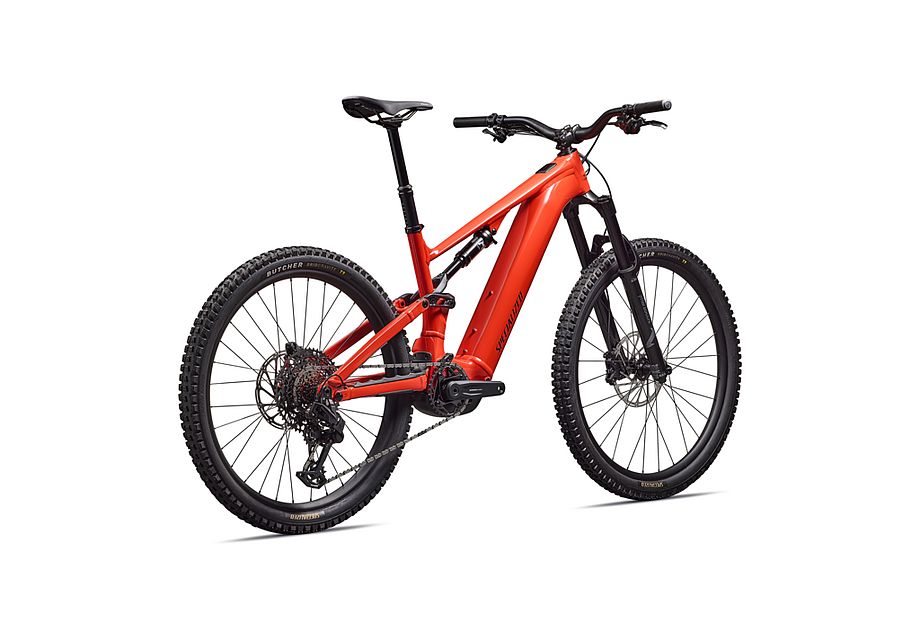

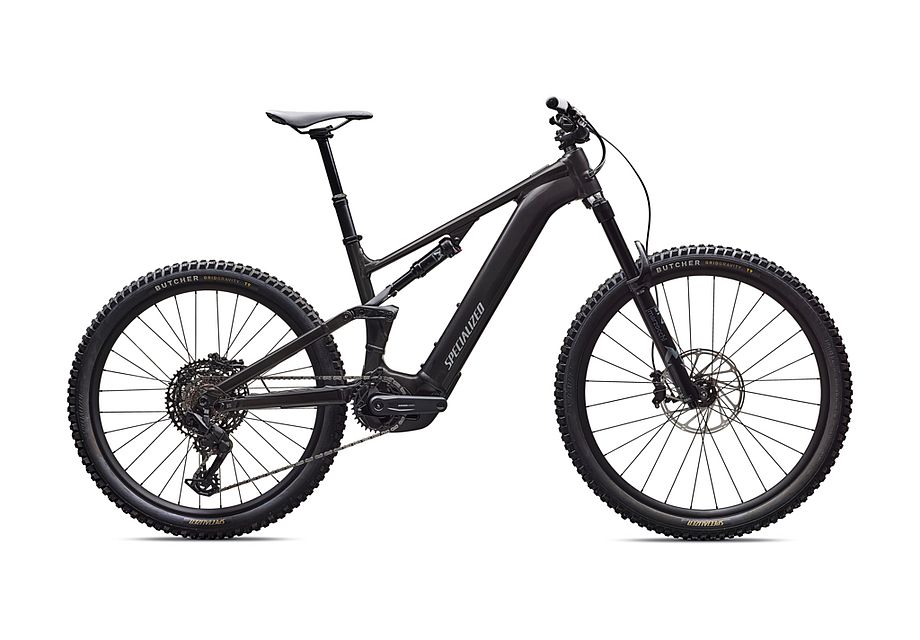

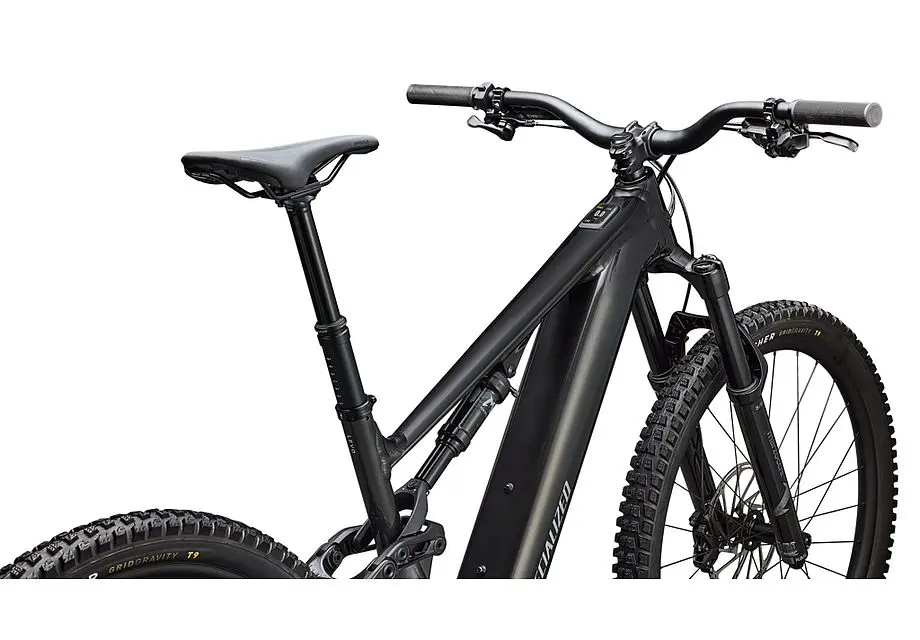

Colours: Gloss Deep Orange / Deep Lake, Gloss Metallic Obsidian / Silver Dust, Satin Cypress Metallic / Dark Moss Green.

Key Features

• M5 alloy frame, 150mm travel
• Specialized 3.1 motor, 810W, 105Nm
• 840Wh integrated battery
• Marzocchi Bomber Z1 fork, 160mm (150mm on S1)
• SRAM Eagle 70 T-Type, 10-52T
• SRAM DB8 Stealth 4 piston brakes
• 26.08kg (S4)

Specifications

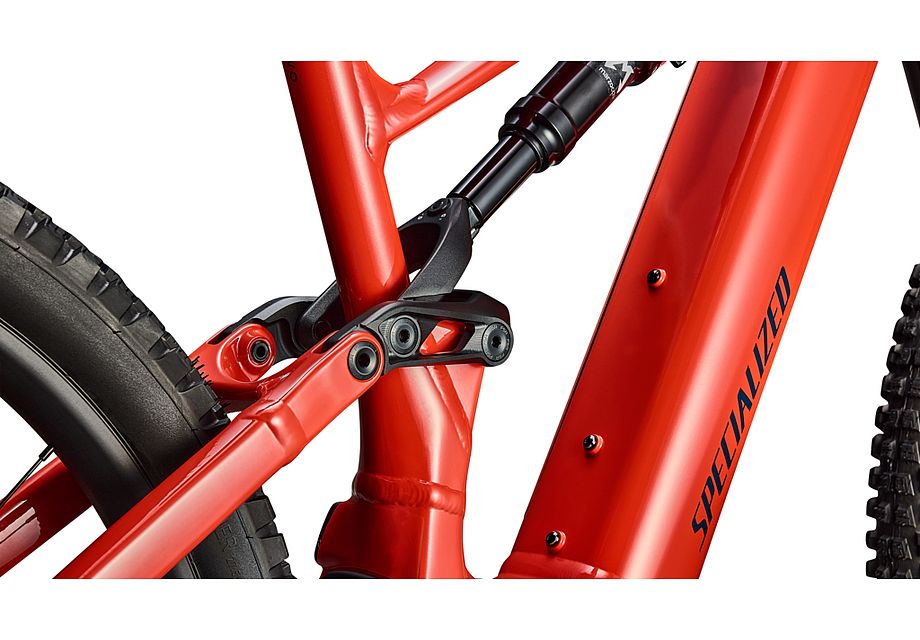

• Frame: M5 alloy, 150mm travel, side entry battery, SWAT down tube storage, adjustable head angle, BB height and chainstay length, SRAM UDH

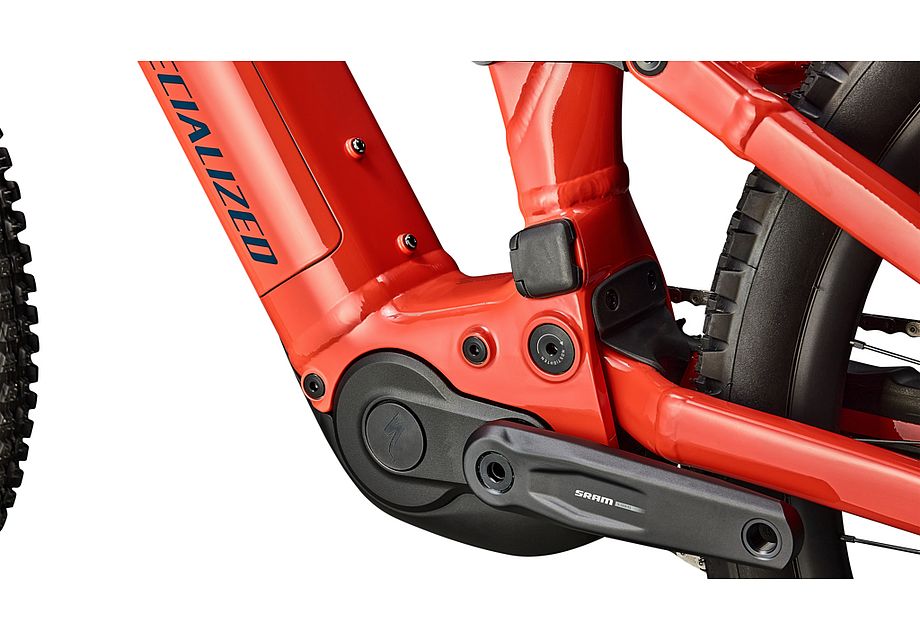

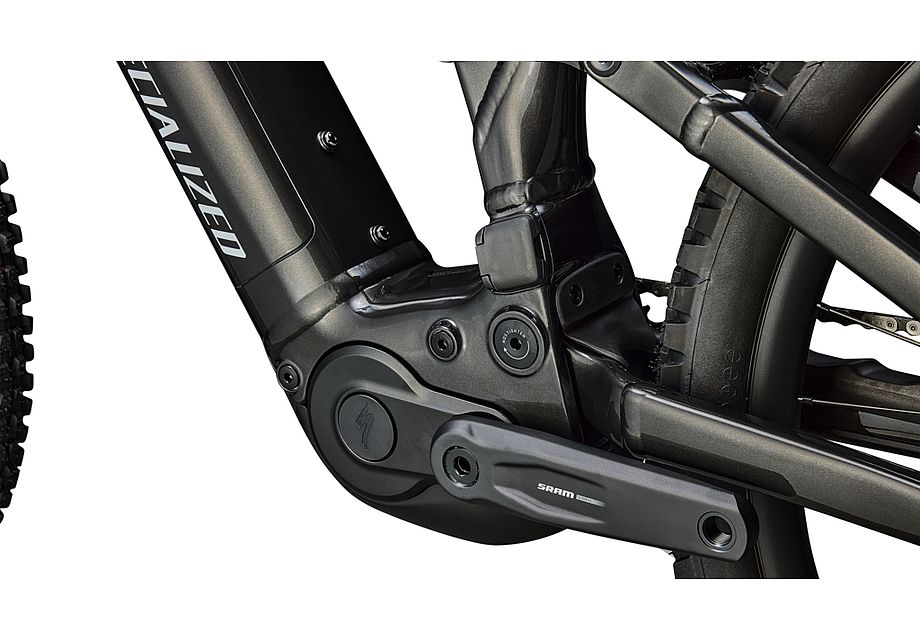

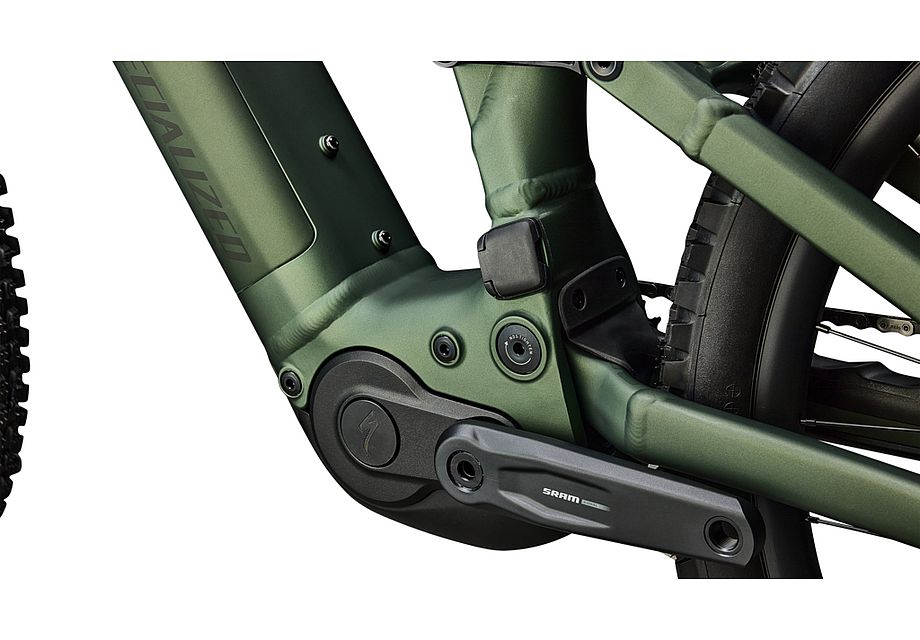

• Motor: Specialized 3.1, 810W, 105Nm
• Battery: 840Wh, integrated, side entry

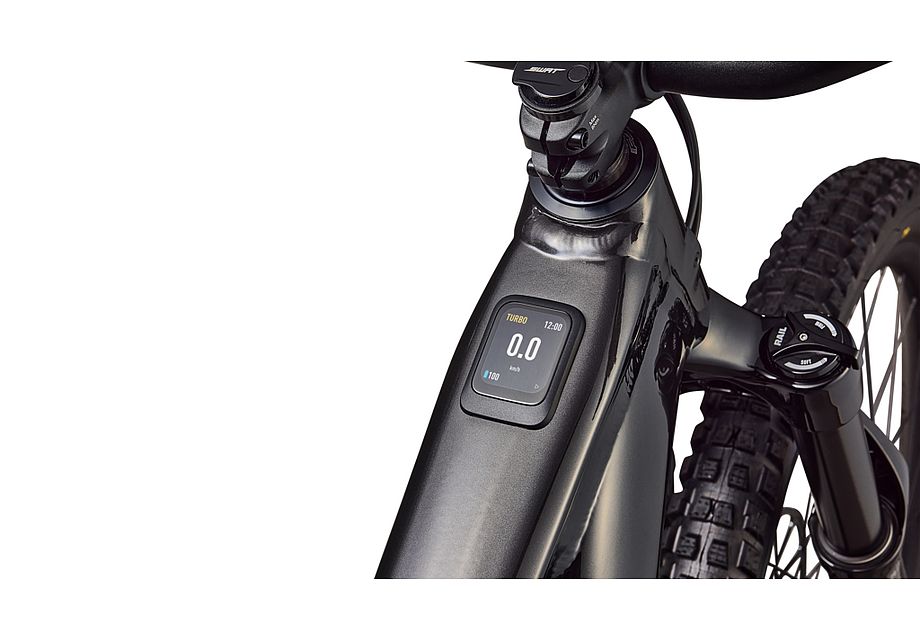

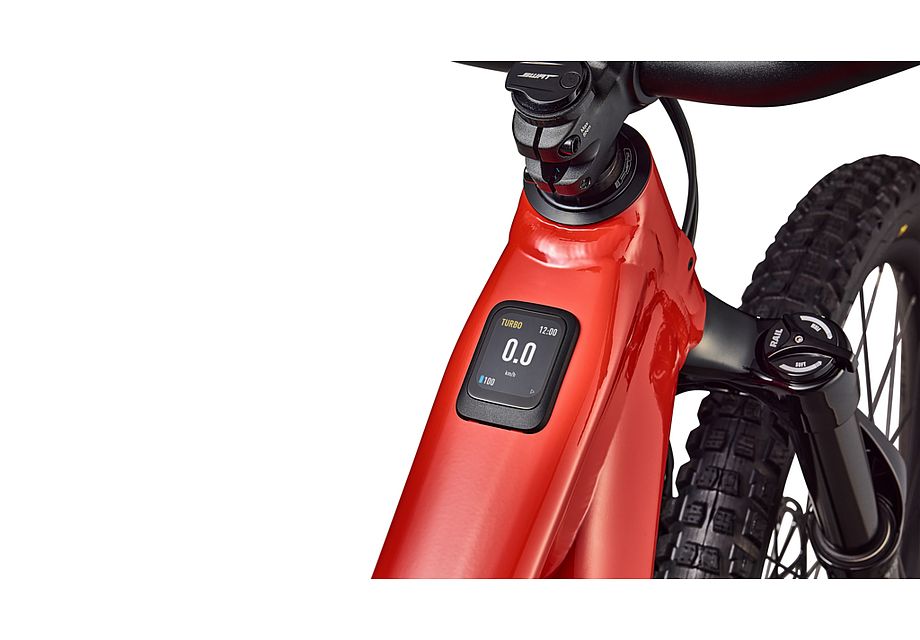

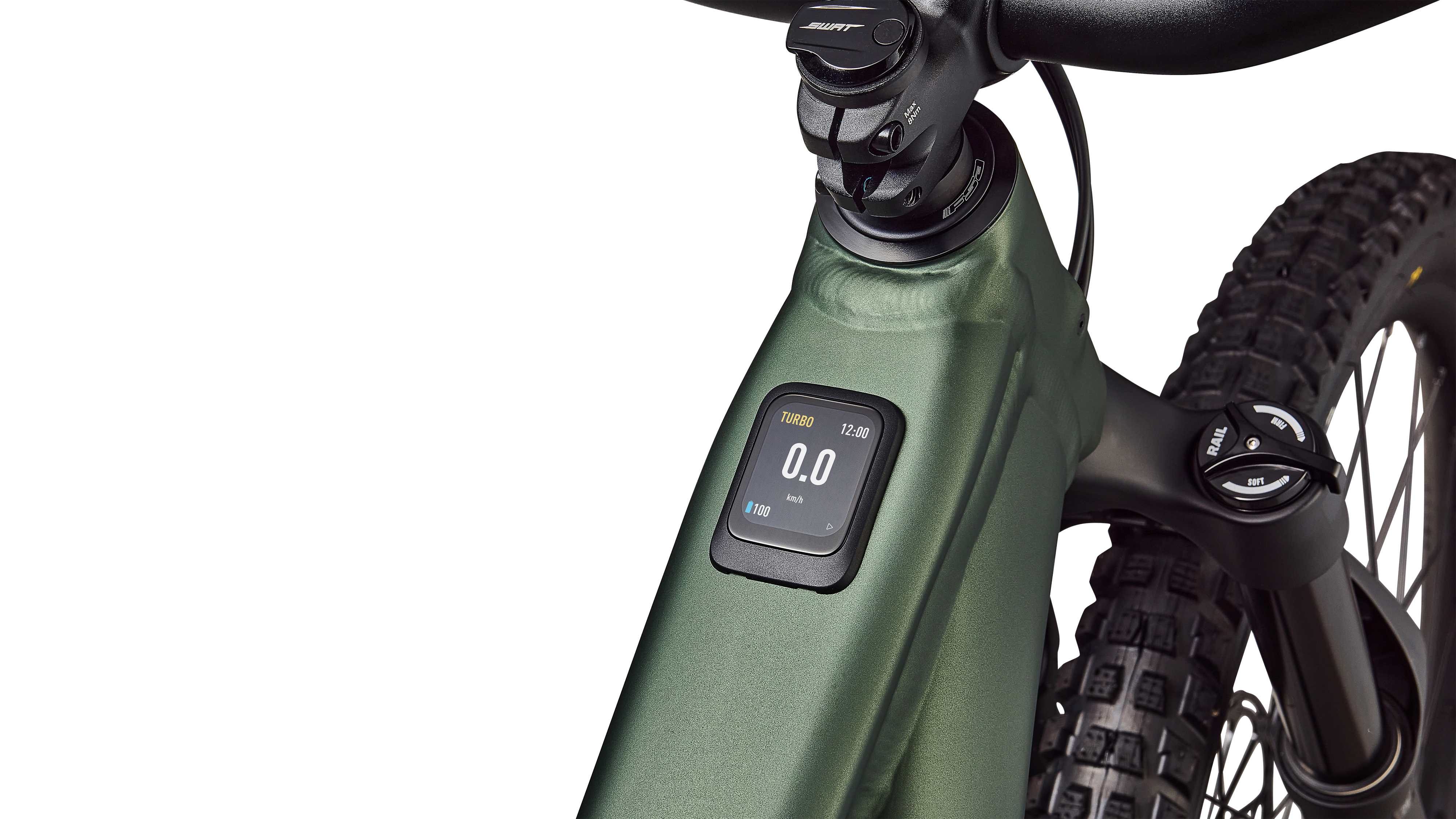

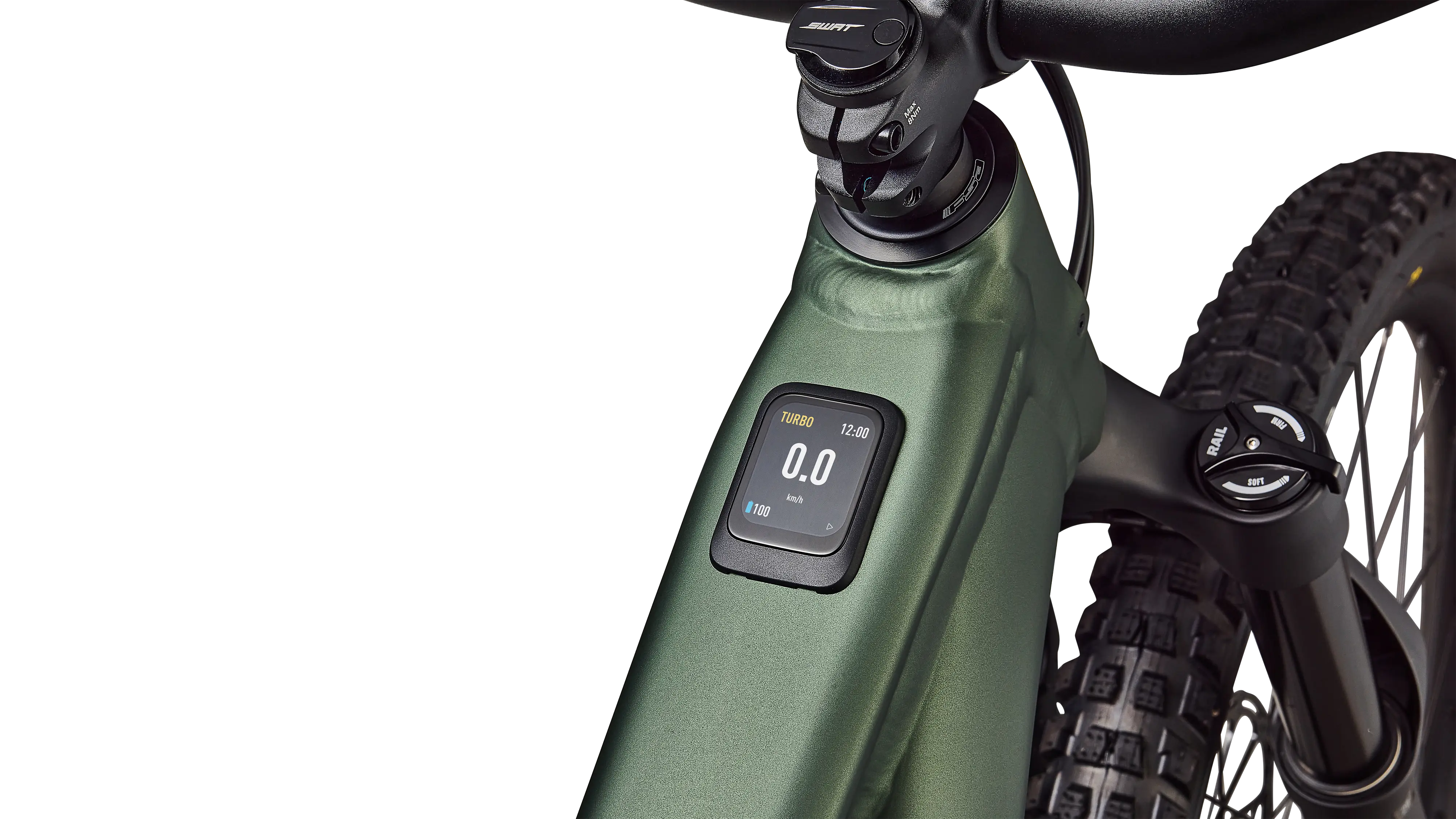

• Display: MasterMind T3, 2.2" colour screen, Specialized app
• Charger: Specialized 4A
• Fork: Marzocchi Bomber Z1, 15 x 110mm. 150mm on S1, 160mm on S2 to S6

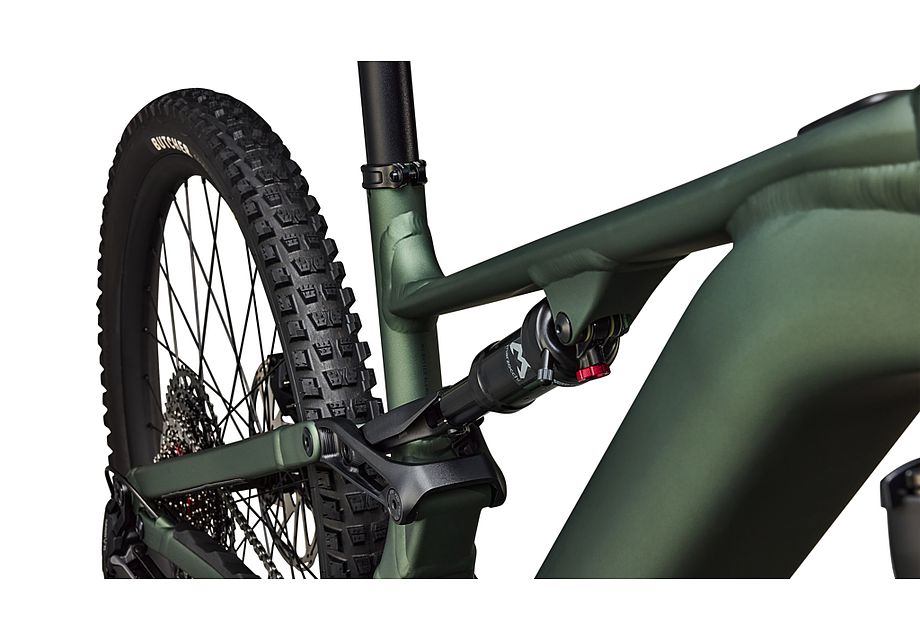

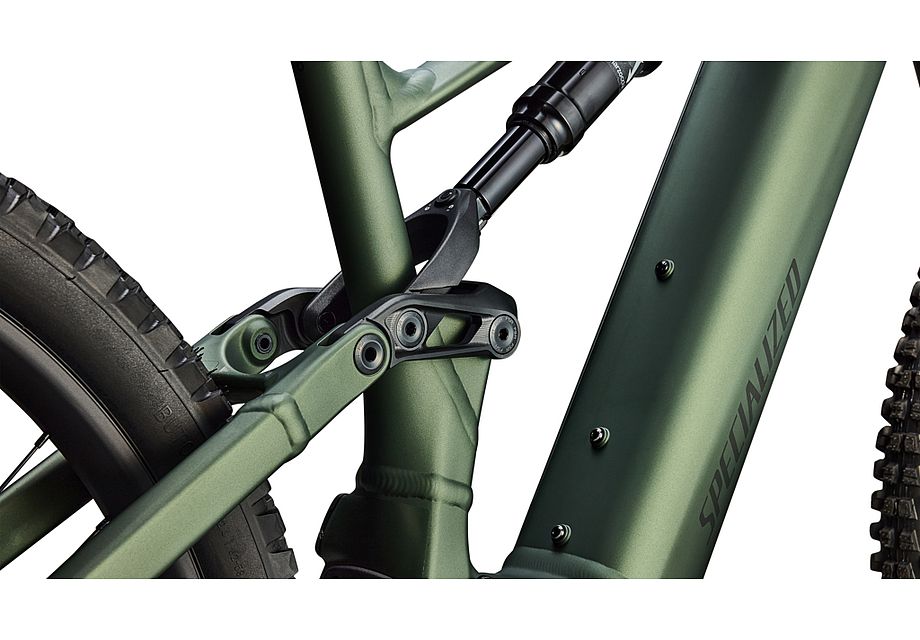

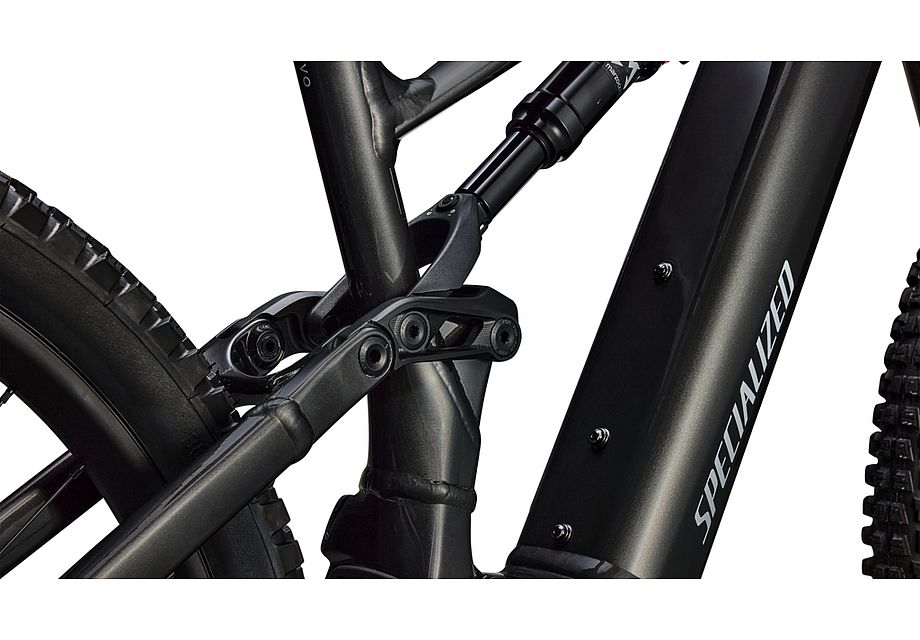

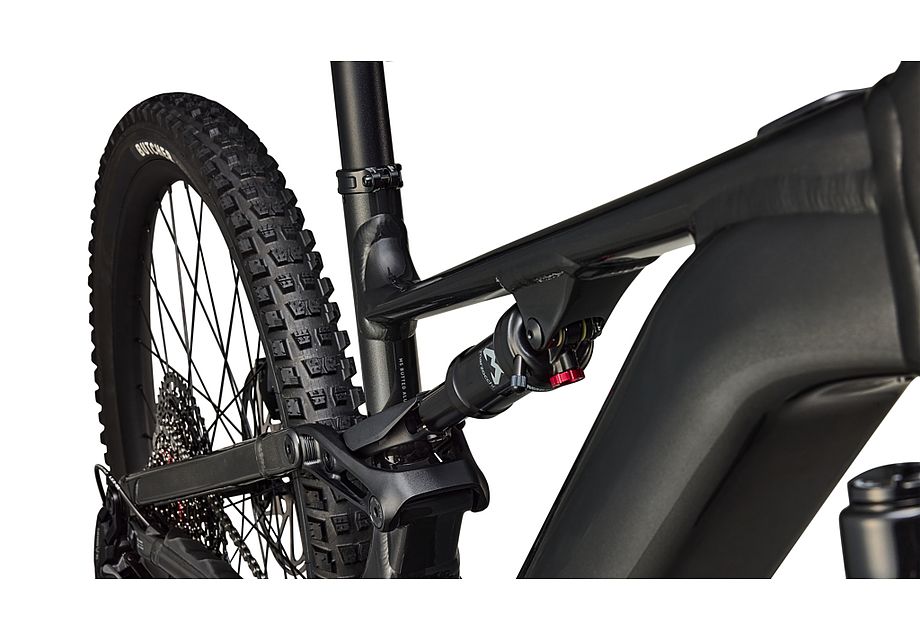

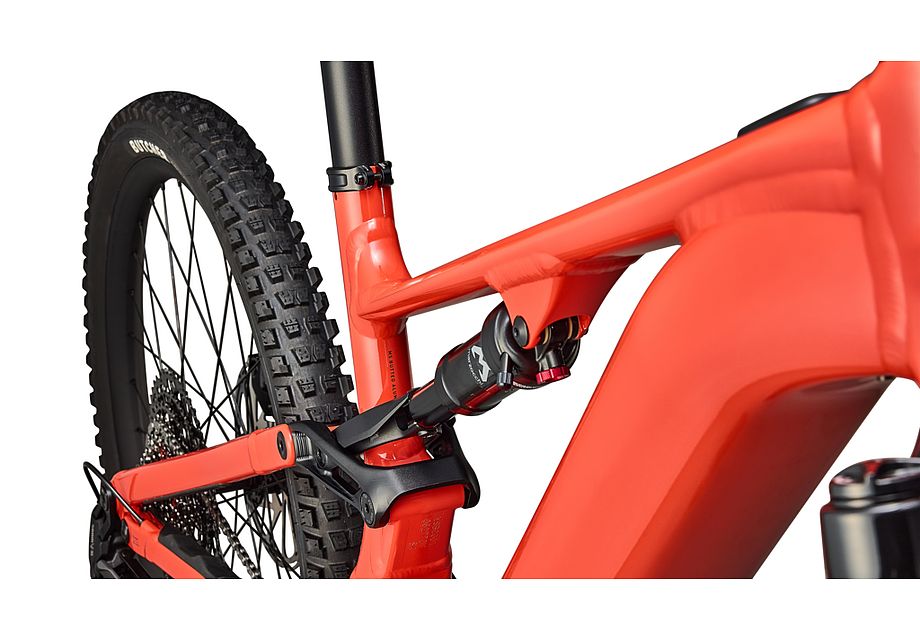

• Rear shock: Marzocchi Bomber Inline, 210 x 55mm
• Shifter: SRAM Eagle 70
• Rear derailleur: SRAM Eagle 70 T-Type
• Cassette: SRAM XS-1270, 10-52T
• Chain: SRAM Eagle 70
• Cranks: SRAM S1000, 155mm, 34T
• Brakes: SRAM DB8 Stealth, 4 piston hydraulic disc, 220mm front, 200mm rear
• Wheels: Specialized hookless alloy, 30mm internal, tubeless ready
• Tyres: Specialized Butcher GRID Gravity T9, 29 x 2.4" front, 27.5 x 2.4" rear

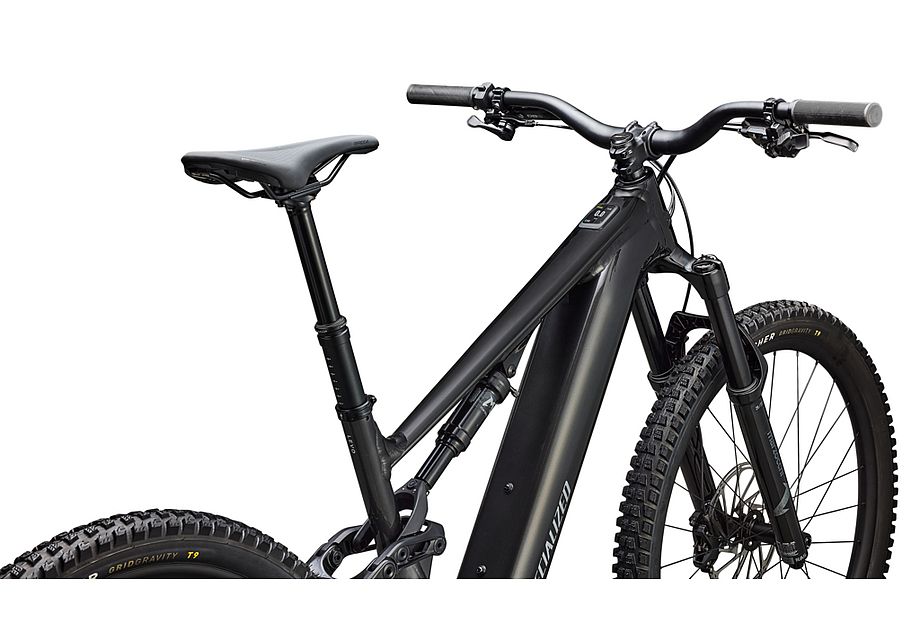

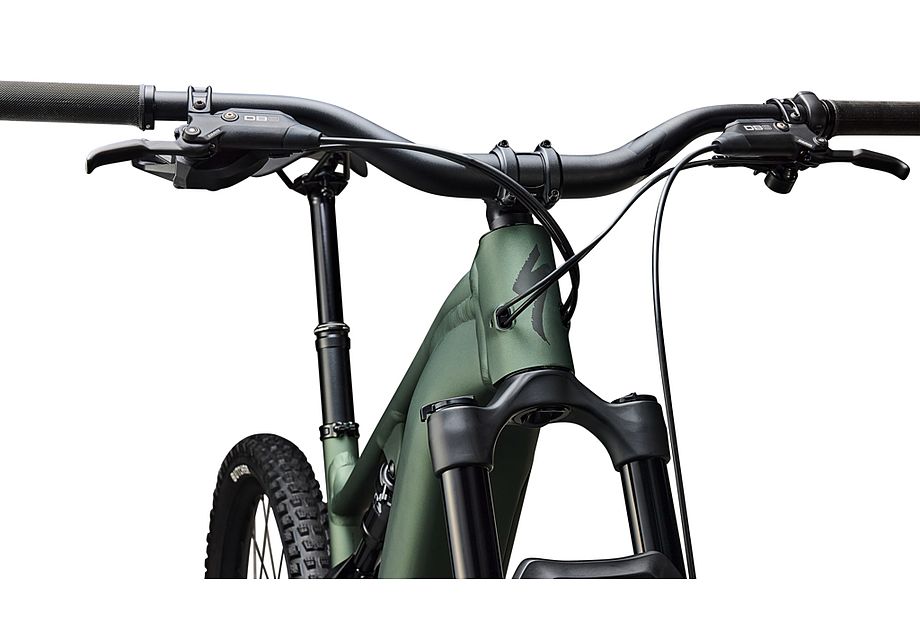

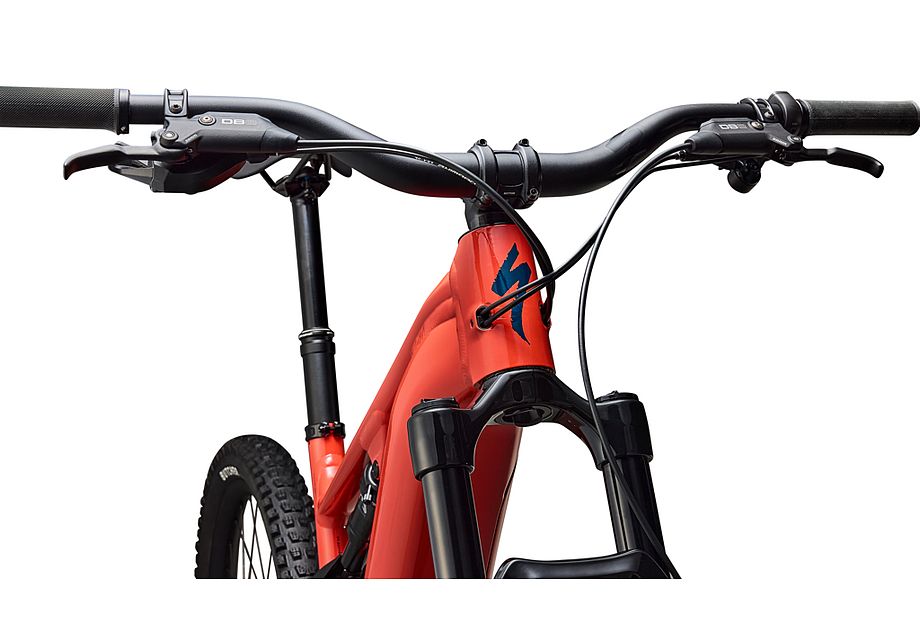

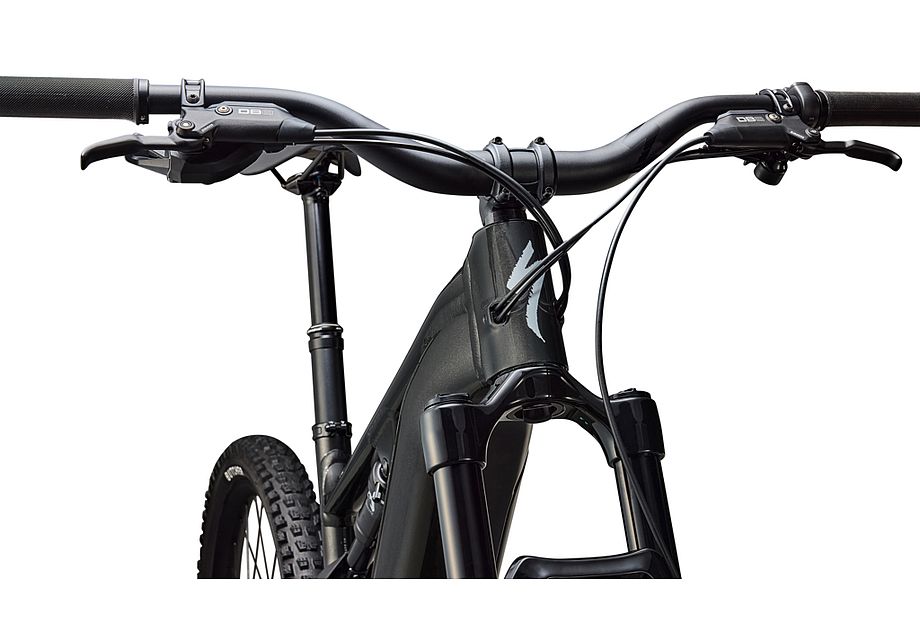

• Handlebar: Specialized alloy. 780mm, 30mm rise on S1 and S2. 800mm, 50mm rise on S3 to S6
• Stem: Specialized alloy Trail
• Grips: Specialized Trail
• Saddle: Body Geometry Bridge
• Seat post: TranzX dropper, 34.9mm. 100mm S1, 125mm S2, 150mm S3, 170mm S4, 200mm S6
• Weight: 26.08kg (S4)
• Wheel size: Mixed, 29" front, 27.5" rear
• Travel: 160mm front, 150mm rear

Specs can change without notice from Specialized.
