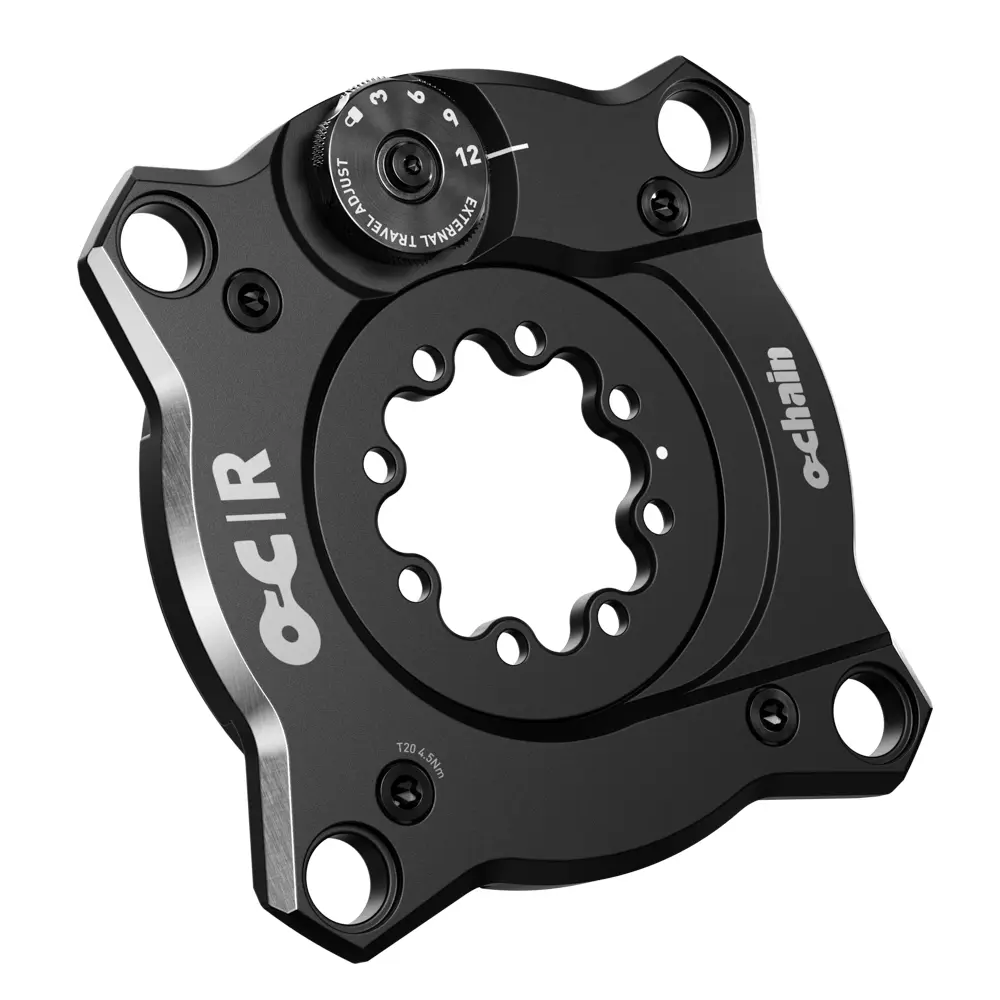

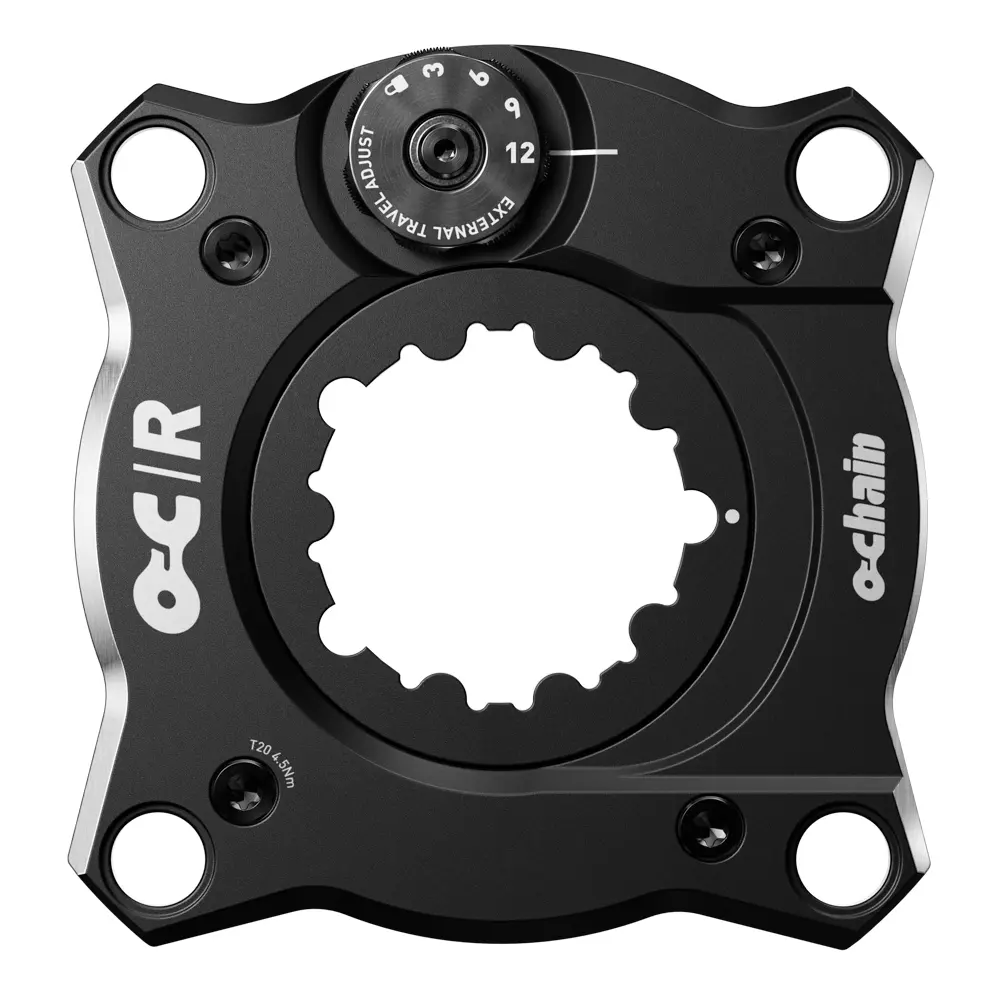

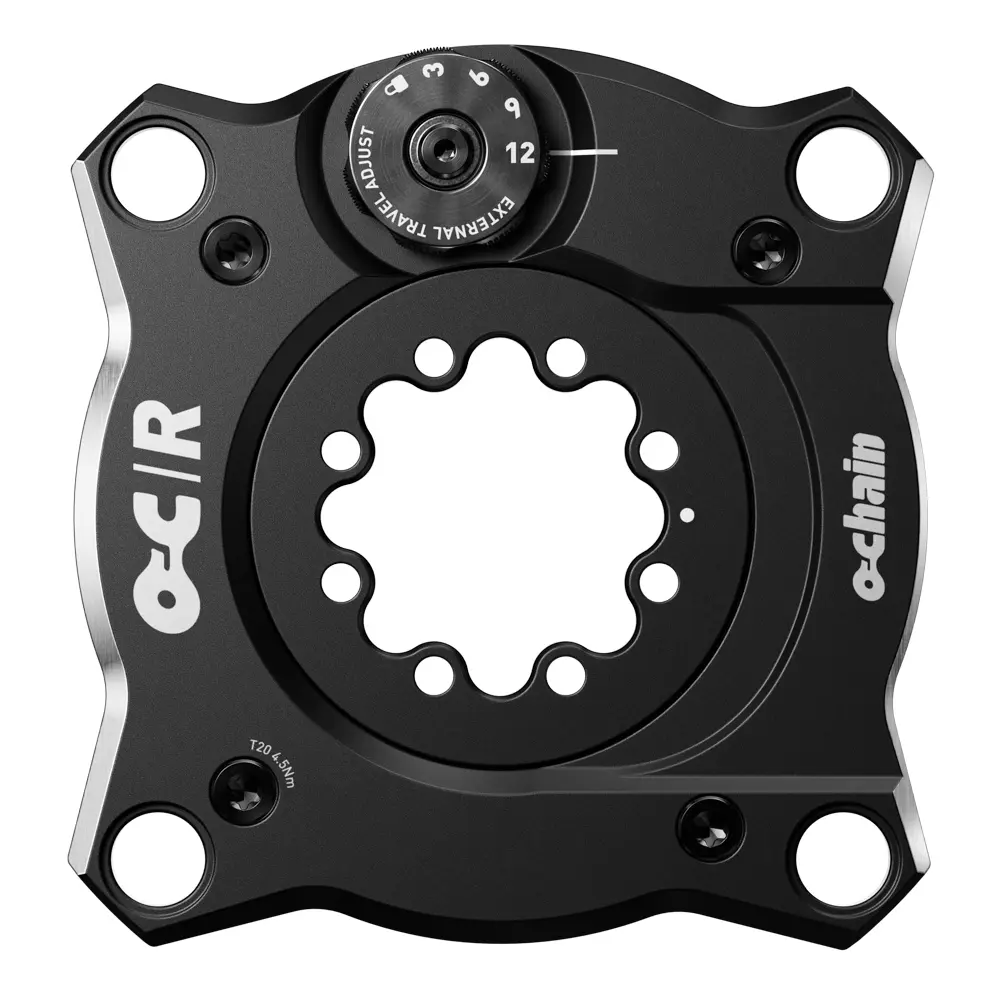

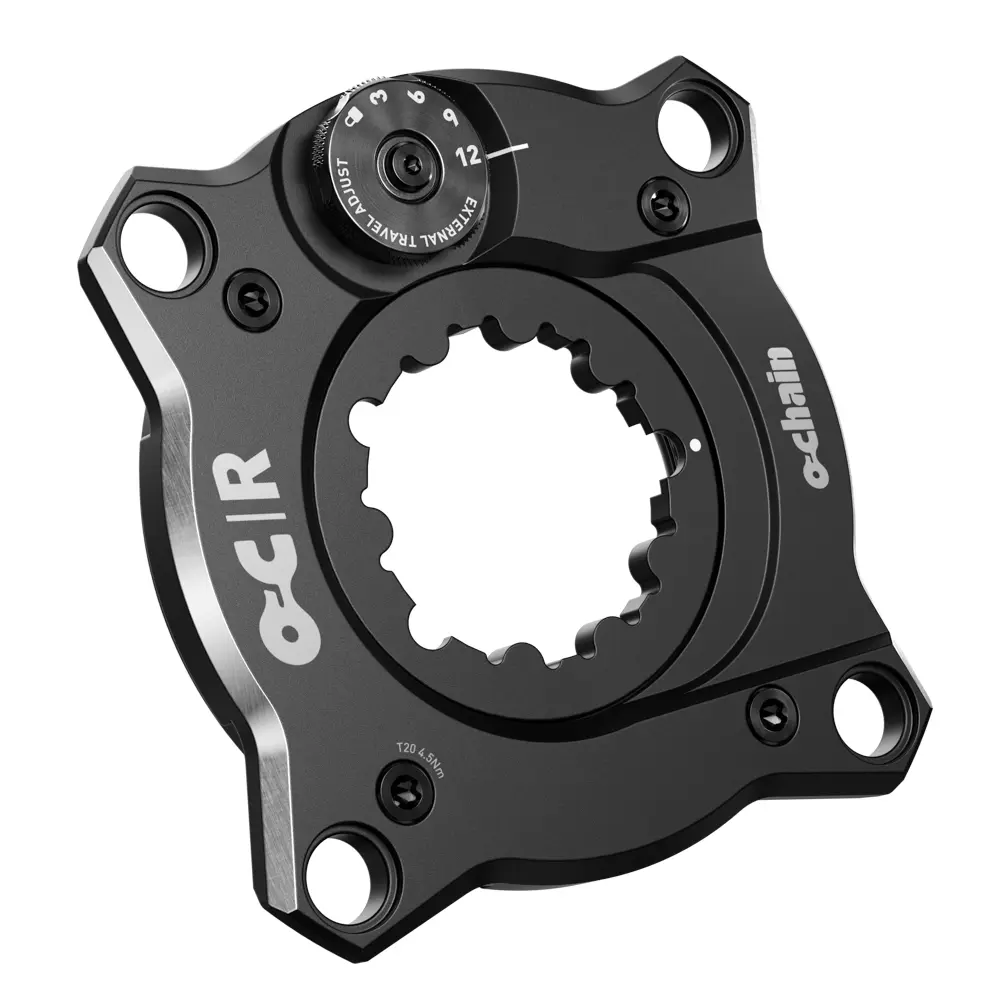

Ochain R

Ochain R Spider

For full on downhill to all day trail. The spider lets the chainring rotate backward, so pedal feedback doesn't reach you. Quieter bike, less chain slap, more control while braking and cornering. Because it sits on the crank, the degrees of travel aren't multiplied by cassette jumps.

Key Features

• External travel adjust. Choose Lock, 3, 6, 9 or 12 degrees to suit terrain and bike
• Re engineered for impact resistance, longevity and sealing
• Service: elastomer replacement at 100 hours, full service at 200 hours
• Includes: spider and spider to crank mounting bolts

Specifications

• Fits: SRAM 8 bolt and SRAM 3 bolt direct mount standards
• BCD: 104
• Chainring offset: 3mm
• Colour: Black
• Weight: 177.2g or 178.9g
• Chainring and hardware not included. 104 BCD chainrings only
• Virtual 3mm offset with a SRAM XX 104 BCD T-Type chainring for CL55. Extra 3mm spacers and hardware are needed for CL56.5mm DH on a crank with a DH83 spindle

Need a hand with the install or service? Book it into our workshop.
