Park Tool - HBP-1 - Hub Bearing Press Set

Park Tool HBP-1 Hub Bearing Press Set

A full workshop set for pressing cartridge bearings into hubs, square and without damage. Two presses: a larger T-handle press for bearings over 10mm ID and a smaller cam-handle press for 10mm and under. Quick release design, so it goes on and comes off the hub fast.

Machined aluminium pilots, bushings and spacers cover 21 common bearing sizes from 8 x 16mm up to 20 x 37mm, all stored in a case with foam inserts. A spare 15mm pilot is also listed here as a separate option. Suits a shop or a serious home mechanic doing their own hub bearings. Not sure it fits? Talk to us and we'll check.

Key Features

• Presses cartridge bearings into a wide range of hubs
• Covers 21 bearing sizes
• Two presses, T-handle and cam-handle
• Quick release design
• Machined aluminium pilots, bushings and spacers
• Storage case with foam inserts

Specifications

• Bearing sizes (ID x OD): 8x16, 8x22, 9x20, 9x22, 9x24, 10x19, 10x22, 10x26, 12x18, 12x21, 12x24, 12x27, 15x21, 15x24, 15x26, 15x28, 17x26, 17x30, 20x27, 20x32, 20x37mm
• Pilots: 8, 9, 10, 12, 15, 17 and 20mm, two of each
• Spacers: 12, 15, 17 and 20mm
• Presses: T-handle (ID over 10mm) and cam handle (ID 10mm or less)
• Options: HBP-1 complete set, or 2272-2 15mm pilot (spare)

In the Box

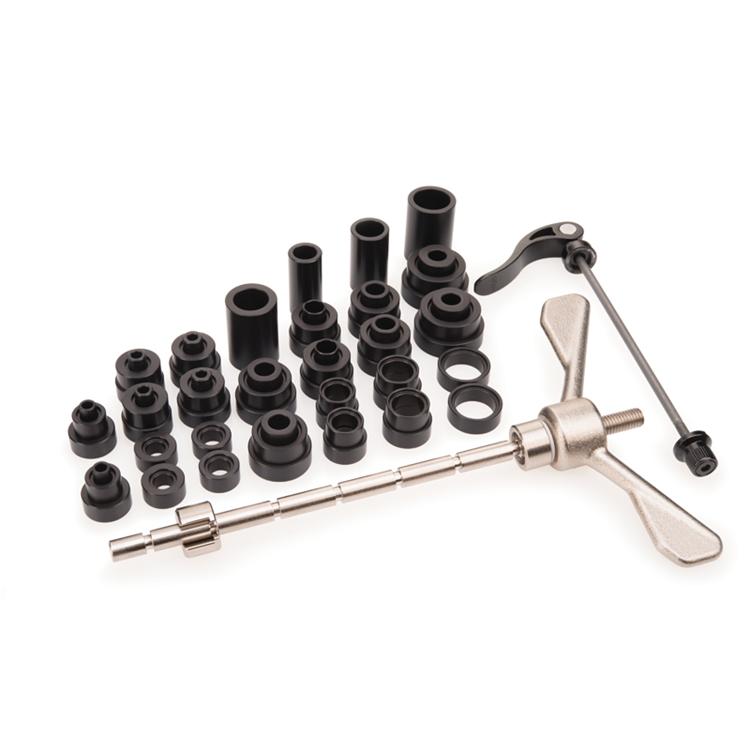

• Two bearing presses
• Pilots, bushings and spacers

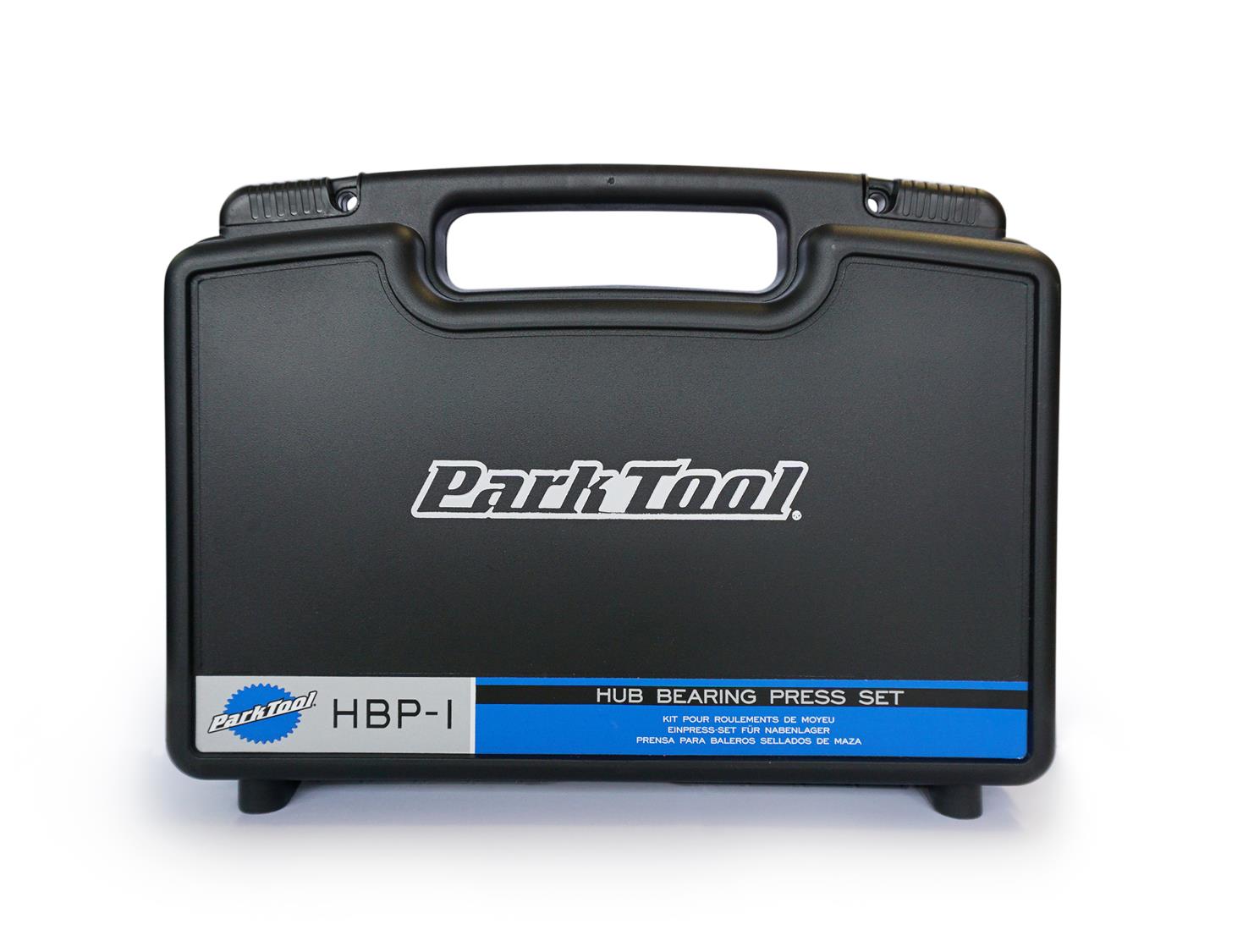

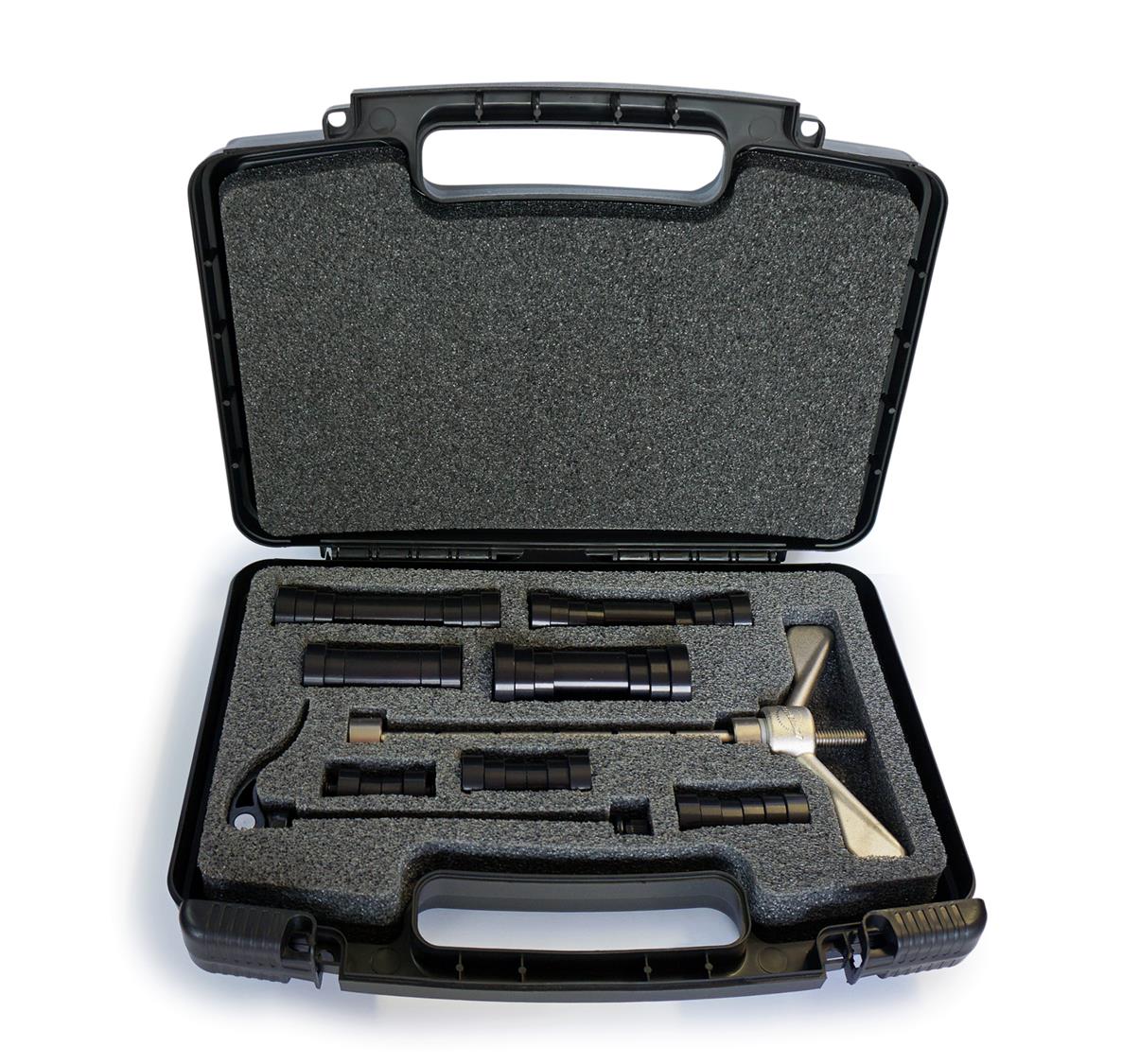

• Storage case with foam inserts

Specs can change without notice from Park Tool.
