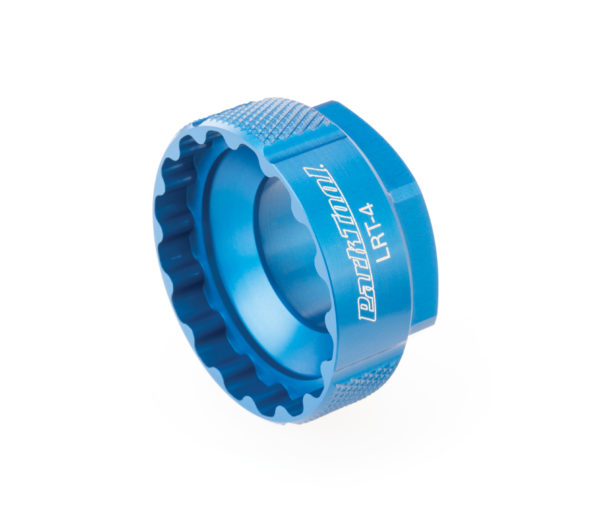

Park Tool - LRT-4 Shimano Direct Mount Lockring Tool

Park Tool LRT-4 Lockring Tool, Shimano Direct Mount

Removes and installs the lockring on Shimano direct mount chainrings, like XTR 9120, XT 8120, MT900 and other Shimano direct mount cranks. Fits lockrings with a 41mm outside diameter and 16 notches. CNC machined from 6061 aluminium with a flat face for good engagement and less chance of marking the crank.

It has a 36mm hex, so to torque it properly you'll want the TWB-36 crow foot and a 3/8" torque wrench. The TWB-36 is listed here as a separate option. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• Fits Shimano direct mount chainring lockrings
• 41mm OD, 16-notch lockrings
• CNC machined 6061 aluminium
• 36mm hex for use with the TWB-36 crow foot

Specifications

• Fits: Shimano XTR 9120, XT 8120, MT900 and other Shimano direct mount systems
• Lockring: 41mm outside diameter, 16 notches
• Drive: 36mm hex
• Material: 6061 aluminium

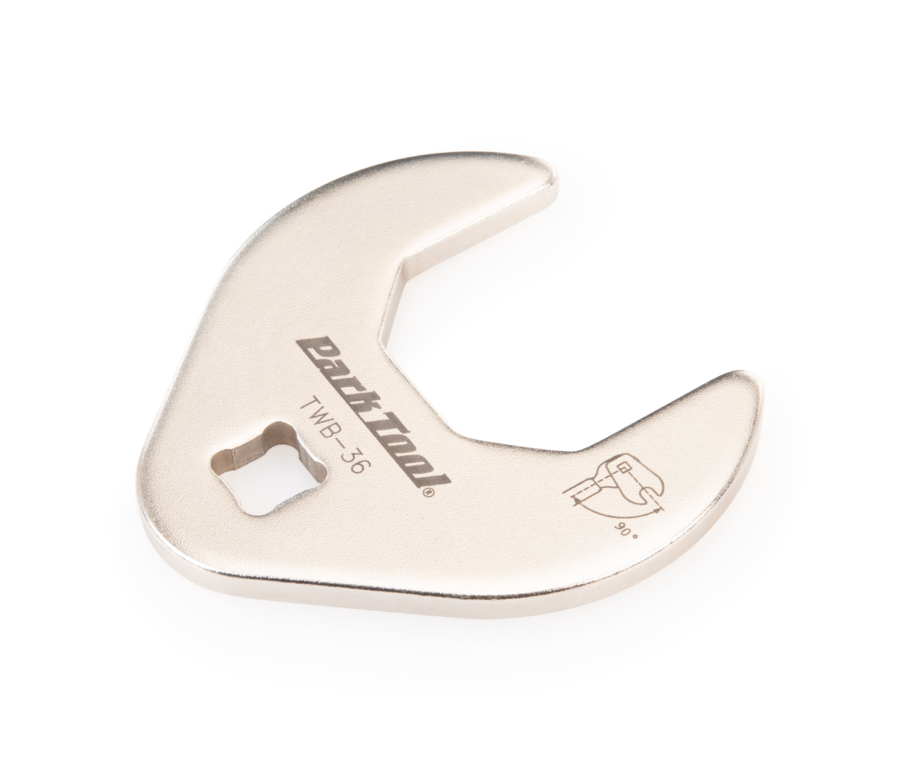

• TWB-36: 36mm crow foot, 3/8" drive, heat-treated 4130 steel
• Options: LRT-4 lockring tool, or TWB-36 36mm crow foot

Specs can change without notice from Park Tool.
