Park Tool - PCS-10.3 Deluxe Home Mechanic Repair Stand

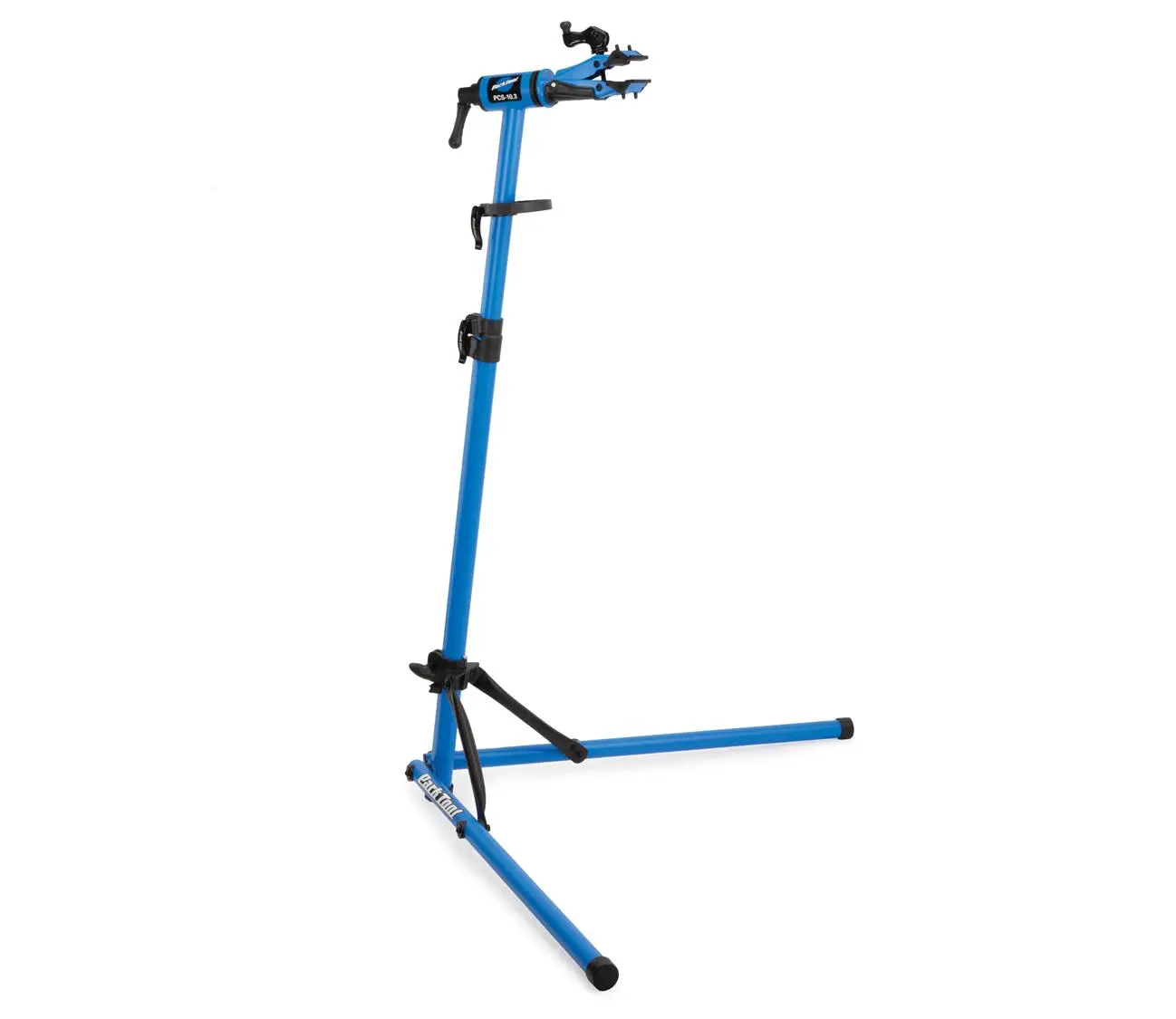

Park Tool PCS-10.3 Deluxe Home Mechanic Repair Stand

A full-featured folding stand for the home workshop. Park's cam-actuated micro-adjust clamp takes round, aero and dropper posts from 22 to 76mm, with one-handed entry and exit and 360 degrees of rotation. Quick-release height adjustment from 990 to 1450mm, so you can work sitting or standing.

All-steel teardrop tubing, support braces and a locking yoke. Holds up to 36kg with the bike centred below the clamp, so check your e-bike's weight first. Built-in height-adjustable parts tray, and ports for the 106 Work Tray or PTH-1 Paper Towel Holder (sold separately). Both legs fold up in one motion for storage.

This listing also carries two spares: the swing handle assembly (2822) and the collar assembly (2848A).

Key Features

• Cam-actuated micro-adjust clamp, 22 to 76mm
• Narrow 70mm jaws for short seatposts
• Quick-release height adjust, 990 to 1450mm
• 36kg capacity

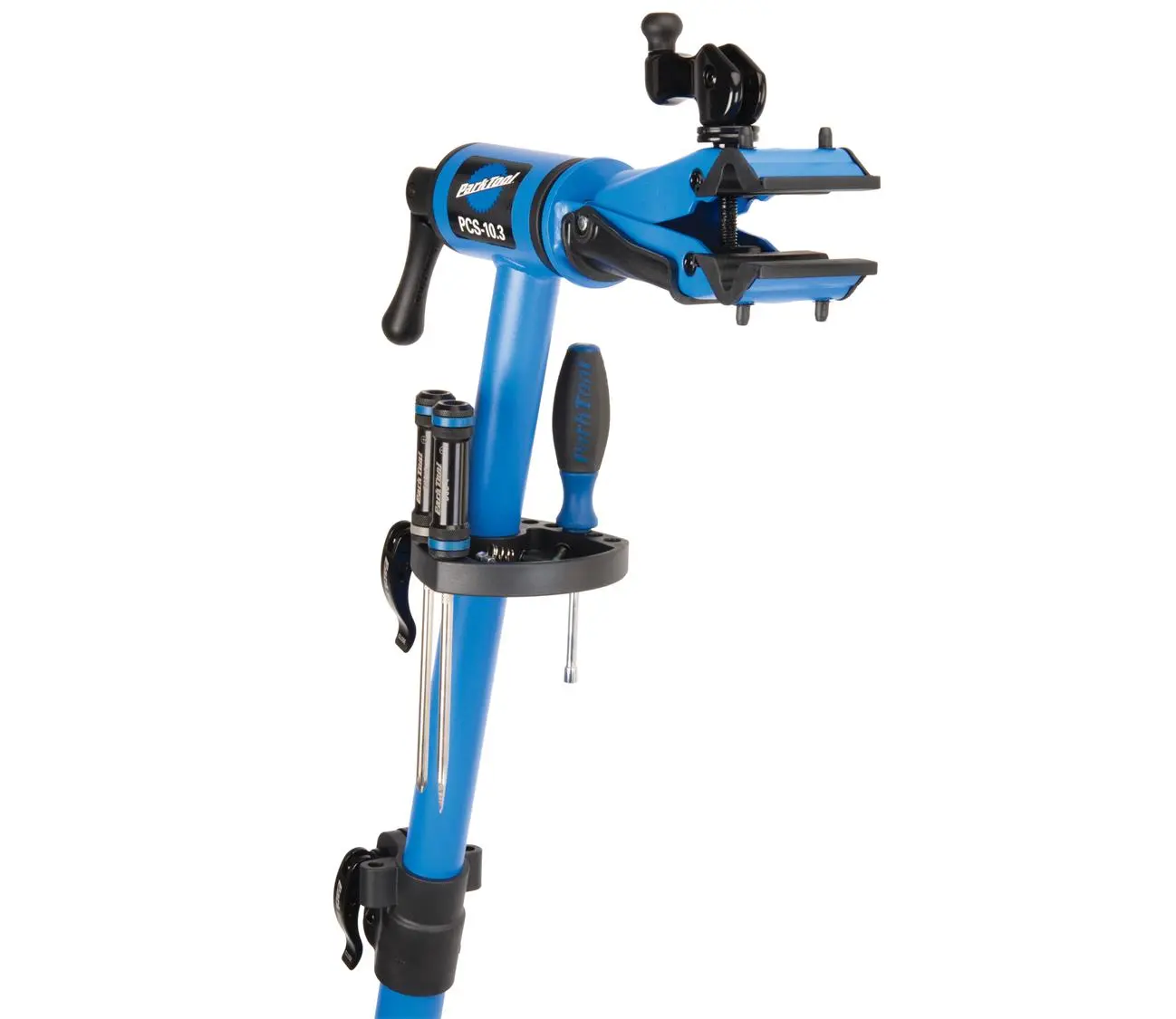

• Integrated parts tray and accessory ports
• Rubber saddle pad for hanging the bike by the saddle

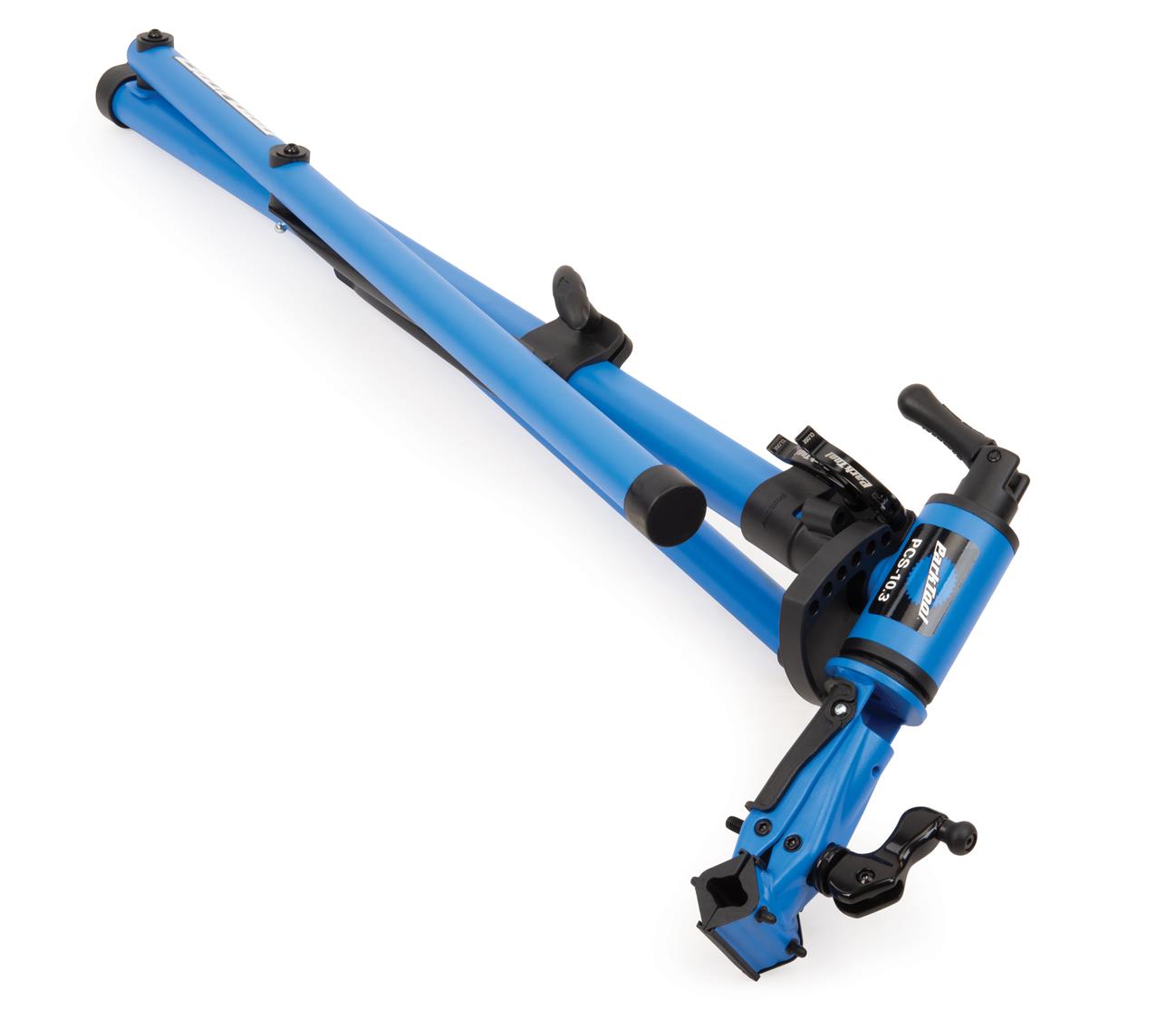

• Folds in one motion

Specifications

• Clamp range: 22 to 76mm (7/8" to 3"), round, aero and dropper posts
• Jaw width: 70mm
• Clamp rotation: 360 degrees
• Height adjustment: 990 to 1450mm (39" to 57")
• Max weight capacity: 36kg, centred below the clamp and between the legs
• Base (open): 920 x 920 x 1210mm triangle
• Folded: 1140 x 370mm
• Stand weight: 7.2kg
• Construction: Steel, textured powder coat
• Variant PCS-10.3: Complete repair stand
• Variant 2822: Swing handle assembly, fits PCS-9.3, PCS-10.3, PCS-12.2
• Variant 2848A: Collar assembly, fits PCS-9.2, PCS-10.2, PCS-10.3

Specs can change without notice from Park Tool.
