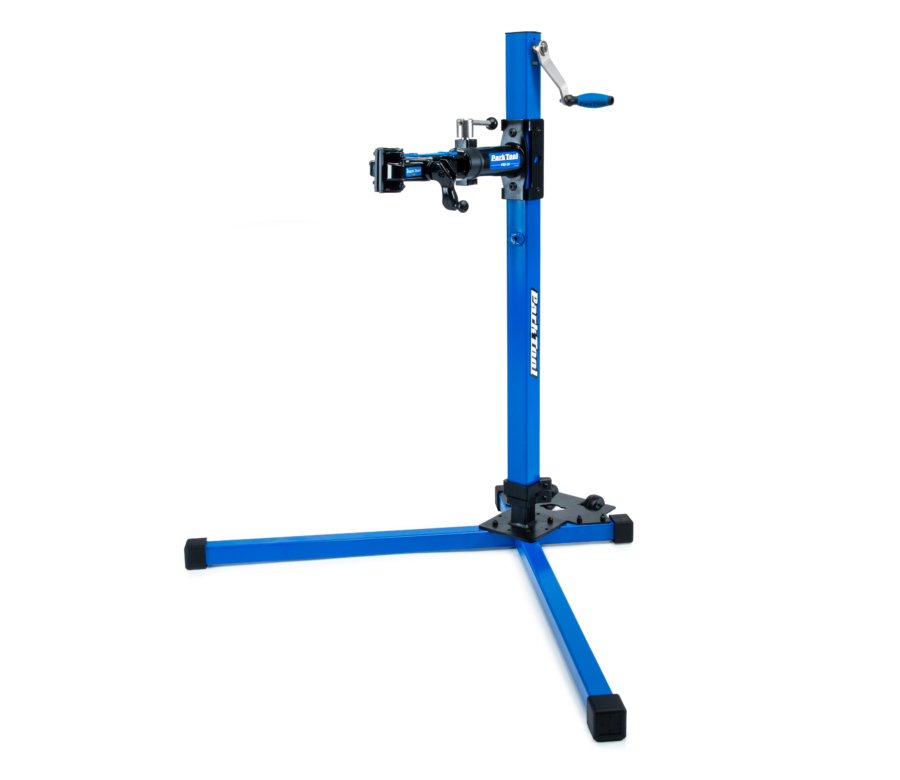

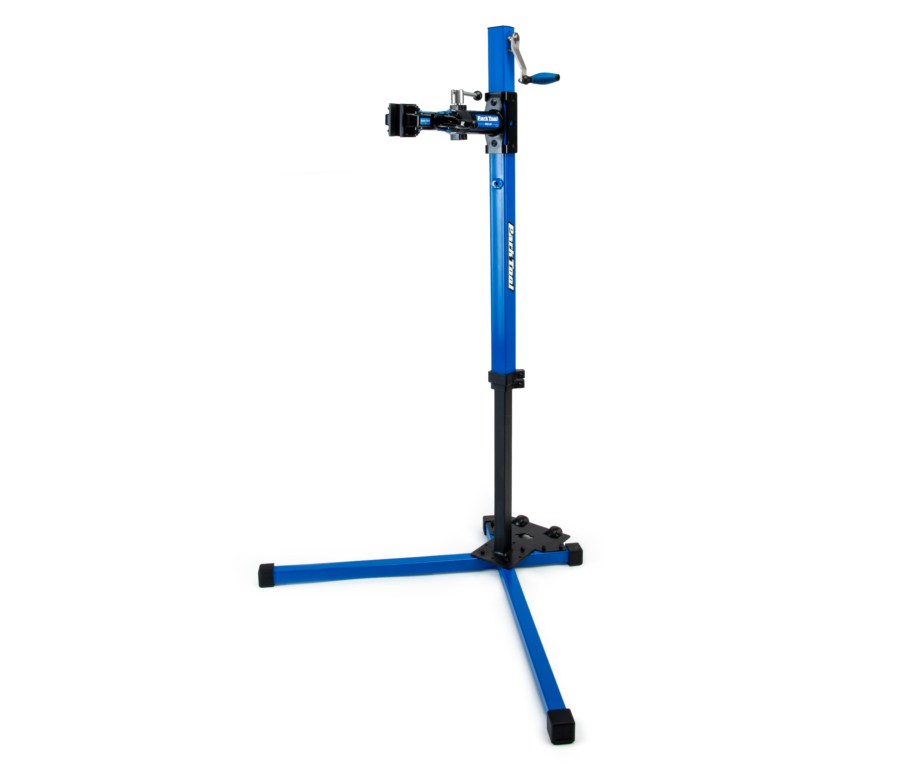

Park Tool PRS-30 Mechanical Lift Repair Stand

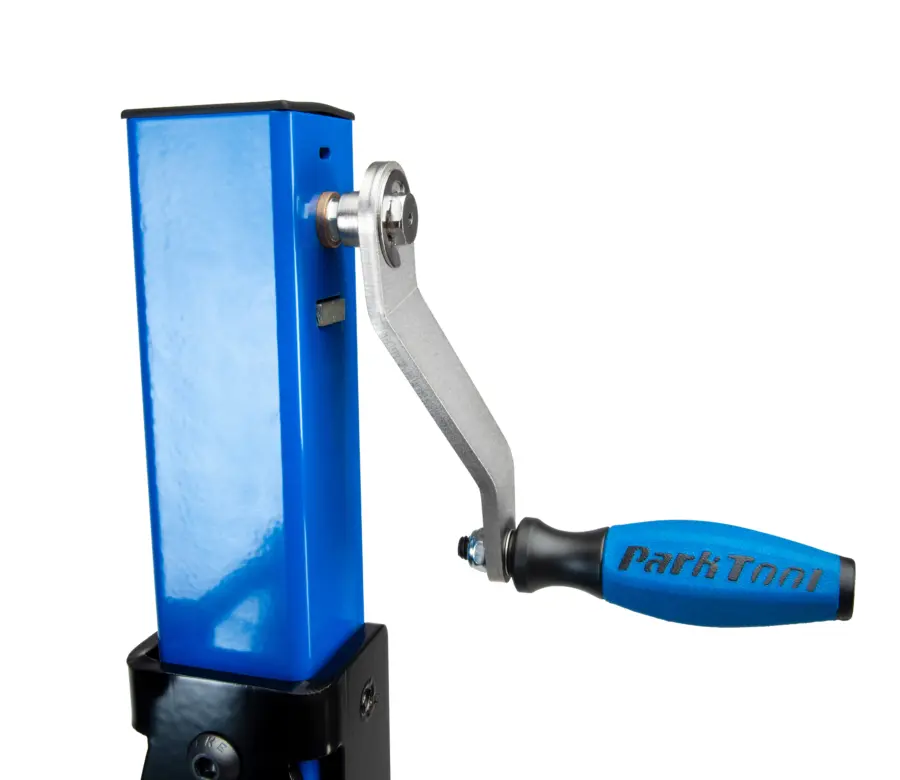

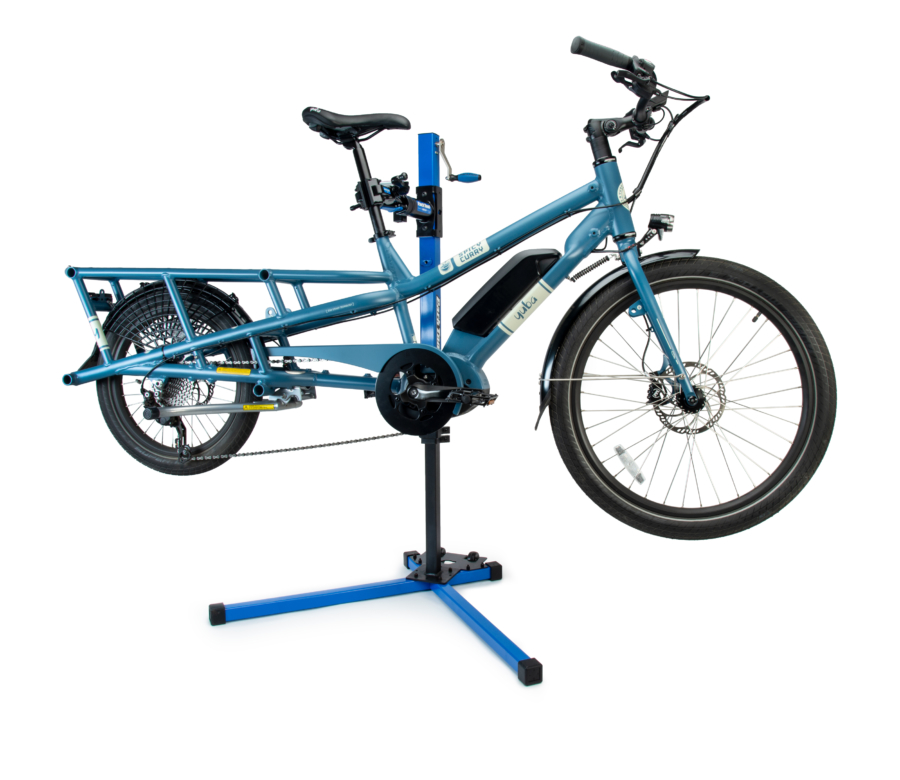

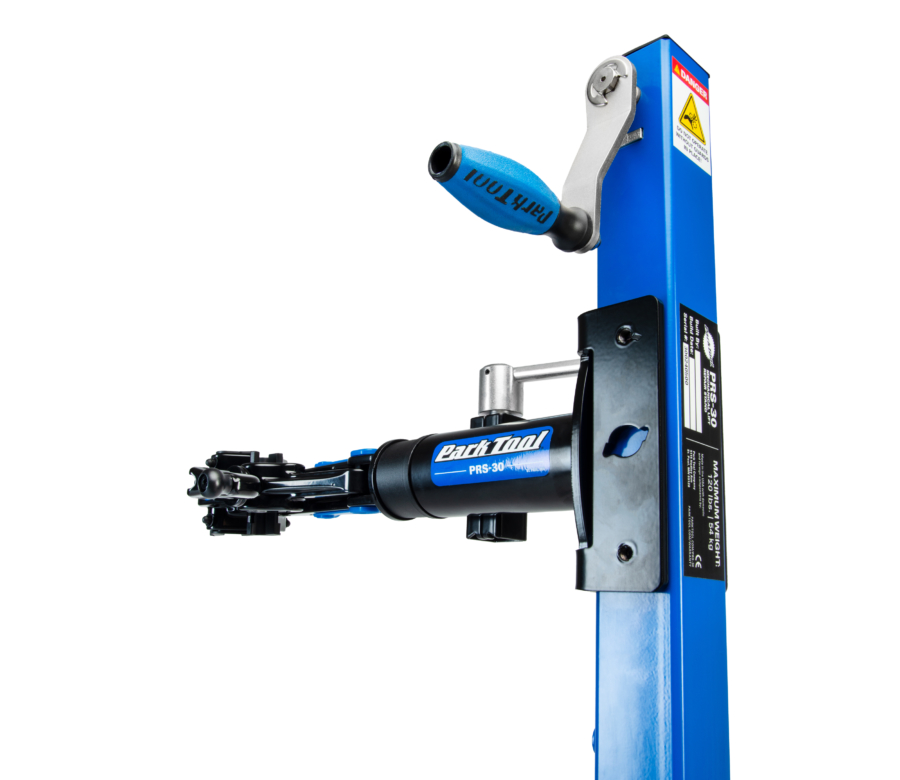

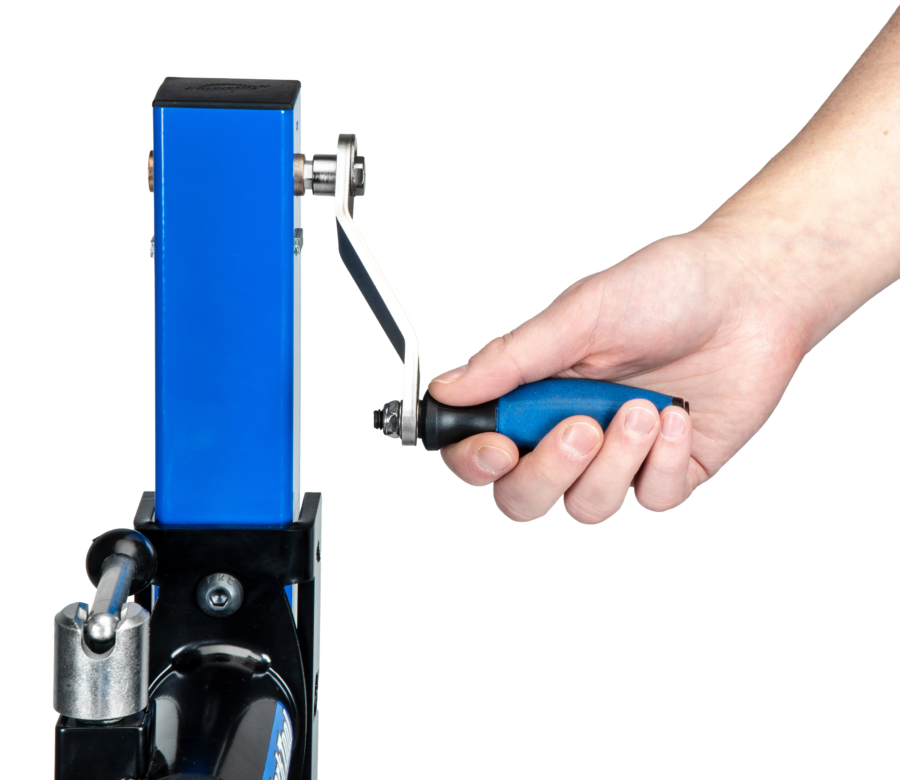

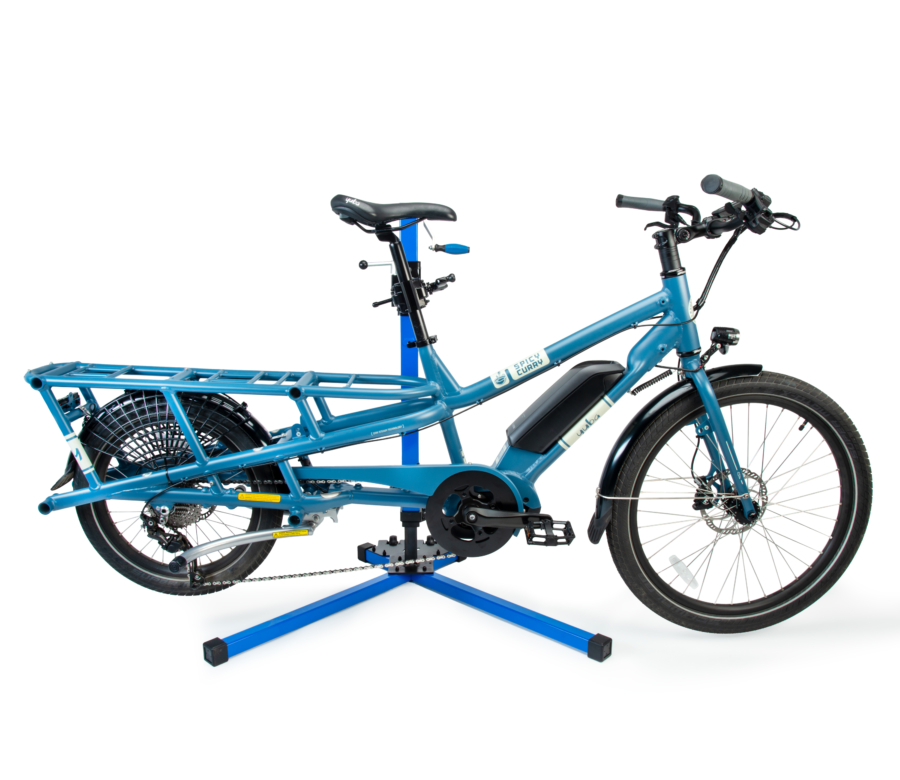

A lift stand built for heavy bikes, e-bikes especially. The clamp drops to 74cm, low enough to grab the seatpost or seat tube without lifting the bike, then cranks up through 58cm of travel to a comfortable working height. The internal gearing runs off a hand crank, or a cordless drill with a 10mm socket.

Takes bikes up to 54kg. All-steel, powder coated, with wheels on the legs to move it round the shop and a footprint about the size of a normal repair stand. Fitted with the 100-3D micro-adjust clamp. A workshop stand, or for the home mechanic with a heavy e-bike.

Key Features

• Lifts bikes up to 54kg
• Hand crank or drill-driven height adjustment
• Clamp drops to 74cm for easy loading

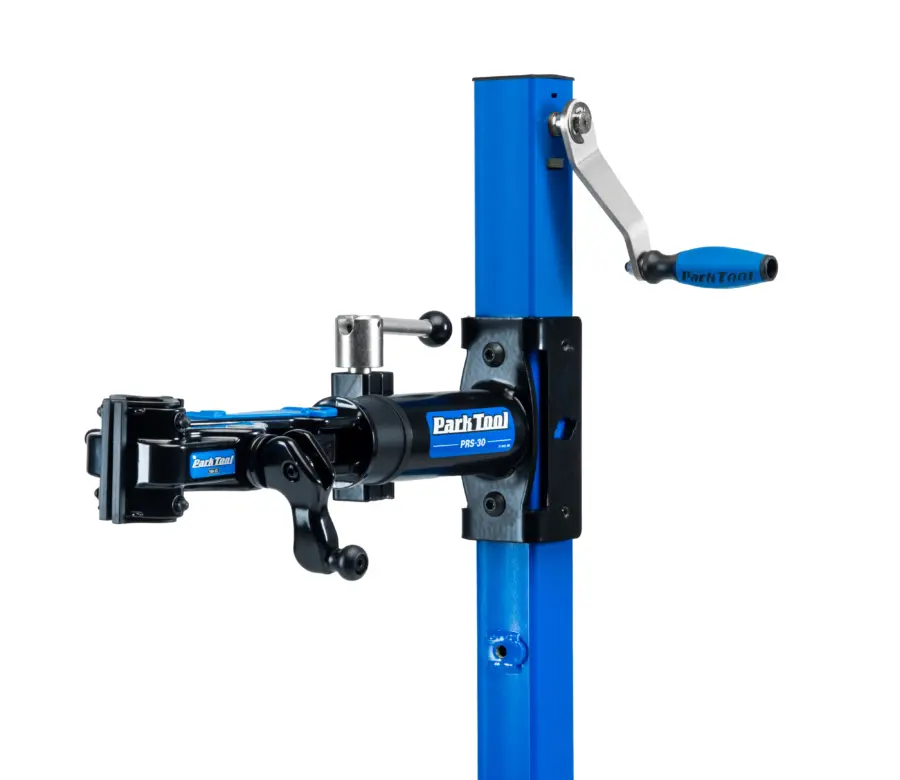

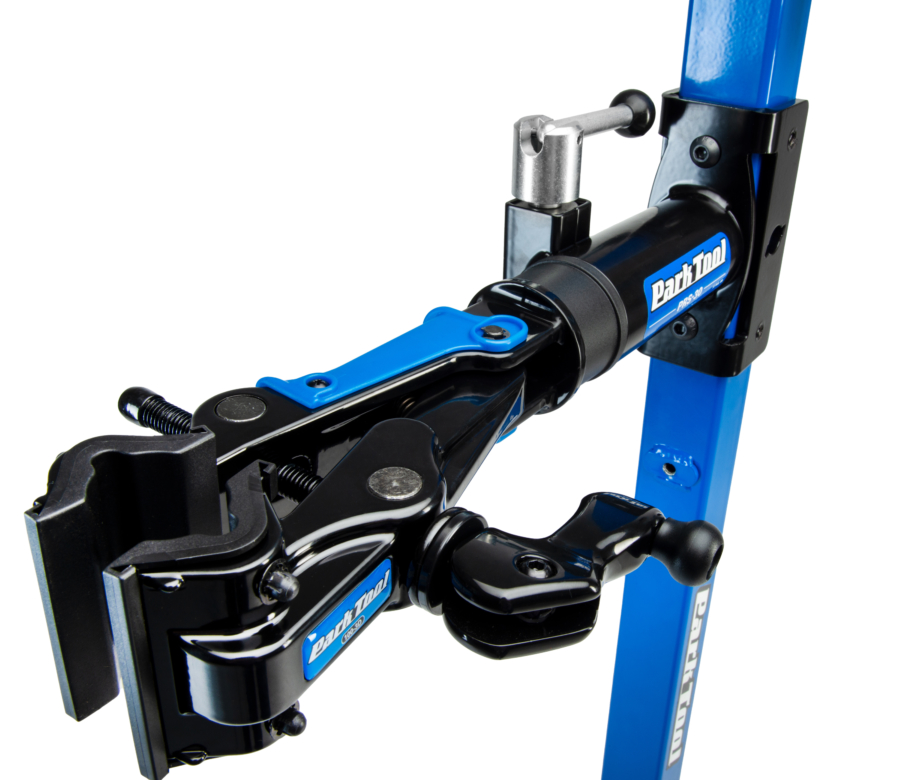

• 100-3D micro-adjust clamp
• All-steel, powder coated

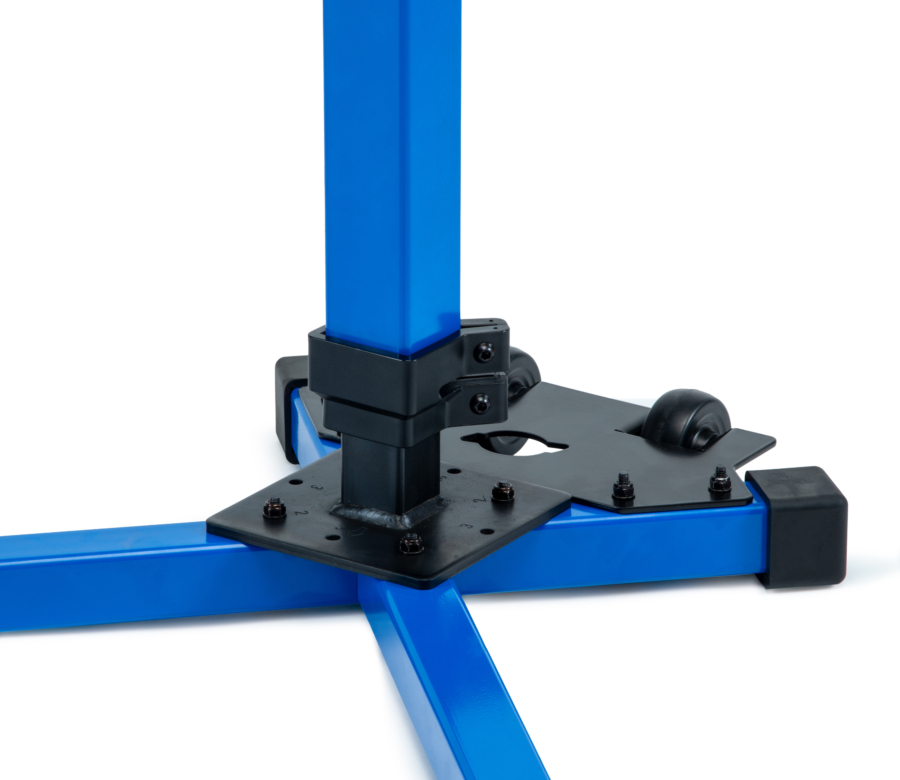

• Wheels on the legs

Specifications

• Max weight capacity: 54kg (120lb)
• Stand weight: 20kg
• Clamp: 100-3D Micro-Adjust Clamp
• Clamp range: Round and aero tubes 23 to 76mm (7/8" to 3")
• Jaw height: 70mm (2.75")
• Clamp height: 74 to 132cm (29" to 52")
• Alternative clamp position: 10cm lower, 64 to 122cm (25" to 48")
• Full stand height: 157cm at maximum height

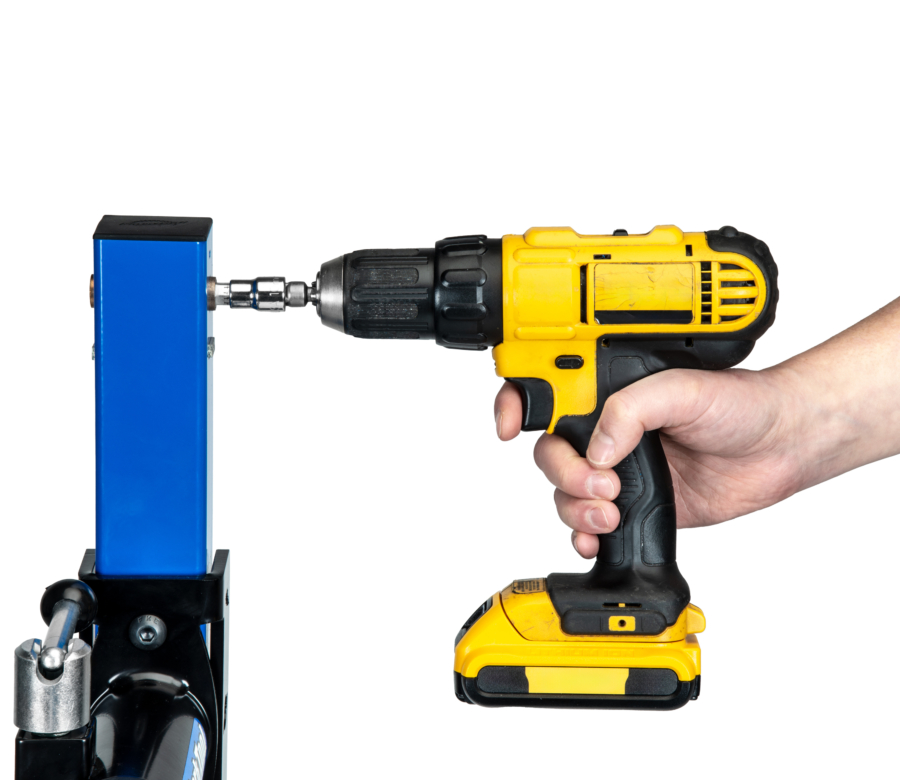

• Height drive: Hand crank or drill with 10mm socket
• Replacement jaw covers: Part 1960

Specs can change without notice from Park Tool.
