Park Tool - Shop Inflator INF-2

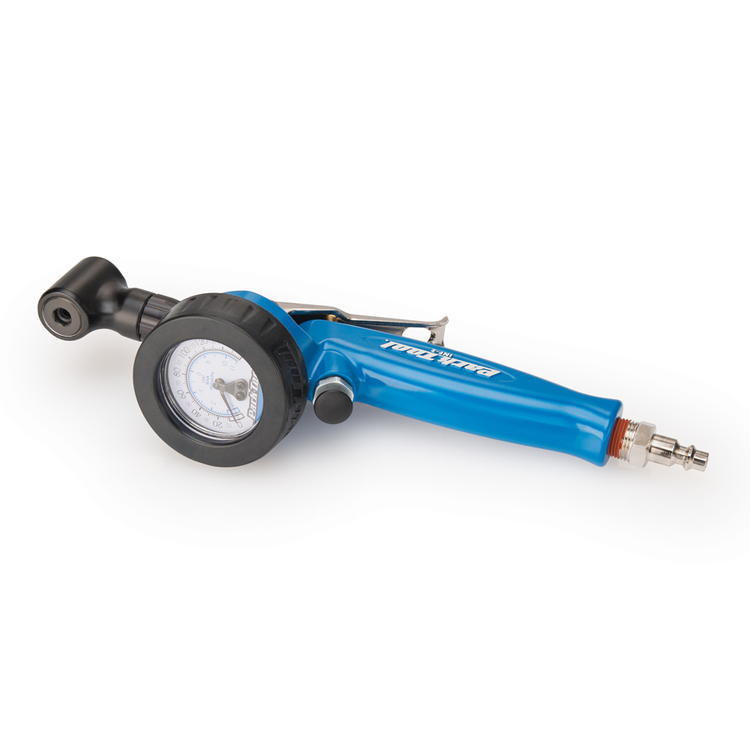

Park Tool INF-2 Shop Inflator

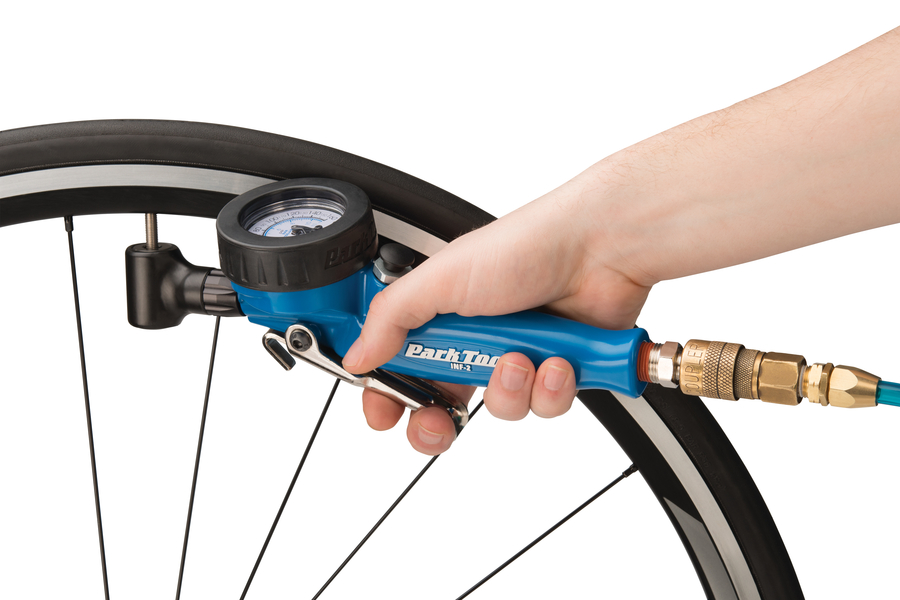

An air chuck for a workshop compressor, built for bike valves. The dual sided head fits Presta and Schrader and rotates 360 degrees so you can get onto the valve at any angle. A built-in gauge reads 0 to 160 psi (0 to 11 bar) and has a rubber boot to protect it. The body takes any 3/8 inch NPT male threaded fitting, and the trigger is shaped so you can hang it a few different ways.

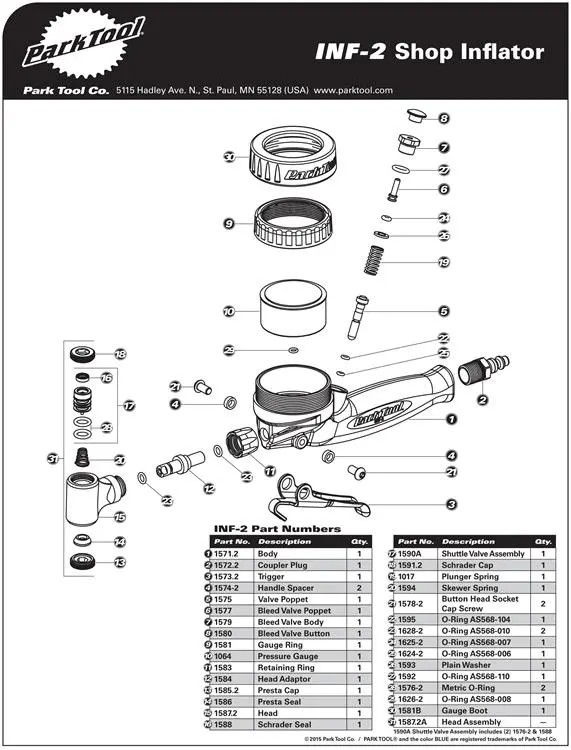

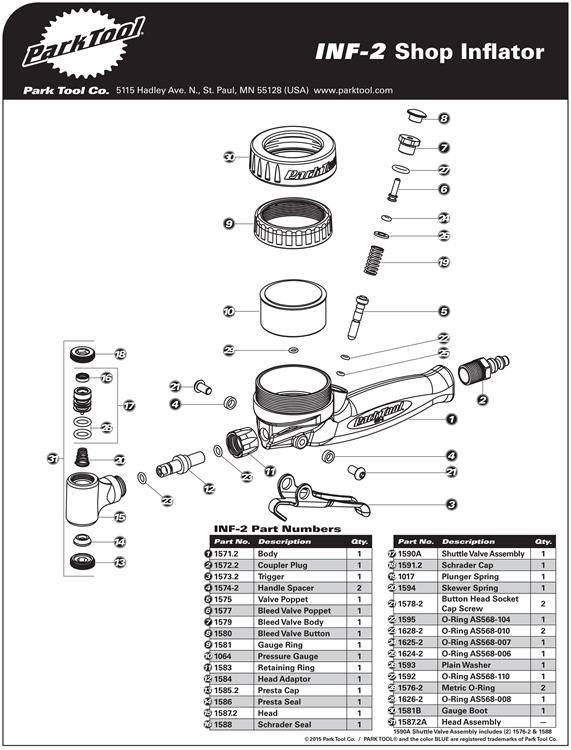

It's fully rebuildable, and the common spare parts are listed here too: seals, O-rings, the head valve assembly, caps, spring, washer and screw.

Key Features

• Dual sided Presta and Schrader head
• Head rotates 360 degrees
• Built-in 0 to 160 psi gauge with protective boot
• Accepts 3/8 inch NPT male fittings
• Fully rebuildable, spares available

Specifications

• Gauge: 0 to 160 psi (0 to 11 bar)
• Valves: Presta and Schrader
• Air fitting: Accepts 3/8 inch NPT male threaded fittings
• Variant 1590A: Head valve assembly, INF-1/INF-2
• Variant 1588: Schrader seal, INF-1/INF-2
• Variant 1595K: Trigger seal kit, INF-1/INF-2
• O-ring variants: AS568-006 (1624-2), AS568-007 (1625-2), AS568-008 (1626-2), AS568-010 (1628-2), AS568-104 (1595), AS568-110 (1592)
• Variant 1591.2: Schrader cap, INF-2
• Variant 1591: Schrader cap, INF-1
• Variant 1594: Skewer spring, INF-1/INF-2
• Variant 1593: Plain washer, INF-1/INF-2
• Variant 289: Button head socket cap screw M6 x 12 (also fits SG-1/2/3, TS-7/7M)

Specs can change without notice from Park Tool.
