Pedals Reverse Components E-Bike E-Escape Orange

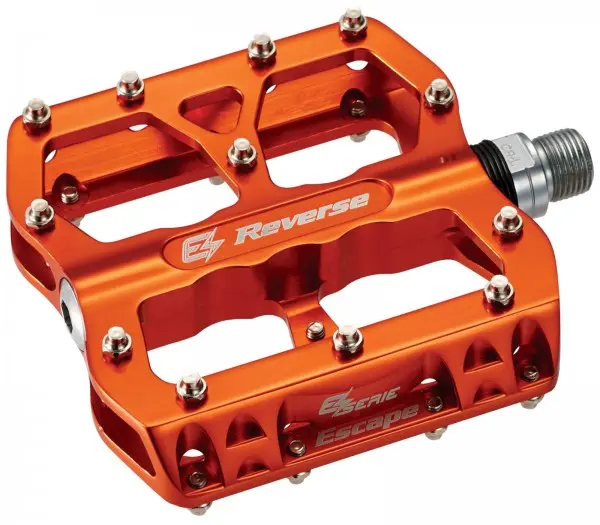

Reverse E-Escape E-Bike Pedals, Orange

The E-Escape is Reverse's Escape flat pedal with the body reinforced in the right places for e-bikes. More weight, more torque and longer days mean more knocks on the pedals, so Reverse beefed it up. This pair is Orange.

A 100 x 100mm aluminium body at 15mm thick, with 24 steel M4 pins per pedal standing 5mm tall. The pins are designed so a worn one can be swapped without damaging the thread in the body. CrMo axle on a sealed industrial bearing and an IGUS bushing.

Colour: Orange.

Key Features

• Reinforced aluminium body for e-bike use
• 100 x 100mm platform, 15mm thick
• 24 steel M4 pins per pedal, 5mm height
• Pins swap out without damaging the body thread
• CrMo axle on a sealed industrial bearing and IGUS bushing
• Pedal washers to protect the crank thread

Specifications

• Platform: 100 x 100mm
• Height: 15mm
• Thread: 9/16 inch
• Bearings: 1 x sealed industrial bearing, 1 x IGUS bushing
• Pins: 24 steel pins per pedal (M4)
• Pin height: 5mm
• Body material: Aluminium, reinforced
• Axle: CrMo
• Weight: 431g pair (+/- 5%)
• Colour: Orange
• Install torque: 37 to 42 Nm, unless the crank maker specifies otherwise

In the Box

• 2 pedal washers

Specs can change without notice from Reverse Components.
