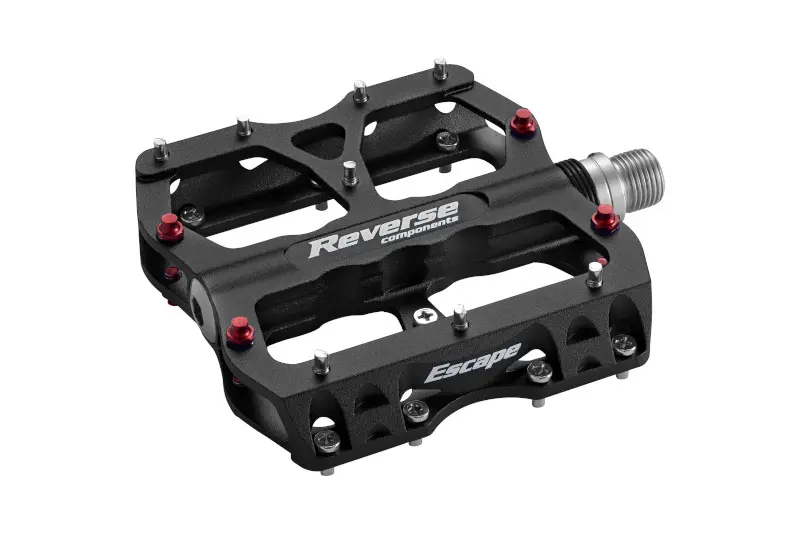

Reverse Escape Pedals, Black

The Escape is Reverse's classic flat pedal, here in Black. A 100 x 100mm aluminium 6061 body, 16mm thick, with 24 replaceable pins per pedal. It's the pedal Reverse call their bike park pedal, built to take hits from rocks and roots and keep going.

Pins are a mix of 16 self-threading steel pins and 8 aluminium pins, standing 5mm proud of the body. Inside is a CrMo axle running on a sealed industrial bearing and an IGUS DU bushing. The anti-rotate setup gives the pedal a bit of deliberate drag, so it doesn't spin away when you take a foot off in tight corners.

Spare parts are sold separately, so pins and bearings can be replaced as they wear.

Colour: Black.

Key Features

• 100 x 100mm aluminium 6061 platform, 16mm thick
• 16 steel pins and 8 aluminium pins per pedal, all replaceable
• Anti-rotate function adds a little drag so the pedal stays put
• CrMo axle on a sealed industrial bearing and IGUS DU bushing
• Spare parts available separately
• Pedal washers to protect the crank thread

Specifications

• Platform: 100 x 100mm
• Height: 16mm
• Thread: 9/16 inch
• Bearings: 1 x sealed industrial bearing, 1 x IGUS DU bushing
• Pins: 16 self-threading steel pins, 8 aluminium M4 pins per pedal
• Pin height: 5mm
• Body material: Aluminium 6061
• Axle: CrMo
• Weight: 405g (+/- 5%)
• Colour: Black
• Install torque: 37 to 42 Nm, unless the crank maker specifies otherwise

In the Box

• 2 pedal washers

Specs can change without notice from Reverse Components.
