Praxis - Type 1 Alloy HD E-Bike Cranks

Praxis Type 1 Alloy HD E-Bike Cranks

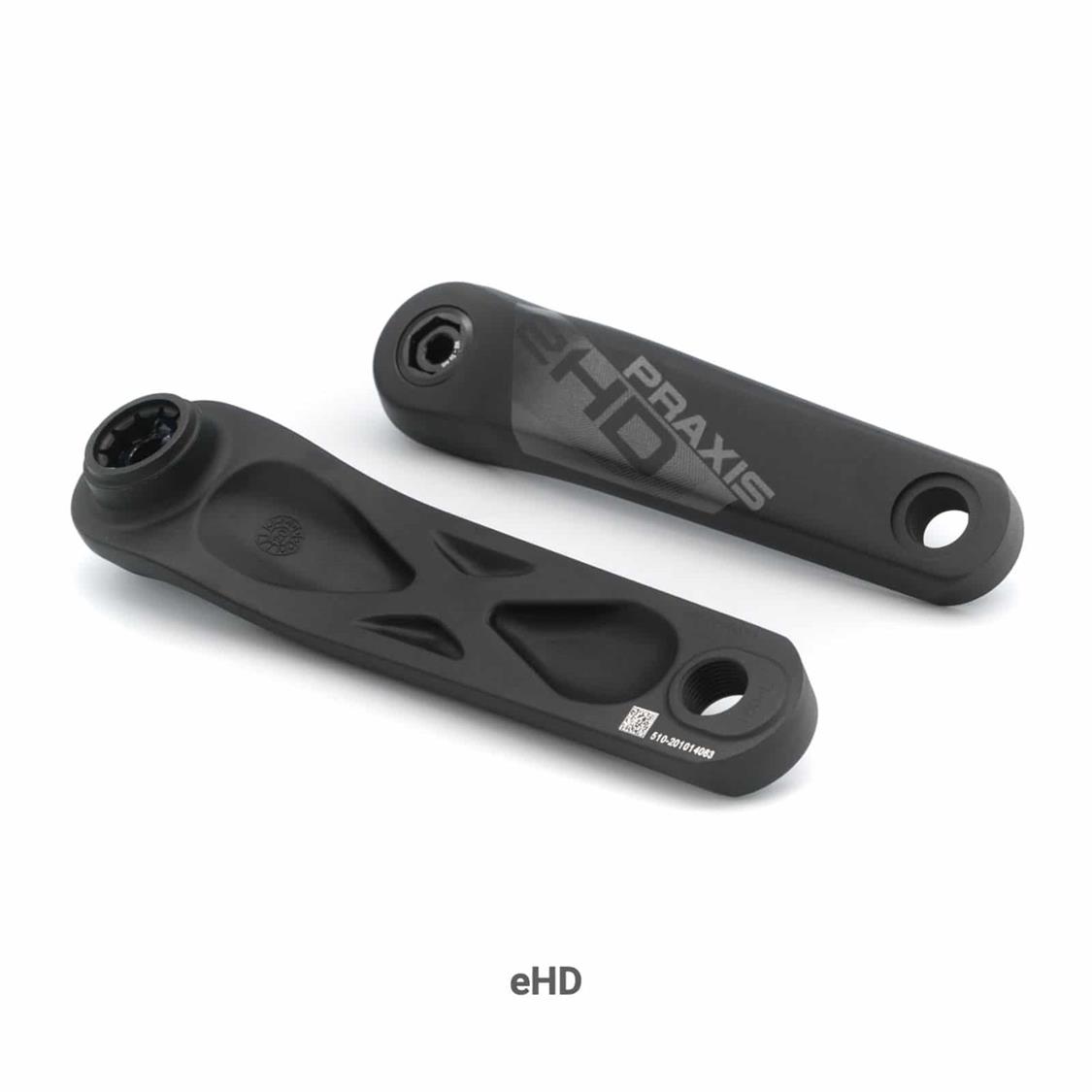

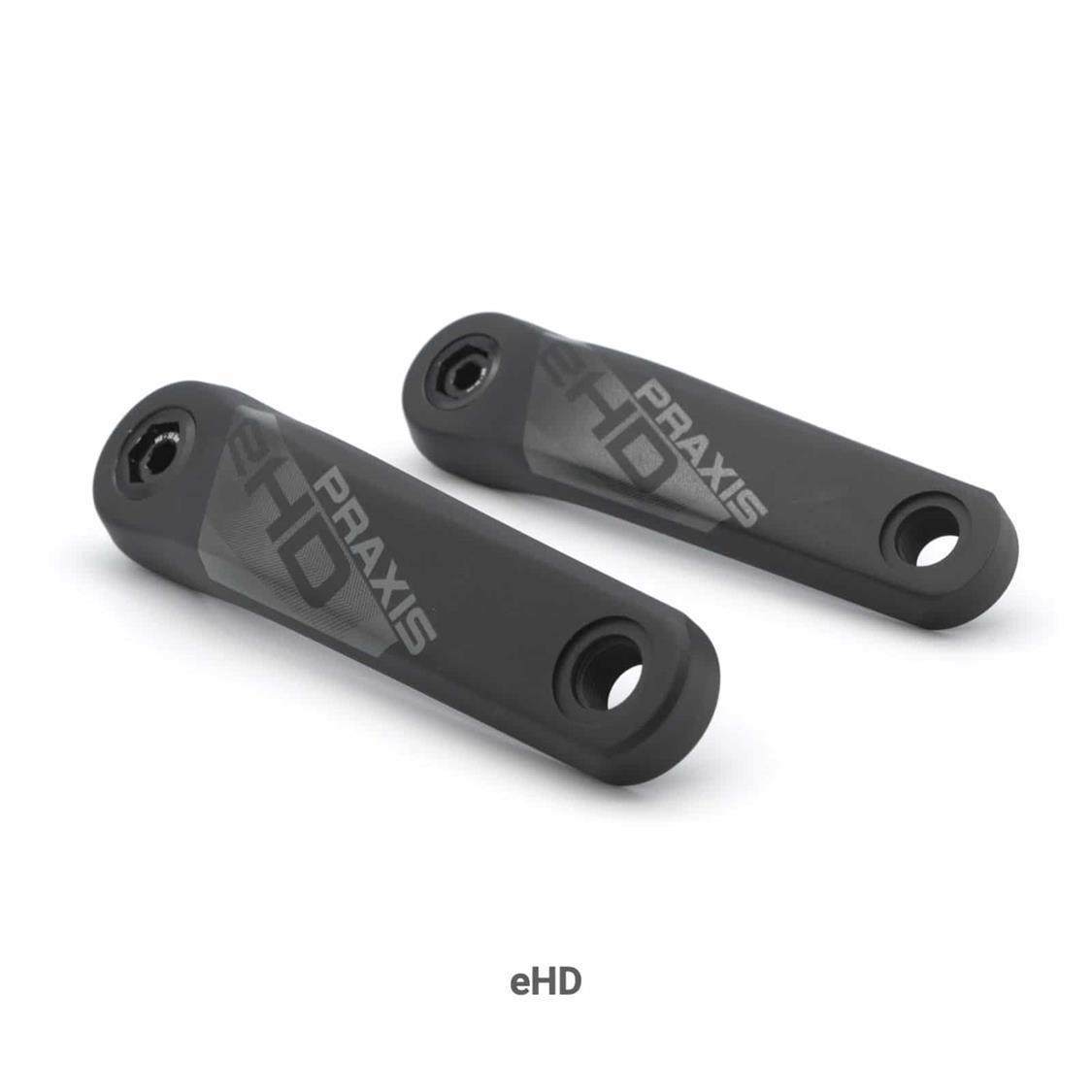

Cold forged aluminium cranks for lots of e-bike motors including Bosch, Yamaha, Brose and Fazua, plus versions for Specialized ISIS motors. The HD is the heavy duty version for aggressive riders.

Key Features

• Cold forged aluminium
• HD ISIS set in 160 or 165mm

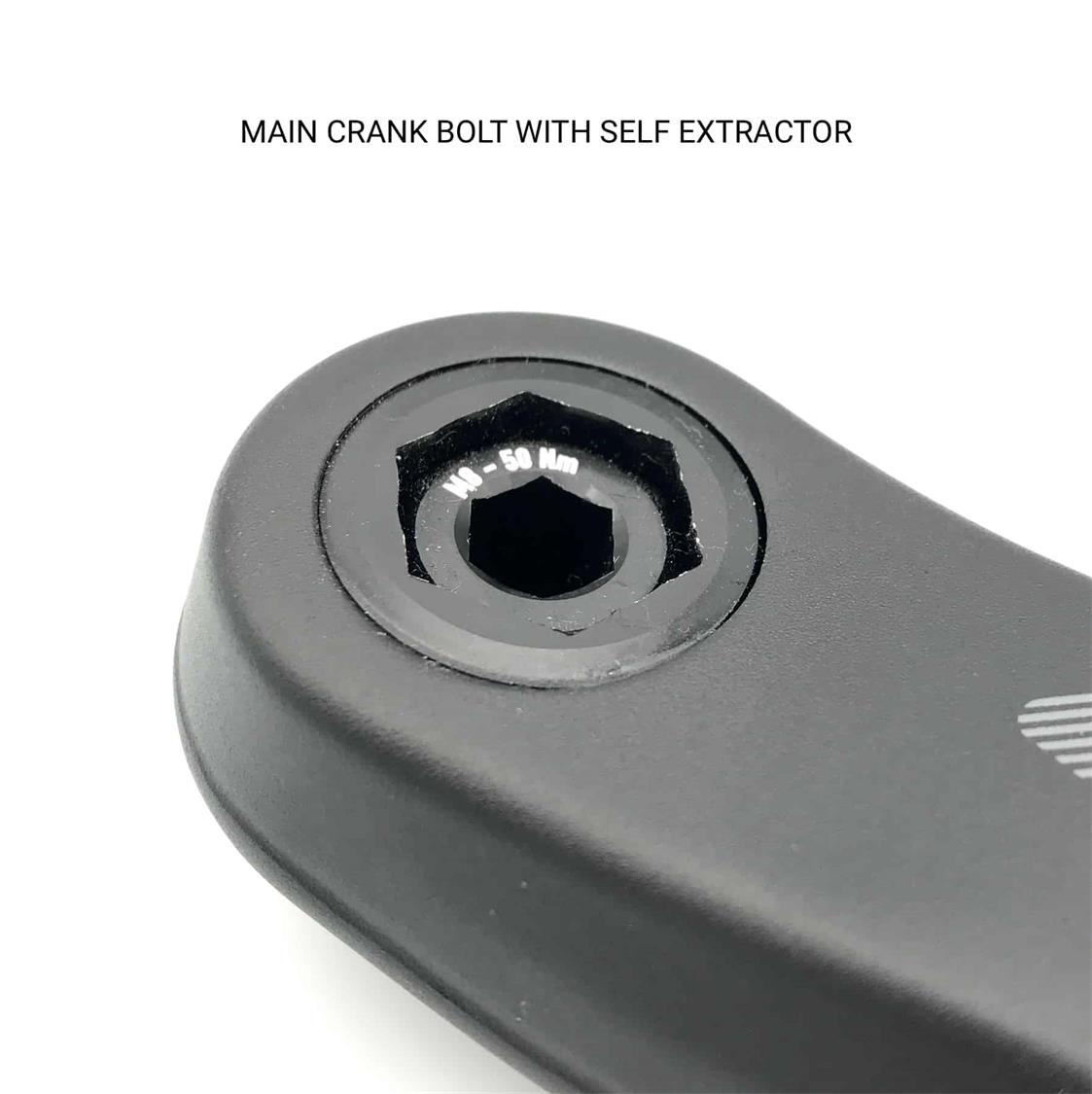

• Aluminium main crank bolt with self extractor, M24 bolt for ISIS
• 8mm Allen key for install and removal, 50Nm torque
• Rubber crank boot protectors not included

Specifications

• HD weight: about 558g

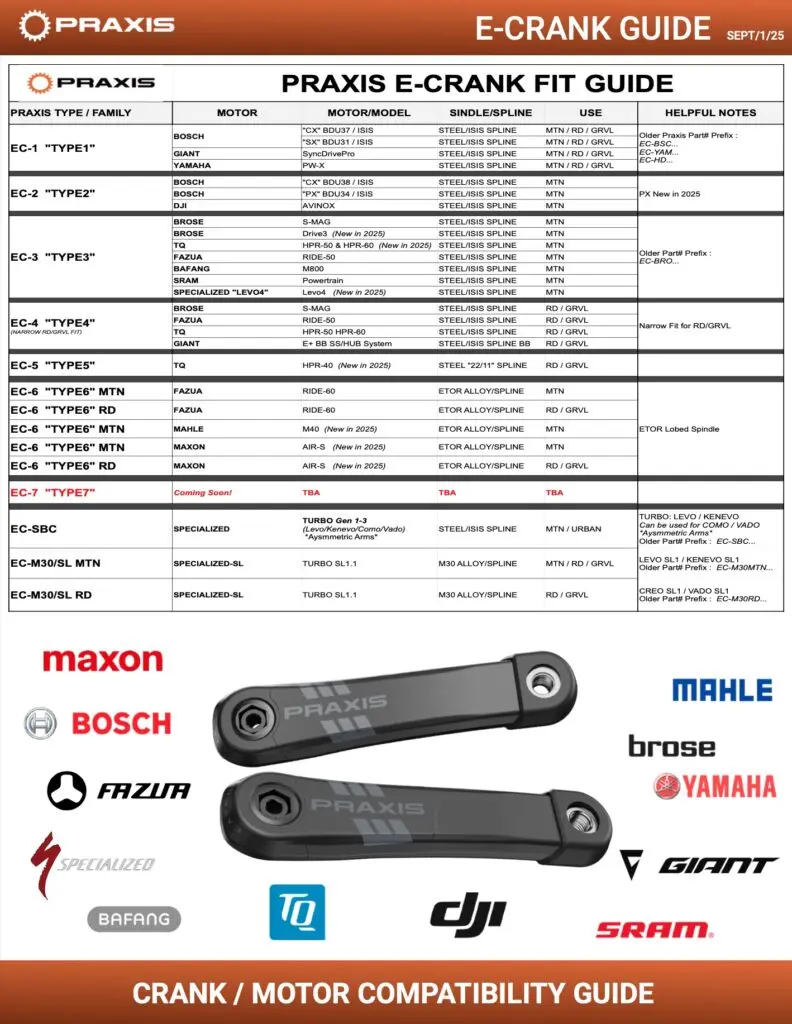

• Q factor, Standard and HD: 170mm on Giant and Yamaha motors, 180mm on Bosch motors
• Specialized Levo, Kenevo and SL cranks are made specifically for those bikes and motors, 182mm Q factor

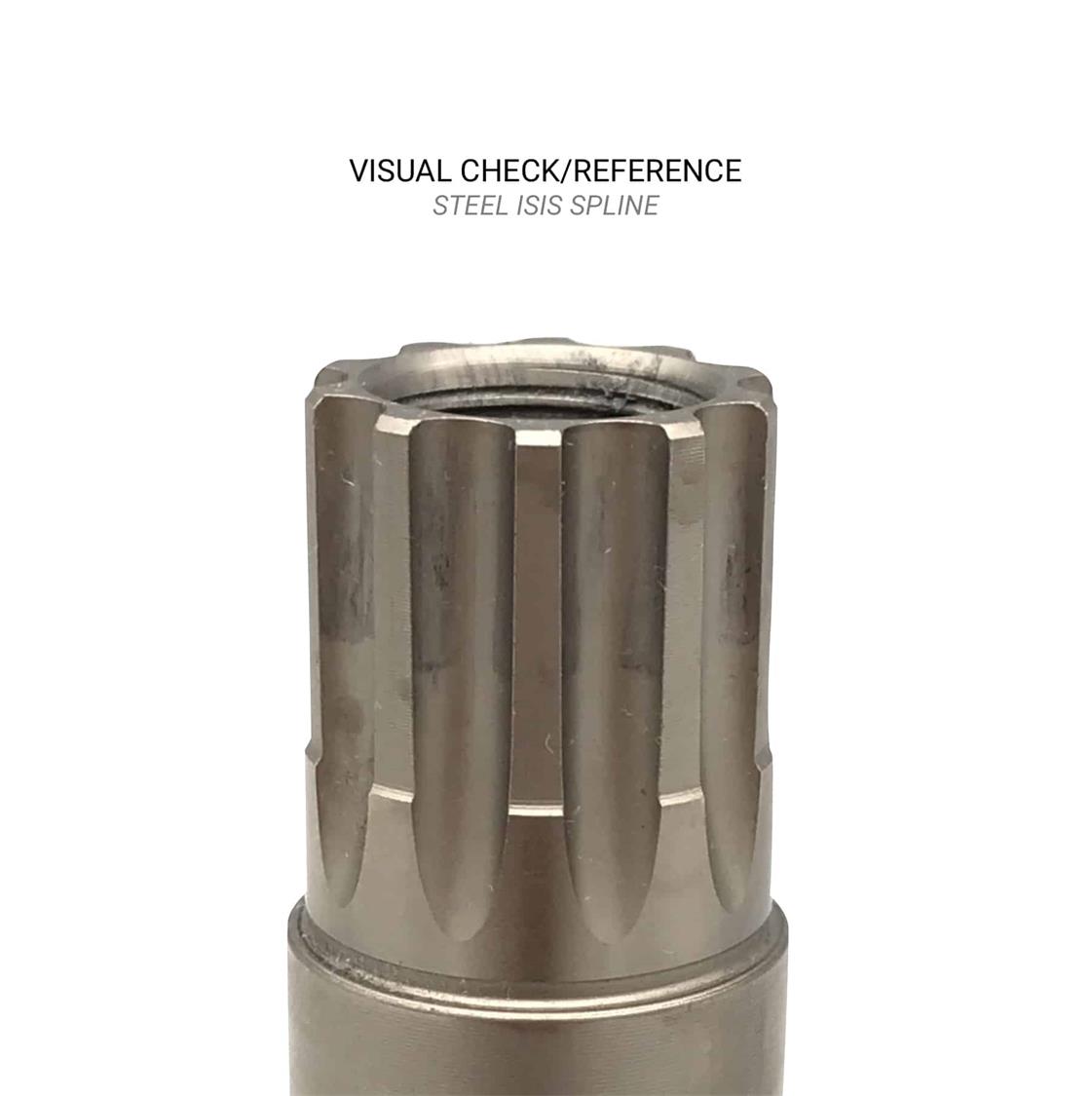

Specialized owners: check your motor's spindle type first. Standard Levo, Kenevo, Como and Vado have an ISIS spindle. The SL Levo and Creo family use M30 and SL eCrank armsets. Ask us if you're not sure.
