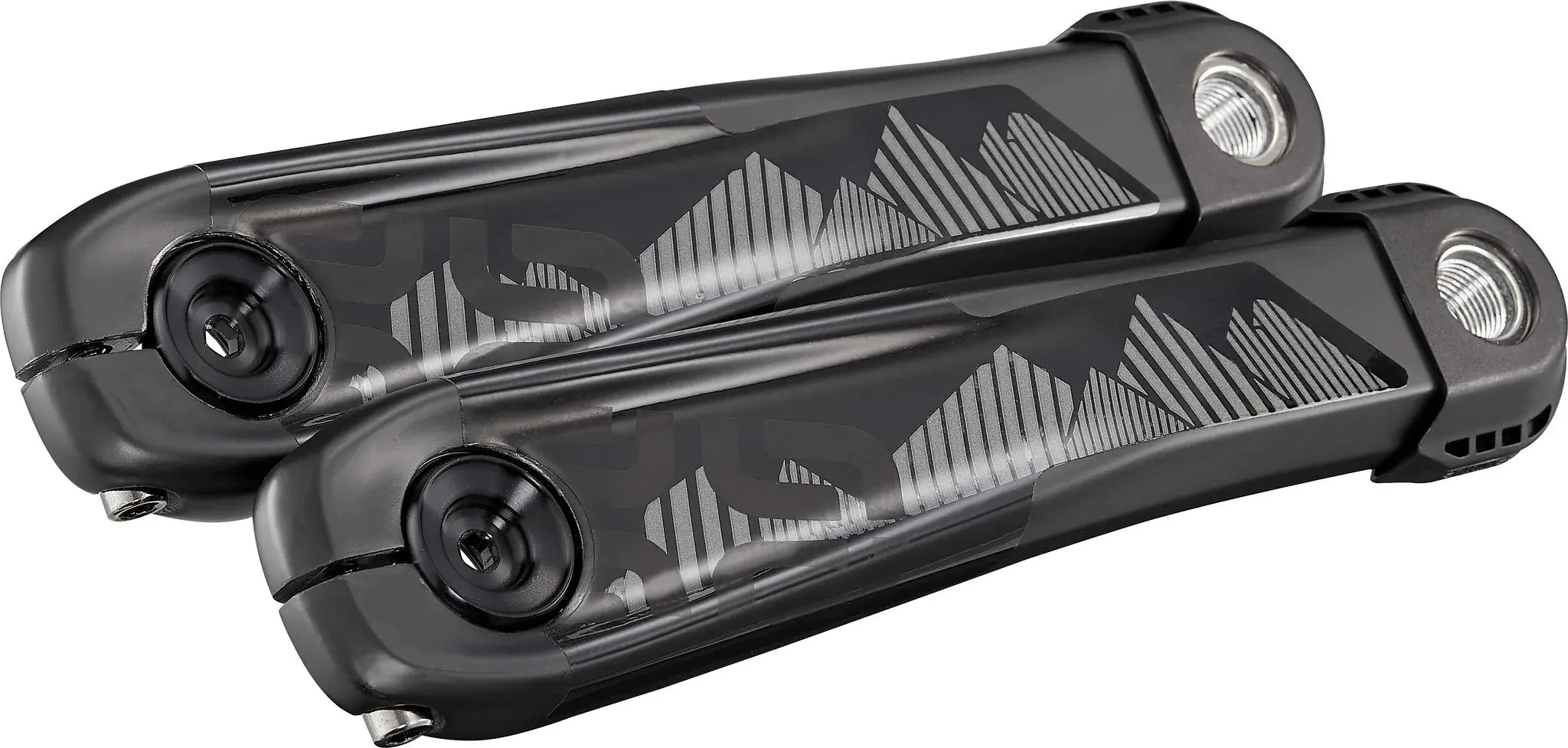

e*thirteen e*spec Race Carbon E-MTB Crank Gen4 - Shimano EP8, 165mm
Carbon e*spec cranks in 165mm length for Shimano EP8 motors, with a built-in 8mm self-extractor in each arm. Slimmer than the Gen3 carbon cranks, with a lower Q factor.
e*thirteen e*spec Race Carbon E-MTB Crank Gen4 - Shimano EP8, 165mm
Carbon e*spec crank arms for e-bike motors, built on the World Cup proven layup used in e*thirteen's downhill cranks.
Compared with the Gen3 carbon cranks, Gen4 has a reduced Q factor, a slimmer overall profile and lower volume. A built-in 8mm self-extractor in both arms removes press-fit cranks.
Key Features
- Motor interface: Shimano EP8
- Crank length: 165mm
- Weight: 391g
- Offset: 27.8mm
- Q factor: 187.6mm
- Warranty: 5 years
- Recommended for e-bike use
- World Cup proven DH-rated layup in compacted carbon fibre, with extra 3k carbon on the front and rear faces for impact resistance
- Built-in 8mm self-extractor in both arms
- Single-bolt spindle clamp with alloy preload caps
- Crank boots included for added impact resistance
- Reduced Q factor, slimmer profile and lower volume than the Gen3 carbon cranks
- Takes e*spec Direct Mount chainrings
- Finish: Stealth Black with protective vinyl
Compatibility
- Shimano EP8 motor
- Not compatible with Fazua Ride 60 with ETOR spindle
In the Box
- Crankset
- APS adjuster
- Installation tools
- 2 x crank boots
- Sticker
- User manual
You Will Also Need
- e*spec Direct Mount chainring (not listed as included)
Good to Know
- Check the motor on your bike against the variant before ordering: the crank spindle interface is motor-specific.
