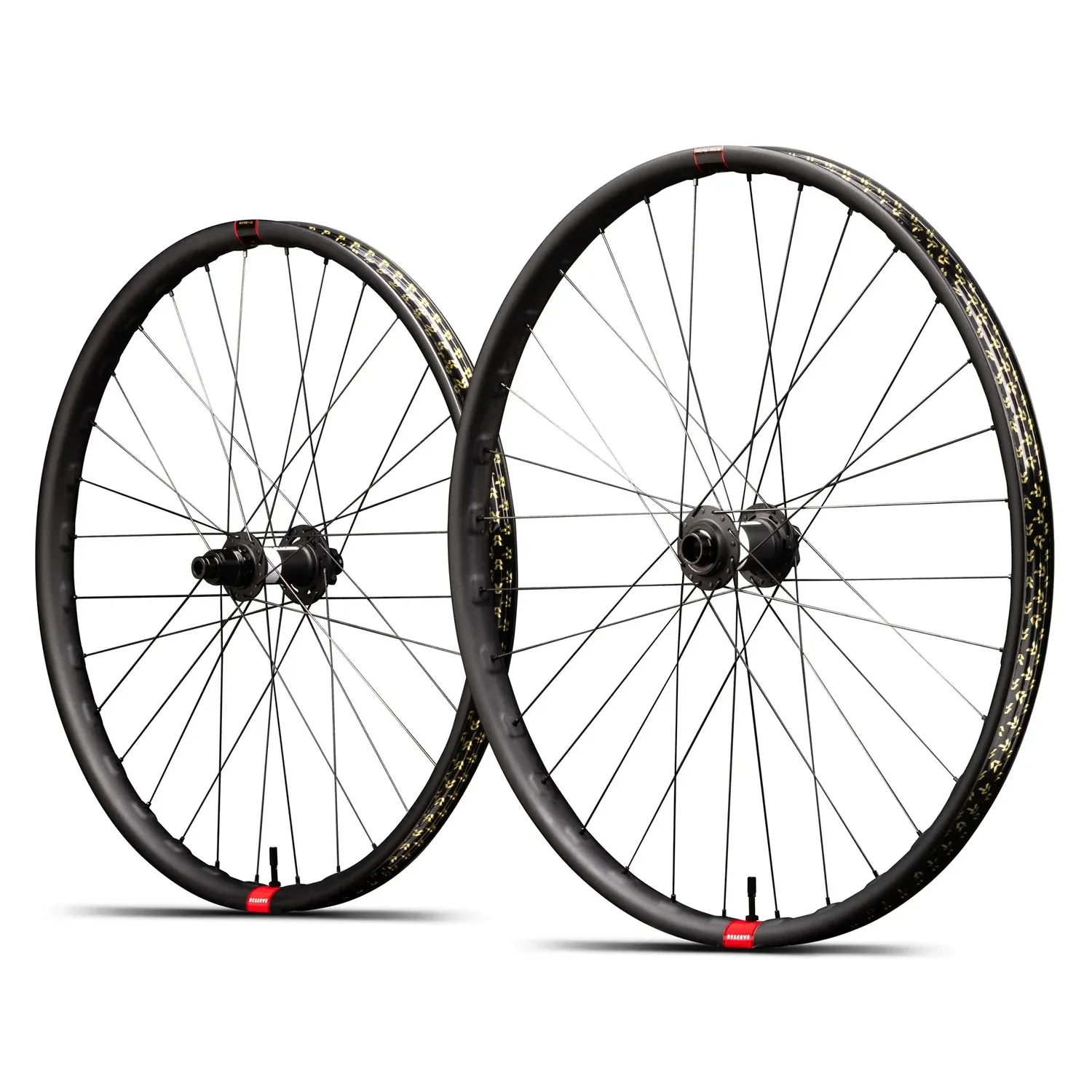

Reserve 30|DH Carbon 29 Wheelset
Reserve's carbon downhill wheelset, developed with input from the Santa Cruz Syndicate and raced at World Cup DH. Built for race runs and bike park laps. Reserve say the carbon layup was redesigned for impact resistance and the profile refined for compliance.
29 inch front and rear. DT Swiss 350 hubs with the Ratchet DEG system and Degree of Freedom. In the 0° setting it runs as a 90 tooth ratchet with 4° engagement. Set it to 10° or 20° and the ratchets float, which cuts pedal kickback and lets the suspension work more freely. Changing the setting is tool free once the cassette and driver are off. XD freehub and 6-bolt rotor mount. Not sure it fits your bike? Talk to us and we'll check.
Reserve warranty the rim and don't set a rider weight limit. Hub warranty goes through DT Swiss. Talk to us for the details.
Key Features
- 30mm inner width carbon rims, asymmetric profile
- Externally reinforced spoke holes
- DT Swiss 350 Ratchet DEG hubs with Degree of Freedom
- DH spacing, 20x110 front and 12x157 rear
- 28 spokes front, 32 rear
- XD freehub, 6-bolt rotors
- E-bike approved by Reserve
- Reserve's rim warranty, no rider weight limit
Specifications
- Designed for: DH riding and racing
- Wheel size: 29" front and rear
- Rim: 30|DH carbon, asymmetric (3.6mm offset)
- Inner width: 30mm
- External width: 38mm
- Rim depth: 21mm
- Hubs: DT Swiss 350 Ratchet DEG with Degree of Freedom
- Engagement: 90T ratchet, 4° at the 0° setting. Degree of Freedom settings 0°, 10°, 20°
- Spokes: 28 front, 32 rear
- Hub spacing: DH 20x110 F, 12x157 R
- Freehub: XD
- Rotor mount: 6-bolt
- Recommended tyres: 2.4" to 2.6"
- E-bike approved: Yes (Reserve)
- Wheelset weight: 2036g (Reserve figure, 29" DT 350)
In the Box
- Complete wheelset
- 34mm Reserve rim tape (installed)
- 2x 50mm Fillmore tubeless valves (not installed)
- User manual
Specs can change without notice from Reserve.
$3199.00
Choose an option
