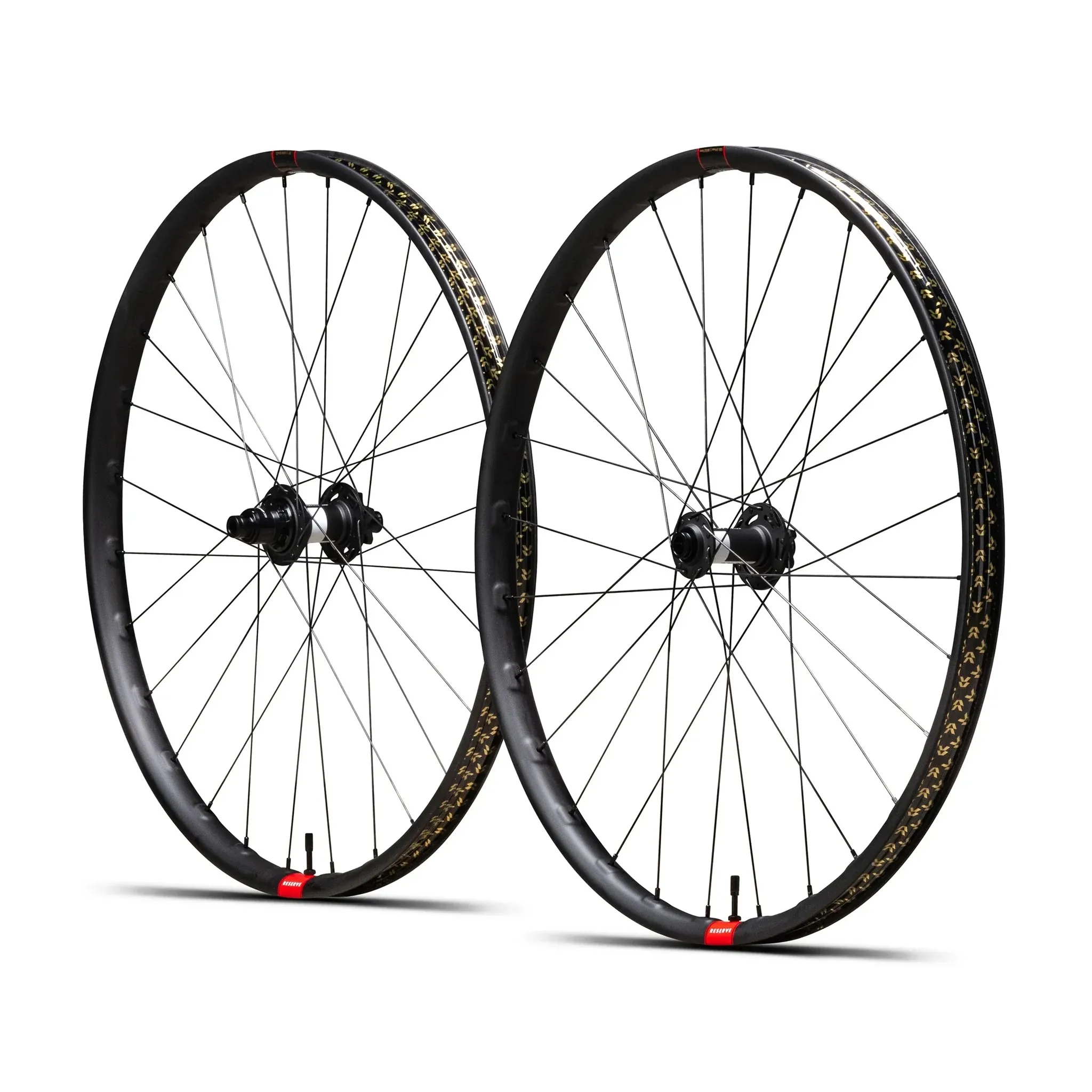

Reserve 30|HD Carbon MX Wheelset
Reserve's carbon wheelset for hard trail riding. Made for trail, all mountain, enduro and e-bikes, with a 30mm inner width that suits 2.5 inch tyres. The redesigned rim bed lets the tyre push past the bead bump and sit securely, so tubeless setup is easy.
MX, so 29 inch front and 27.5 inch rear. DT Swiss 350 hubs with the Ratchet DEG system and Degree of Freedom. In the 0° setting it runs as a 90 tooth ratchet with 4° engagement. Set it to 10° or 20° and the ratchets float, which cuts pedal kickback and lets the suspension work more freely. Changing the setting is tool free once the cassette and driver are off. 28 spokes, Boost spacing, XD freehub and 6-bolt rotors. Not sure it fits your bike? Talk to us and we'll check.
Reserve warranty the rim and don't set a rider weight limit. Hub warranty goes through DT Swiss. Talk to us for the details.
Key Features
- Carbon rims, 30mm inner width, asymmetric profile
- Redesigned rim bed for easy tubeless setup
- Semi-hooked rim
- DT Swiss 350 Ratchet DEG hubs with Degree of Freedom
- Boost 15x110 front and 12x148 rear
- XD freehub, 6-bolt rotors
- E-bike approved by Reserve
- Reserve's rim warranty, no rider weight limit
Specifications
- Designed for: Trail, all mountain, enduro, e-bike
- Wheel size: MX (29" front, 27.5" rear)
- Rim: 30|HD carbon, asymmetric (3.6mm offset)
- Inner width: 30mm
- External width: 37mm
- Rim depth: 20mm
- Hubs: DT Swiss 350 Ratchet DEG with Degree of Freedom
- Engagement: 90T ratchet, 4° at the 0° setting. Degree of Freedom settings 0°, 10°, 20°
- Spokes: 28 front and rear
- Hub spacing: Boost 15x110 F, 12x148 R
- Freehub: XD
- Rotor mount: 6-bolt
- Recommended tyres: 2.2" to 2.6"
- E-bike approved: Yes (Reserve)
- Wheelset weight: 1788g (Reserve figure, MX DT 350)
In the Box
- Complete wheelset
- 34mm Reserve rim tape (installed)
- 2x 50mm Fillmore tubeless valves (not installed)
- User manual
Specs can change without notice from Reserve.
$2799.00
