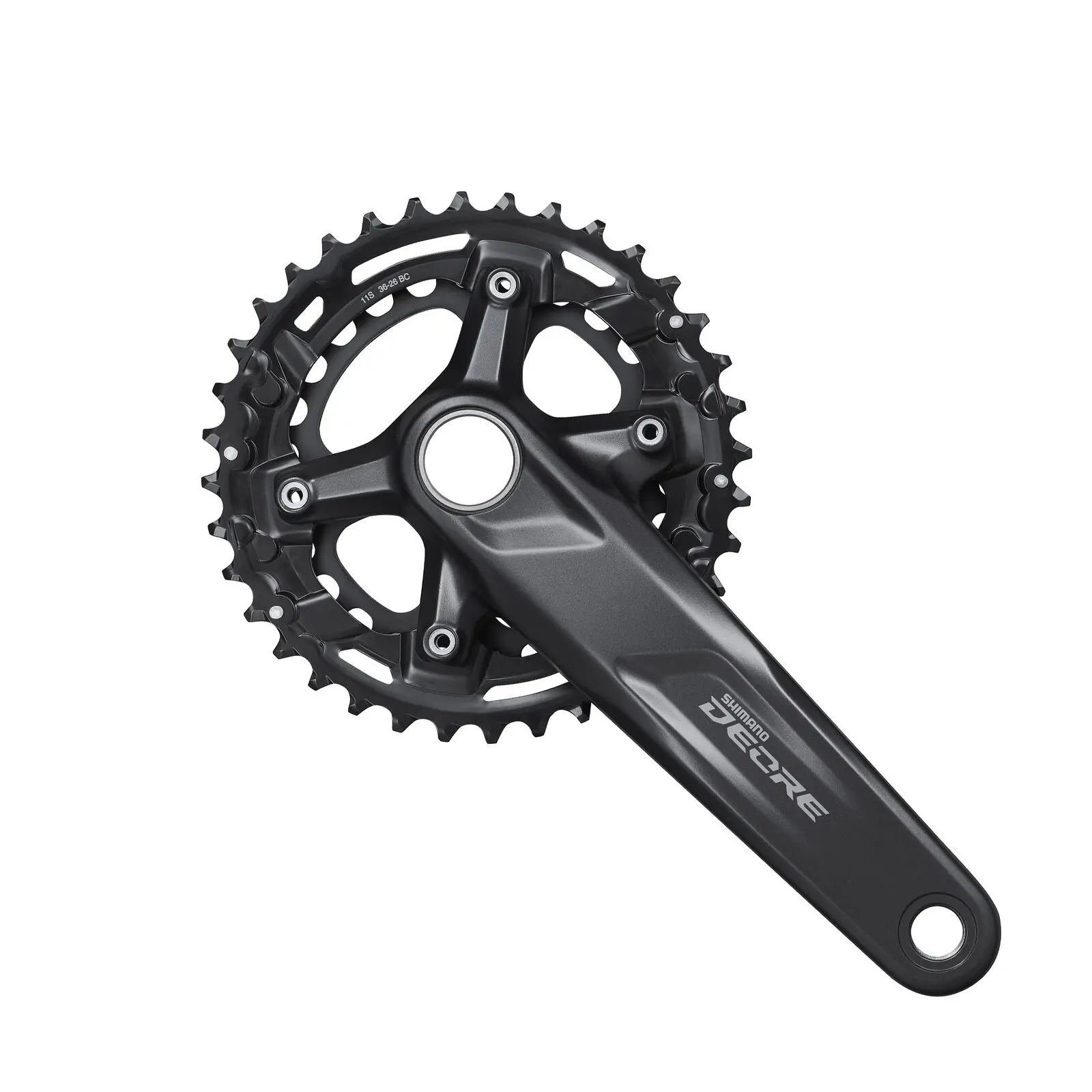

SHIMANO DEORE Crankset FC-M5100-B2 2-PIECE CRANKSET 11-speed

Shimano Deore FC-M5100-B2 11-Speed Double Crankset

The Deore 11-speed double crank with 36-26T rings, for a wide gear range on 2x11 trail bikes. Shimano's 2-PIECE CRANKSET design keeps it stiff and light and puts your pedalling force straight into the drivetrain.

Built for 148mm Boost spacing with a 51.8mm chain line. Runs an 11-speed LINKGLIDE or HG chain. 170mm arms. Sold without a bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• 2-PIECE CRANKSET design
• 36-26T double rings
• 51.8mm chain line for Boost
• 170mm arms

Specifications

• Speeds: 11 (front double)
• Chainrings: 36-26T
• Crank length: 170mm
• Chain line: 51.8mm
• Q-factor: 178.5mm
• PCD: 96/64mm
• Rear spacing: 148mm thru axle, 141mm QR
• Bottom bracket: BB-MT501 (threaded), BB-MT500-PA (press fit), not included
• BB shell: 68/73mm threaded
• Material: Aluminium arms, steel axle, steel rings

Specs can change without notice from Shimano.
