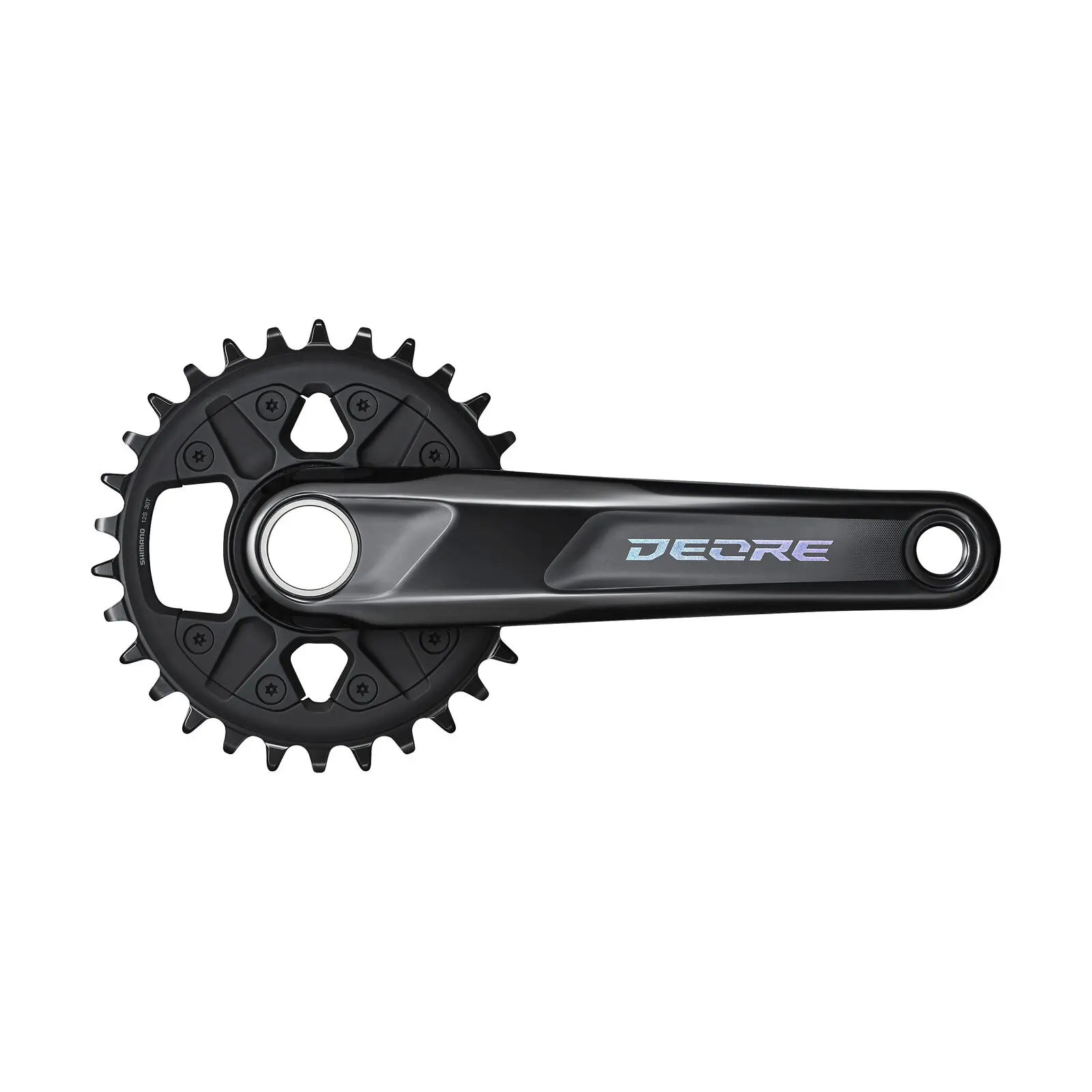

SHIMANO DEORE Crankset FC-M6100-1 2-PIECE CRANKSET 12-speed

Shimano Deore FC-M6100-1 12-Speed Crankset

The Deore 12-speed single ring crank with a 30T direct mount chainring. DYNAMIC CHAIN ENGAGEMENT+ teeth keep the chain on over rough ground.

2-piece crank with a 52mm chain line, for 142mm and 148mm rear spacing. Available in 170mm and 175mm. Sold without a bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• DYNAMIC CHAIN ENGAGEMENT+ chainring
• 30T direct mount ring
• 2-piece crank design
• 170mm and 175mm arms

Specifications

• Speeds: 12 (front single)
• Chainring: 30T, direct mount
• Crank length: 170mm, 175mm
• Chain line: 52mm
• Q-factor: 172mm
• Rear spacing: 142mm and 148mm
• Bottom bracket: BB-MT501 (threaded), BB-MT500-PA (press fit), not included
• BB shell: 68/73mm threaded
• Material: Aluminium arms, steel axle

Specs can change without notice from Shimano.
