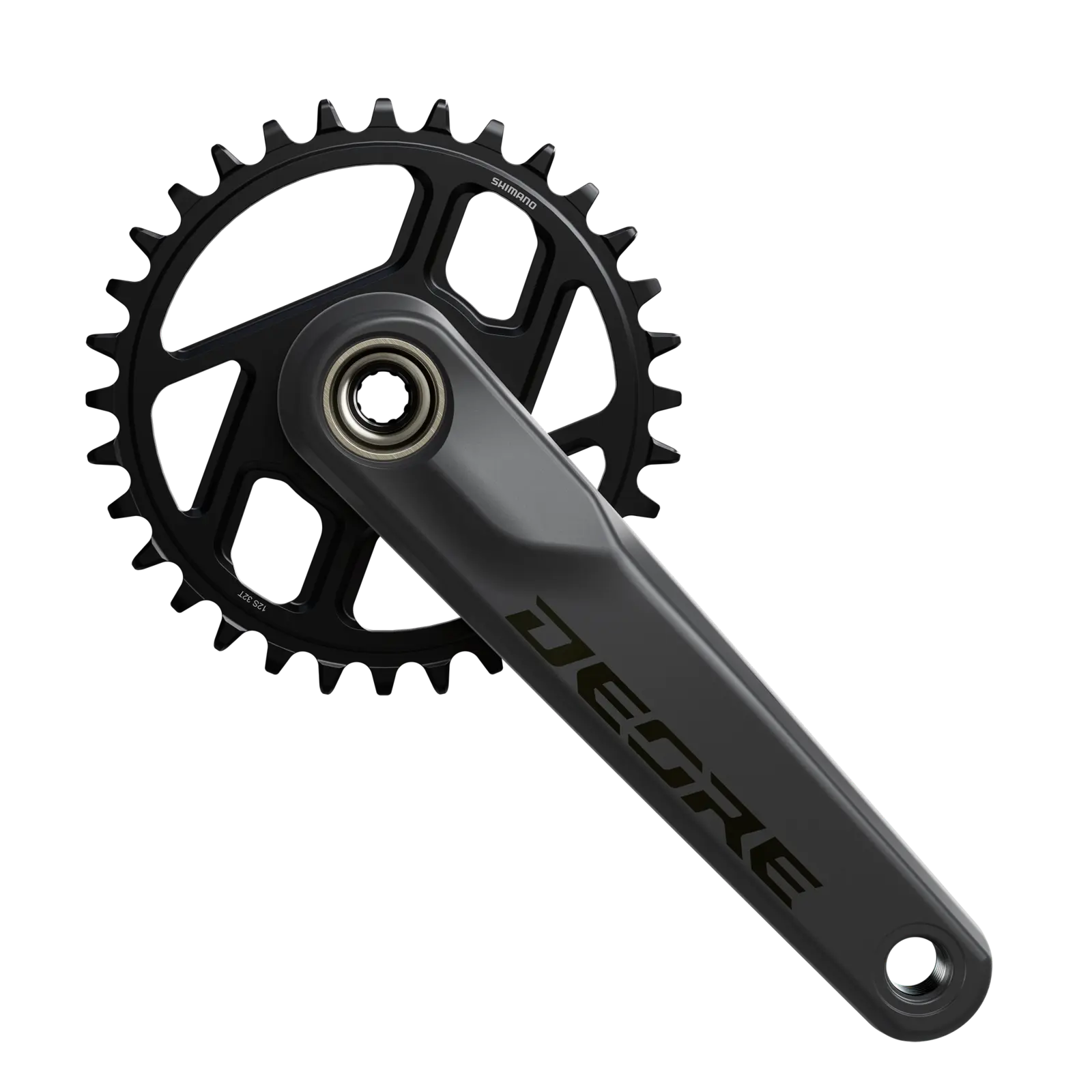

SHIMANO DEORE Crankset FC-M6200 2-PIECE CRANKSET 12 -speed

Shimano Deore FC-M6200 12-Speed Crankset

The newer Deore 12-speed crank. Rigid, durable alloy arms on a 24mm steel axle, with a hard-wearing steel direct mount 32T chainring. The narrow-wide DYNAMIC CHAIN ENGAGEMENT+ tooth profile helps hold the chain.

55mm chain line for 148mm Boost spacing. Available in 165mm, 170mm and 175mm. Sold without a bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• DYNAMIC CHAIN ENGAGEMENT+ chainring
• 32T steel direct mount ring
• 24mm steel axle
• 165mm, 170mm and 175mm arms

Specifications

• Speeds: 12 (front single)
• Chainring: 32T steel, direct mount
• Crank length: 165mm, 170mm, 175mm
• Chain line: 55mm
• Q-factor: 176mm
• Axle: 24mm steel
• Bottom bracket: BB-MT501 (threaded), BB-MT500-PA (press fit), not included
• BB shell: 68/73mm threaded

Specs can change without notice from Shimano.
