SHIMANO DEORE Hydraulic Disc Brake Kit BRM6220KTBLM6200

Shimano Deore BL-M6200 / BR-M6220 4-Piston Hydraulic Disc Brake

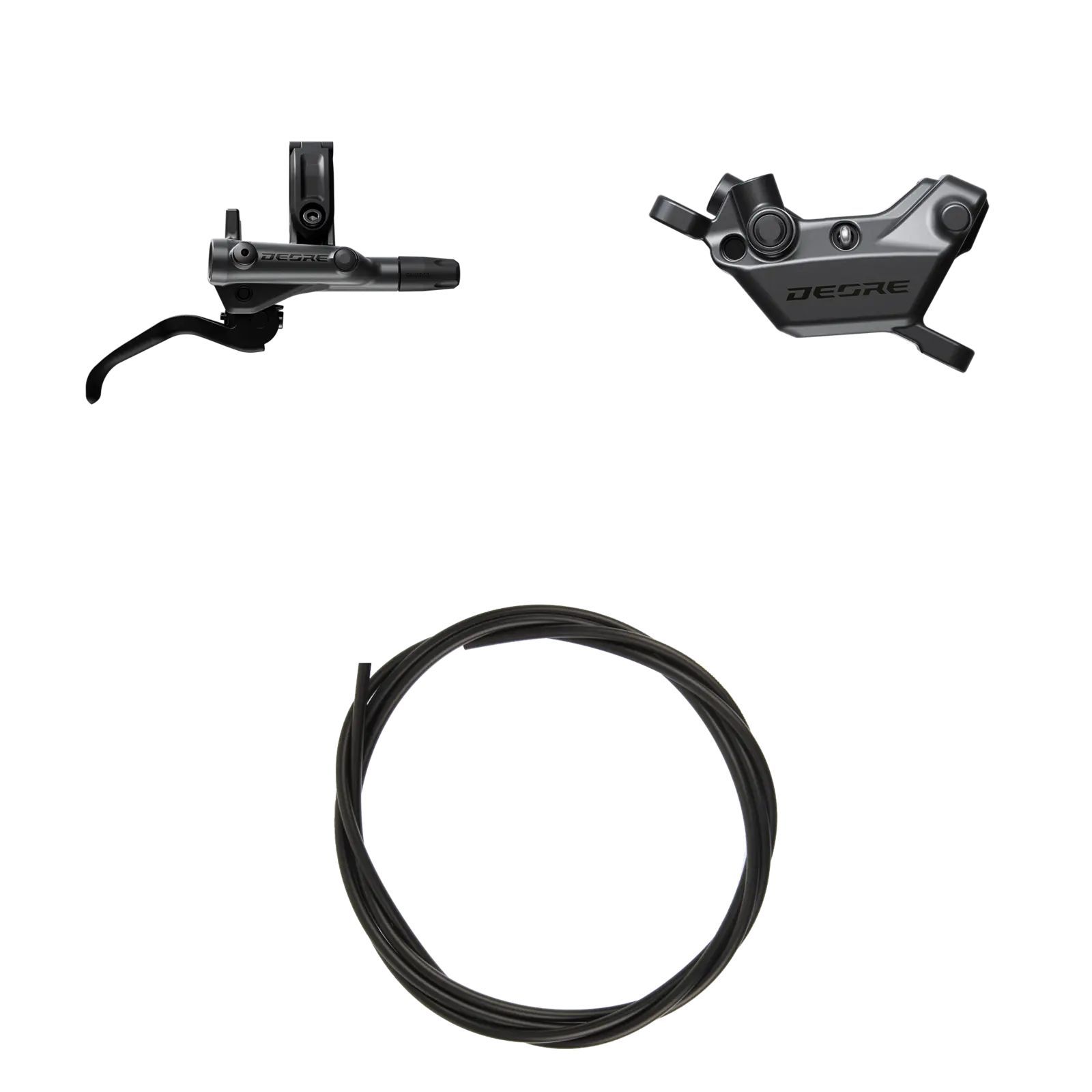

The Deore 4-piston brake. BL-M6200 lever with the two-piece BR-M6220 caliper, supplied as a J-kit with lever, hose and caliper together. A good pick for trail and enduro bikes that need more power without the price of XT.

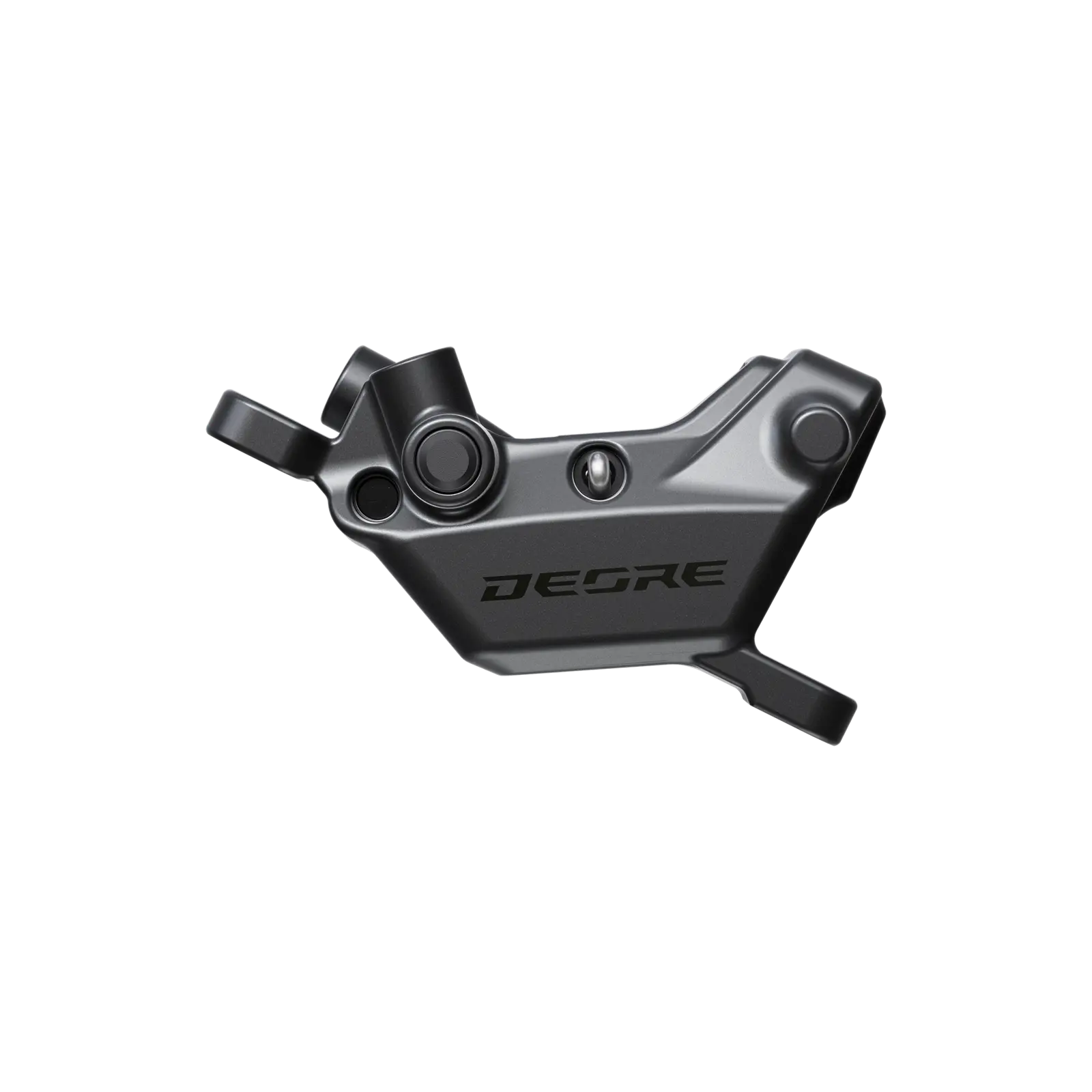

The dual-diameter 4-piston caliper runs Shimano's new low viscosity mineral oil, a new piston seal and heat-resistant resin pistons, so the lever feel stays steadier over a wider range of temperatures. SERVO WAVE gets the pads to the rotor quickly, then puts more of the lever stroke into braking. The caliper takes standard rotors and Shimano's 2.2mm thick rotors.

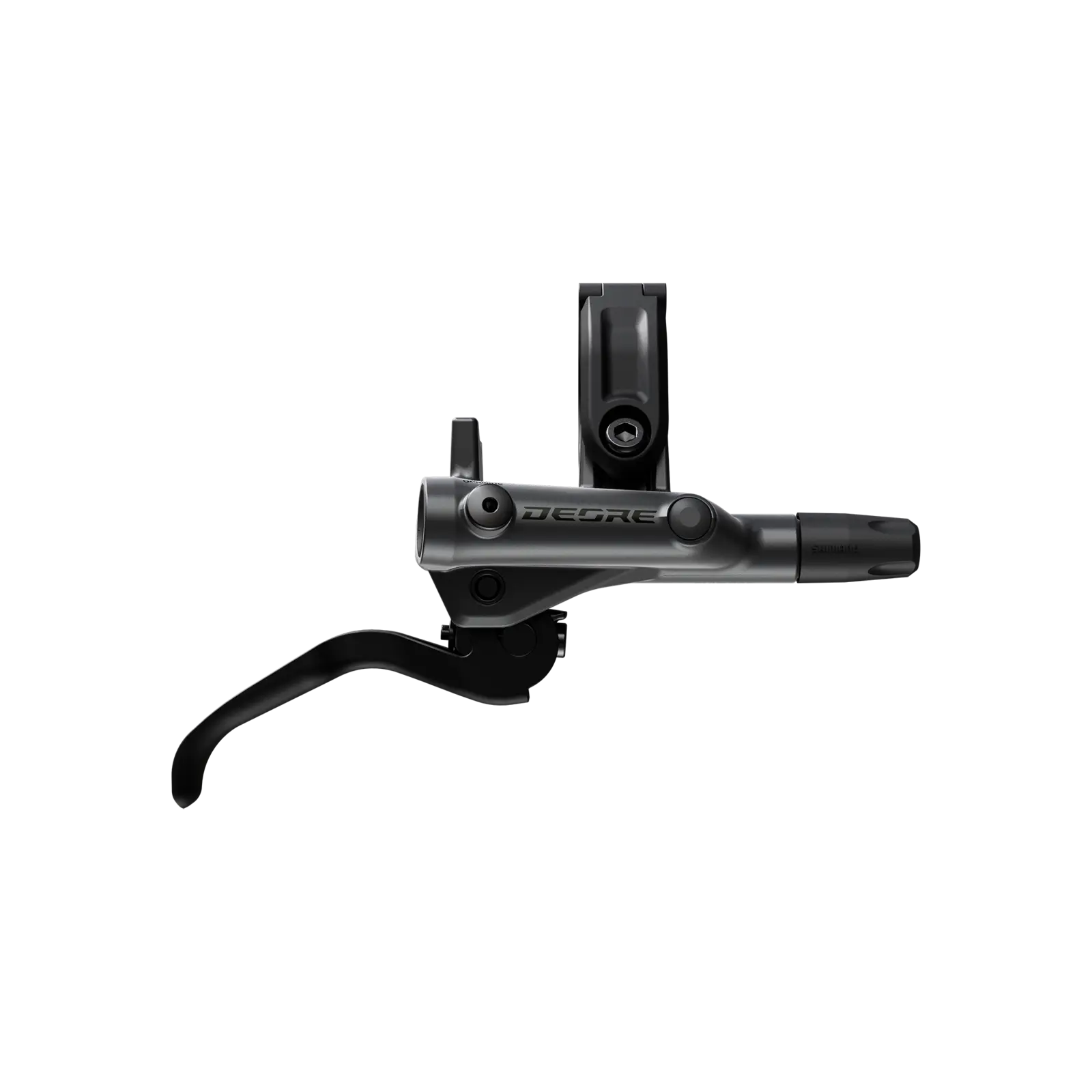

Sold as a front or rear brake. The lever is I-SPEC EV compatible for mounting with your shifter, and the hose runs close along the bar for a tidy cockpit.

Key Features

• Dual-diameter 4-piston caliper, two-piece construction
• Low viscosity mineral oil and new piston seals
• Heat-resistant resin pistons
• SERVO WAVE lever action
• Works with 2.2mm thick Shimano rotors
• Takes non-finned resin or metal pads
• I-SPEC EV compatible lever

Specifications

• Lever: BL-M6200
• Caliper: BR-M6220
• Pistons: 4 (dual diameter)
• Options: Rear (left lever), 1700mm black hose; Front (right lever), 1000mm black hose
• Pads fitted: Resin without fin
• Adapter: Not included
• Oil: Shimano low viscosity mineral oil
• Pad compatibility: Non-finned resin or metal
• Rotor compatibility: Standard and 2.2mm thick Shimano rotors
• Lever mount: I-SPEC EV compatible

Specs can change without notice from Shimano.
