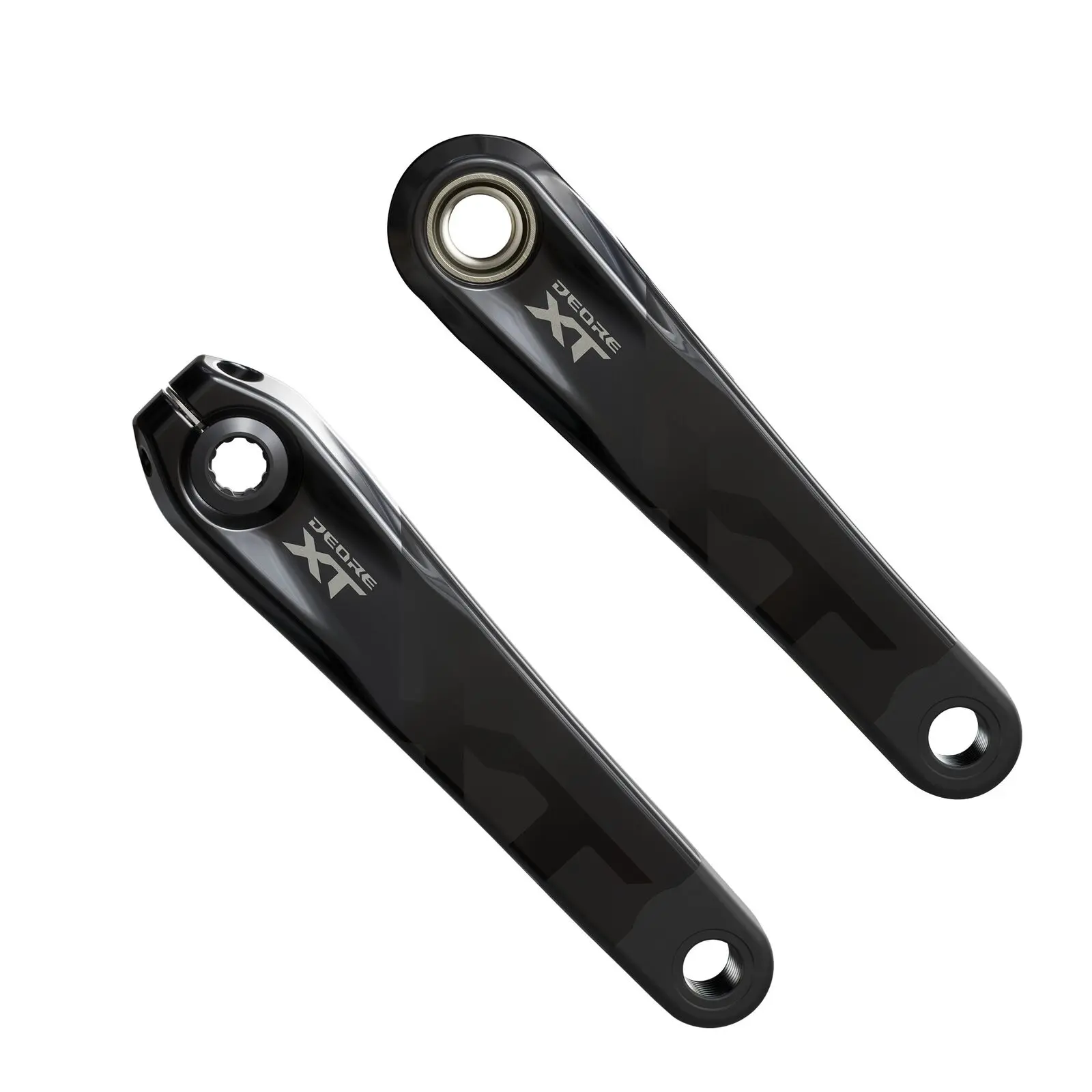

SHIMANO DEORE XT Crankset FC-M8200 HOLLOWTECH II 12-speed

Shimano Deore XT FC-M8200 12-Speed Crankset

The newer Deore XT crank, built for everything from all-day trail rides to enduro racing. HOLLOWTECH II forging gives a good balance of weight and stiffness. 176mm Q-factor and a 55mm chain line, so it fits a wide range of frames with no wheel or cassette changes.

24mm spindle, works with Shimano threaded and press fit bottom brackets. Takes SM-CRM86 direct mount rings from 28T to 36T. Available in 160mm, 165mm, 170mm and 175mm. Sold without a chainring, bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• HOLLOWTECH II forged arms
• 55mm chain line
• 24mm steel spindle
• 160mm to 175mm arm lengths

Specifications

• Speeds: 12 (front single)
• Crank length: 160mm, 165mm, 170mm, 175mm
• Chainring: Not included, direct mount 28T to 36T
• Chain line: 55mm
• Q-factor: 176mm
• Spindle: 24mm steel
• Bottom bracket: BB-MT801 (threaded), BB-MT800-PA (press fit), not included
• BB shell: 68/73mm threaded
• Weight: 591g (170mm, 32T, without BB)

Specs can change without notice from Shimano.
