SHIMANO DEORE XT Rear Derailleur RD-M8230-SGS 11-speed

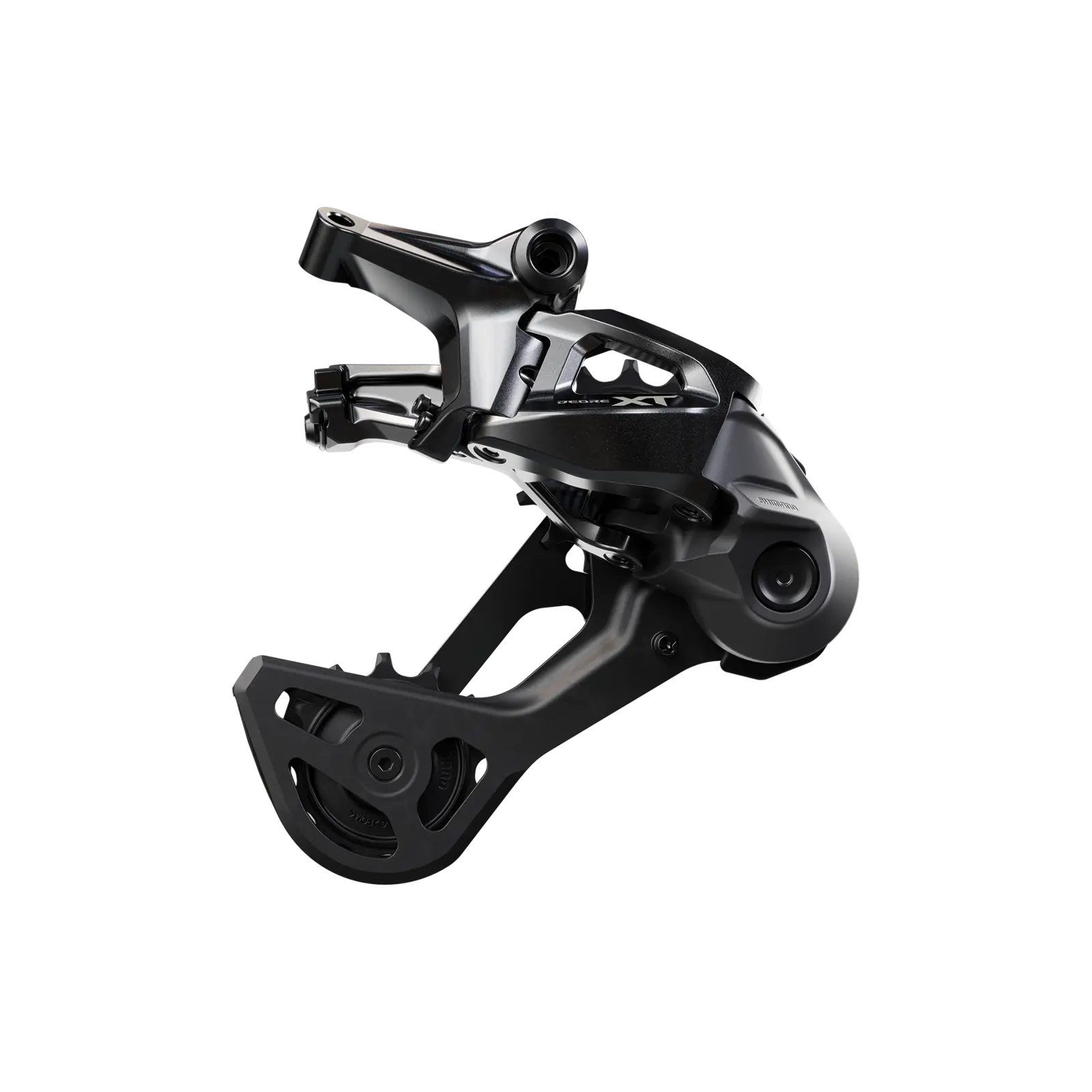

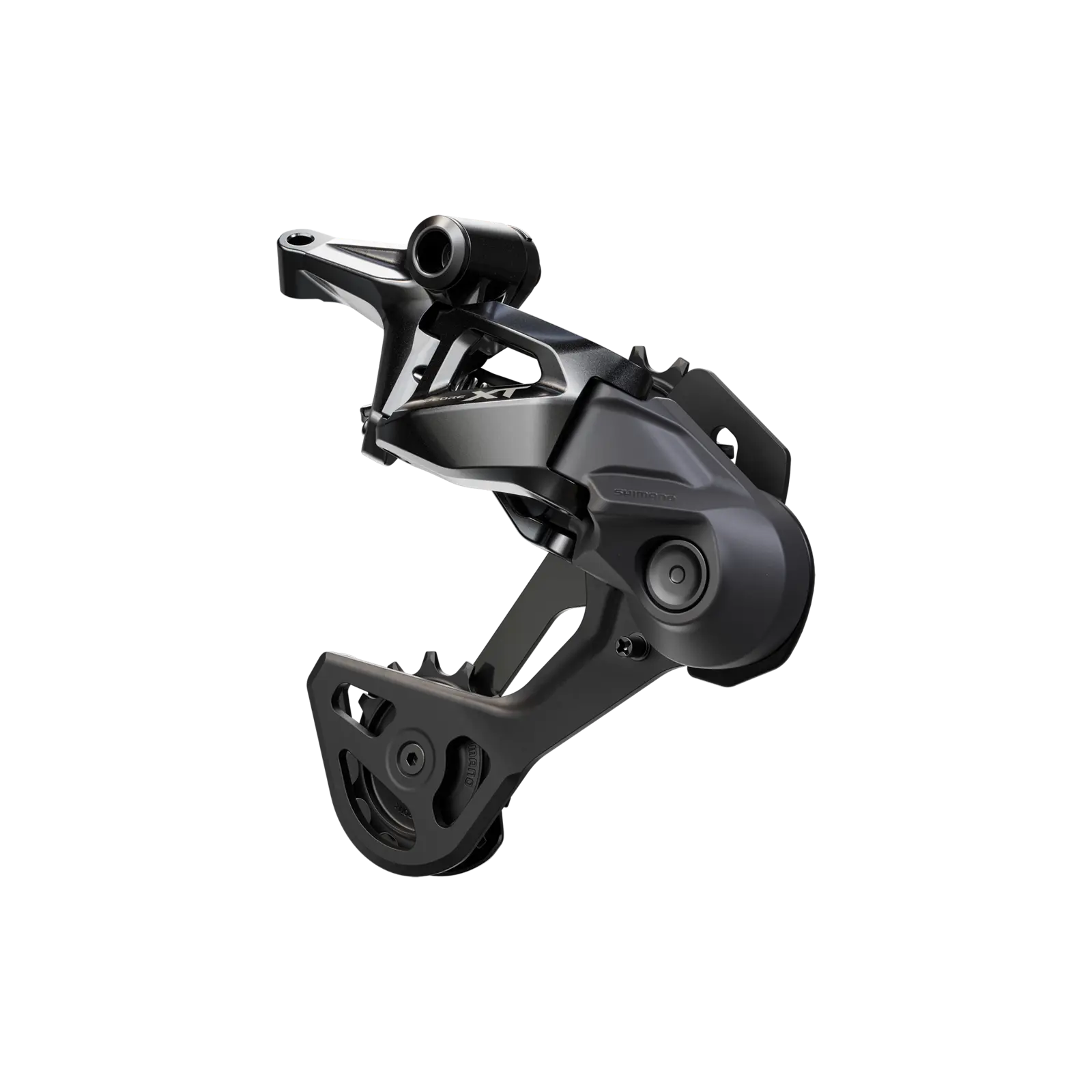

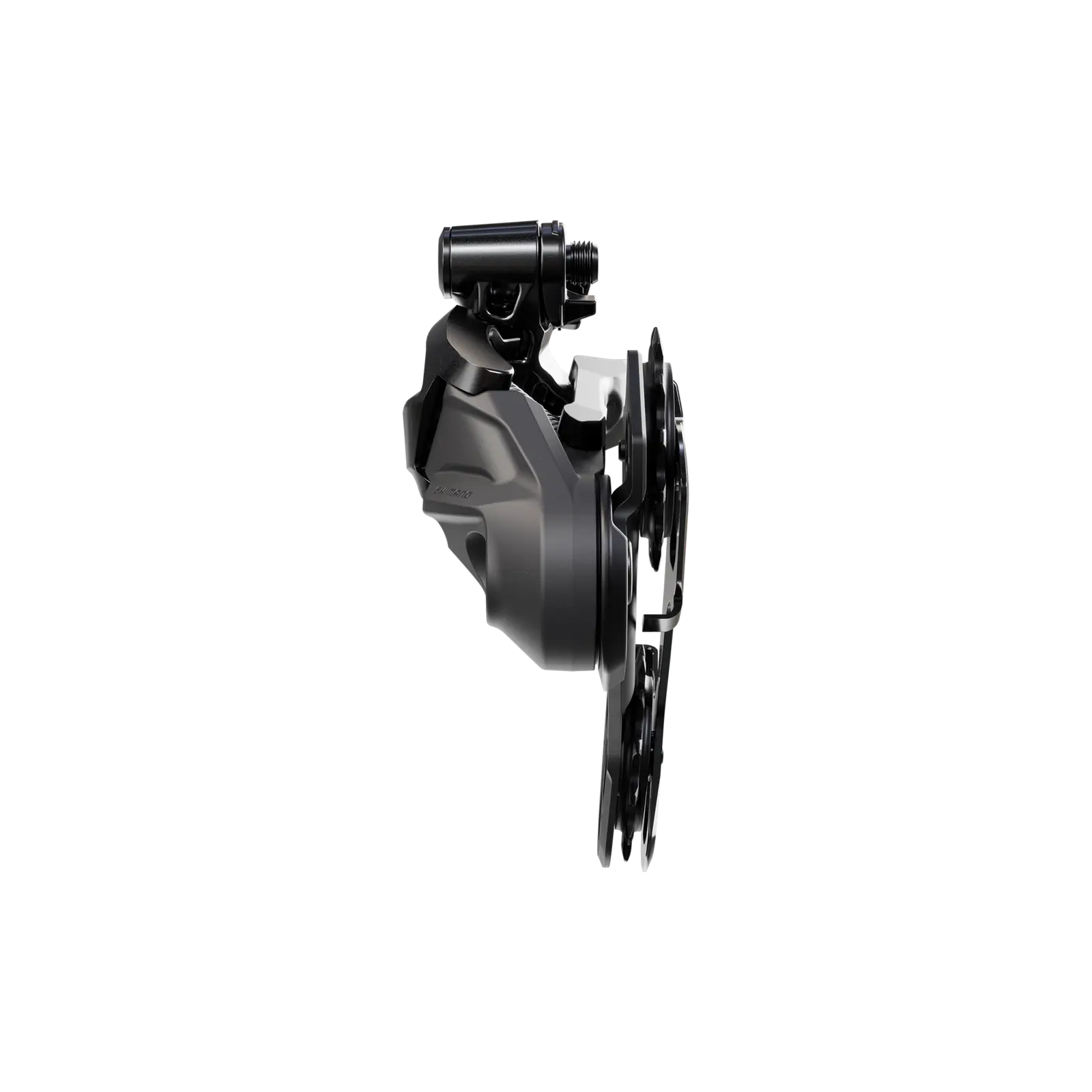

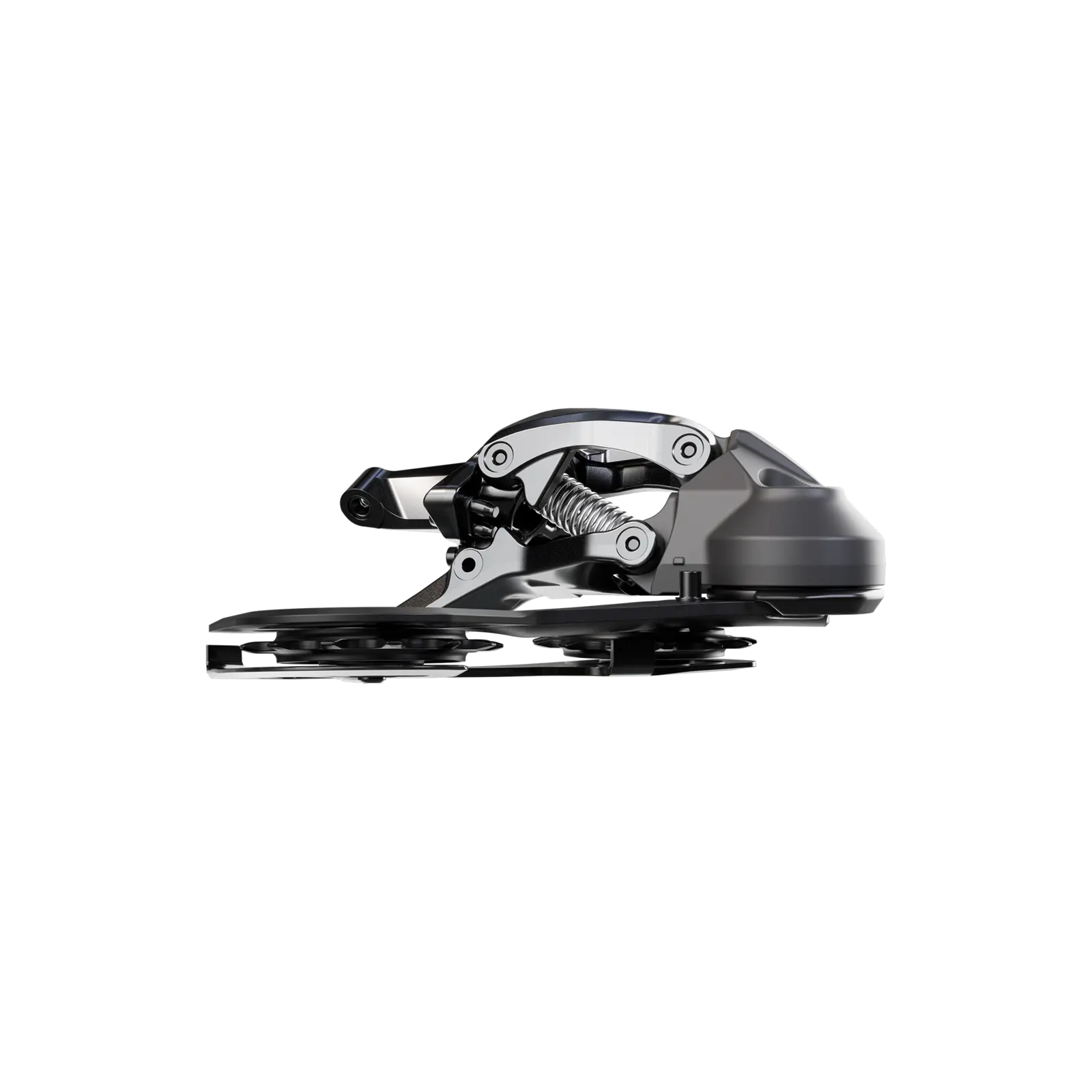

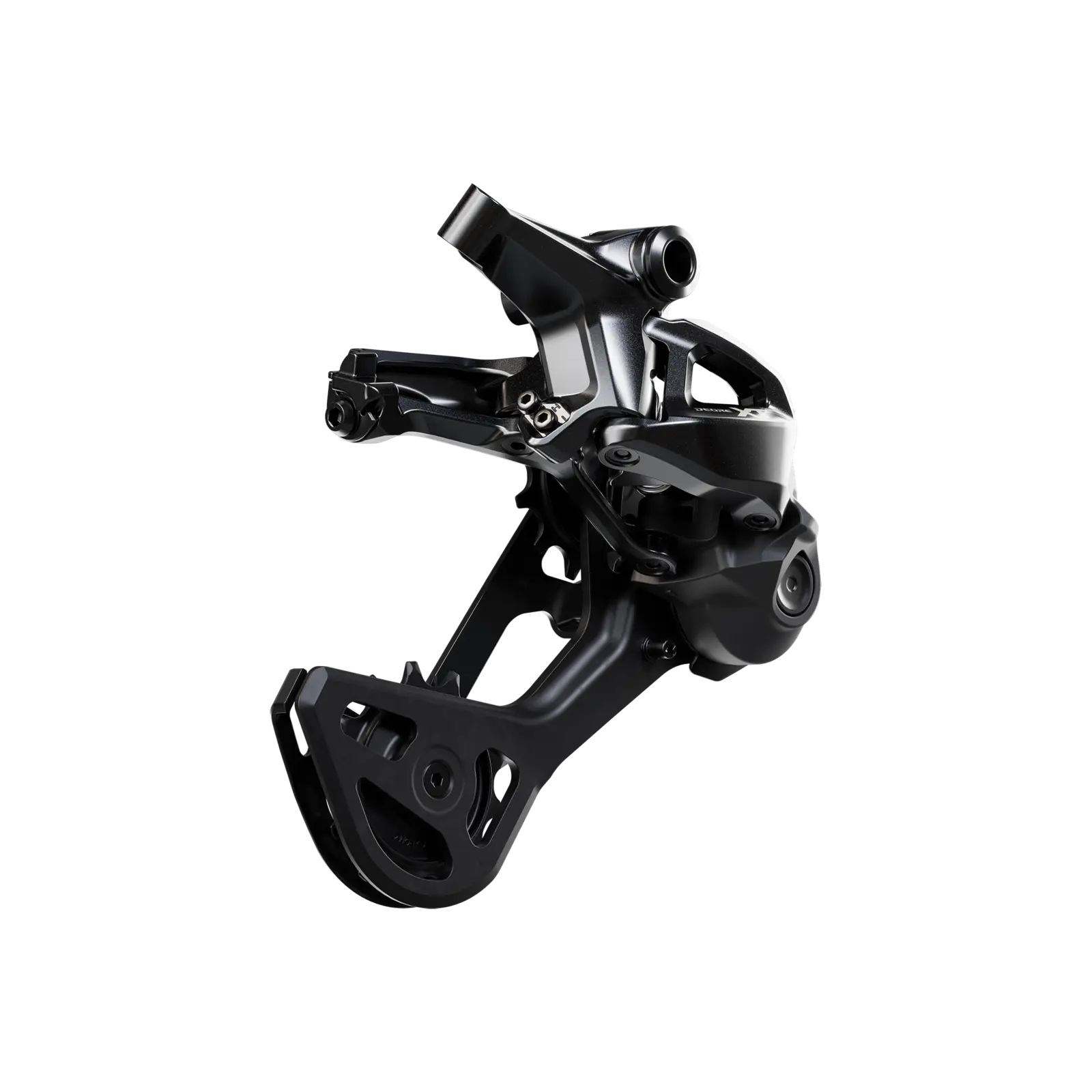

Shimano Deore XT RD-M8230-SGS Rear Derailleur

A 11-speed Deore XT rear derailleur with a long SGS cage, compatible with all LINKGLIDE 11-50T 11-speed cassettes. LINKGLIDE is built for smooth shifting under load, which suits e-MTBs.

SHADOW ES is the slimmer, stronger evolution of Shimano's SHADOW chain stabiliser, with a wide link structure for durability. The wedge shape moves out of the way of trail hits, and covered pulleys stop debris jamming things up. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• 11-speed LINKGLIDE
• SHADOW ES chain stabiliser
• Wedge-shaped design to deflect impacts
• SGS cage for 11-50T
• Covered 13T pulleys on sealed bearings
• Aluminium cage plates

Specifications

• Model: RD-M8230-SGS
• Series: Deore XT
• Speeds: 11
• Cage: SGS (long)
• Chain stabiliser: SHADOW ES
• Top sprocket: 11T
• Low sprocket: 50T
• Total capacity: 39T
• Pulleys: 13T, sealed bearings
• Chain: LINKGLIDE or HG 11-speed
• Mount: Shimano direct attachment (conventional hanger), UDH
• Cage plates: Aluminium
• Weight: 367g (Shimano average)

Specs can change without notice from Shimano.
