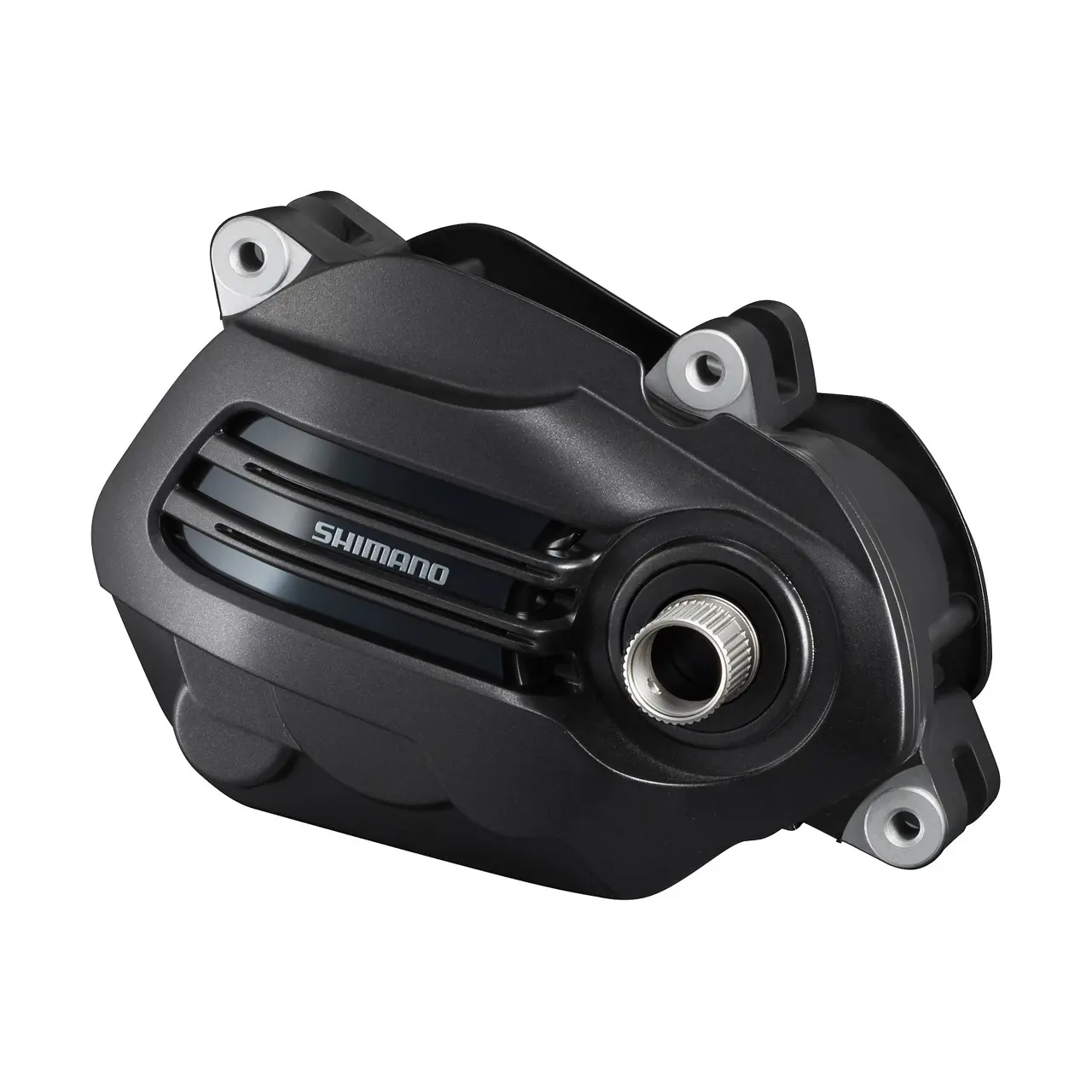

SHIMANO E6100 Drive Unit DU-E6110 (250W 60N·m) First generation

Shimano DU-E6110 Drive Unit (First Generation, Coaster Brake)

The coaster brake version of Shimano's E6100 drive unit for city and trekking e-bikes. 250W rated and 60Nm of torque, with a narrow, symmetrical Q-factor and a compact body that allows a shorter rear centre.

Built to work with Di2 internal geared hubs, including full automatic SYMPHOMATIC shifting for a natural feel. In the COMFORT riding characteristic the assist cut-off can be adjusted between 15 and 25km/h in E-TUBE PROJECT.

First generation battery management system with SD50 wiring. Like any e-bike system part it should be fitted and set up by a workshop. Not sure it fits your bike? Talk to us and we'll check.

Colour: Black.

Key Features

• 250W rated, 60Nm torque
• Coaster brake compatible
• Narrow, symmetrical Q-factor
• Di2 internal geared hub compatible
• SYMPHOMATIC full automatic shifting
• Assist speed adjustable in E-TUBE PROJECT

Specifications

• Rated power: 250W
• Max torque: 60Nm
• Rated voltage: 36V DC
• Brake type: Coaster brake
• Max assist speed: 25km/h (20mph)
• Assist modes: HIGH, NORMAL, ECO
• Spindle: 24mm
• Di2: Internal geared hub (8-speed, 5-speed INTER-5E)
• Ports: 2 x SD50
• Chain case: Compatible
• Battery management system: First generation
• Weight: 2,700g

Specs can change without notice from Shimano.
