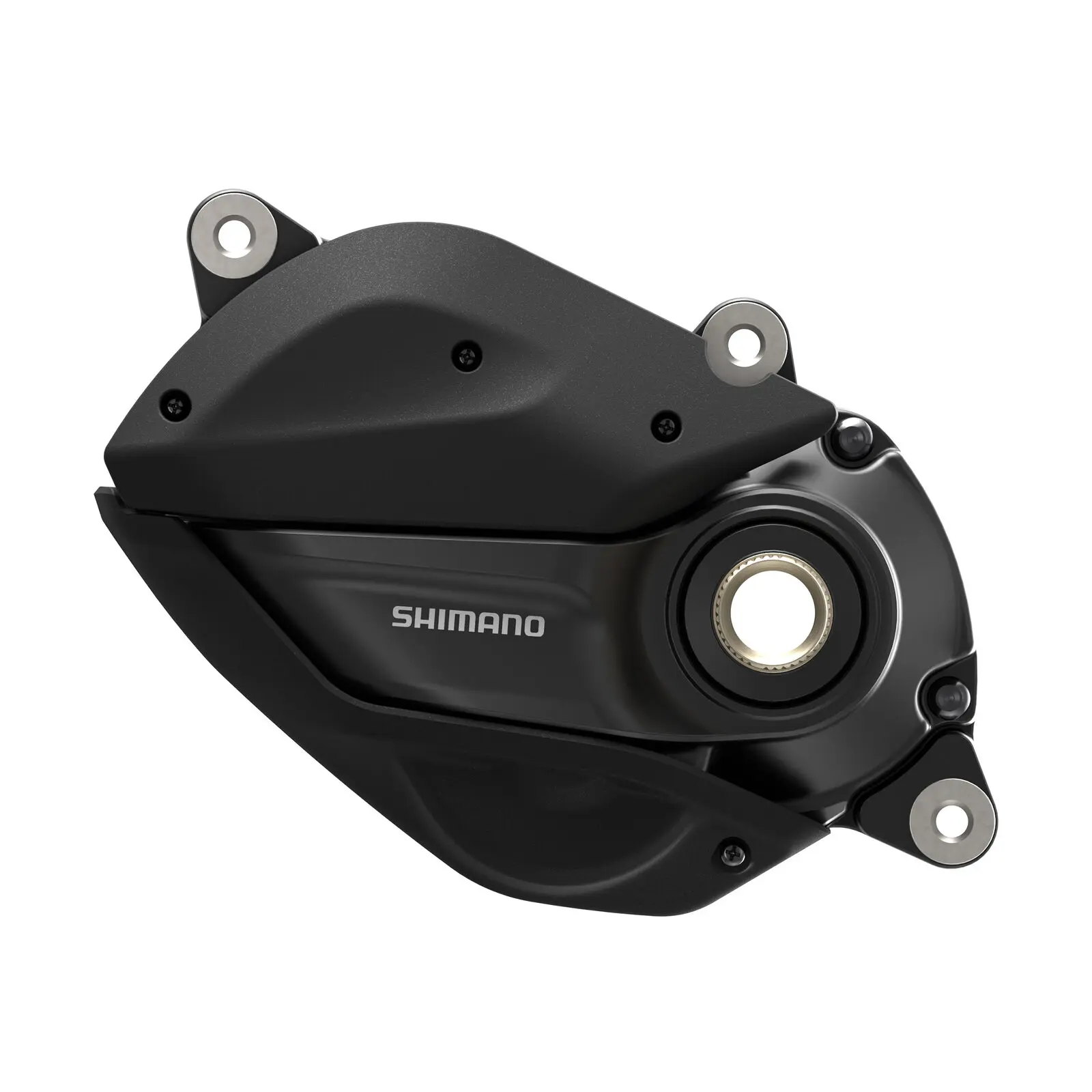

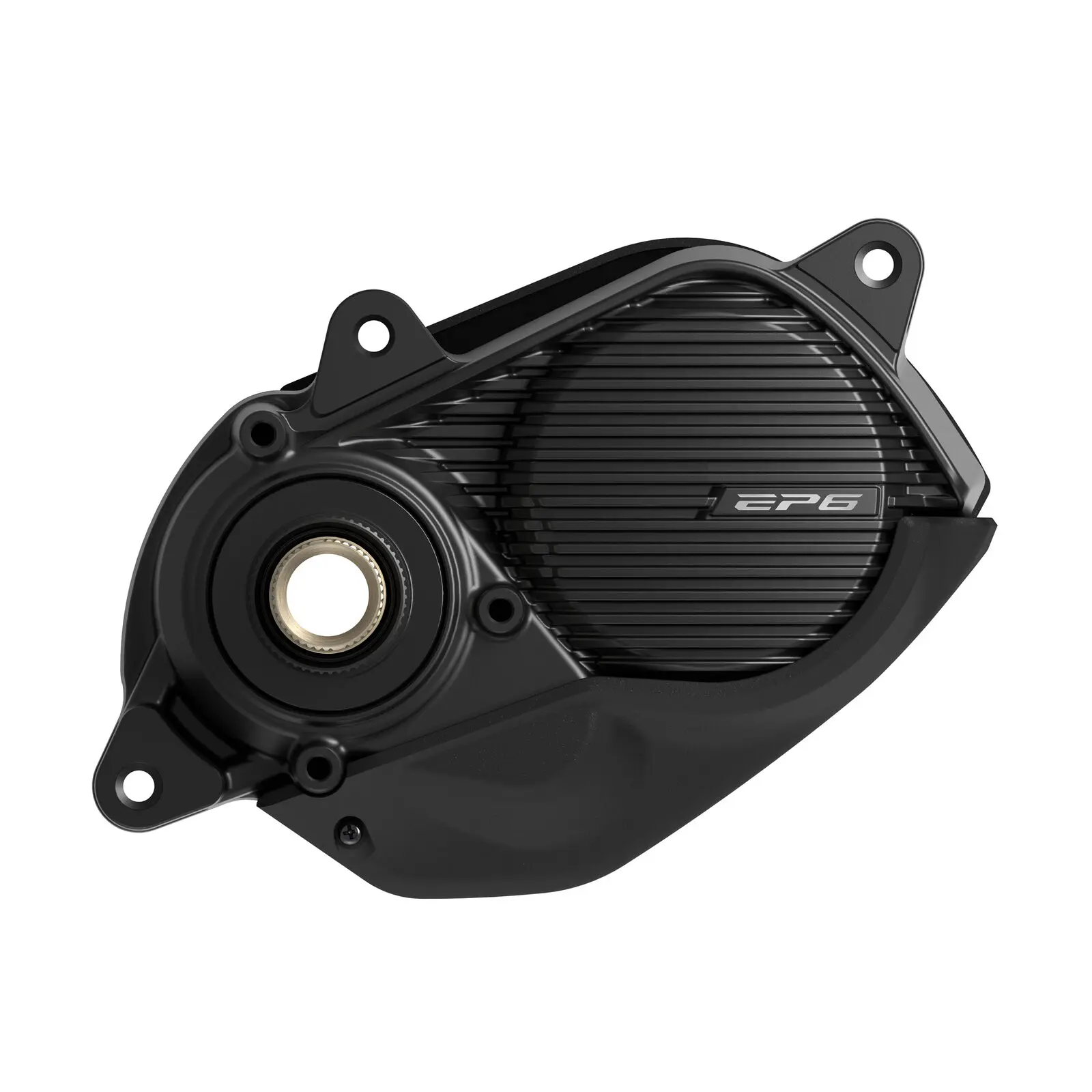

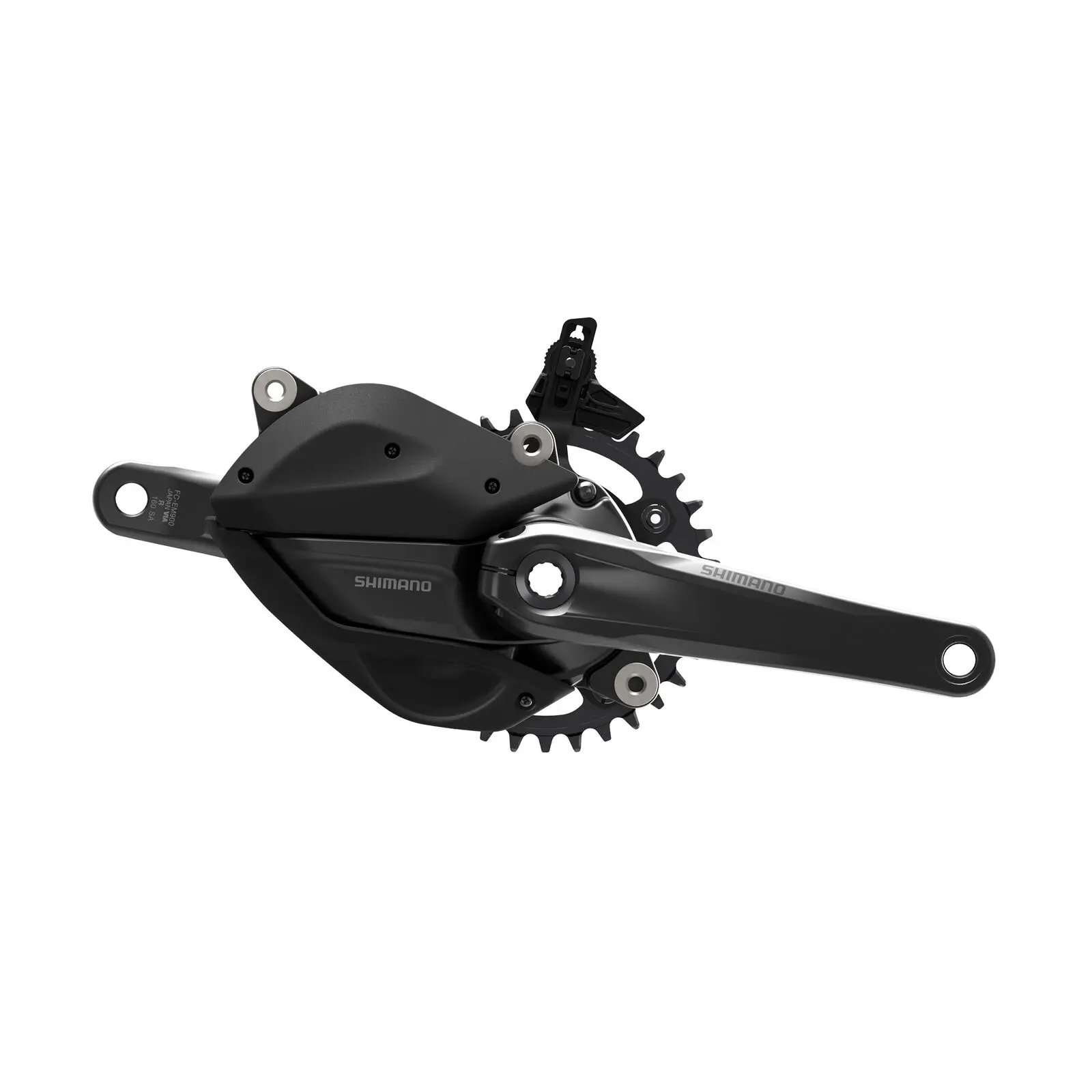

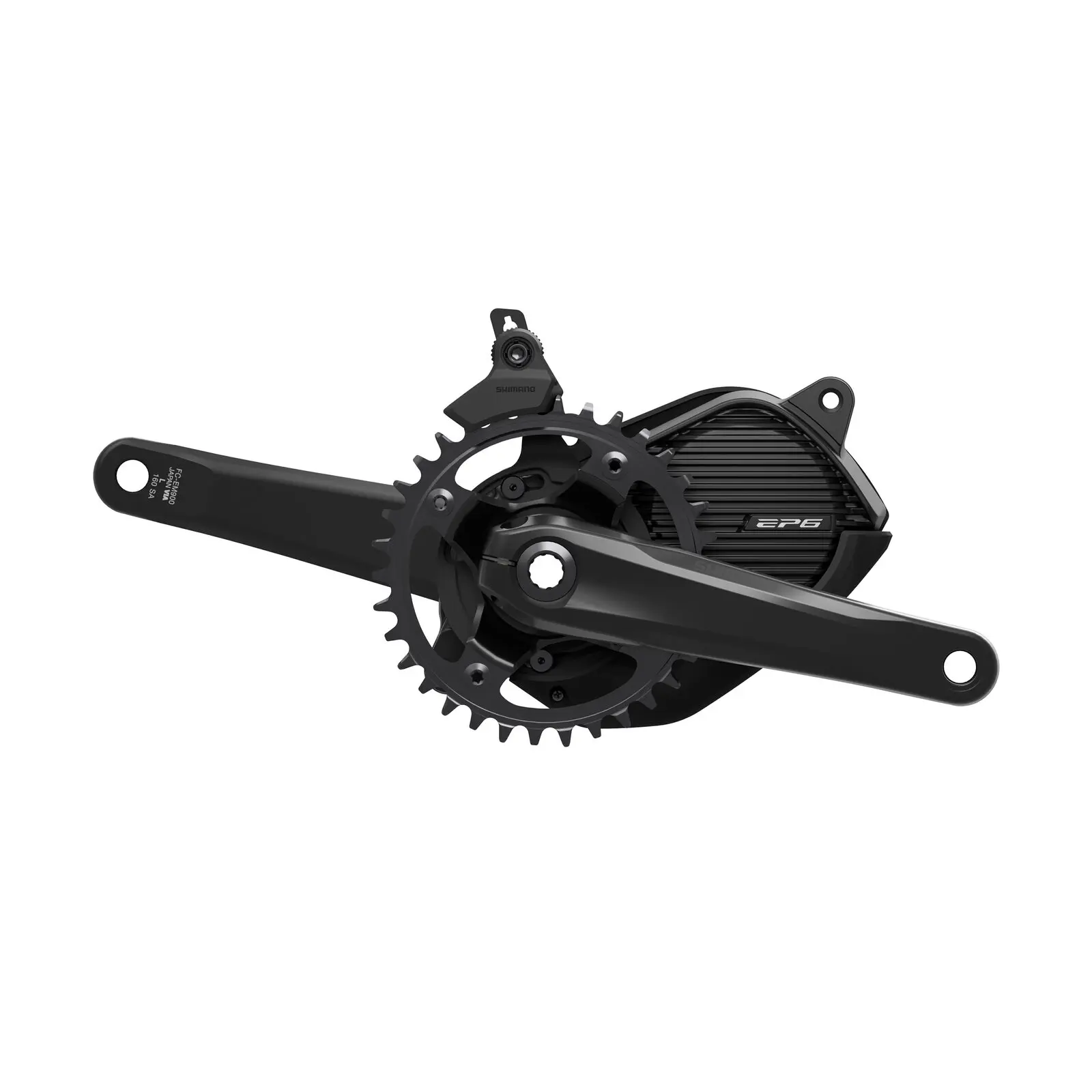

SHIMANO EP6 Drive Unit DU-EP600 (250W 85N·m) Second generation

Shimano EP6 DU-EP600 Drive Unit (Second Generation)

The updated EP6 drive unit for e-MTB. 85Nm of torque from a light, quiet, compact motor with the same low pedalling drag as the DU-EP801, in a 3.0kg aluminium body.

New CAN and ACC ports expand what the system can run, and E-TUBE PROJECT adds customisation options and Finetune Mode. Works with Di2 rear derailleurs and internal geared hubs, including FREE SHIFT and automatic shifting.

Only compatible with Shimano's second generation battery management system. Two store options: 25km/h, or 28mph US Class 3. Like any e-bike system part it should be fitted and set up by a workshop. Not sure it fits your bike? Talk to us and we'll check.

Colour: Black.

Key Features

• 250W rated, 85Nm torque
• 3.0kg aluminium body
• Low pedalling drag
• CAN and ACC ports
• Finetune Mode in E-TUBE PROJECT
• Di2 rear derailleur and internal hub compatible

Specifications

• Rated power: 250W
• Max torque: 85Nm
• Rated voltage: 36V DC
• Brake type: Disc brake
• Assist speed options: 25km/h, or 28mph (US Class 3)
• Assist modes: BOOST, HIGH, TRAIL, NORMAL, ECO
• Spindle: 24mm narrow
• Ports: 3 x SD300, CAN, ACC
• Battery management system: Second generation only
• Material: Aluminium
• Weight: 3.0kg

Specs can change without notice from Shimano.
