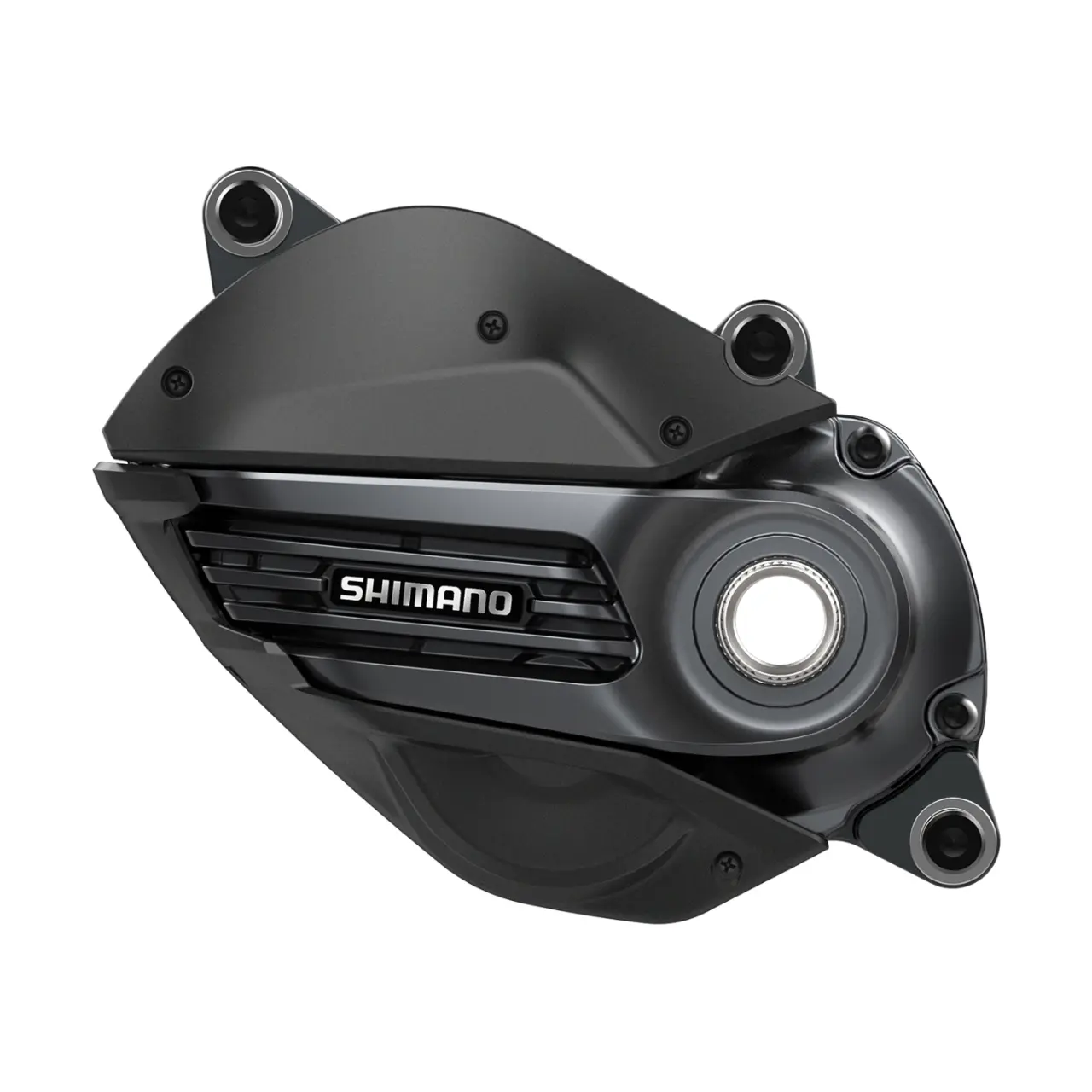

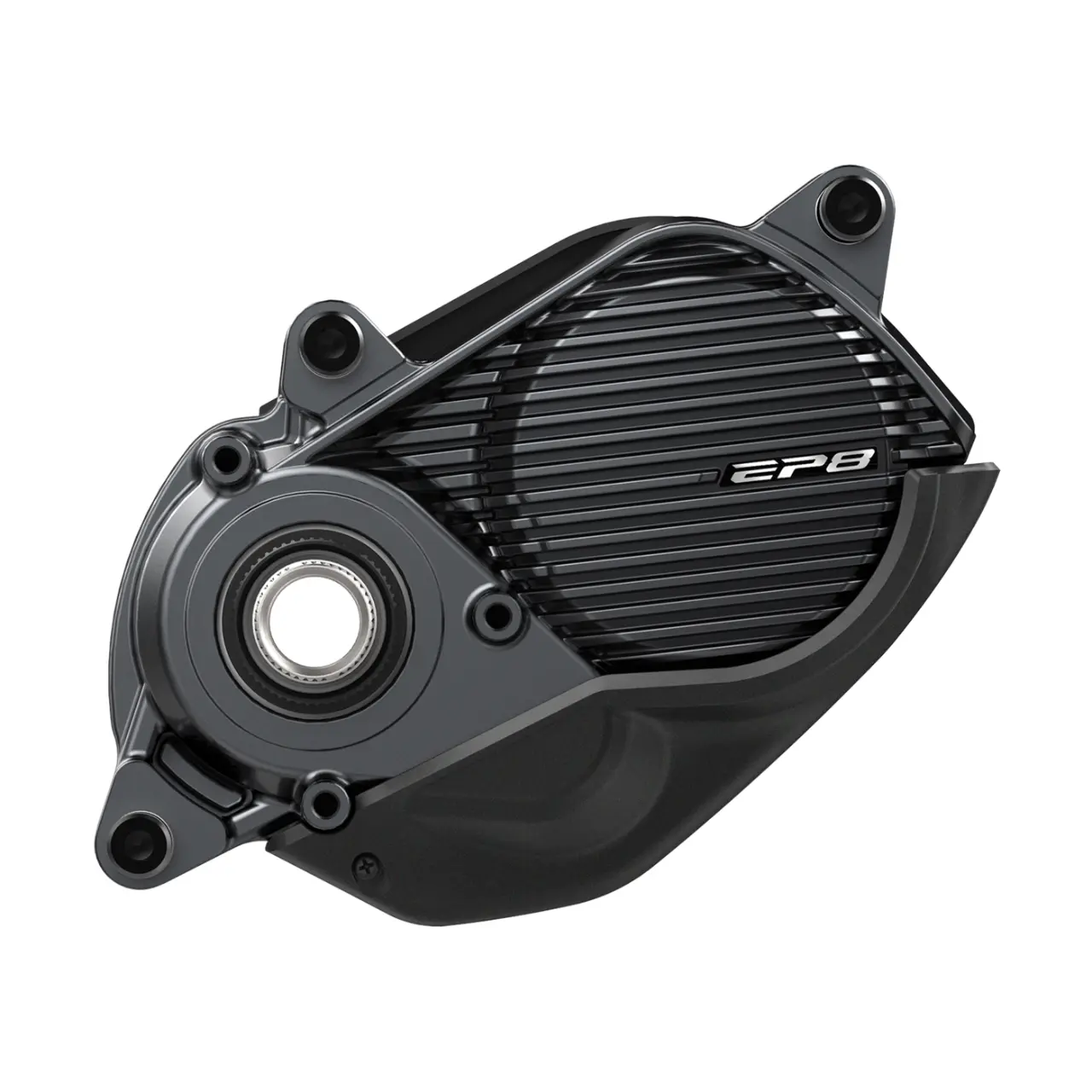

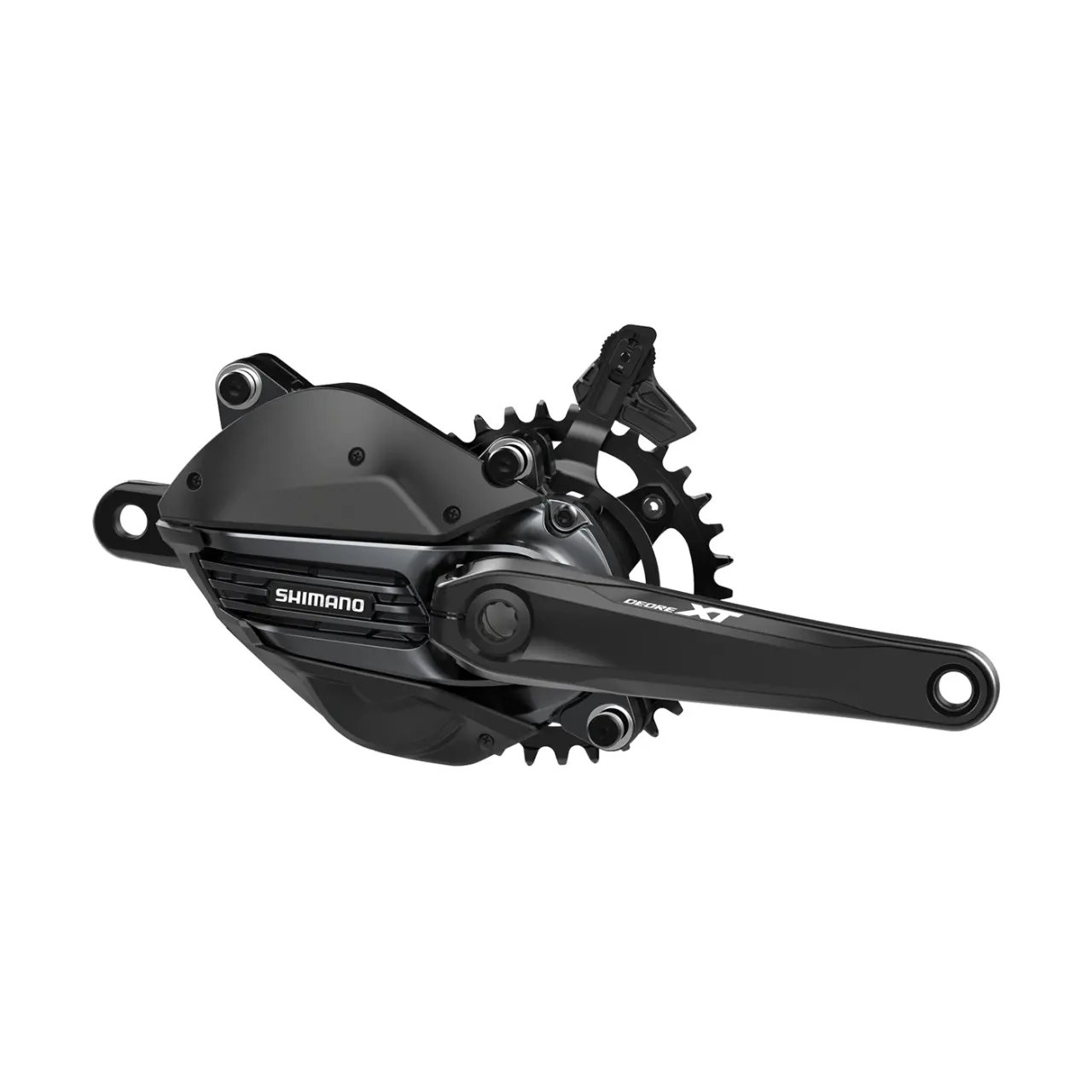

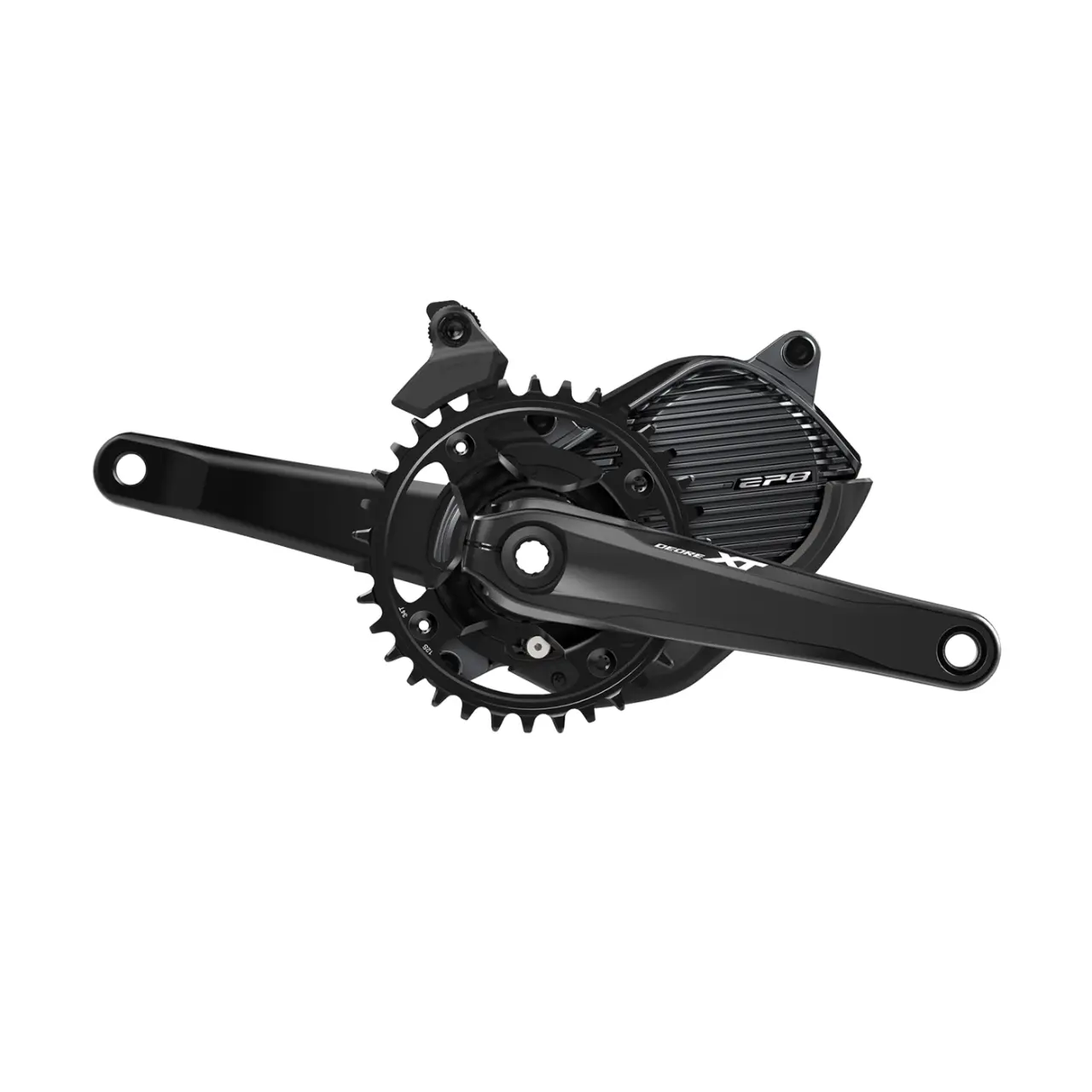

SHIMANO EP8 Drive Unit DU-EP800 (250W 85N·m) First generation

Shimano EP8 DU-EP800 Drive Unit (First Generation)

The original EP8 drive unit, built with a pure trail focus. 85Nm of torque, with reduced heat build-up. Shimano say the motor is lighter, quieter and more compact than their earlier units, with less pedalling drag.

It shares the same frame mount as the DU-E8000 and DU-E7000. Works with mechanical 12, 11, 10 and 9-speed, Di2 11-speed, FC-M8150 serration cranks and 11, 8, 7 and 5-speed internal geared hubs.

This is the disc brake version, 25km/h or 20mph. First generation battery management system with SD300 wiring. Like any e-bike system part it should be fitted and set up by a workshop. Not sure it fits your bike? Talk to us and we'll check.

Colour: Black.

Key Features

• 250W rated, 85Nm torque
• Quiet, compact motor with low pedalling drag
• Reduced heat build-up
• Same frame mount as DU-E8000 and DU-E7000
• Works with mechanical and Di2 drivetrains

Specifications

• Rated power: 250W
• Max torque: 85Nm
• Rated voltage: 36V DC
• Brake type: Disc brake
• Max assist speed: 25km/h (20mph)
• Assist modes: BOOST, TRAIL, ECO
• Spindle: 24mm narrow
• Drivetrain compatibility: Mechanical 12/11/10/9-speed, Di2 11-speed, FC-M8150 serration
• Ports: 2 x SD300
• Battery management system: First generation

Specs can change without notice from Shimano.
