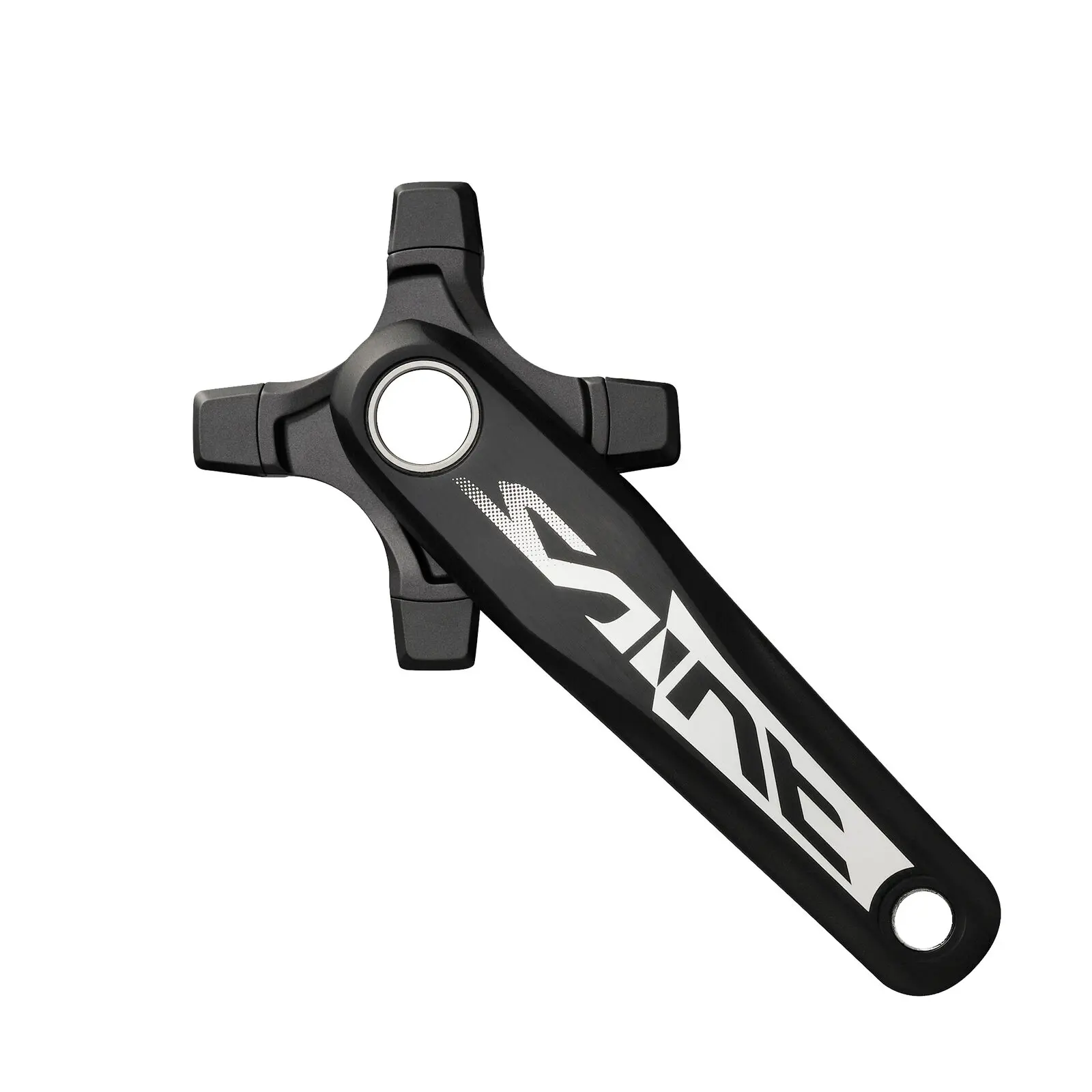

SHIMANO SAINT Crankset FC-M825 HOLLOWTECH II 10-speed

Shimano Saint FC-M825 10-Speed Crankset

Saint is Shimano's gravity group. These 10-speed cranks use HOLLOWTECH II arms with steel pedal inserts and a steel axle, and a 4-arm 104mm PCD spider for 34T, 36T or 38T rings (SM-CR82). Runs a 10-speed HG-X chain.

The FC-M825 is for 83mm bottom bracket shells, found on some downhill frames, with a 57.9mm chain line and 193mm Q-factor. Shimano note it needs a frame built for this dimension. Available in 165mm and 170mm. These options come with threaded (BSA) bottom bracket parts. Sold without a chainring or bash guard. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• HOLLOWTECH II arms
• Steel pedal inserts
• 104mm PCD 4-arm spider
• For 83mm BB shells

Specifications

• Speeds: 10 (HG-X)
• Crank length: 165mm, 170mm
• Chainring: Not included, 34T/36T/38T (SM-CR82)
• PCD: 104mm, 4 arm
• Chain line: 57.9mm
• Q-factor: 193mm
• BB shell: 83mm
• Bottom bracket: SM-BB80 (threaded), SM-BB71-41C (press fit)

Specs can change without notice from Shimano.
