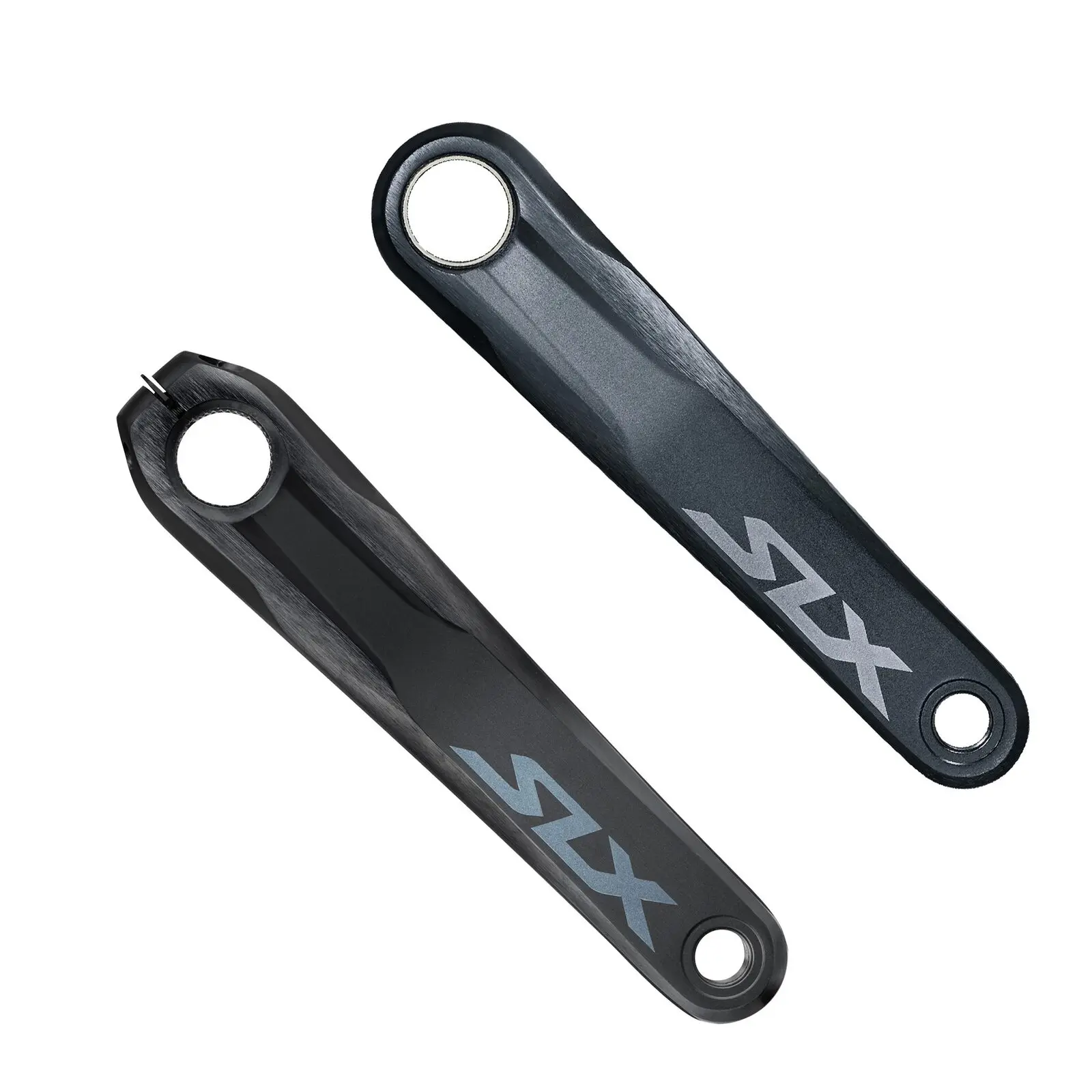

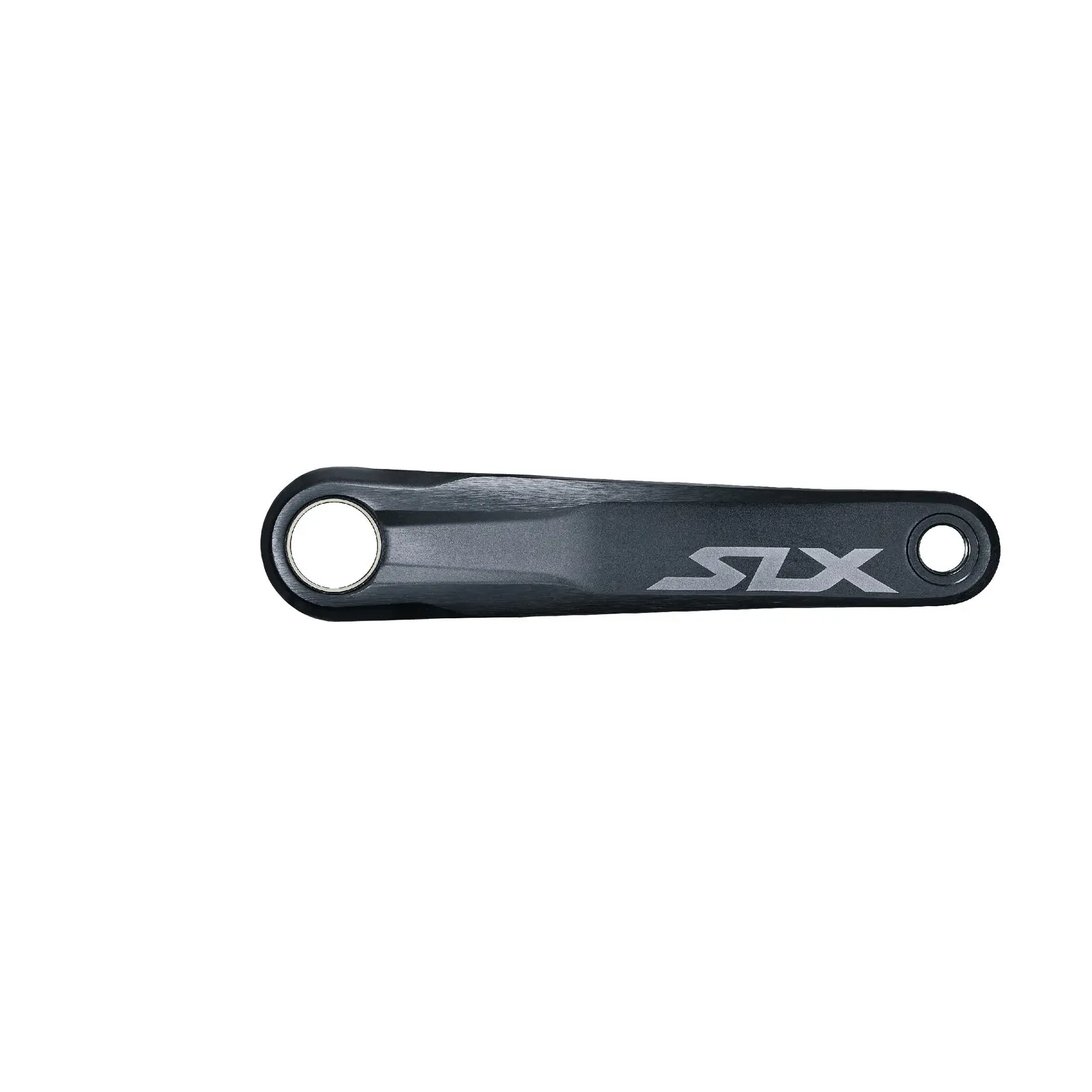

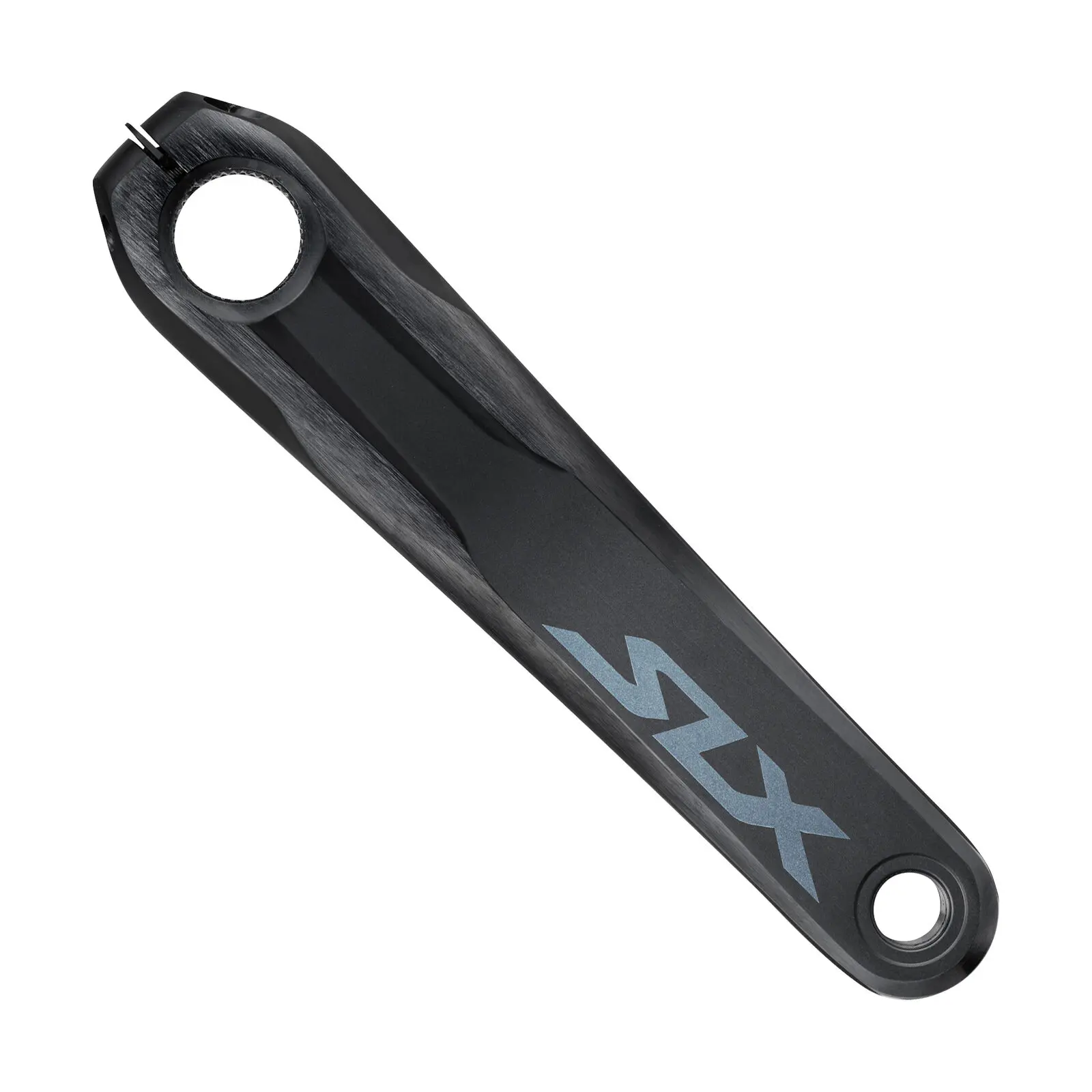

SHIMANO SLX Crankset FC-M7100-1 HOLLOWTECH II 12-speed

Shimano SLX FC-M7100-1 12-Speed Crankset

The SLX 12-speed single ring crank. HOLLOWTECH II arms, a direct mount chainring and a special tooth profile for chain retention. Takes SM-CRM75 rings in 30T, 32T or 34T.

52mm chain line for 142mm and 148mm rear spacing, 172mm Q-factor. 170mm arms. Sold without a chainring, bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• HOLLOWTECH II arms
• Direct mount chainring
• 52mm chain line
• 170mm arms

Specifications

• Speeds: 12 (front single)
• Crank length: 170mm
• Chainring: Not included, direct mount 30T/32T/34T
• Chain line: 52mm
• Q-factor: 172mm
• Rear spacing: 142mm and 148mm
• Bottom bracket: BB-MT801 (threaded), BB-MT800-PA (press fit), not included
• BB shell: 68/73mm threaded
• Weight: 620g (170mm, 32T, without BB)

Specs can change without notice from Shimano.
