SHIMANO XTR Cassette Sprocket CS-M9200-12 12-speed

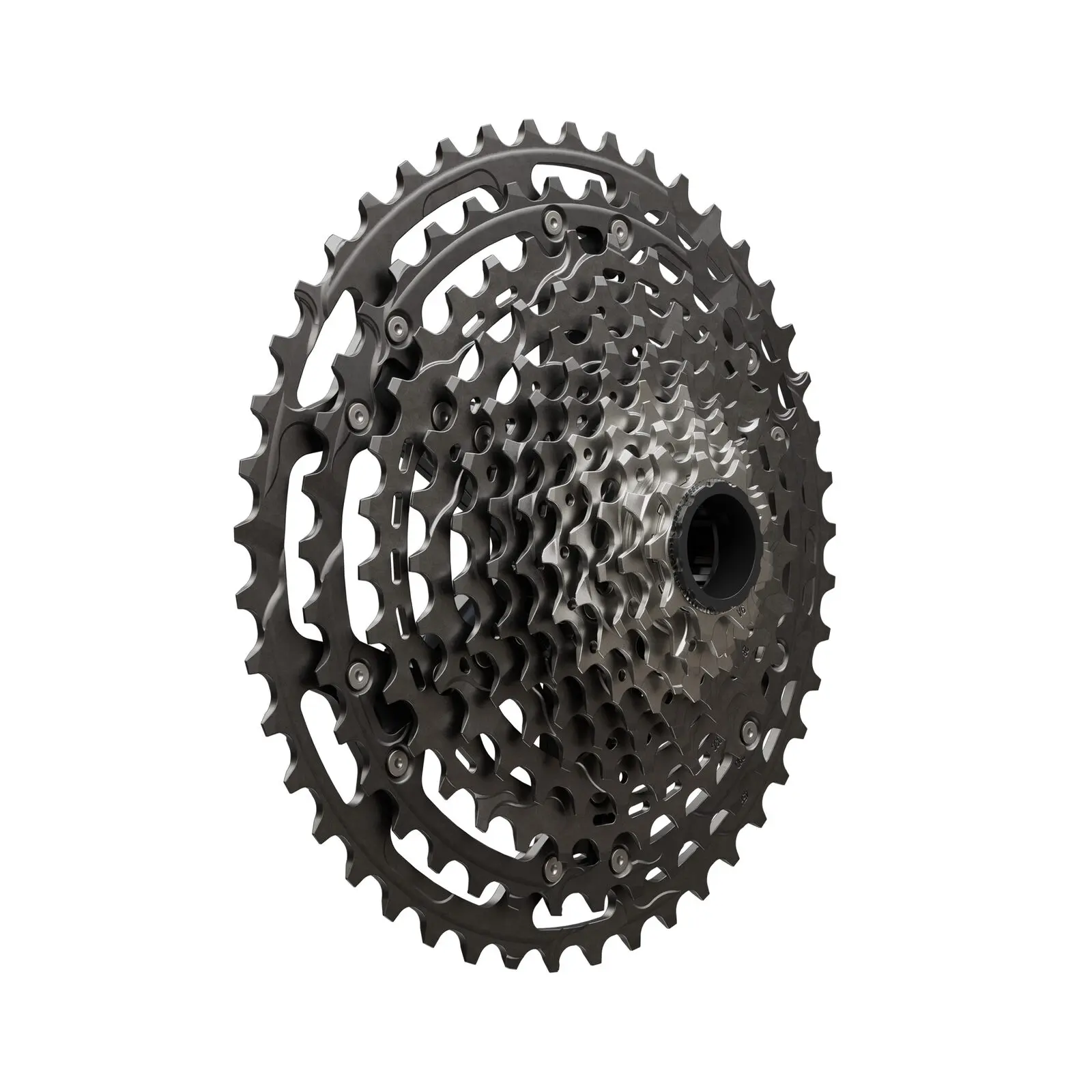

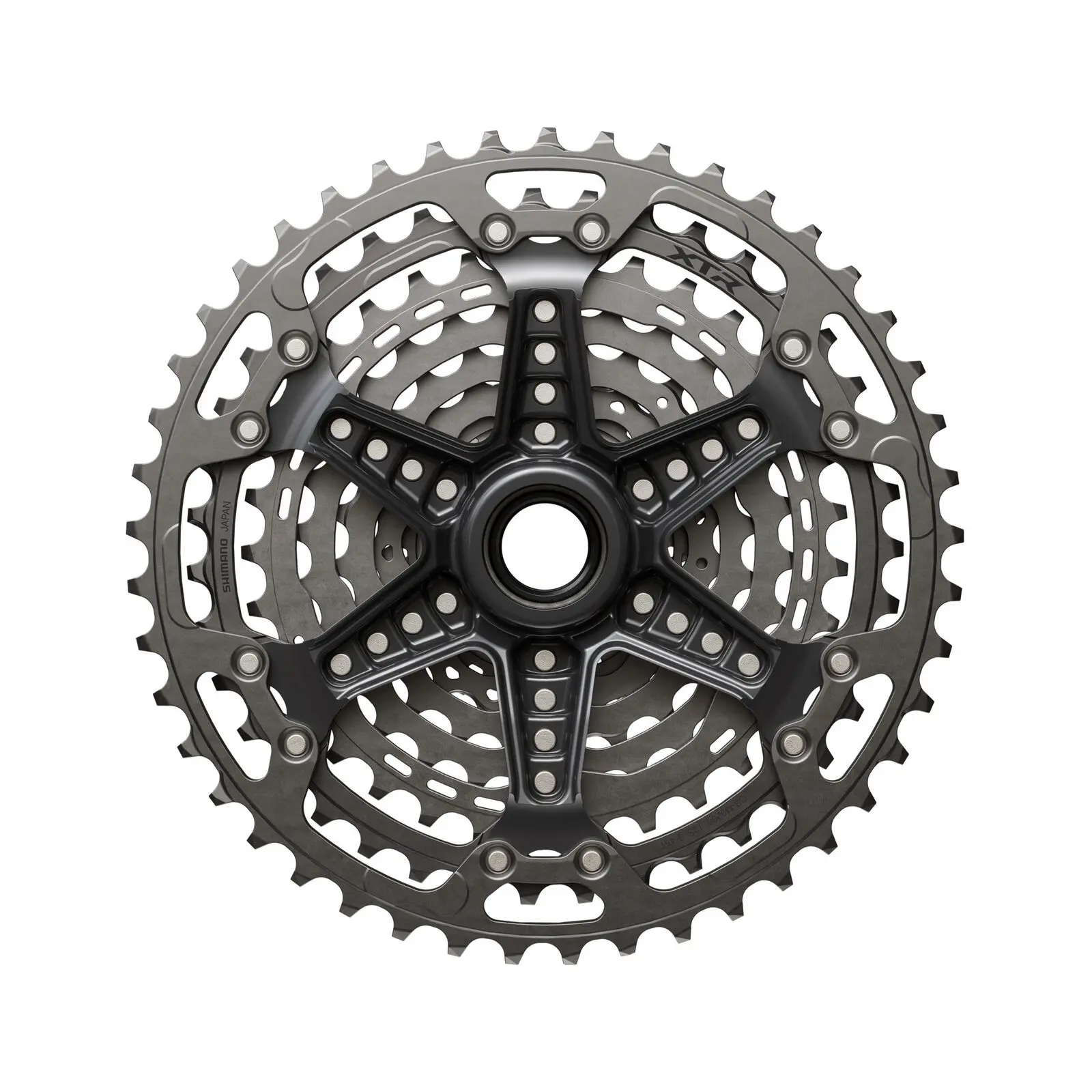

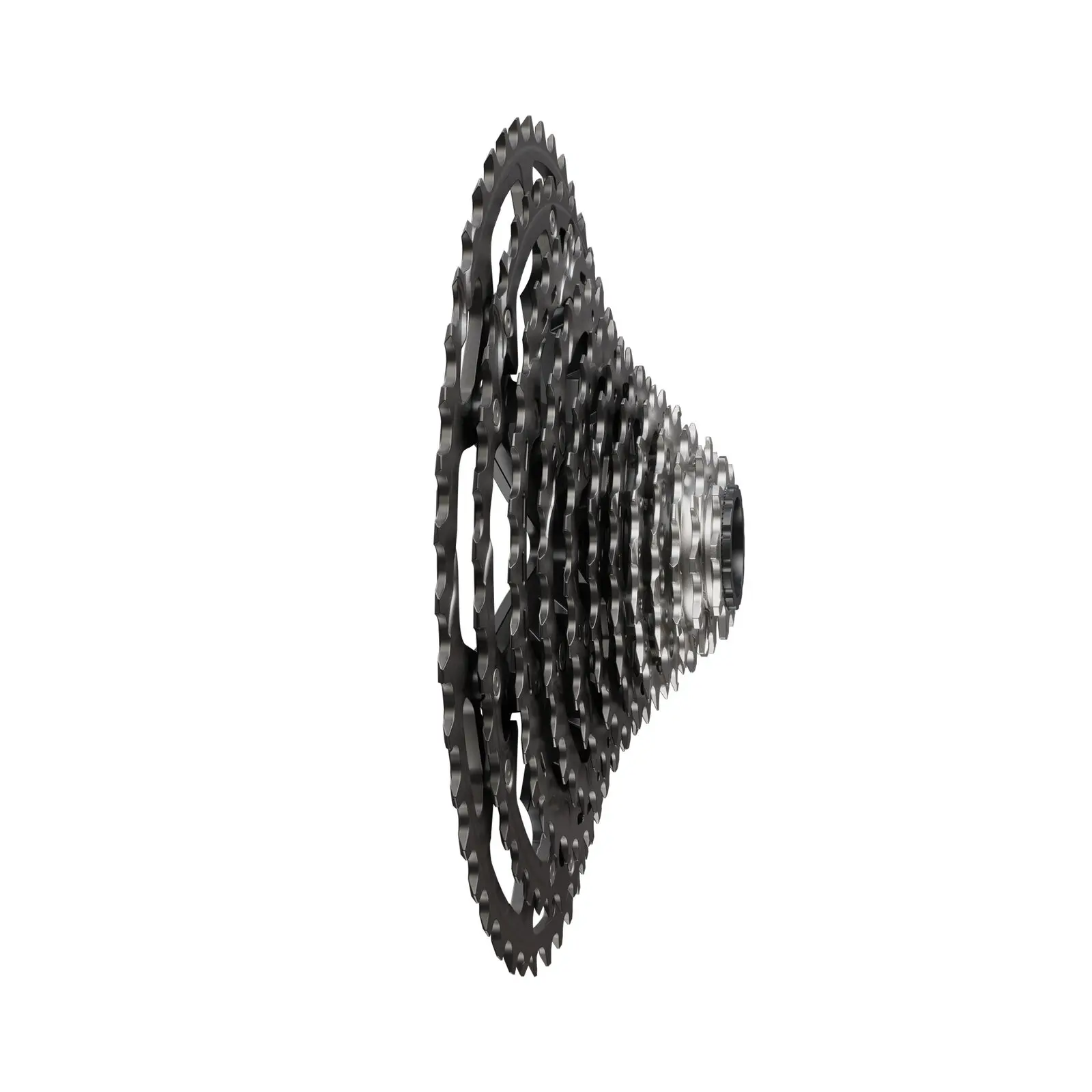

Shimano XTR CS-M9200-12 12-Speed Cassette

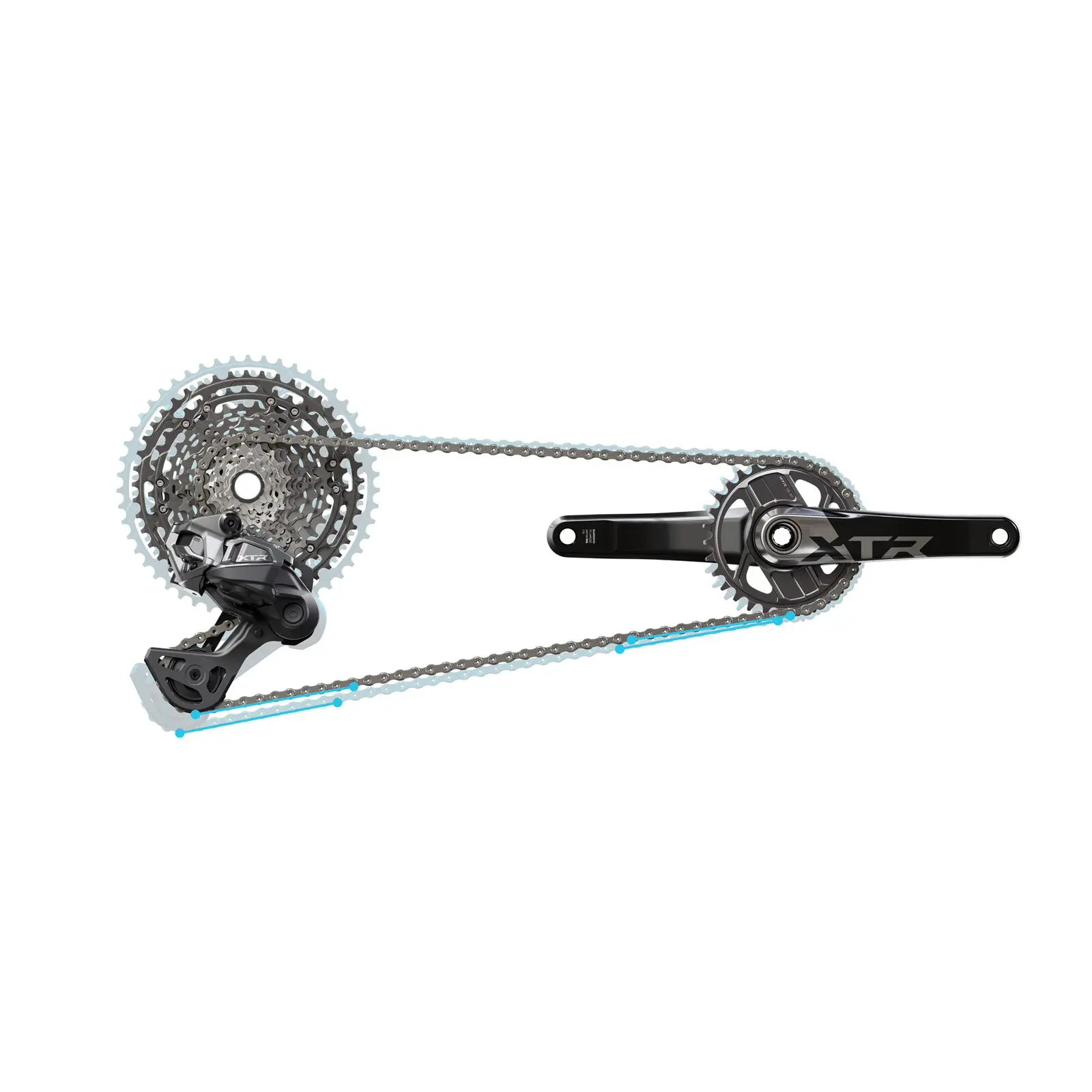

The newer XTR 12-speed cassette. Steel, titanium and alloy sprockets keep it light for racing. Choose 10-51T for a 510% range and wide frame compatibility, or the compact 9-45T, which still gives a 500% range when paired with smaller chainrings and the mid-cage XTR rear derailleur.

Both fit a MICRO SPLINE freehub and run a 12-speed HG chain. The 9-45T needs Shimano's TL-LR021 lock ring tool, and Shimano say it is not for e-bikes. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• 12-speed HYPERGLIDE+ shifting

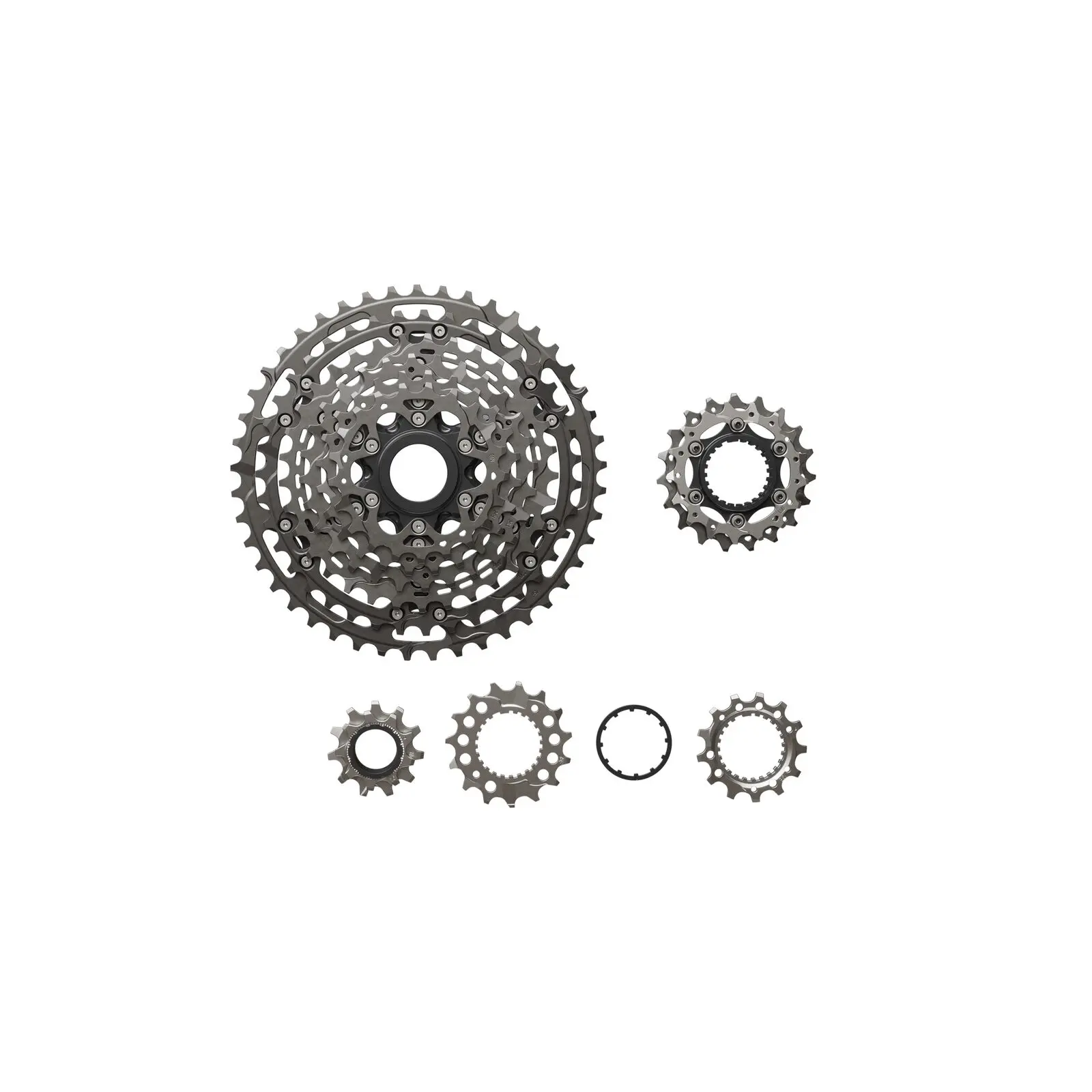

• Titanium, aluminium and steel sprockets
• 10-51T (510%) or 9-45T (500%) range
• MICRO SPLINE freehub fitment

Specifications

• Speeds: 12
• Sizes: 10-51T (10-12-14-16-18-21-24-28-33-39-45-51T), 9-45T (9-11-13-15-17-19-21-24-28-33-39-45T)
• Compatible chain: HG 12-speed
• Freehub: MICRO SPLINE
• Sprockets: Titanium, aluminium and steel
• Lock ring: Aluminium, anodised
• Weight: 327g (9-45T), 369g (10-51T)
• Tool: TL-LR021 lock ring tool for 9-45T
• Note: 9-45T not for E-BIKE use

Specs can change without notice from Shimano.
