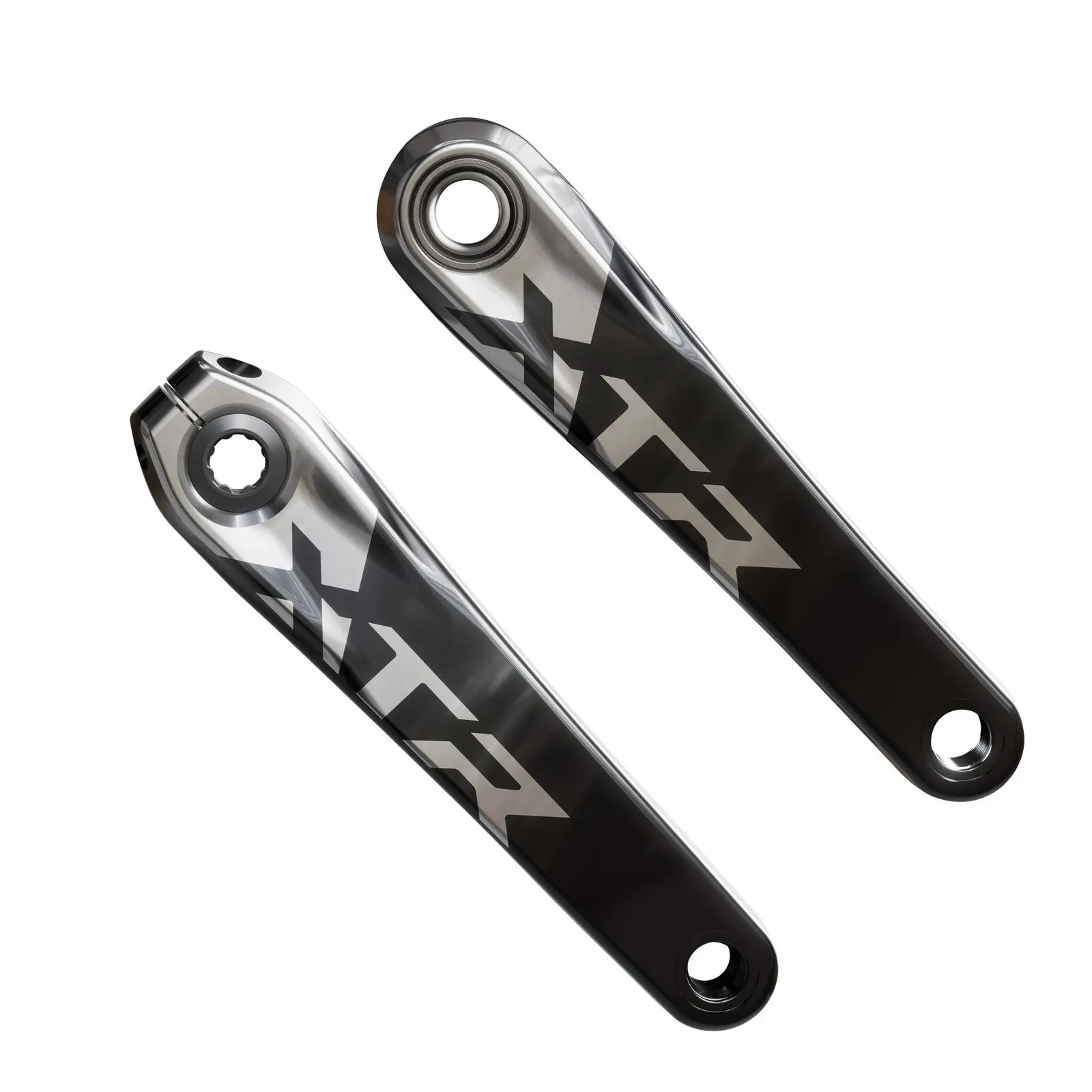

SHIMANO XTR Crankset FC-M9200 HOLLOWTECH II 12-speed

Shimano XTR FC-M9200 12-Speed Crankset

The XTR cross country crank. Light arms and a steel axle balance reliable power transfer and low weight for racing. HOLLOWTECH II forging gives good stiffness for the weight. Takes SM-CRM96 machined rings from 30T to 38T.

170mm Q-factor and a 55mm chain line for wide frame compatibility. 24mm spindle, works with Shimano threaded and press fit bottom brackets. Available in 165mm, 170mm and 175mm. Sold without a chainring, bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• HOLLOWTECH II forged arms
• XC-focused 170mm Q-factor
• 55mm chain line
• 24mm steel spindle

Specifications

• Speeds: 12 (front single)
• Crank length: 165mm, 170mm, 175mm
• Chainring: Not included, direct mount 30T to 38T
• Chain line: 55mm
• Q-factor: 170mm
• Spindle: 24mm steel
• Bottom bracket: SM-BB93 (threaded), SM-BB94-41A (press fit), not included
• BB shell: 68/73mm threaded
• Weight: 572g (170mm, 32T, without BB)

Specs can change without notice from Shimano.
