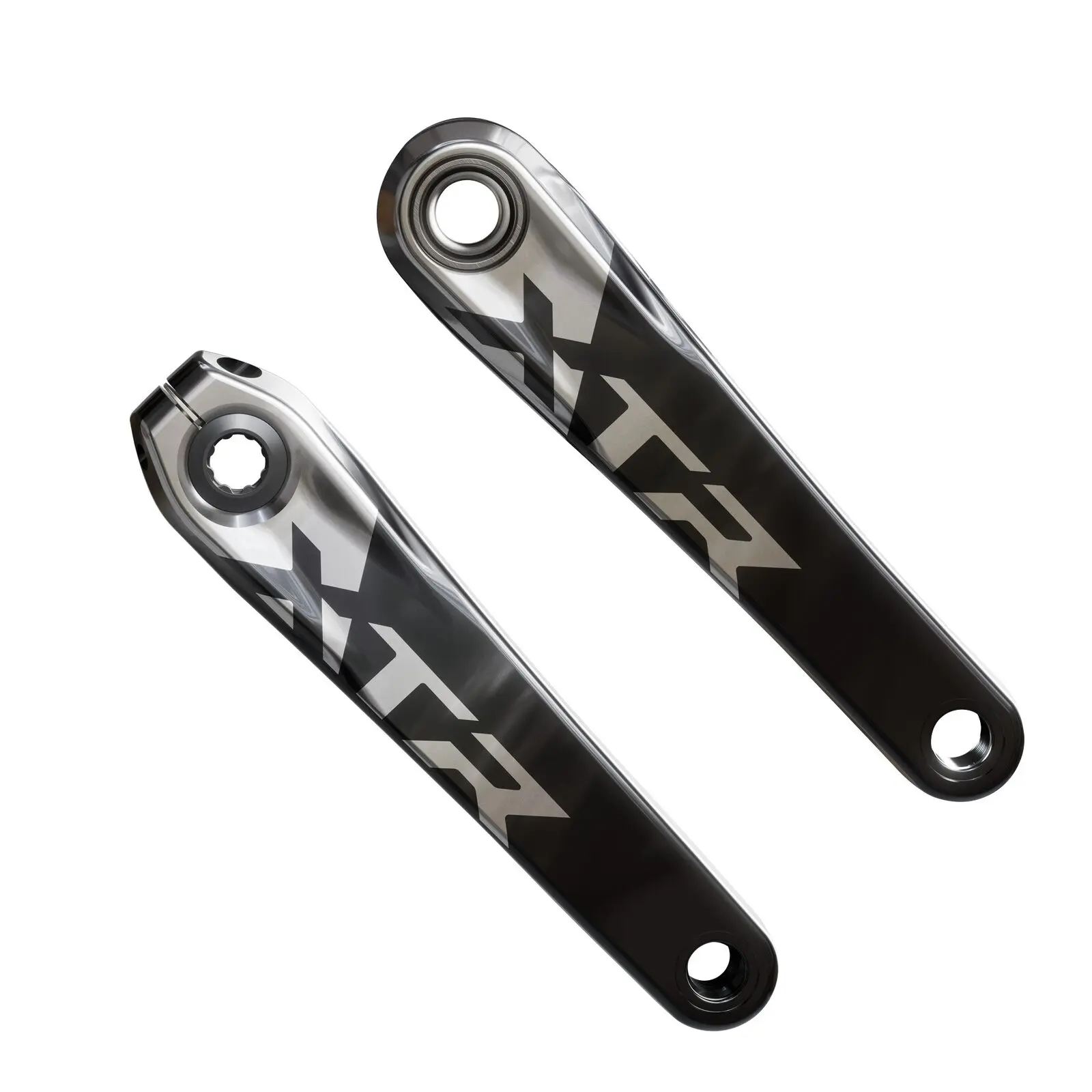

SHIMANO XTR Crankset FC-M9220 HOLLOWTECH II 12-speed

Shimano XTR FC-M9220 12-Speed Crankset

The XTR enduro crank. A thicker enduro-specific spindle adds durability for big hits, and HOLLOWTECH II forging keeps the weight and stiffness right for enduro riding and racing. Takes SM-CRM96 rings from 28T to 34T.

176mm Q-factor and a 55mm chain line. 24mm spindle, works with Shimano threaded and press fit bottom brackets. Available in 160mm, 165mm and 170mm. Sold without a chainring, bottom bracket or chain guide. Not sure it fits your bike? Talk to us and we'll check.

Key Features

• HOLLOWTECH II forged arms
• Enduro-specific spindle
• 55mm chain line
• 160mm, 165mm and 170mm arms

Specifications

• Speeds: 12 (front single)
• Crank length: 160mm, 165mm, 170mm
• Chainring: Not included, direct mount 28T to 34T
• Chain line: 55mm
• Q-factor: 176mm
• Spindle: 24mm steel
• Bottom bracket: SM-BB93 (threaded), SM-BB94-41A (press fit), not included
• BB shell: 68/73mm threaded
• Weight: 588g (170mm, 32T, without BB)

Specs can change without notice from Shimano.
