SHIMANO XTR Hydraulic Disc Brake Kit BRM9220JTBLM9220

Shimano XTR BL-M9220 / BR-M9220 4-Piston Hydraulic Disc Brake

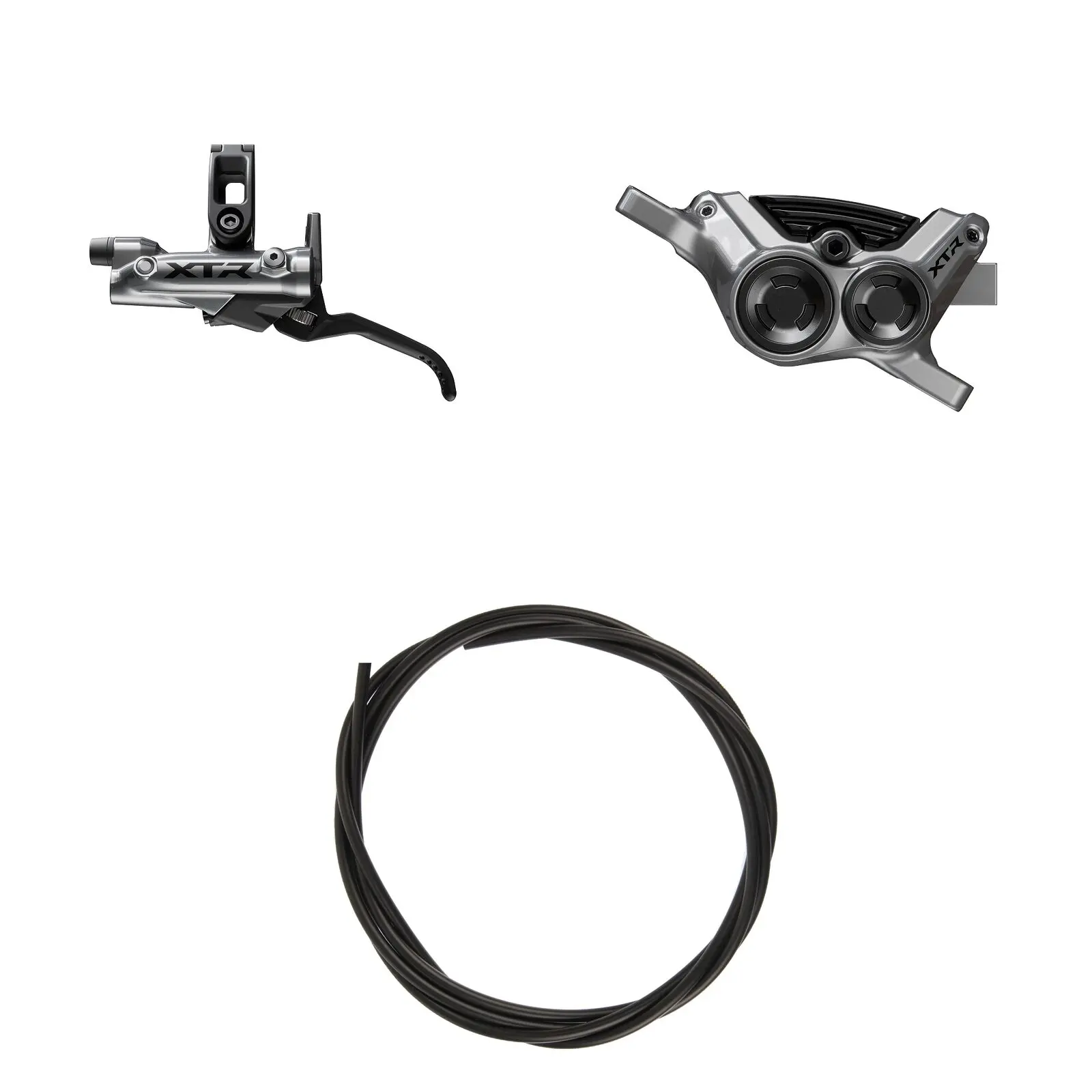

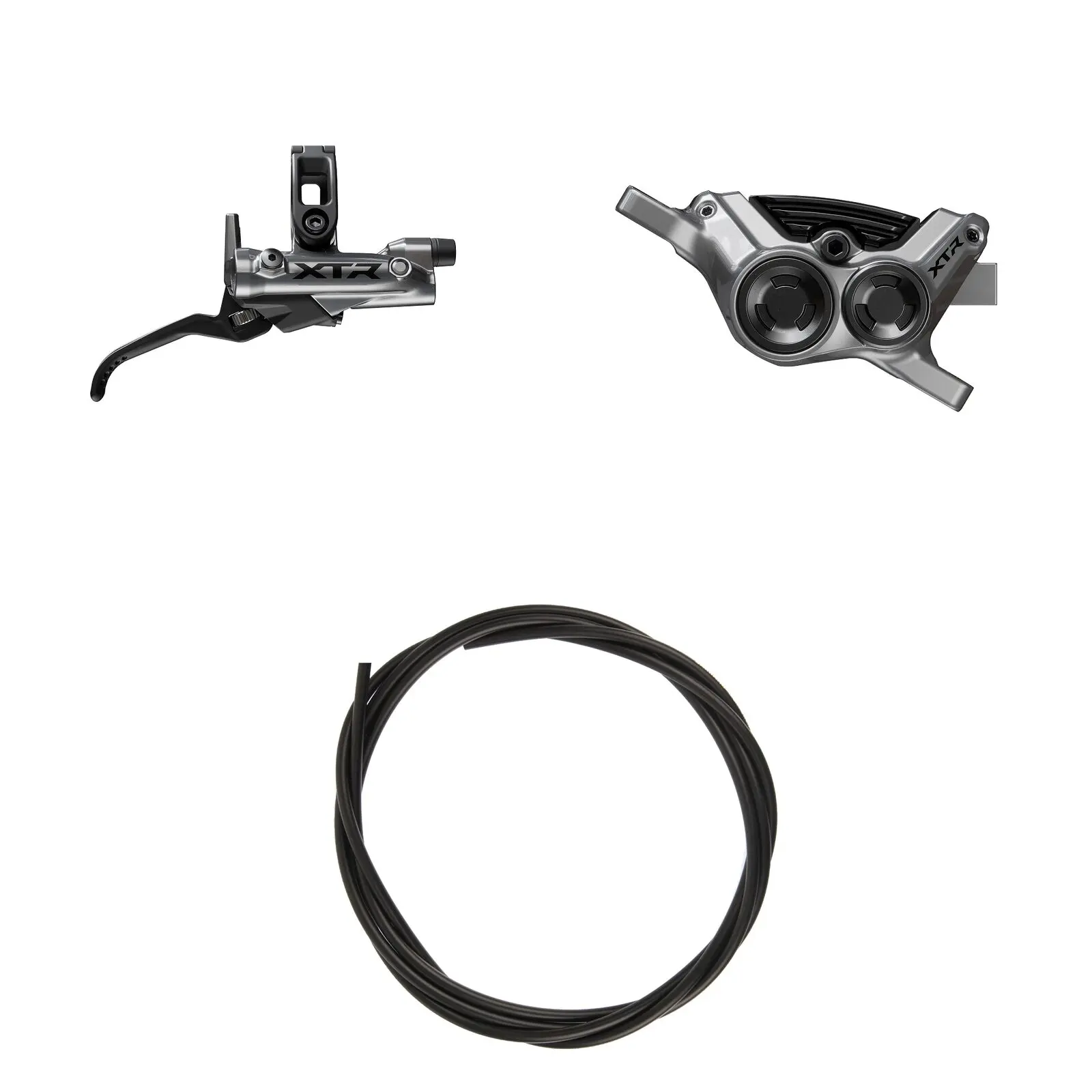

The XTR enduro brake. BL-M9220 lever with the 4-piston BR-M9220 caliper, supplied as a J-kit with lever, hose and caliper together. Shimano developed the DH-capable power curve for enduro racing.

The lever has a forged alloy blade, new lever shape and pivot point, and improved reach adjust. Updated seals and the new low viscosity mineral oil keep the bite point consistent in all temperatures and trail conditions, and a revised pad and oval mount stop rattle. Run resin or metal pads, finned or non-finned, to tune the feel. Sold as a front or rear brake.

Key Features

• 4-piston BR-M9220 caliper
• DH-capable power for enduro
• Forged alloy lever blade with reach adjust
• Low viscosity mineral oil and updated seals
• Revised pad and oval mount to stop rattle
• I-SPEC EV compatible lever

Specifications

• Lever: BL-M9220
• Caliper: BR-M9220
• Pistons: 4 (dual diameter)
• Options: Rear (left lever), 1700mm black hose; Front (right lever), 1000mm black hose
• Pads fitted: Resin with fin
• Adapter: Not included
• Lever blade: Forged alloy
• Oil: Shimano low viscosity mineral oil
• Pad compatibility: Resin or metal, with or without fins
• Lever mount: I-SPEC EV compatible

Specs can change without notice from Shimano.
