SRAM 8-BOLT ROAD/GRAVEL DM DROP-STOP CHAINRING

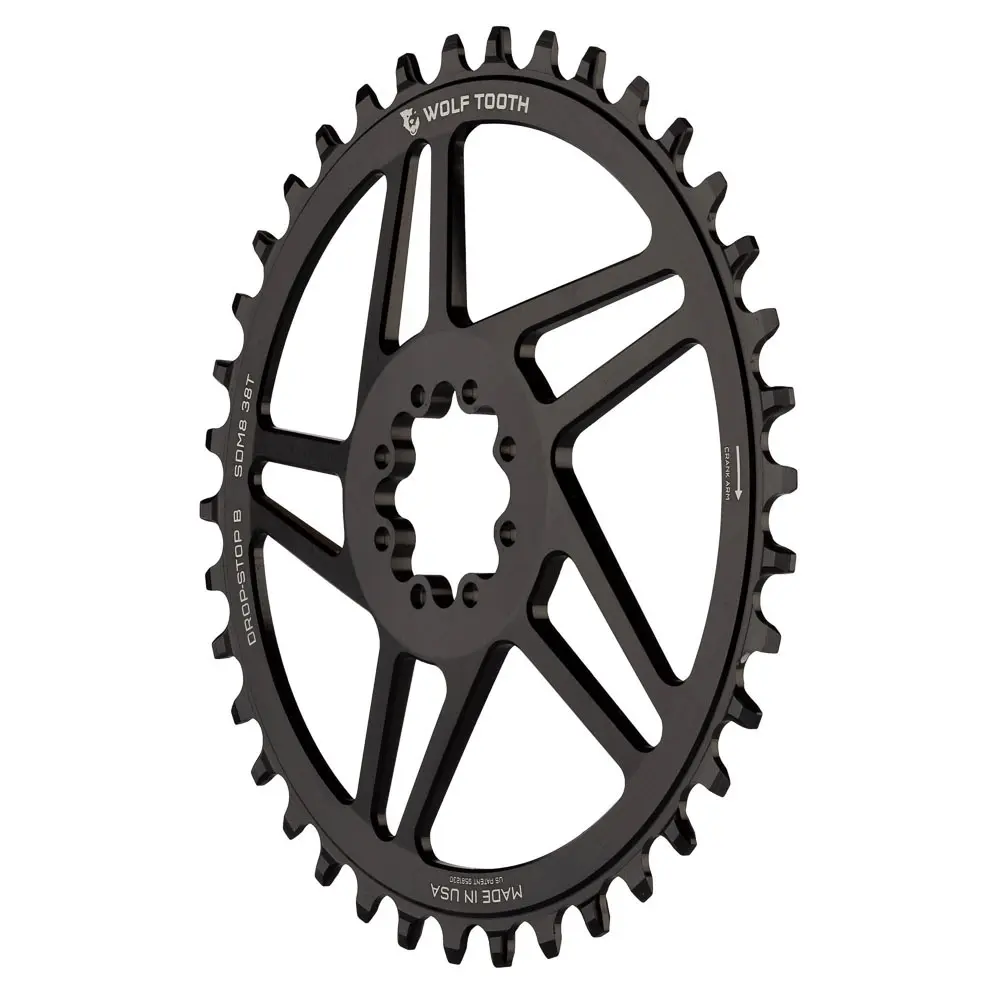

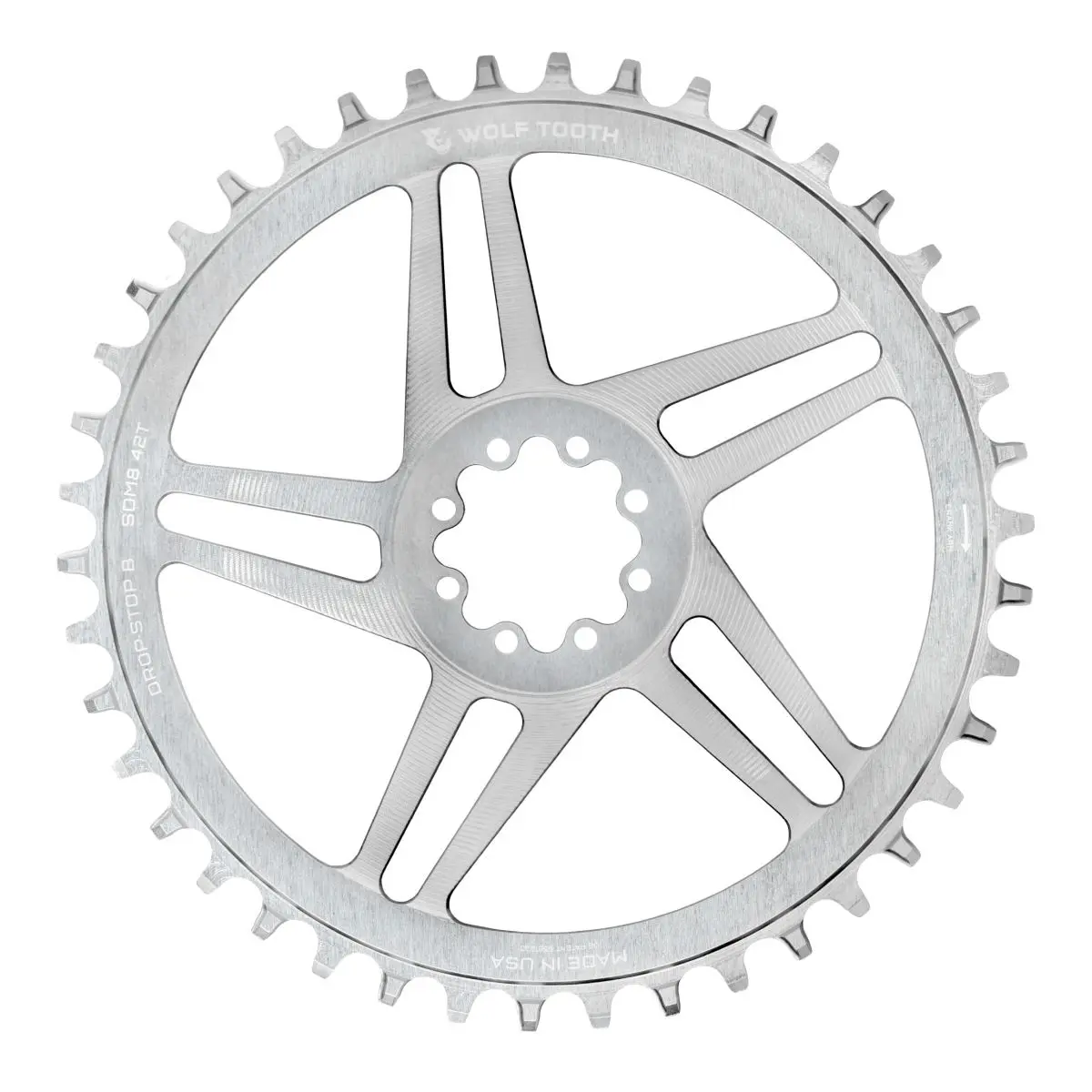

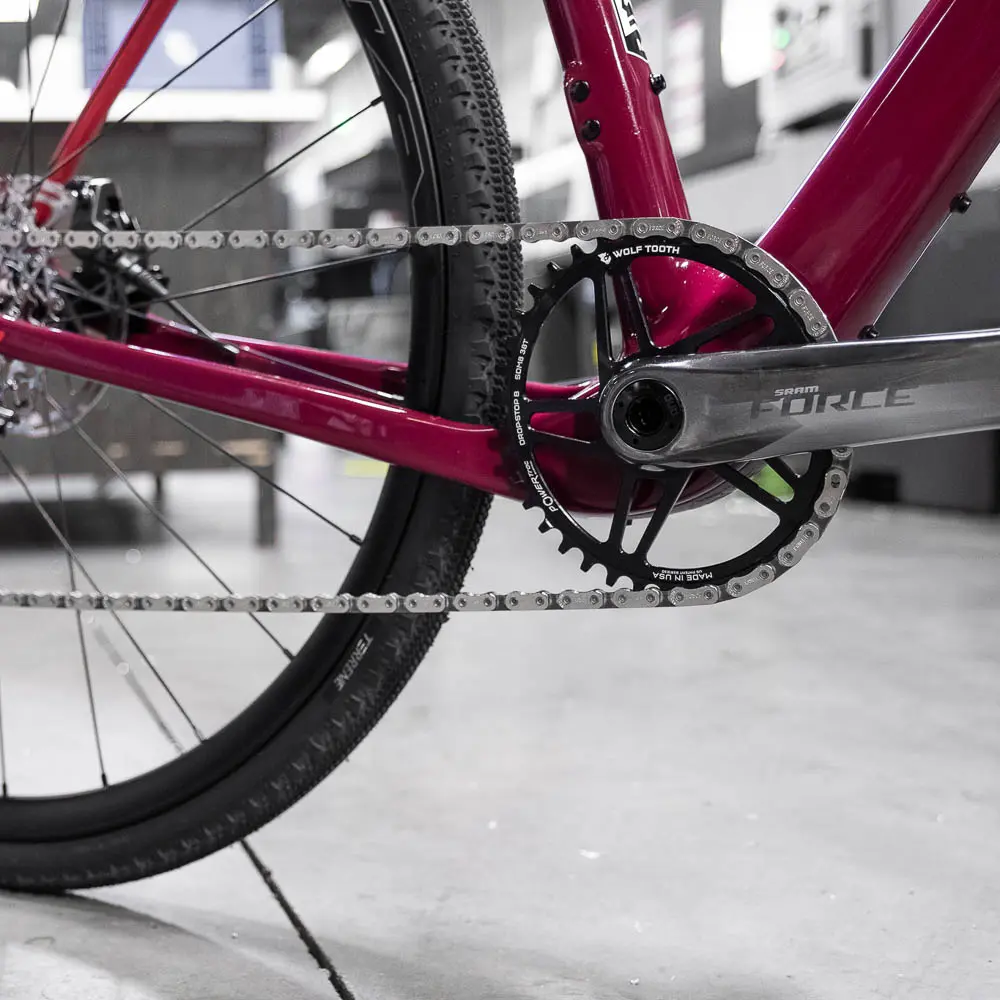

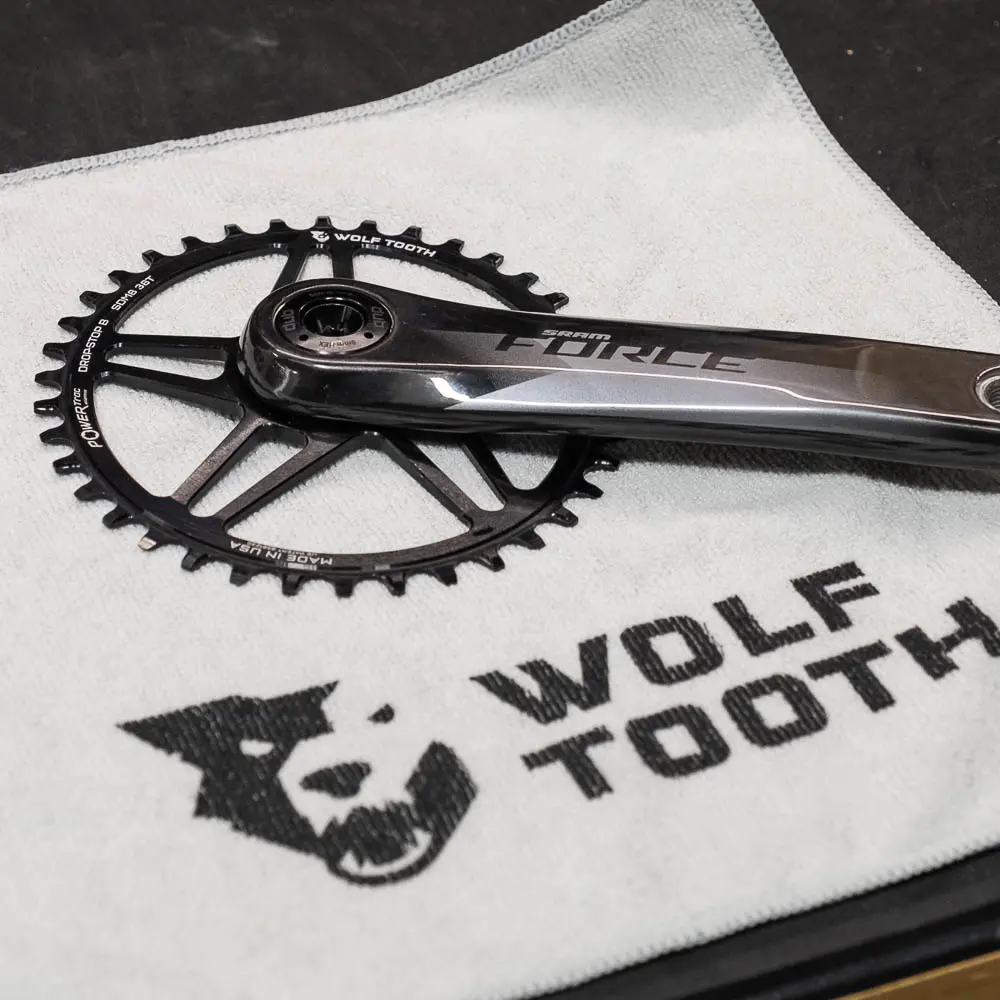

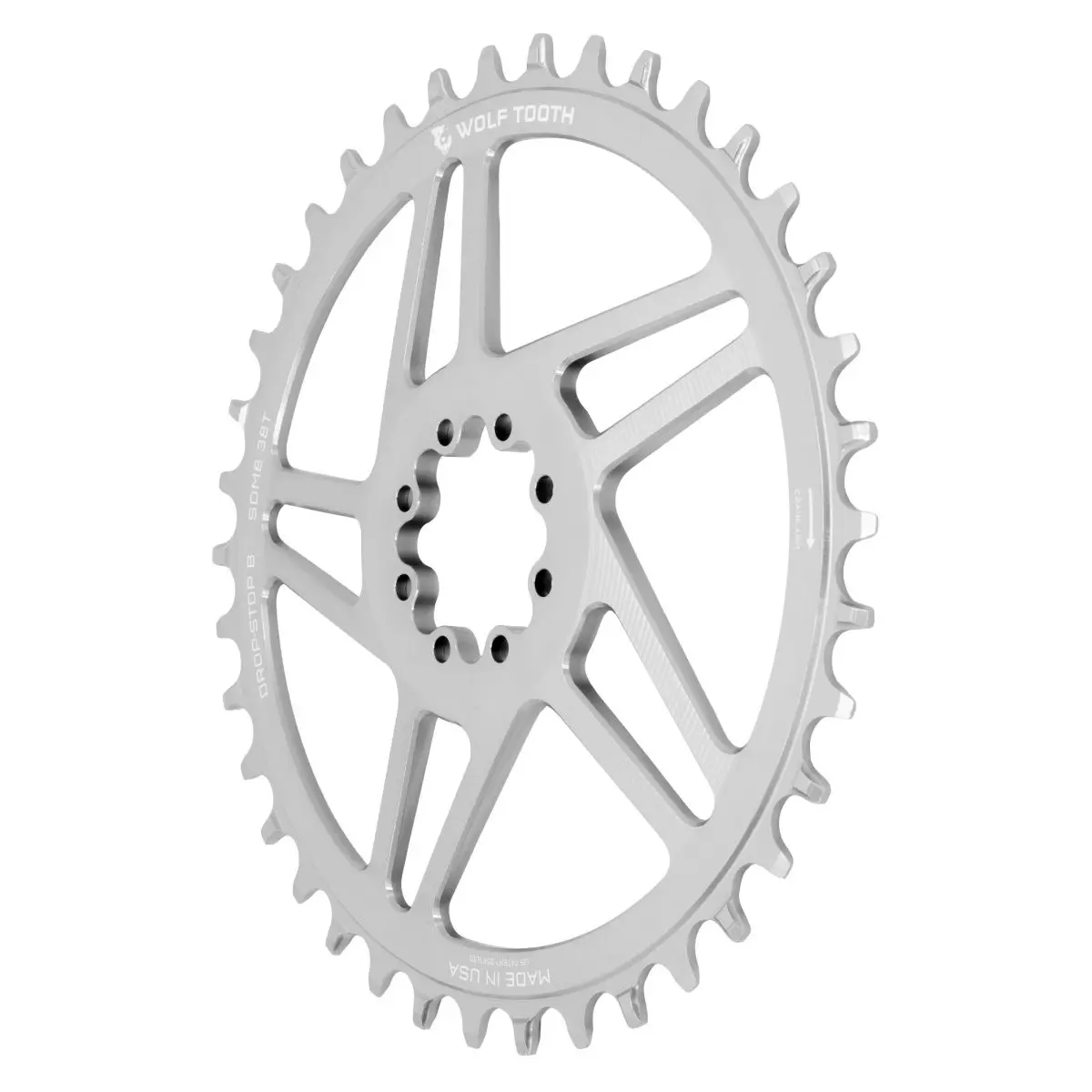

Wolf Tooth 8-Bolt Road/Gravel Direct Mount Drop-Stop Chainring

A direct mount chainring for SRAM cranks that use the 8-bolt mount. It replaces your spider and chainring with one machined piece that is lighter and stiffer. Pick from the variants for tooth count, 34T to 44T.

Key Features

• Drop-Stop B wide/narrow tooth profile for chain retention and mud shedding
• Fits SRAM AXS cranksets and other 8-bolt cranks, including Quarq power meter cranks
• Fits SRAM DUB road cranksets with a removable spider (107 or 94 BCD)
• Drop-Stop B suits 9, 10 and 11 speed chains, and 12 speed KMC, Connex, Wippermann, Campagnolo, SRAM Eagle, SRAM Road and Transmission (T-Type) flattop chains
• Wolf Tooth recommends a clutch rear derailleur for the best chain security

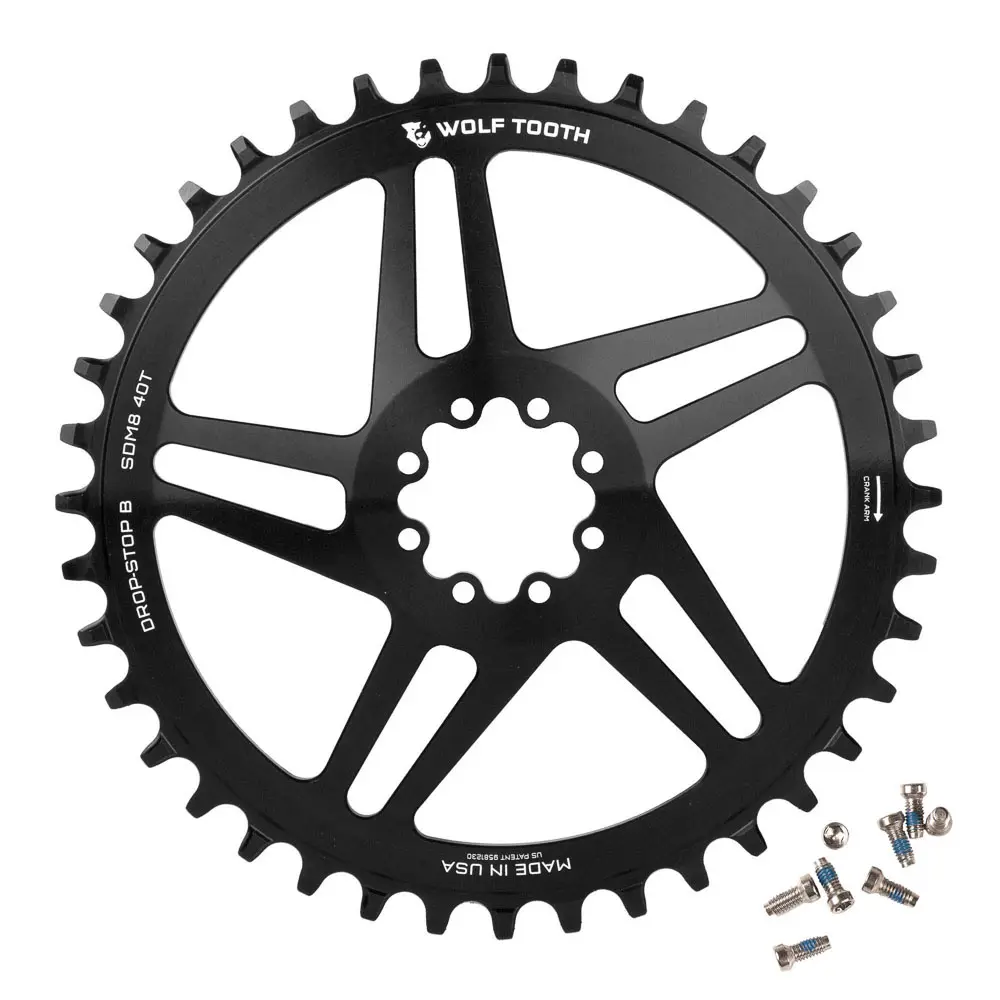

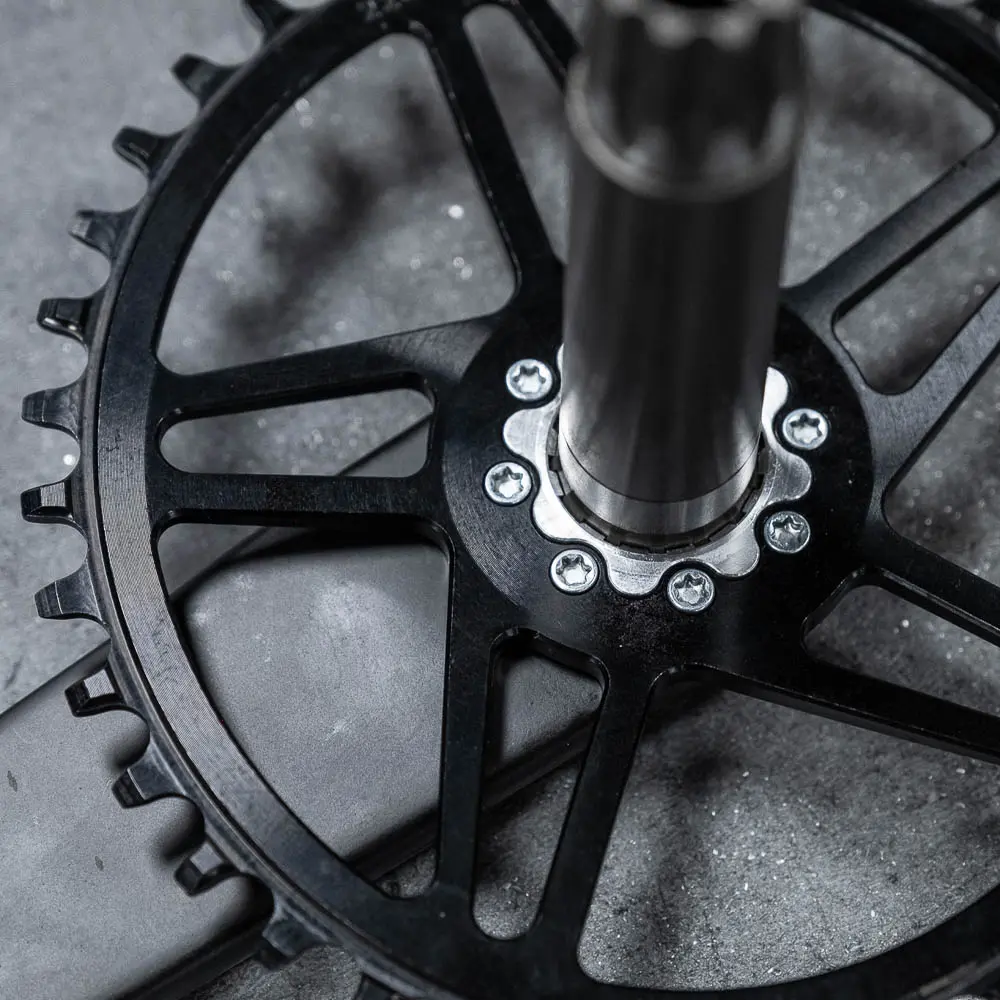

• Includes eight custom T20 stainless steel bolts, torque to 4Nm

Specifications

• Offset: 6mm
• Chainline: 45mm
• Material: 7075-T6 aluminium
• Weight: 38T 89g, 40T 106g, 42T 109g, 44T 111g
• Made in the USA

Not sure it fits your crank? Talk to us before you buy.
