SRAM DB4 Brakes

SRAM DB4 Brakes

$180.00

In Store call for Availability
SRAM Disc Brake DB4 Diffusion Black Ano, Left, Front / Rear, 2000mm Hose (Rotor / Bracket Sold Separately) A1
SRAM Disc Brake DB4 Diffusion Black Ano, Right, Front / Rear, 2000mm Hose (Rotor / Bracket Sold Separately) A1

SRAM DB6 BRAKE

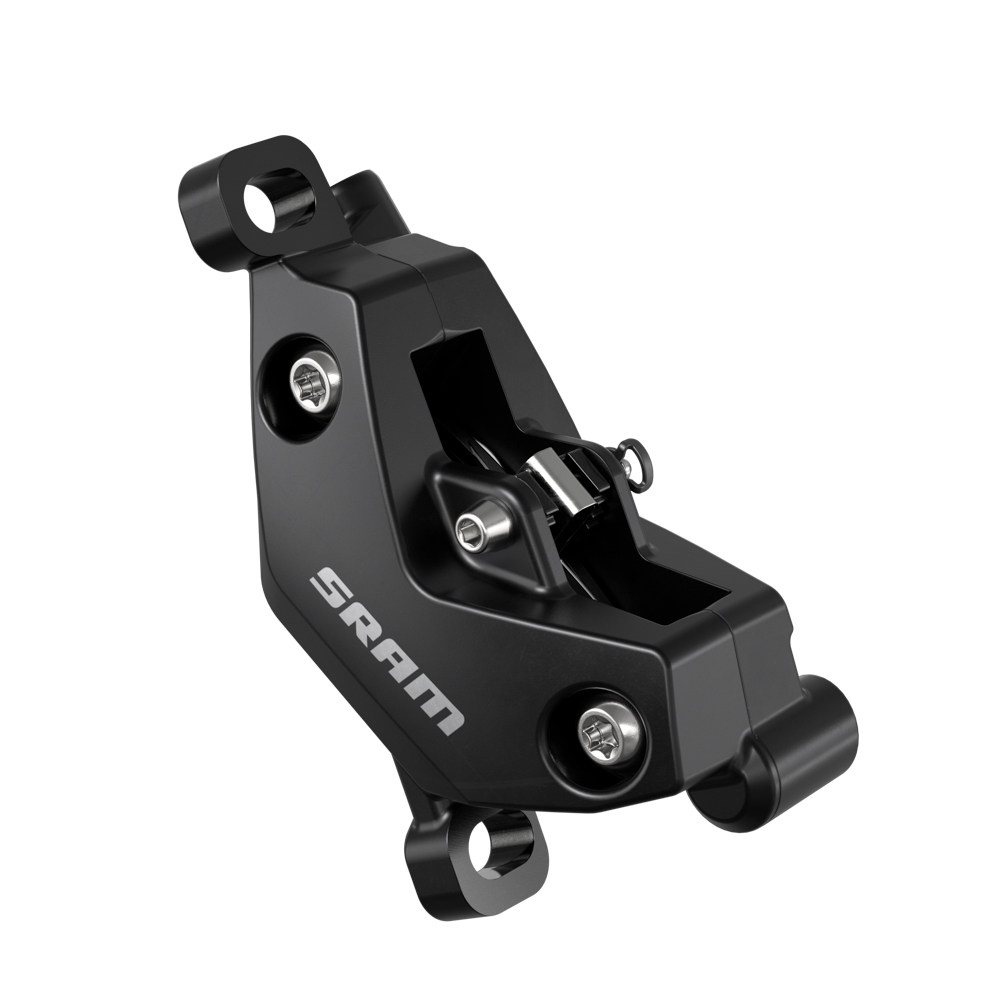

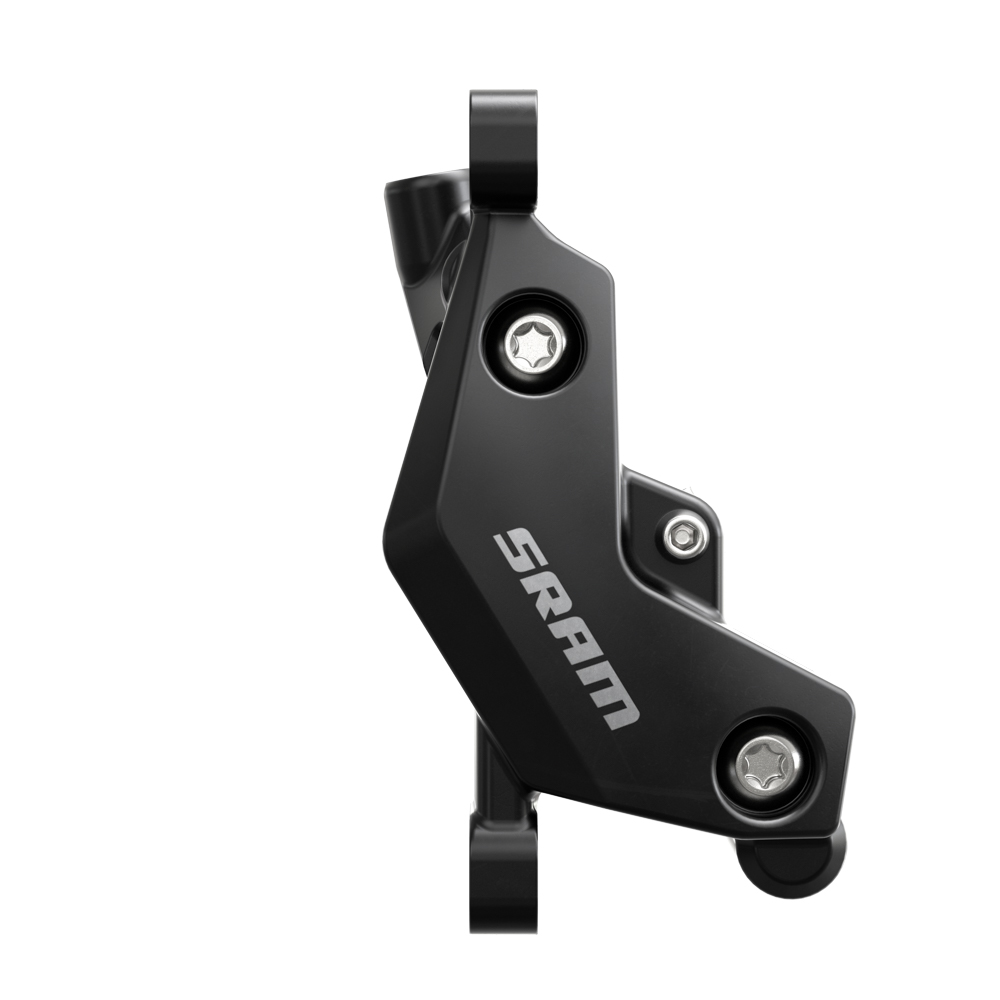

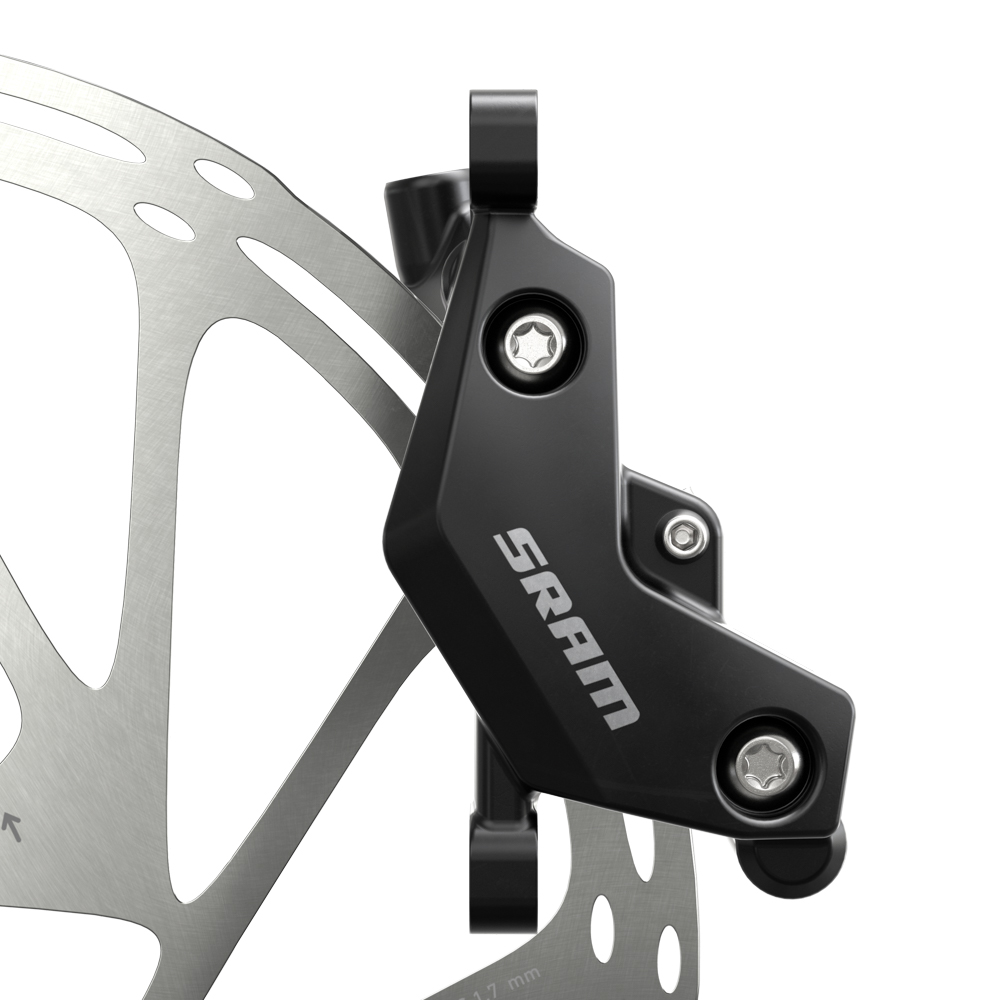

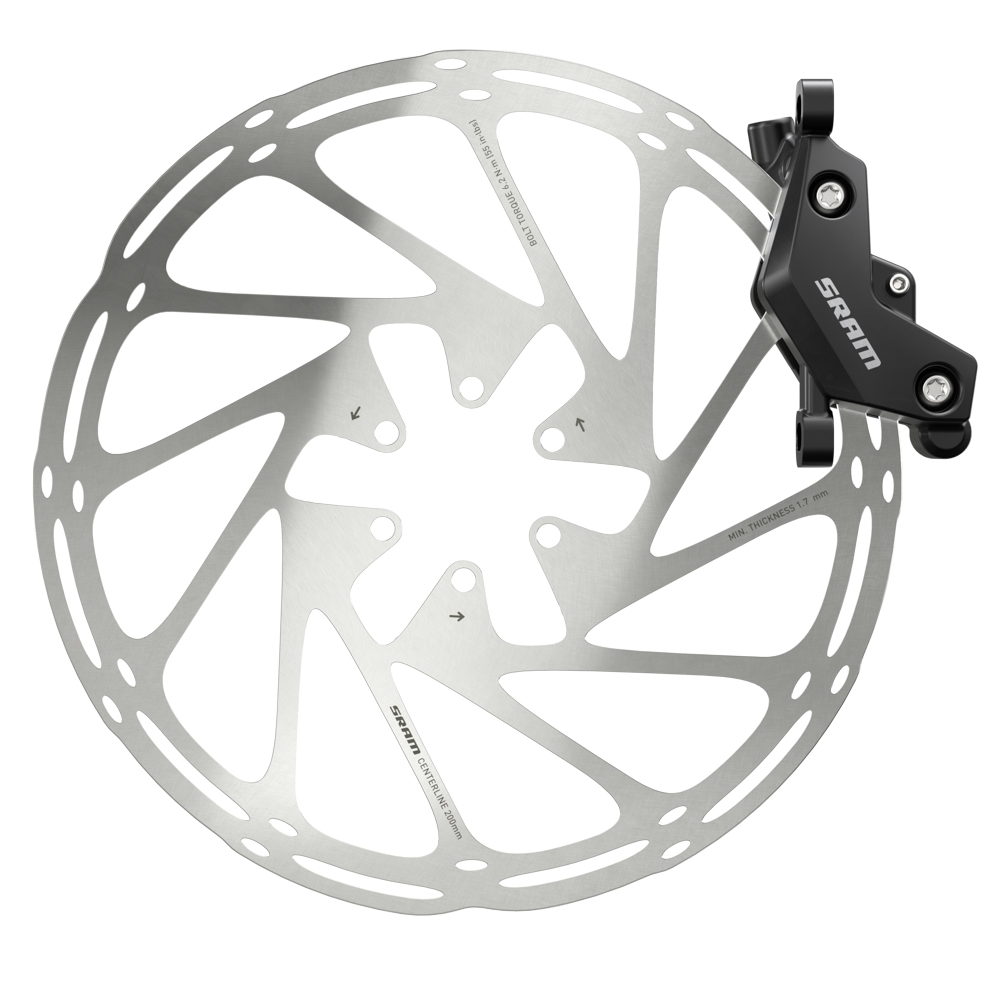

DB4 is our answer for riders who want to focus on the ride. The low maintenance Mineral Oil system uses all new lever architecture which features easy adjustment access and ergonomic comfort. The right and left specific stealth lever body design brings the hose parallel to the bar, allowing for an organized cockpit that pairs perfectly with mechanical Eagle Transmission. Consistent heavy-duty power is no surprise, as DB4 shares the same proven caliper architecture as DB8

SPECIFICATIONS

Application (DB) MTB
Brake type Hydraulic
Blade material Aluminum
Color (DB) Diffusion Black Anodized
Rec MMX clamp (not included) n/a
Orientation Left, Rear
Pad type (Disc) Steel-backed organic
Bracket (Disc Brake) Direct mount DIR
Hose length (mm) 2000mm, 950mm
Rotor (AM only) n/a
Pistons 4
Piston material Phenolic Plastic
Rotor type recommended 1-piece CenterLine
Clamp Included (DB) Yes – Single Bolt Clamp
Weight (g) 365
Weight Based On Rear, Stealth-a-majig, DIR, 1800mm, w/pads & clamp(no mounting hardware, no pad spacer, no rotor/bolts)



FEATURES

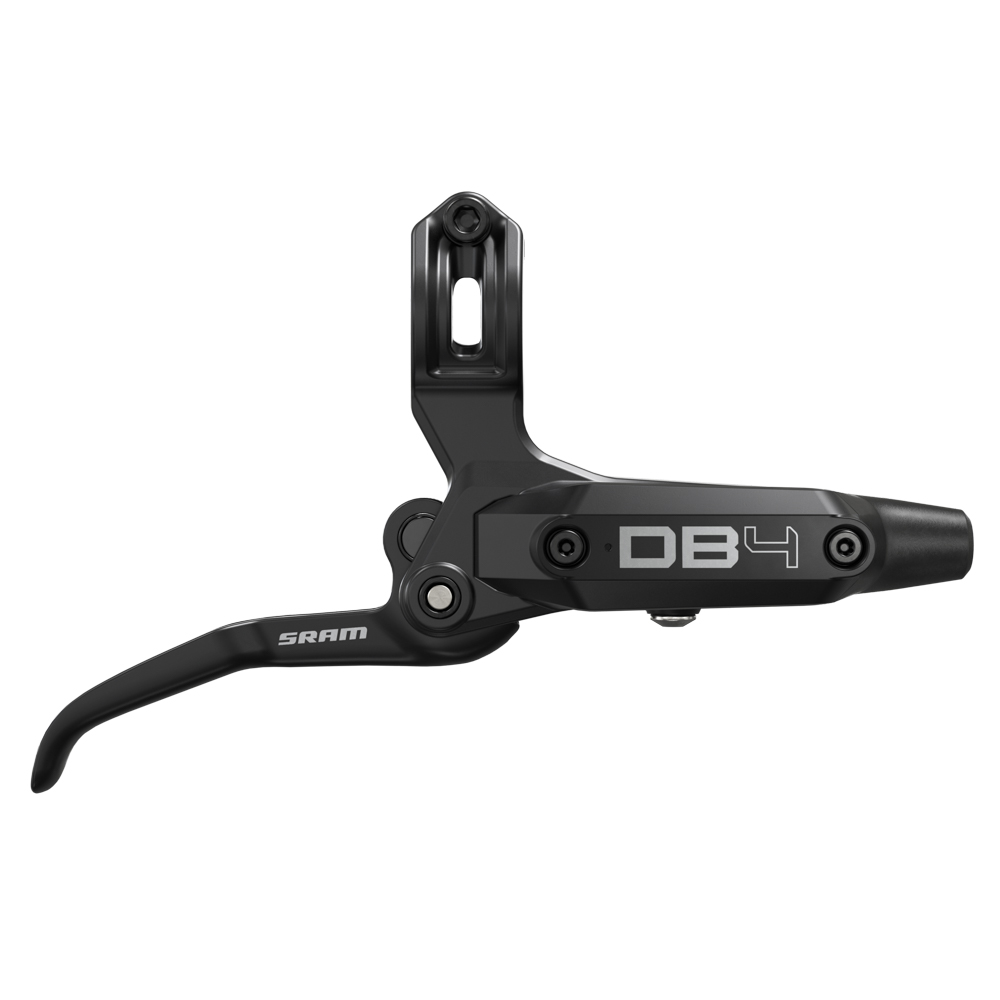

  • Stealth lever architecture pairs perfectly with mechanical Eagle Transmission shifters.
  • Left and right specific levers feature tooled lever reach adjust.
  • Split ring clamp.
  • Code-like heavy-duty power.
  • Uses existing SRAM Large brake pads.
  • Designed for use with Maxima Mineral Oil only.
  • Designed for use with SRAM Mineral Oil Bleed Kit only.
