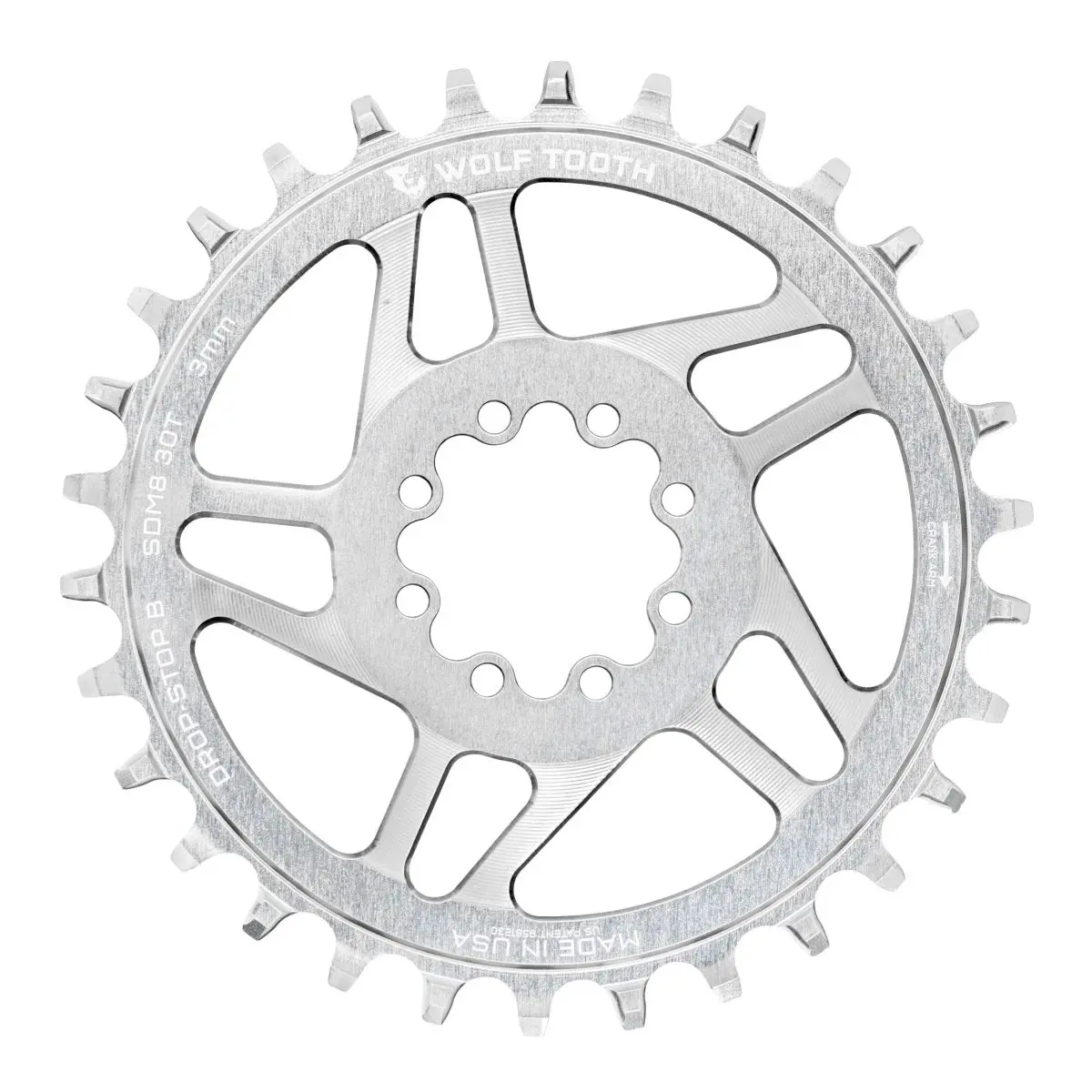

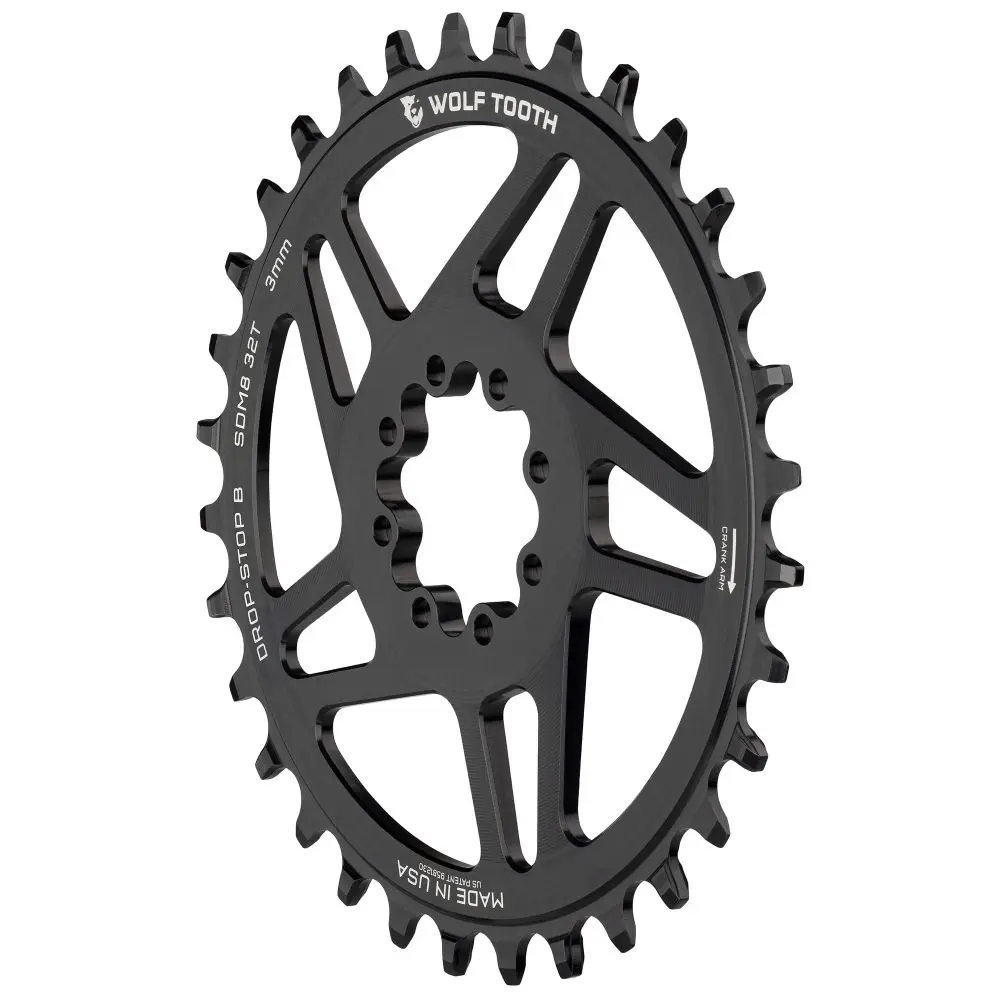

SRAM DM MTB 8-BOLT DROP-STOP B CHAINRING - 3MM OFFSET

Wolf Tooth 8-Bolt MTB Direct Mount Drop-Stop B Chainring (3mm Offset)

A direct mount chainring for SRAM 8-bolt mountain cranks, made for SRAM Transmission groupsets and T-Type chains. It suits riders who want a size beyond the stock options, or a Made in USA ring with an optimised tooth profile. This 3mm offset suits SRAM MTB cranks with DUB Wide spindles already at the 55mm T-Type chainline. Pick from the variants for 28T to 36T, including raw silver 30T and 32T.

Key Features

• Drop-Stop B wide/narrow tooth profile for chain retention and mud shedding
• Replaces the ring and spider, or the direct mount ring, on SRAM T-Type Transmission cranksets and other SRAM cranks with the 8-bolt standard
• Works with all chains except Shimano HG+ and Campagnolo 13 speed
• Wolf Tooth recommends a clutch rear derailleur for the best chain security
• Includes custom T20 bolts, torque to 4Nm

Specifications

• Offset: 3mm
• Chainline: 55mm
• Material: 7075-T6 aluminium
• Weight: 30T 65g, 32T 69g, 34T 73g, 36T 77g
• Made in the USA

Not sure it fits your crank? Talk to us before you buy.
