Wave Pedals

OneUp Wave Pedals

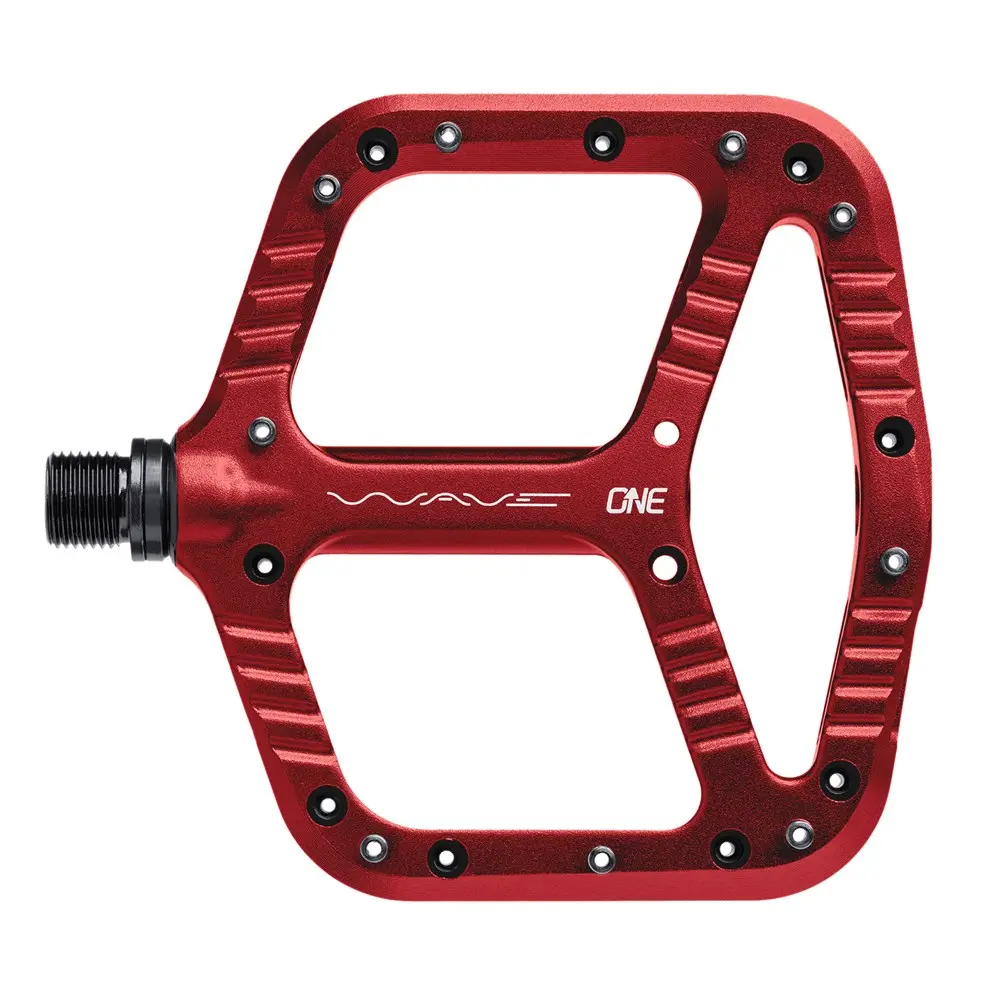

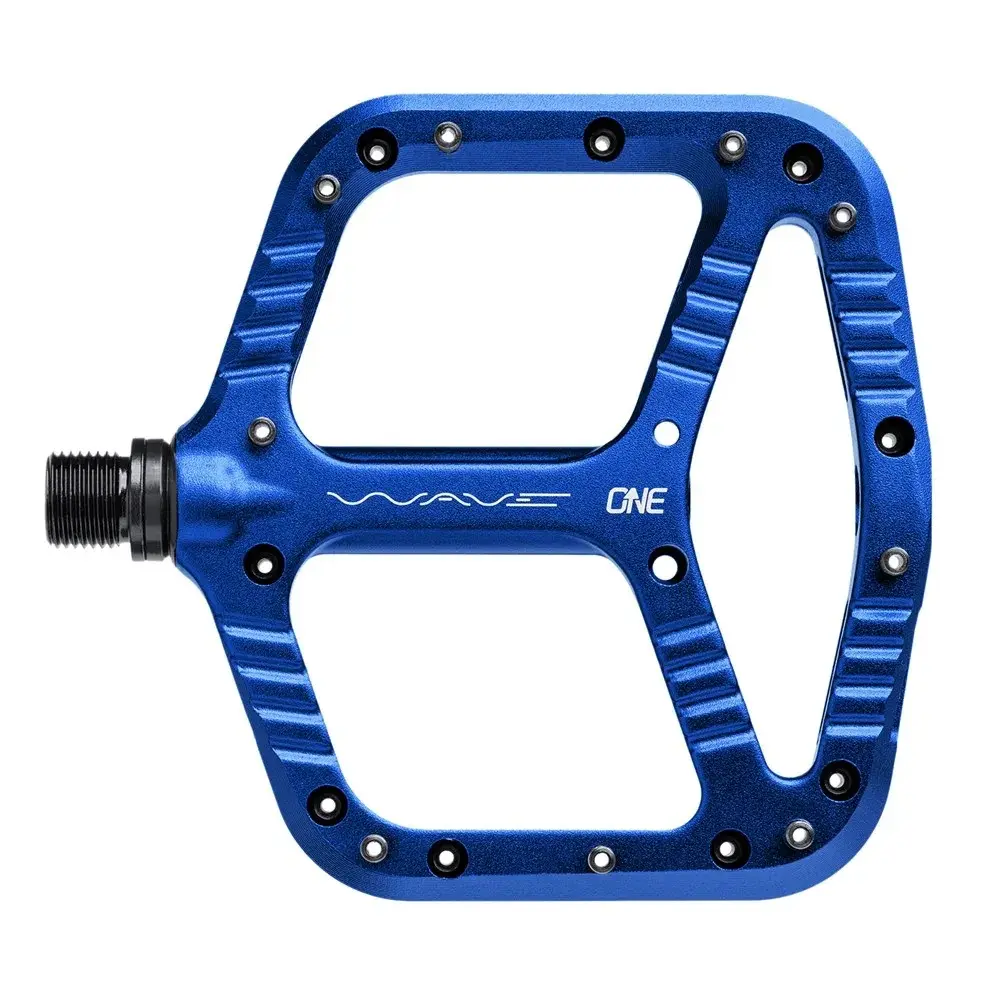

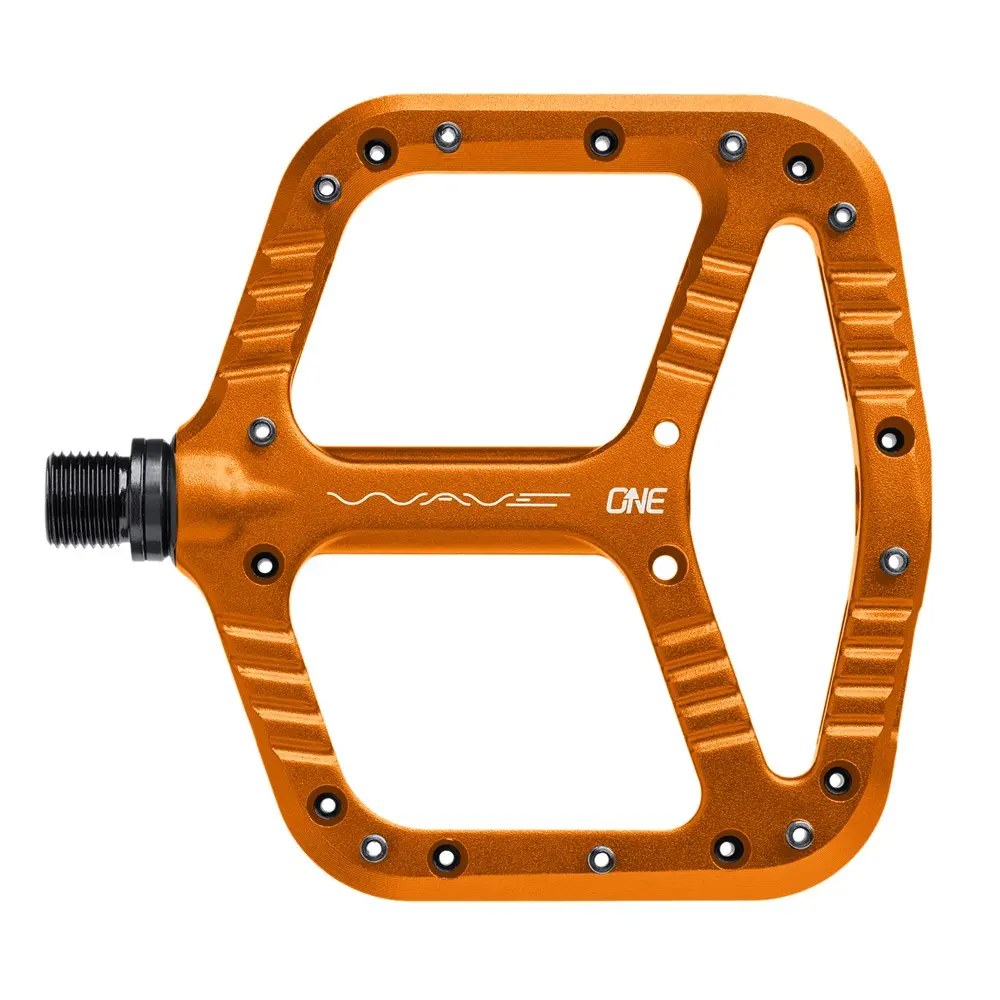

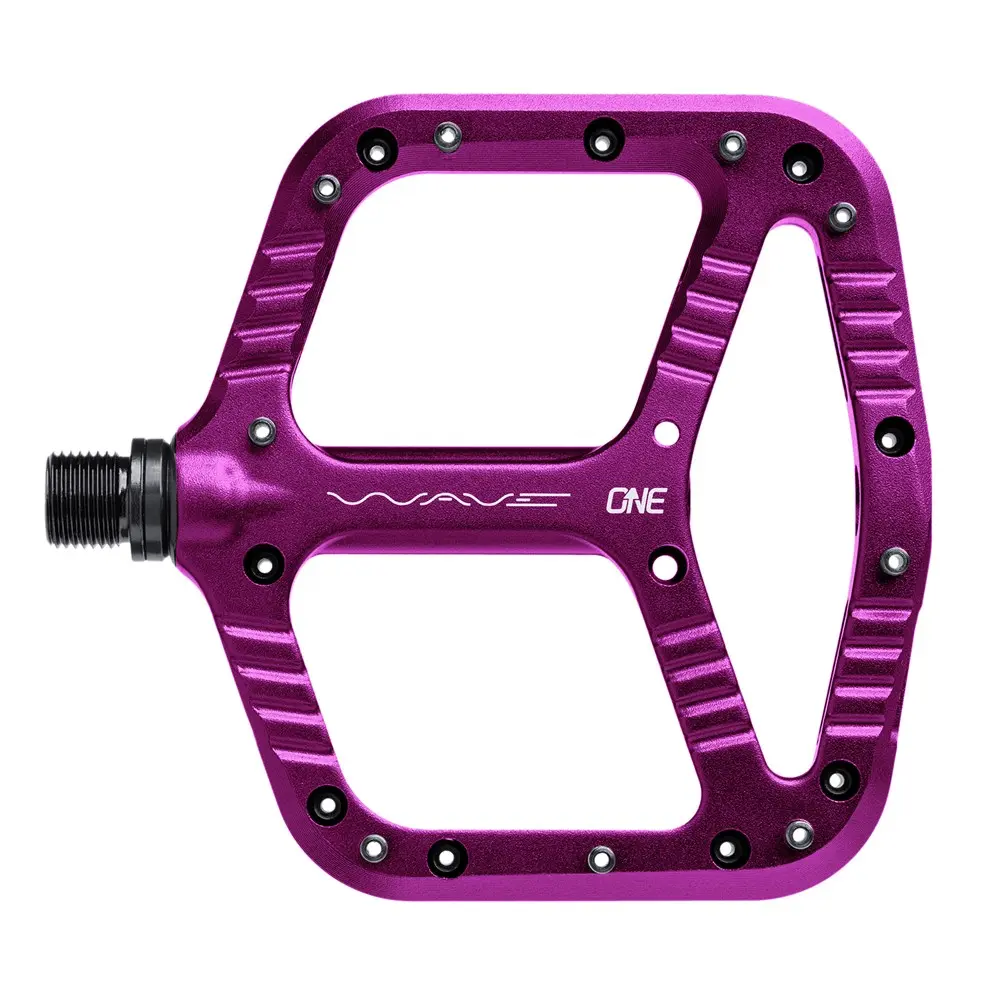

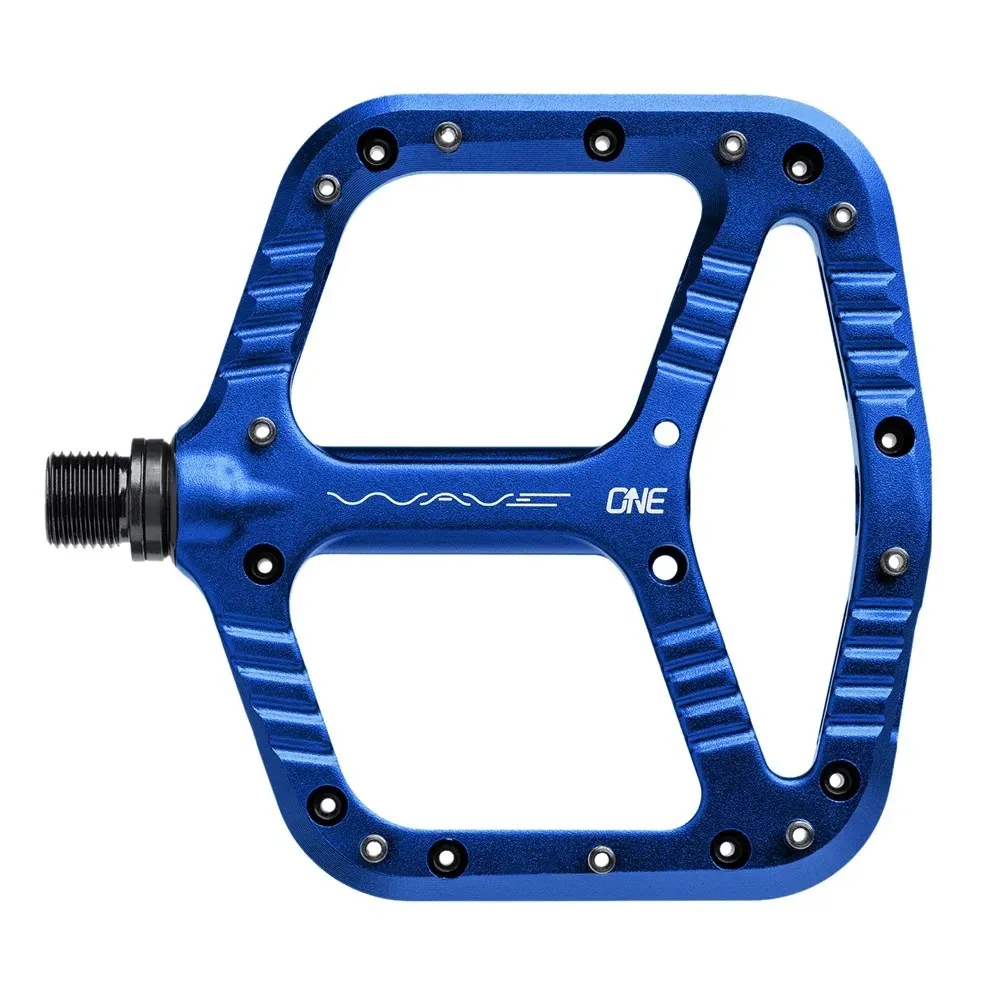

An aluminium flat pedal with OneUp's Wave profile. The front is concave to hold the ball of your foot and the back slopes away to help you drop your heels, so the pedal grips by shape as well as pins.

Forged and CNC machined 6061 aluminium, rated for everything up to DH bikes and e-bikes. The pins are angled so they stand upright when your heels are down. Fully serviceable, and the bearing nut tool comes in the box.

Colours: Black, Bronze, Dark Blue, Dark Green, Grey, Orange, Purple, Red.

Key Features

• Wave profile, concave front and sloped rear
• Forged and CNC machined 6061 aluminium
• 107 x 110mm platform
• Hollow self cleaning M4 pins
• igus bushing and 3 cartridge bearings
• 355g a pair
• 2 year OneUp warranty

Specifications

• Platform size: 107 x 110mm (W x L)
• Thickness: 14.2mm at the axle, 11.5mm at the edges
• Body: Forged and CNC machined 6061 aluminium
• Axle: Chromoly steel, black ED coating
• Bearings: Inboard igus bushing and 3 outboard cartridge bearings
• Pins: M4 hollow, self cleaning. 9 fitted per side plus 10 spares
• Weight: 355g (pair)
• Rated for: Up to DH bikes and e-bikes
• Warranty: 2 years

In the Box

• Pair of pedals (left and right)
• 9 pins fitted per side
• 10 spare pins
• Pedal bearing nut tool

Specs can change without notice from OneUp.
