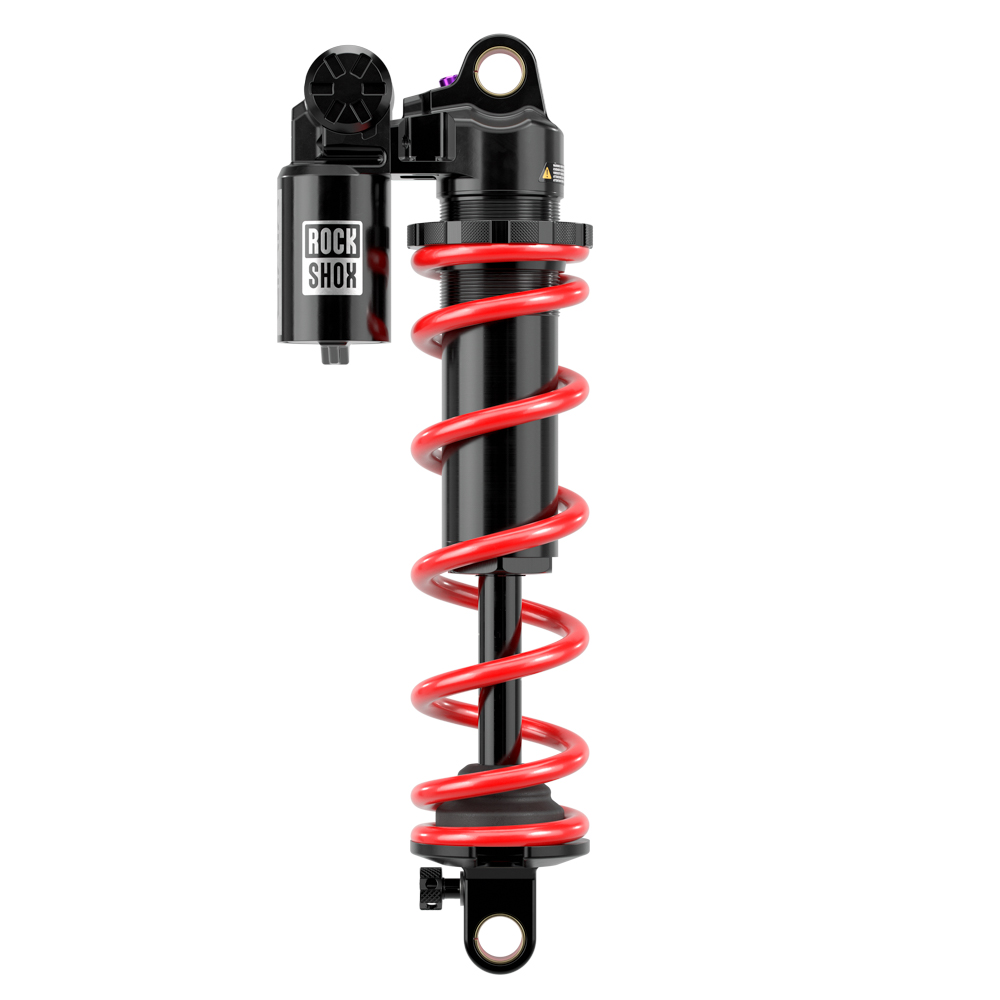

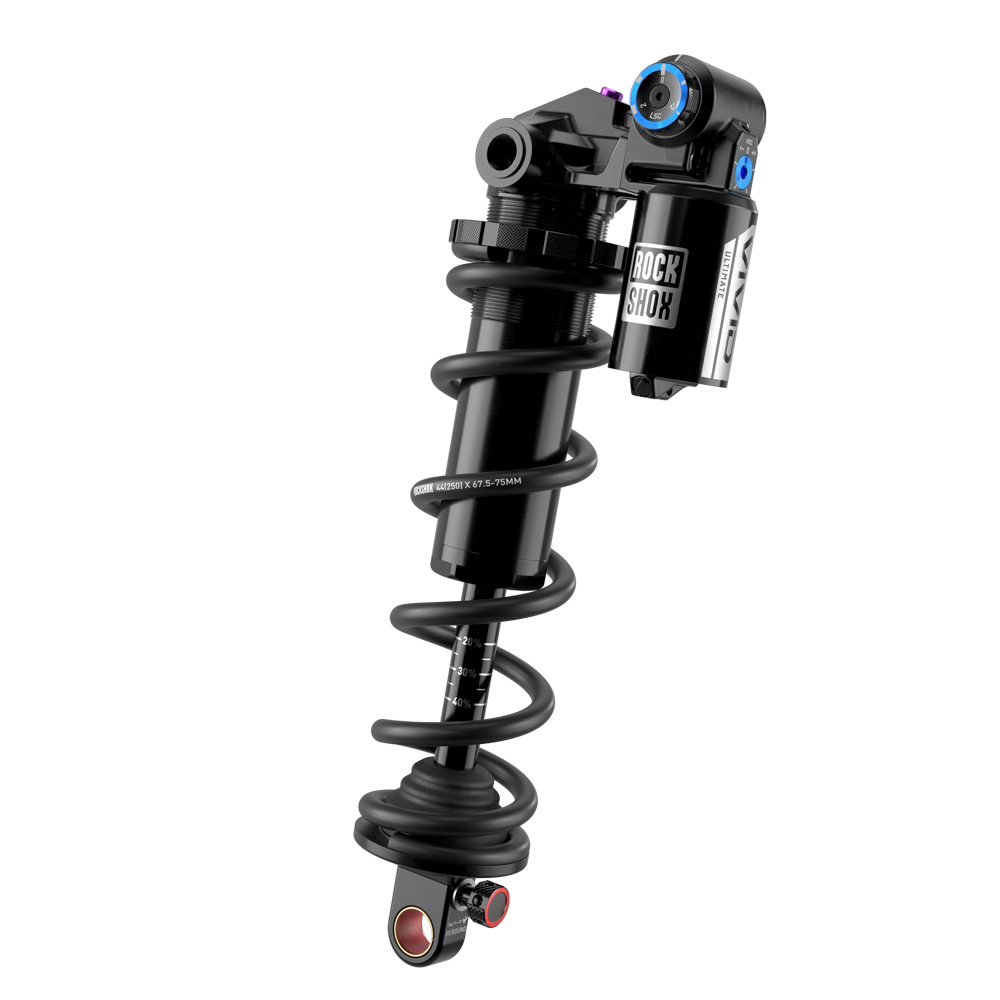

ROCKSHOX VIVID COIL ULTIMATE DH

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2 damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s downhill bikes, Vivid Coil Ultimate DH carries the unmistakable heritage of coil into a new era of performance.

SPECIFICATIONS

Note: Spring not included

FEATURES

• NEW RCT2 damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
• NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
• NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
• NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

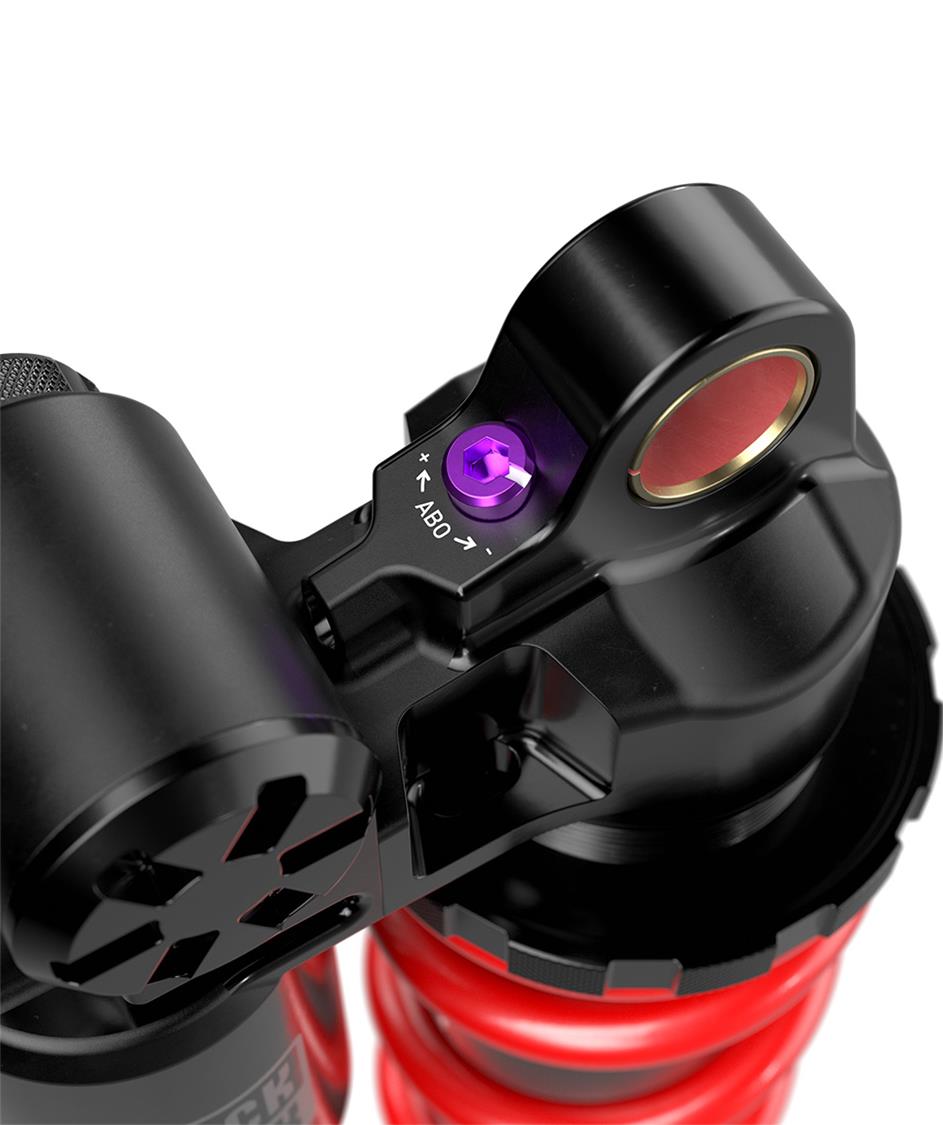

• Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
• Removable Rebound knob doubles as HSC and ABO adjuster
• 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
• 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
