Crankbrothers Mallet DH Pedals

RRP $379.90

Available Online
In Store call for Availability


Pedal Black

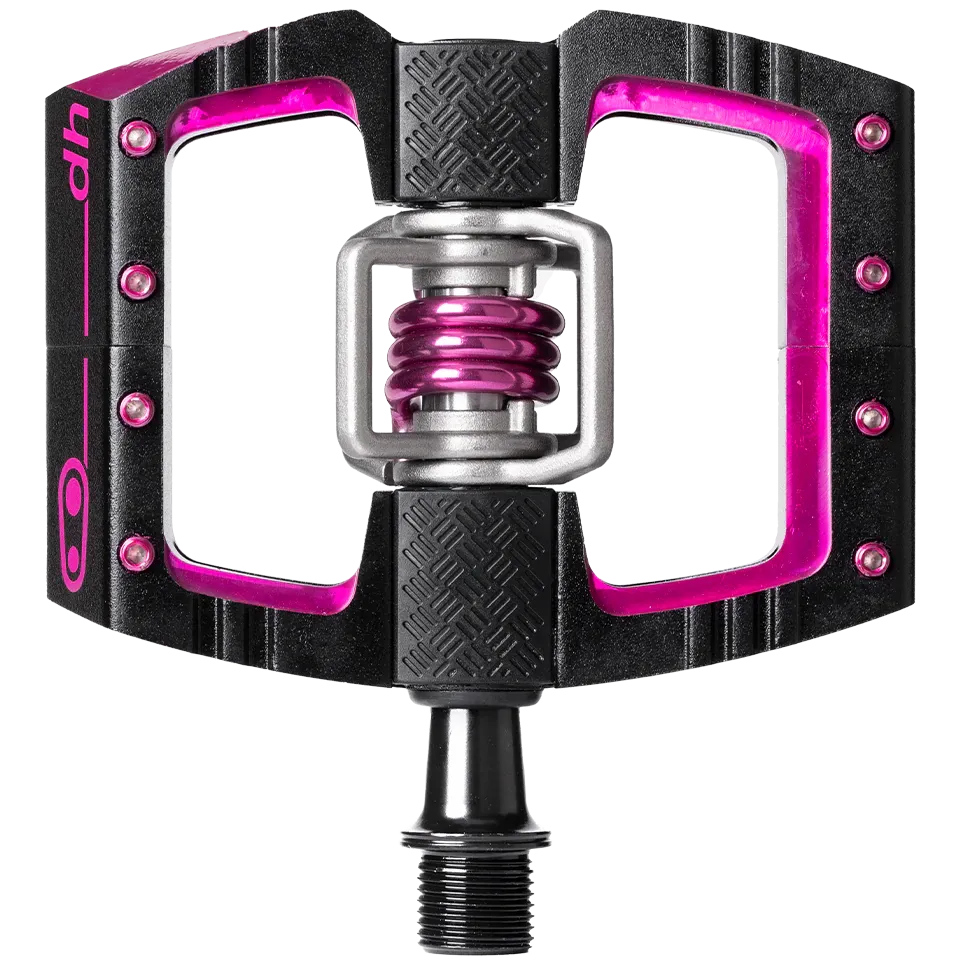

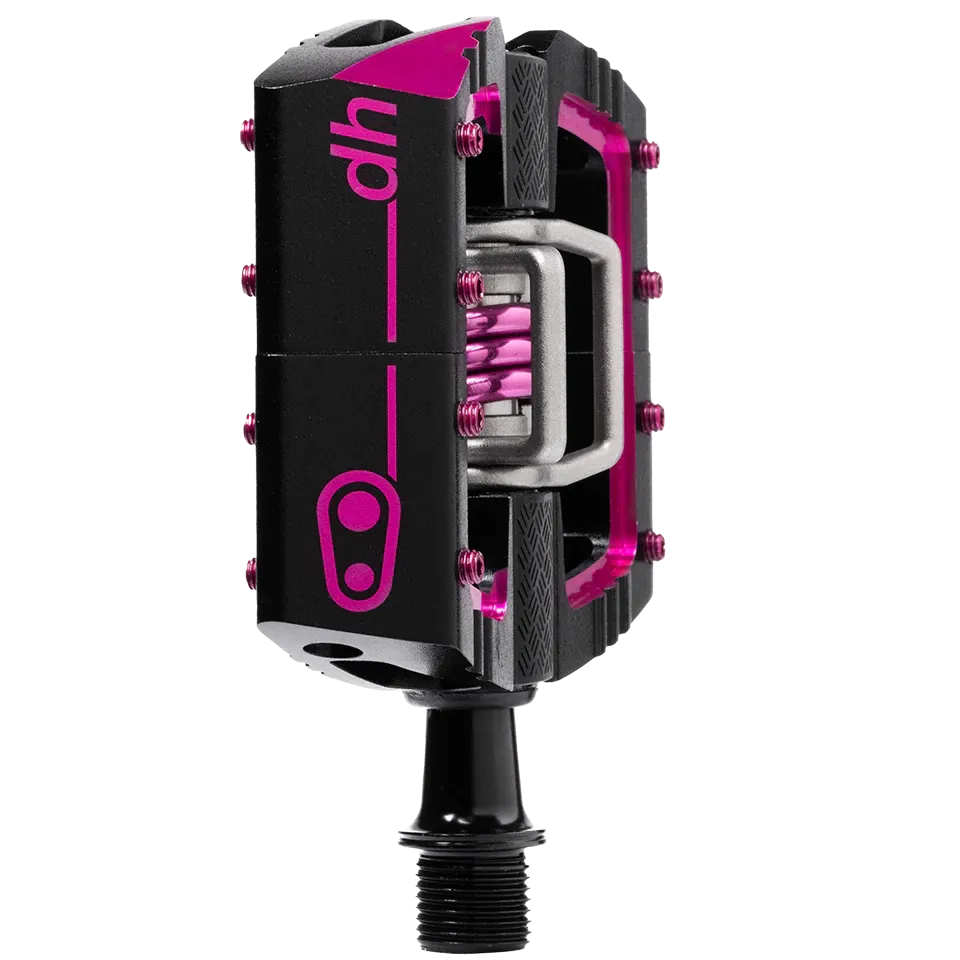

Pedal Seagrave Edition - Black/Pink

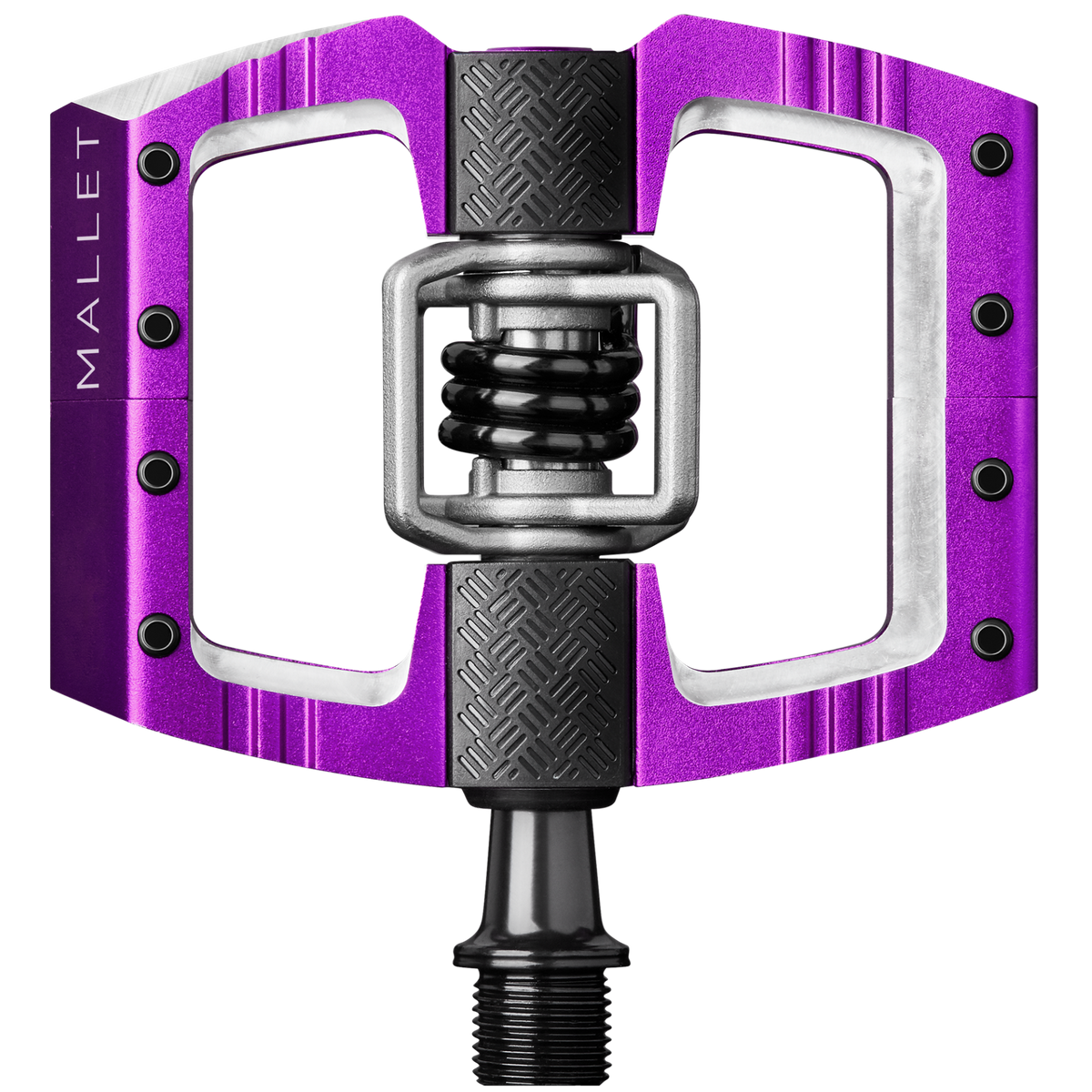

Pedal Purple Limited Edition

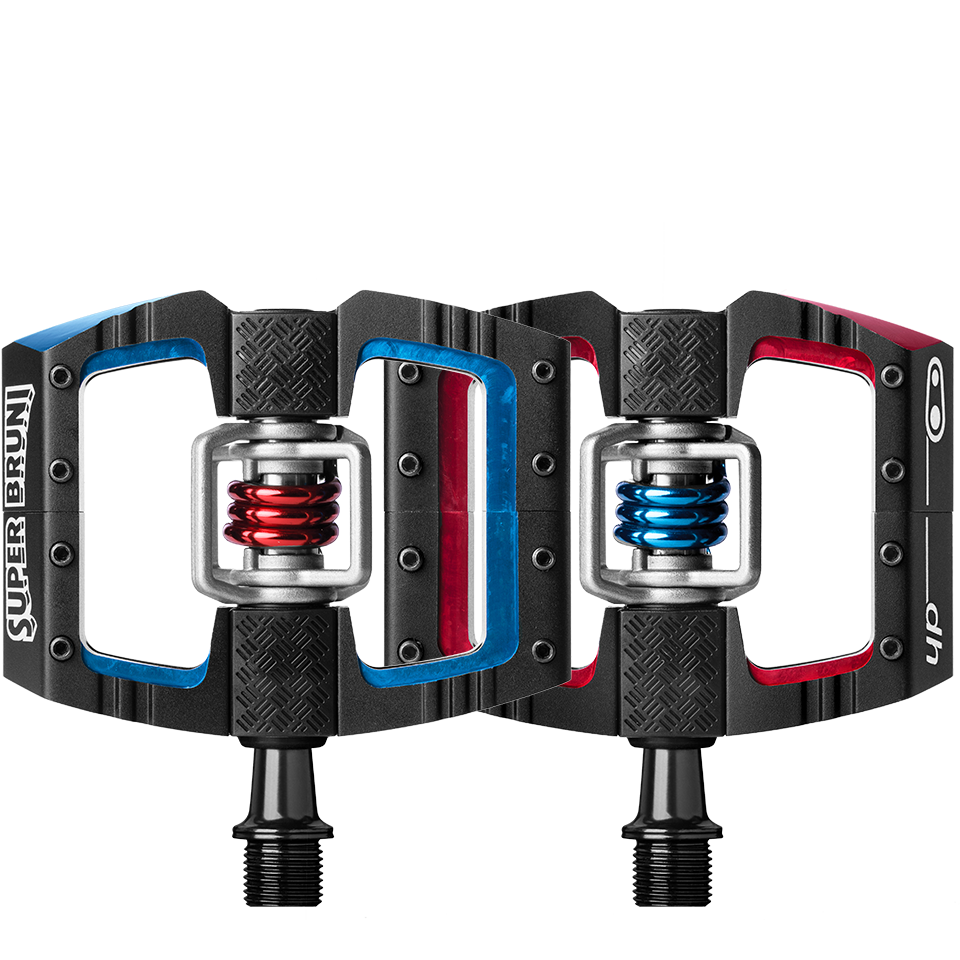

Pedal Race Loic Bruni

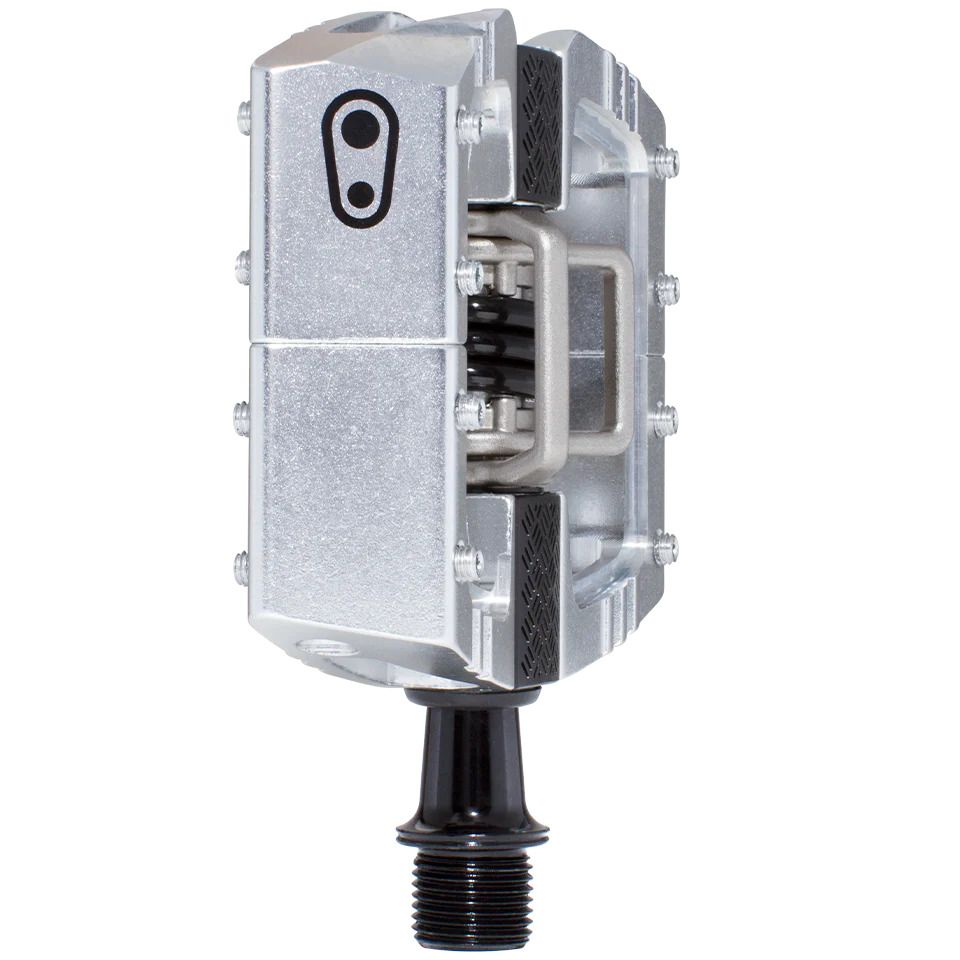

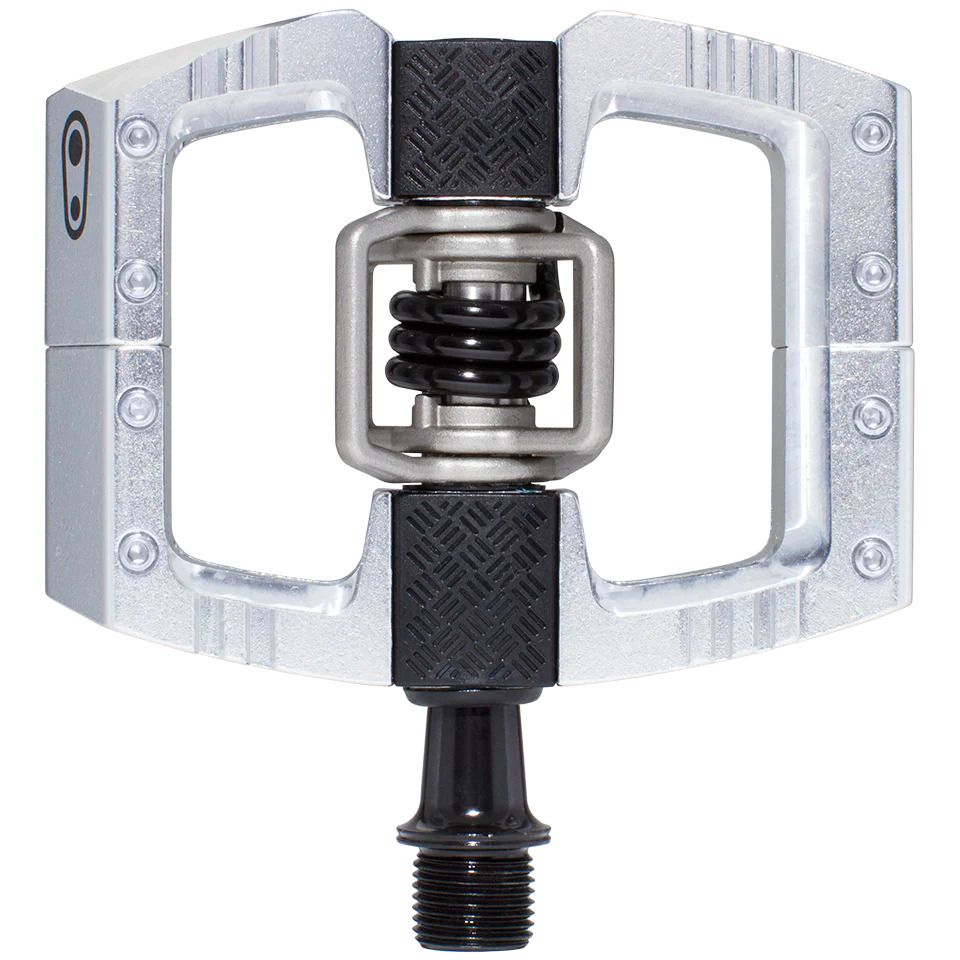

Pedal 25th Anniversary Ltd Edition Polished Silver

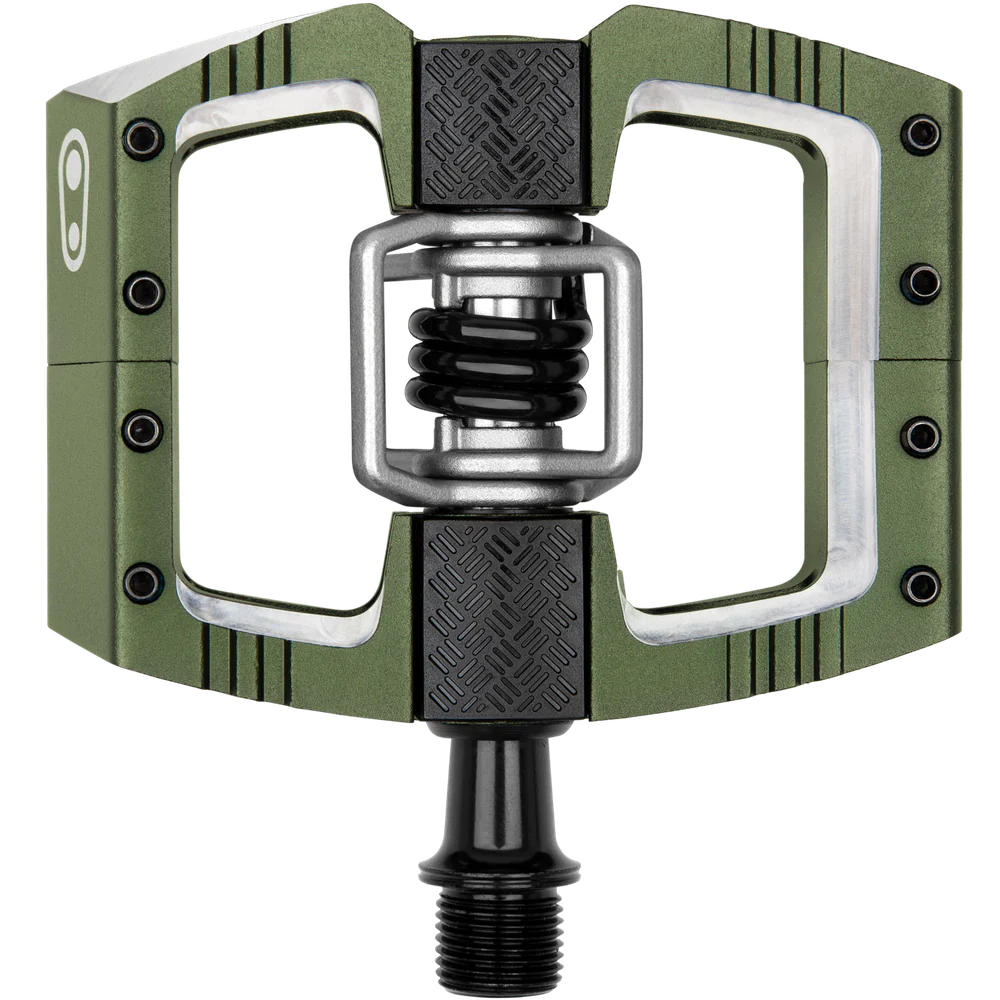

Pedal Camo Ltd. Edition Dark Green

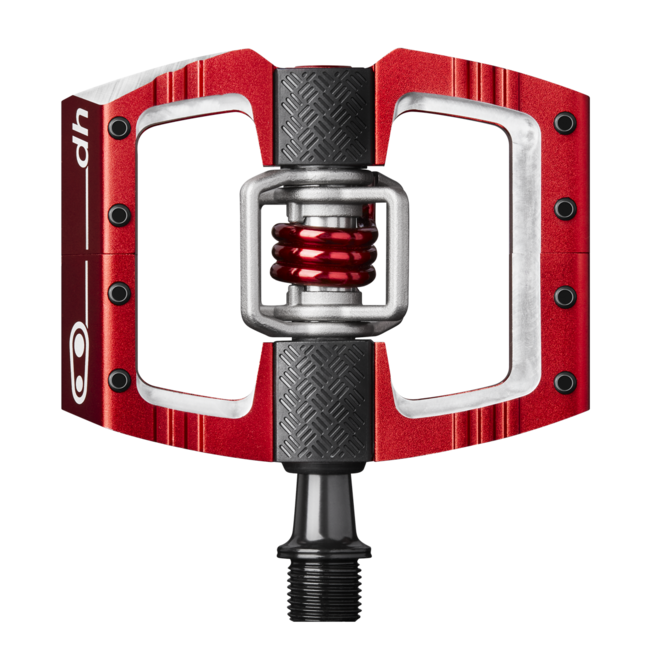

Pedal Race Red

The choice of DH world champions.

  • Ideal for Downhill
  • Concave platform for secure foothold
  • 8 adjustable pins per side for grip
  • Traction pad technology customizable interface
  • Ribbed body for better traction when unclipped
  • Chamfered edges to reduce rock-strikes
  • 57mm q-factor for stability at speed
  • 4-sided entry / superior mud shedding
  • Customizable float & release angle
  • Premium bearings & double seal system

Specs

Adjustable pins 8 per side
Body material 6061-T6 Aluminium
Cleats Premium brass cleats with shims included
Endcap Hex alloy
Inner bearing type Igus LL-glide bearing
Max rider weight No restriction
Outer bearing type Enduro MAX cartridge bearing
Q-factor 57mm
Release angle 15° / 20°
Spindle material Forged scm 435 chromoly steel
Spring material 300 series stainless steel
Warranty 5 years
Weight 479g per pair
Wing material 17-4PH stainless
