Crankbrothers Mallet Trail Pedals

RRP $389.90

Available Online
In Store call for Availability

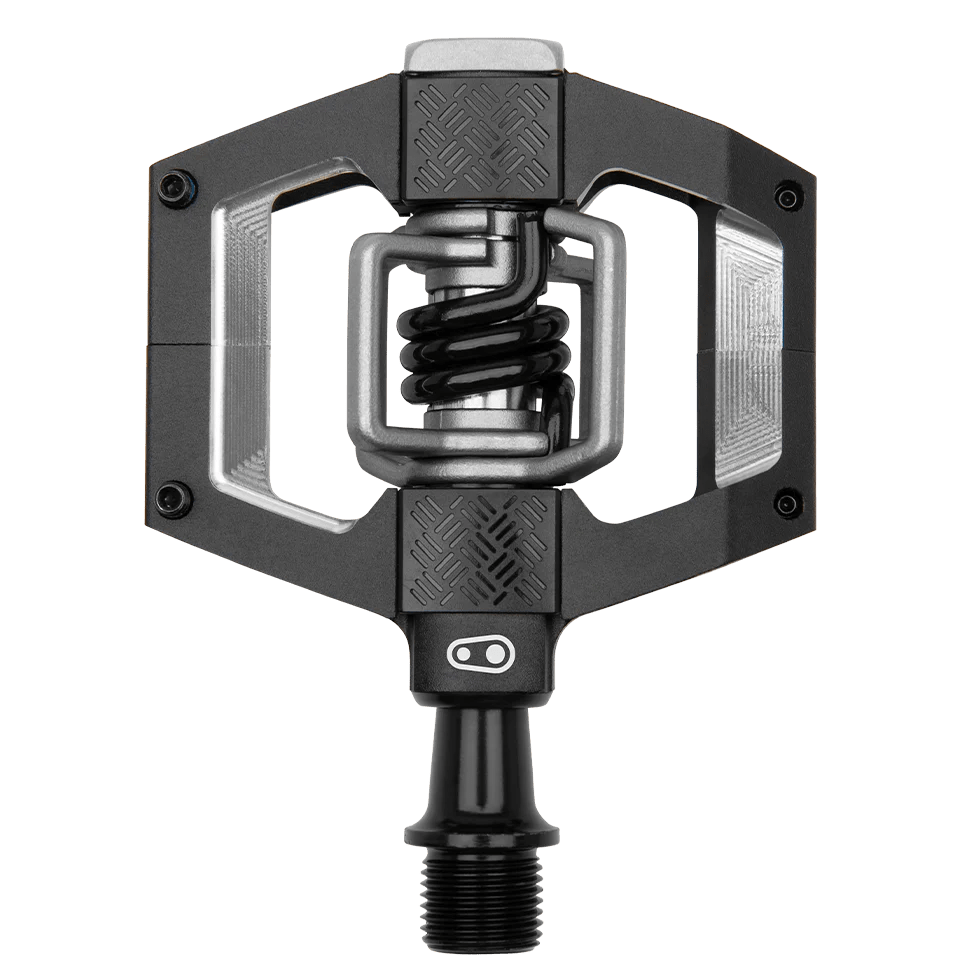

Pedal Long Spindle Black

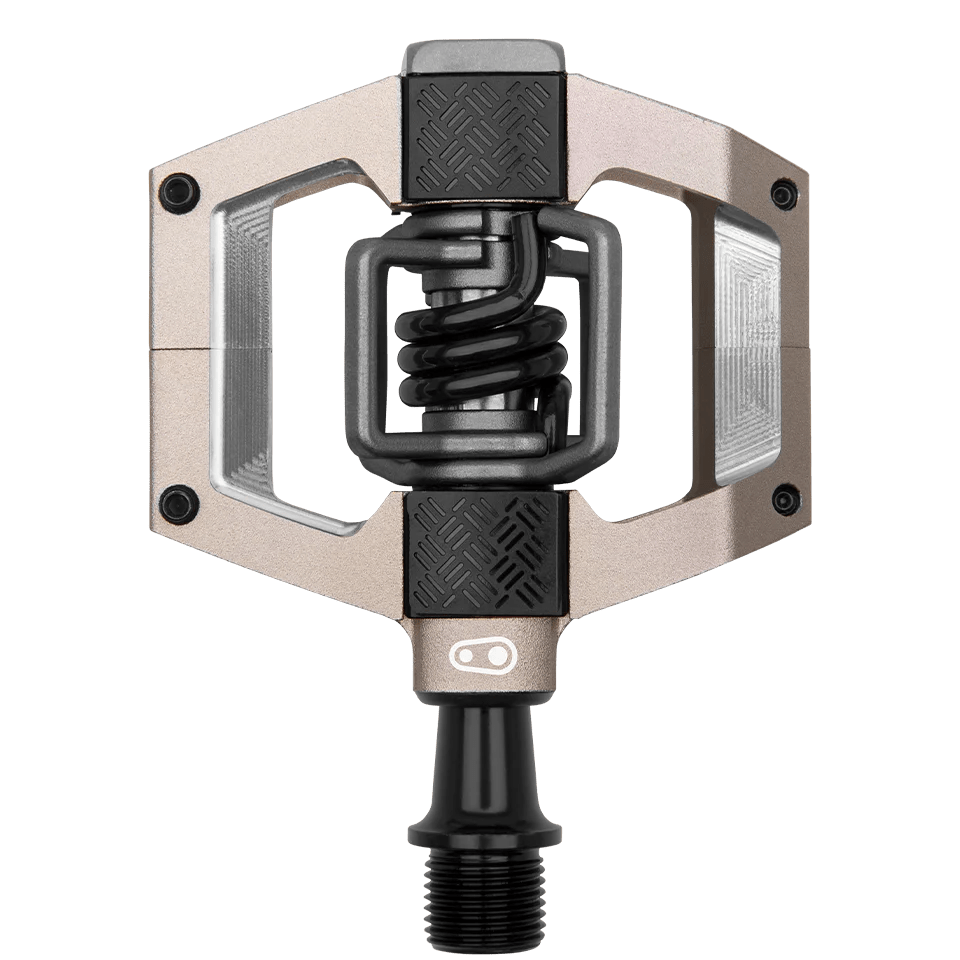

Pedal Long Spindle Champagne
Pedal Long Spindle Purple

Full suspension or entirely rigid, upon a mountain top or deep in the woods, it’s up to you to define your trail. Our new Mallet Trail pedal fills the missing piece in our clip-in range, sitting perfectly between our Candy and Mallet E pedals. Equipped with a long spindle for stability and speed, two adjustable pins per side for added traction, and our eggbeater system with 4-sided entry and superior mud shedding, the Mallet Trail is ready to join you on your next adventure.

  • Optimized platform size and surface for trail/gravel riding
  • Long spindle, 57mm q-factor for more shoe clearance and stability at speed
  • Integrated traction pad technology to customize and optimize the shoe/pedal interface
  • 2 adjustable pins per side for grip
  • Hex alloy endcap for durability
  • 4-sided entry / superior mud shedding
  • Customizable float & release angle
BODY MATERIAL 6061-T6 Aluminum
BODY DIMS (L X W) 78mm x 74mm
WING MATERIAL 17-4PH Stainless
SPINDLE LENGTH 57mm
ADJUSTABLE PINS 2 per side
INNER BEARING TYPE Igus LL-glide bearing
OUTER BEARING TYPE Enduro MAX cartridge bearing
ENDCAP Hex alloy
SPINDLE MATERIAL Forged SCM 435 Chromoly Steel
SPRING MATERIAL 300 series stainless steel
MAX RIDER WEIGHT No restriction
WEIGHT 344g per pair
INCLUDED CLEAT TYPE 15° / 20° Standard Release, 6° Float
CLEAT NOTICE Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
WARRANTY 5 years
