TRP - DH-R EVO GOLD (HD-M846)

The question TRP asked themselves was this: How do we adapt our braking performance and power to the new standard of World-Cup level downhill racing?

The result was a completely re-designed DH-R: the new DH-R EVO. A new ergonomic lever-blade, newly formulated brake pad compounds, new high-performance hydraulic oil, new 5 mm brake hose-system, newly designed and CNC-machined adapters, new selection of 2.3 rotors, newly designed oil flow inside the callipers, new hydraulic leverage ratio, and a smaller size master cylinder piston lift the overall performance of the DH-R EVO to this new standard of racing.

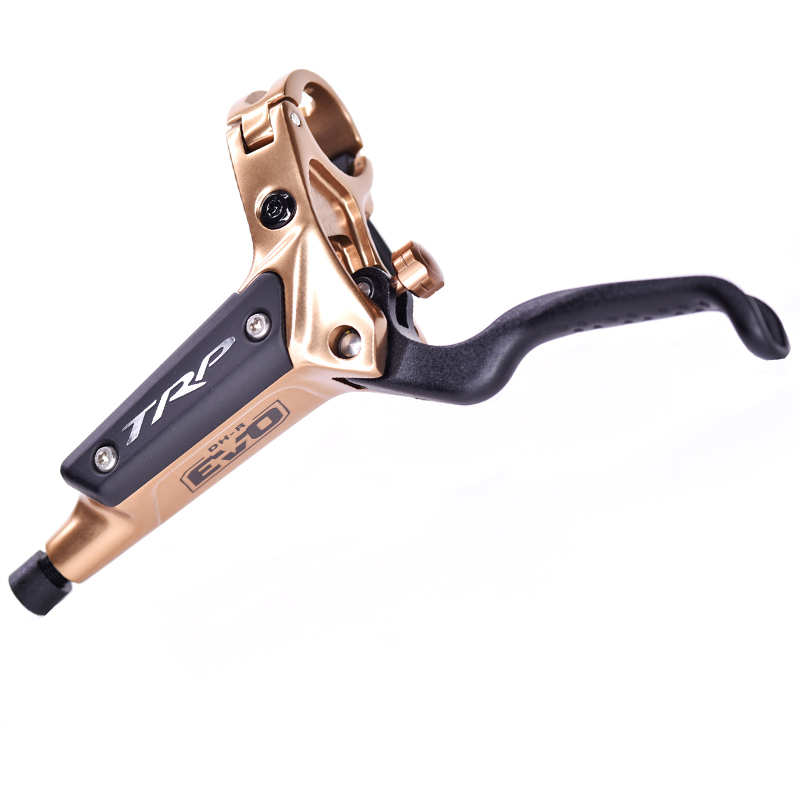

Lever:

• Forged, CNC machined and polished lever body
• Ergonomic lever blade
• Dimpled accents for better grip on the trail
• Advanced 9mm internal brake lever piston
• Adjustable lever reach
• Alloy master cylinder cap
• Hinged lever clamp

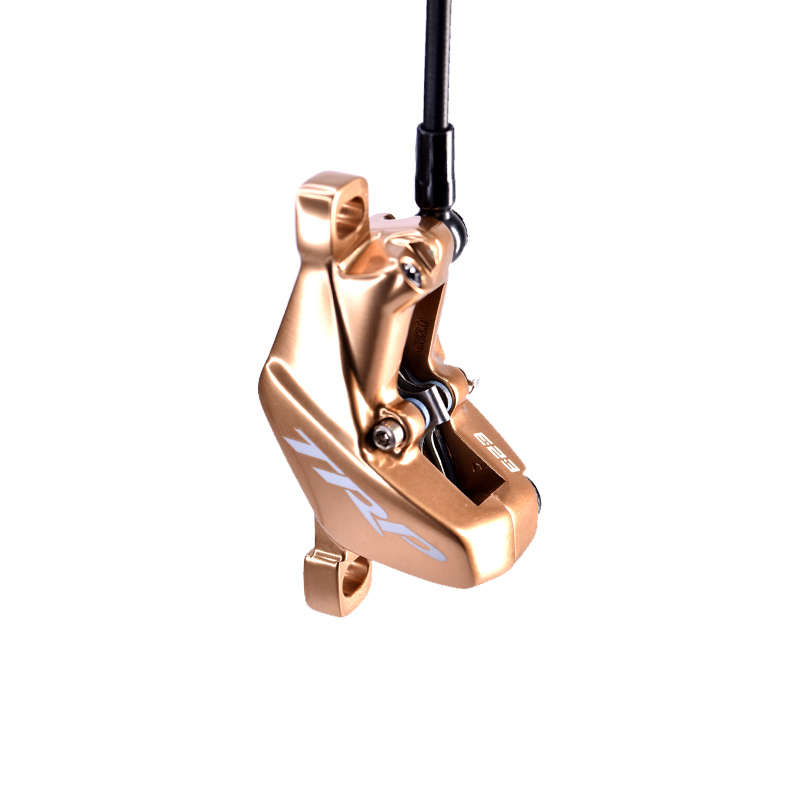

Calliper:

• Forged, CNC machined and polished calliper
• New high flow design
• Hybrid pistons
• High performance resin pad compound
• CNC machined and marked adapters

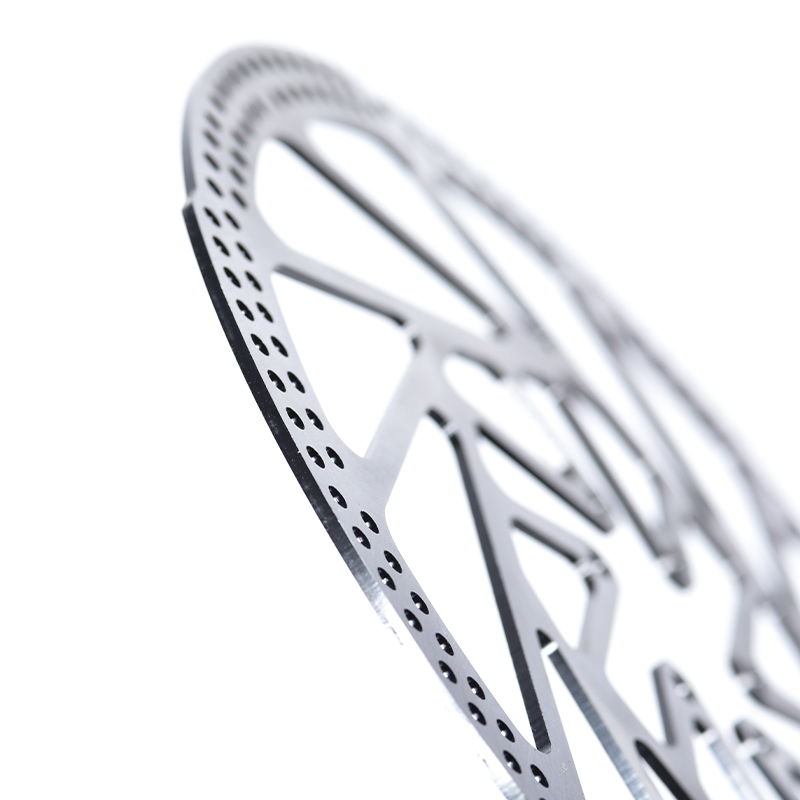

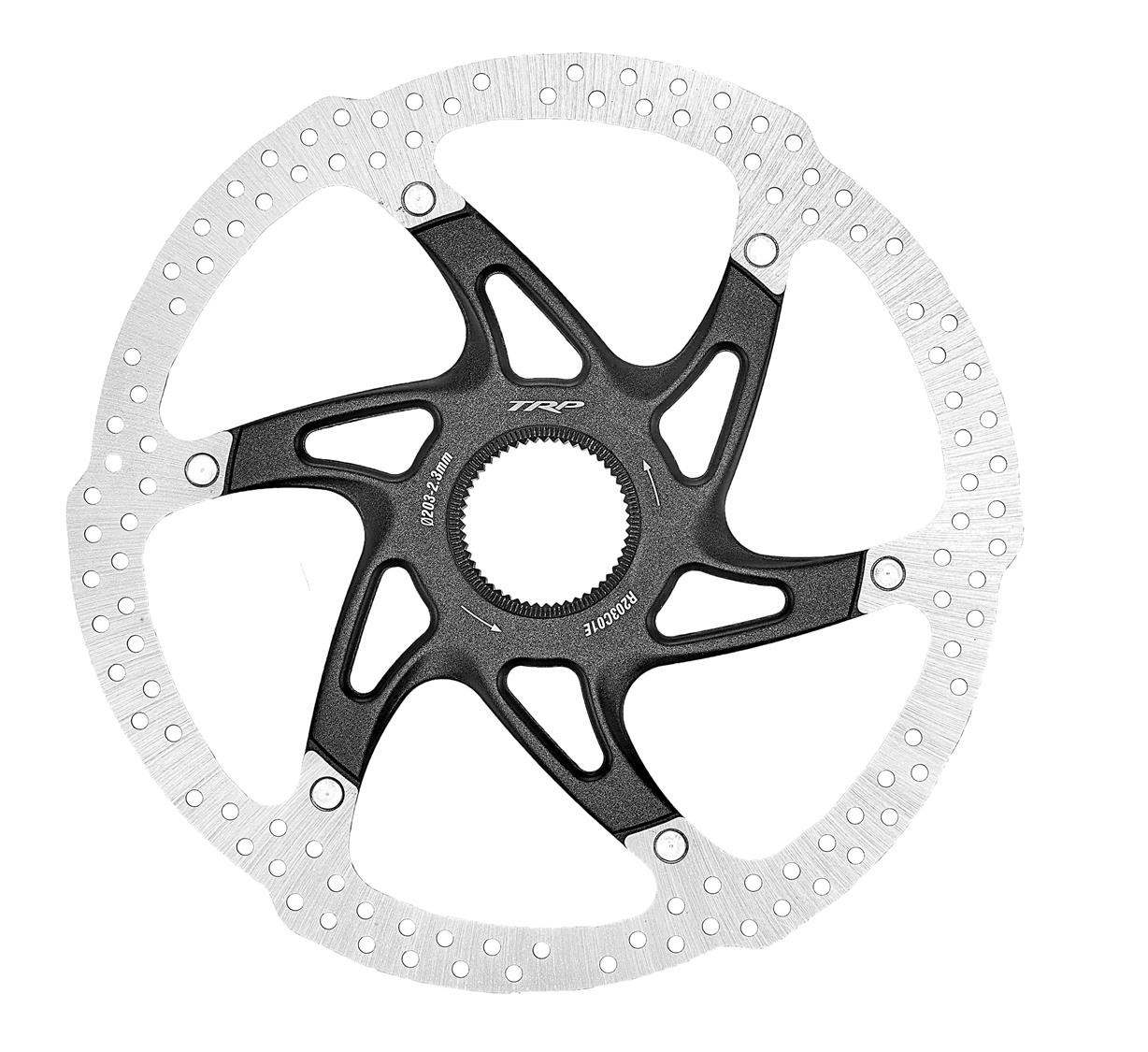

Rotor:

• 2.3mm thick rotors
• Compatible with 223/220/203/180/160/140mm rotors

System:

• 5mm hydraulic brake hose
• High performance hydraulic brake fluid
• Weight: 310 grams (Front without rotor and adapter)
