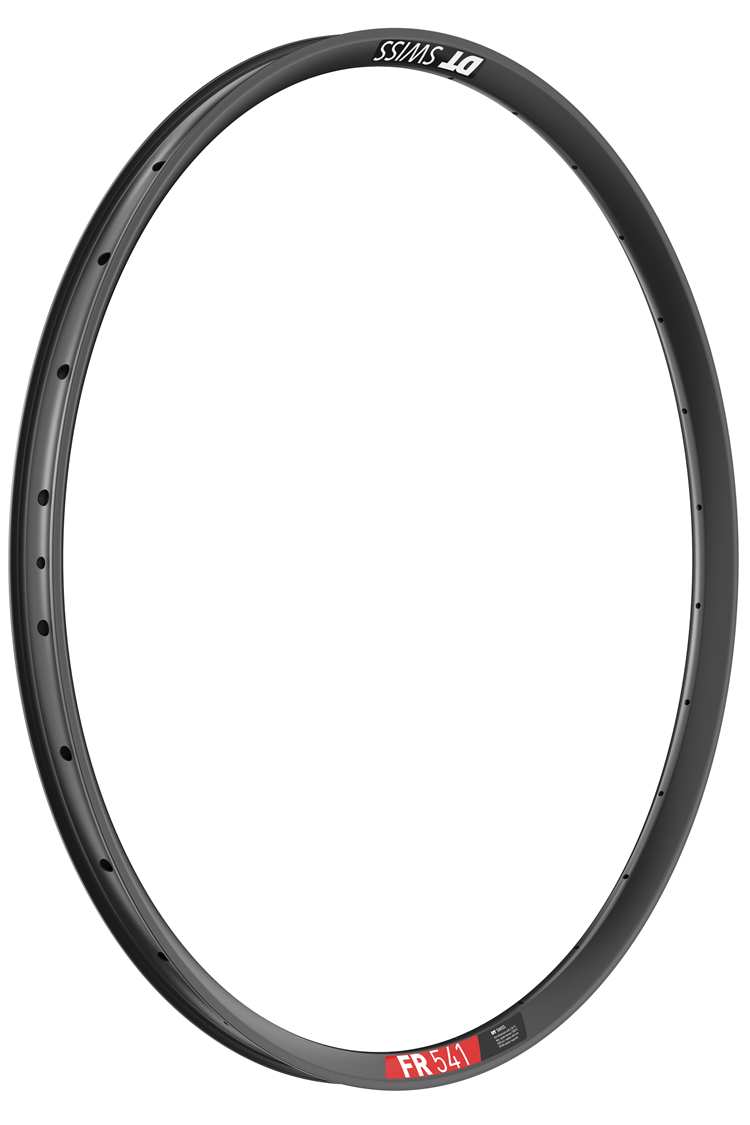

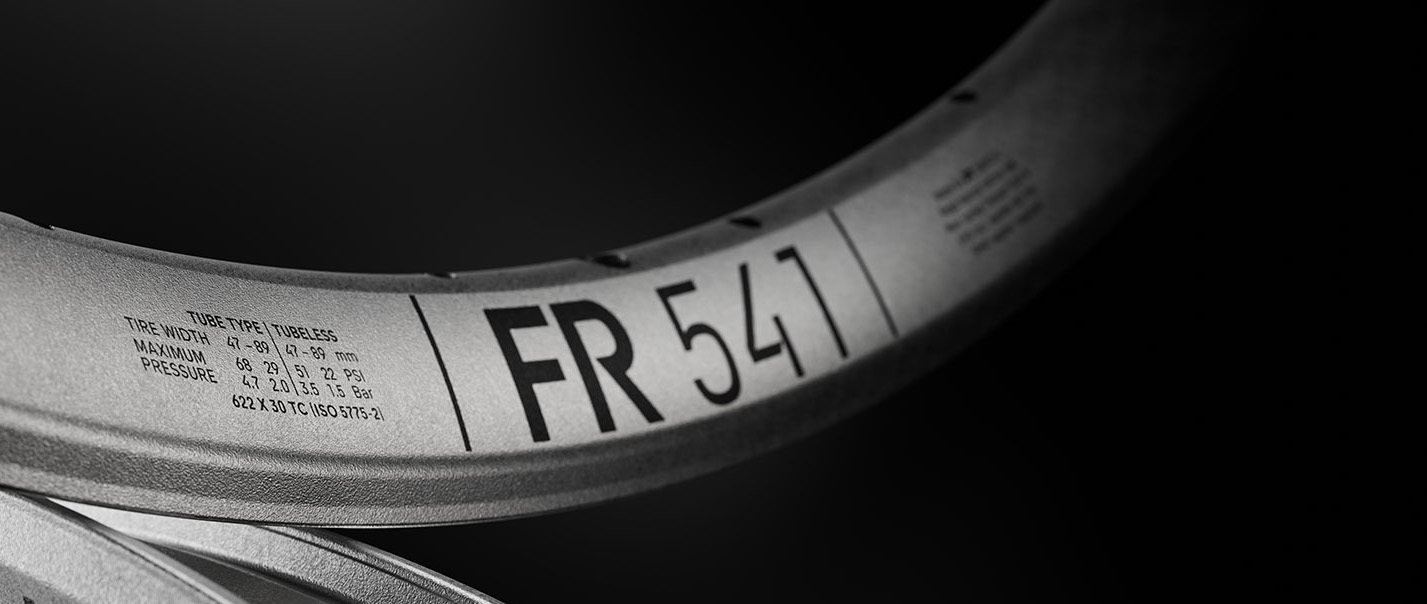

DT Swiss - FR 541 27.5" Rims

$249.00 SAVE $30.90

Available Online
In Store call for Availability


RIM 27.5" 30mm ID 28h (Inc Black Squorx Nipples/PHR Washers)
RIM 27.5" 30mm ID 32h (Inc Black Squorx Nipples/PHR Washers)

DT SWISS - FR 541 27.5" RIMS

The FR 541 aspires to end your search for the best rim. Its design enables improved impact resistance and a better pinch flat protection on previous models, to fit each rider's style and lines as well as give a trusty ride on rougher tracks. The reduced rim weight ensures riders can gain altitude without too much effort. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.

  • Improved pinch flat protection: Tests conducted with a leading tyre supplier showed a 17% increase in pinch flat resistance compared to the previous FR 560 rim
  • Spoke holes: 28 / 32
  • Rim joint: Welded, the most resistant joining method of the DT Swiss aluminium portfolio
  • PHR system increases the load-bearing surface of the nipples on the rim and reduces localized stresses

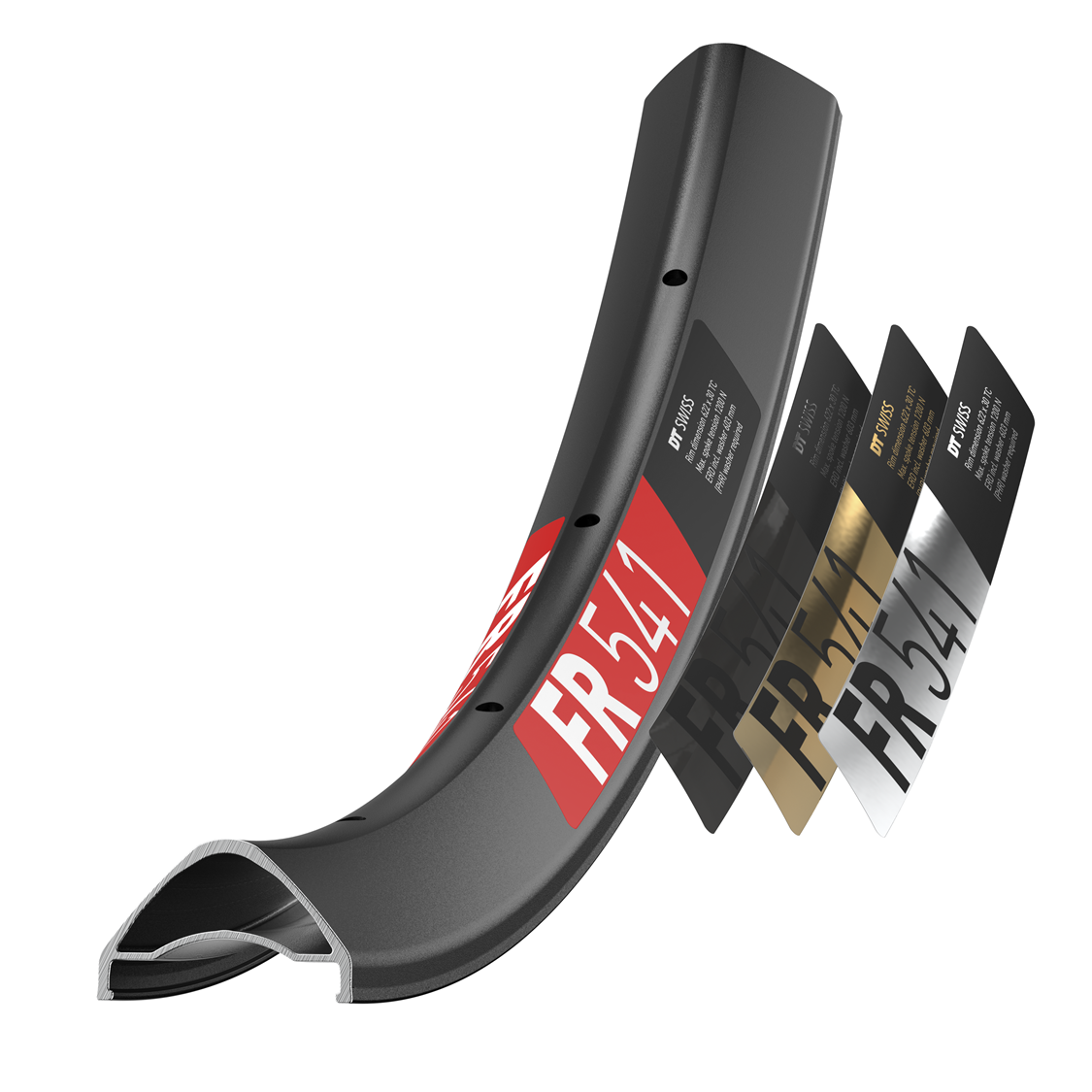

  • Comes with three additional stickers for personalization
  • Rim diameter: 27.5" / 650B
  • Material: Aluminium
  • Tyre interface: Hooked / Crotchet tubeless TC
  • Inner width: 30mm
  • ASTM classification: 5
  • Recommended max. system weight: 140 kg
  • Weight: 570 grams
